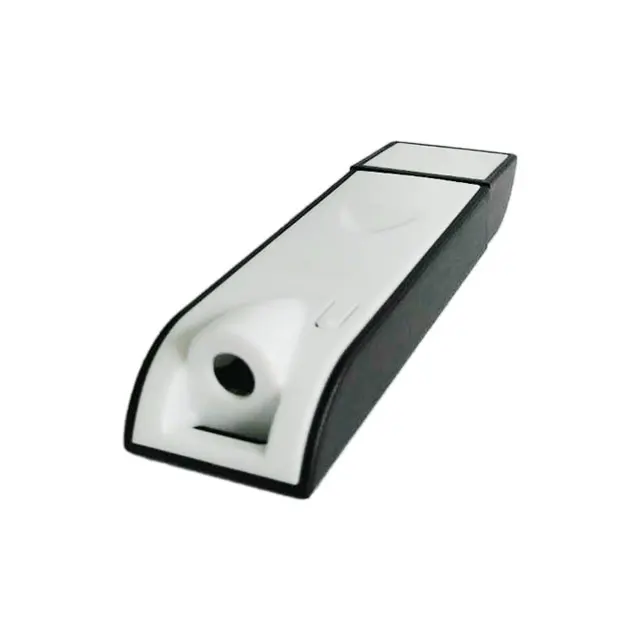

Portable Customization Zigbee Coordinator USB Dongle

Product Overview

Description

Portable Customization Zigbee Coordinator USB Dongle

SPECIFICATION

Working Voltage and Power: DC 5V  200mA

Rated Power: 0.5W

Frequency:2405M~2480MHZ

Protocol: ZigBee HA

Accessible Communicate Distance:200m

Accessible Networking Distance:100m

Receiving Sensibility:-97dBm

Working Temperature Range:-25~+70℃

Maximum Transmitted Power:20dBm

Dimension:90mm*26mm*12mm



 OPERATION



1. Insert gateway into USB connector.

2. Open ZLL TEST software(Please ask salesman or after-sales to send you software), search for gateway, then connect.

3. Network device :

      A.Click “obtain gateway info.” in gateway information column, then click “allow to connect” ,

     B.Press OK button on the gateway until it flashes red,blue and green color, and wait for 10 seconds till        gateway LED indicator turns to blue,which means allowing to network.



      4.If you need to set this product to factory module, click “restore all data”



ANNOUNCEMENTS

1 It is a wireless communication product. Please don’t put it in metal box while working in case of signal being shielded.

2. Operating ambient temperature should be -35℃ to 70℃

3.Avoid chemical or flammable gas, saturate salt mist , long time high-humidity and other abnormal environment.

4. It should be installed in the place with no snow and rain. And the medium for it shouldn’t be glutted with gas and dirt which can corrode metal and isolation parts, as well as exploding danger.





 WARRANTY

This product is under maintenance for free in one year, except the damage by improper use.

The following situations are beyond the scope of free warranty.

a.Taken apart and maintained by unauthorized maintenance center.

b.Damage by flood,fire,thundering and other natural disasters.

c.Damage by extrusion,watering,dampness or other artificial damage.

d.Broken down by using the product not according to the user manual.
