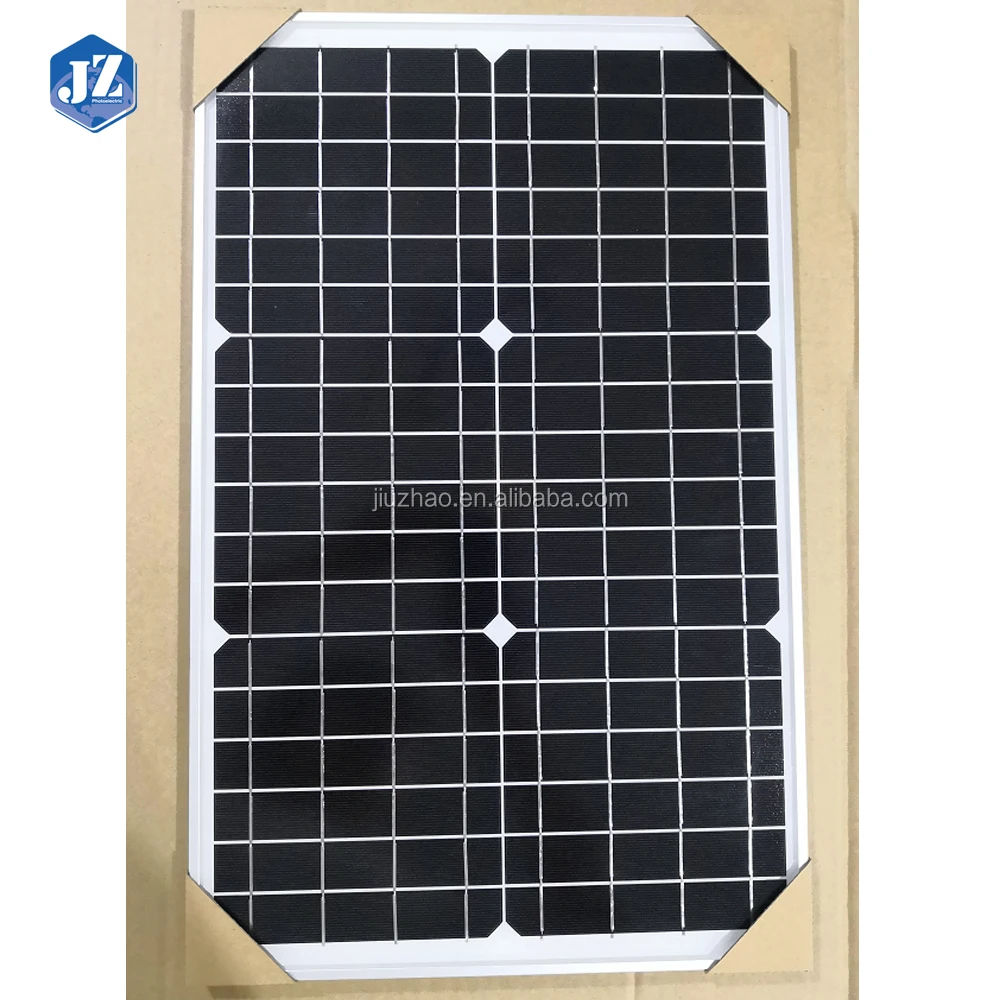

Wholesale 30W 24V Monocrystalline Silicon High Efficiency PV Panel for E bike

Model

JZ-30M-24

Peak power Pm(W)

30±3%

Open circuit voltage Voc(V)

43.2

Max. power voltage Vmp(V)

36.0

Max. power current Imp(A)

0.83

Short circuit current Isc(A)

0.89

Solar cells Efficiency

21.3%

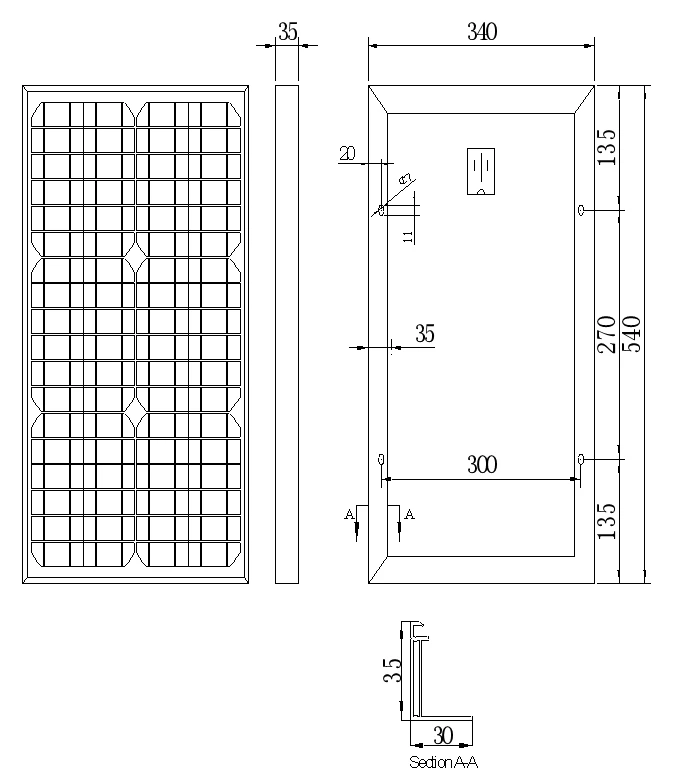

Dimensions(L*W*T)/ Weight(kgs)

540*340*35mm/2.2kgs

solar cell / No. of cells and connections

Mono crystalline silicon 78*26*0.19mm/72 series

Front cover(material/thickness)

Low-iron temperd glass/3.2mm

Encapsulant(material)

Ethylene vinyl acetate(EVA)

Frame(material/collor)

Anodized aluminum alloy/silver

Junction box

702

Cable /Cable connector Model

2*0.5mm

STC

Irradiance:1000W/square meter,Cell temperature:25℃,AM:1.5

Max. static load ,front(e. g .,snow/wind)

5400Pa

Max. static load ,back(e. g .,wind)

2400Pa

Max. hailstone impact (diameter/velocity)

25mm/ 23m/s

Max. system voltage (V)

1000V DC

Application Class

Class A

NOCT

48±2℃

Operating temperature limits

-40℃- +85℃

Coefficient current TK

0.1%/℃

Coefficient voltage TK

-0.37%/℃

Coefficient power  TK

-0.45%/℃

Life

≥25 years

Warranty

10 years,Pm≥90% in 10 years, Pm≥80% in 25 years

Product Certification / Standard

TUV,CE,ROHS,FCC,PSE/(IEC61215&IEC61730)

Other Certification

ISO 9001:2008

Solar cell origin

China Taiwan
