Henan Yuantai 2ton jib crane
Product Description

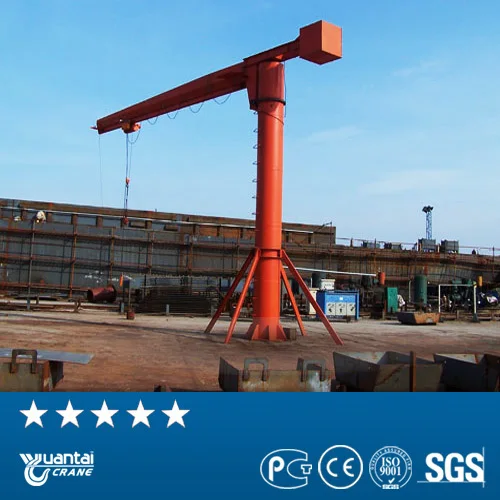

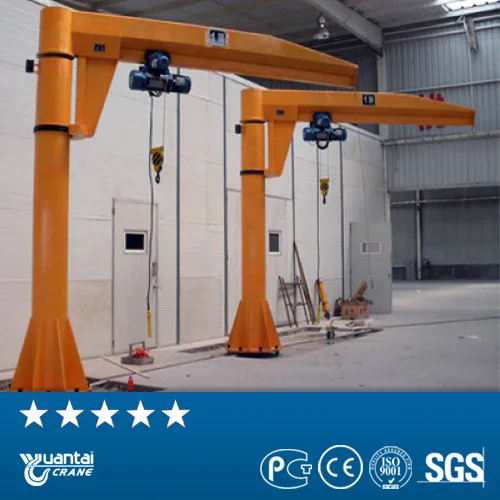

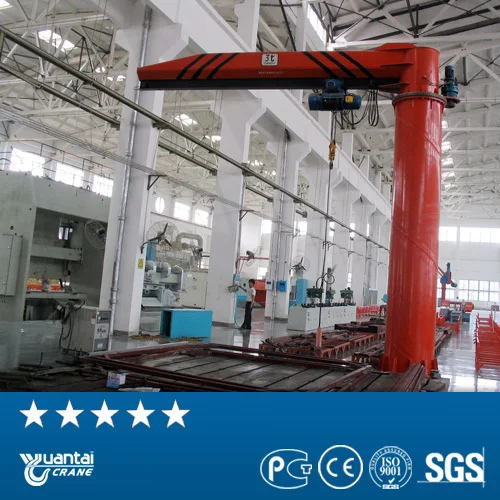

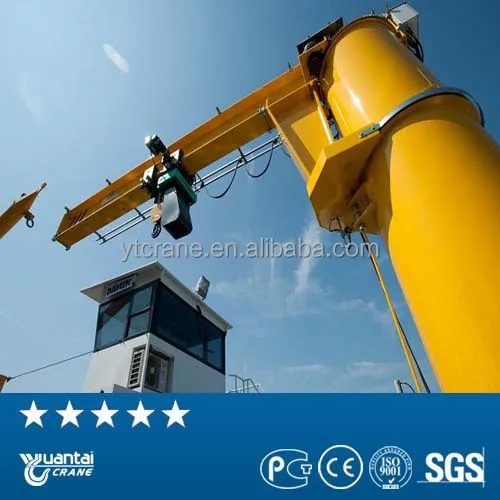

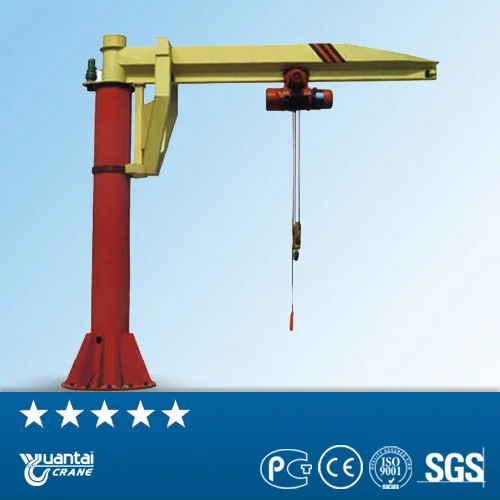

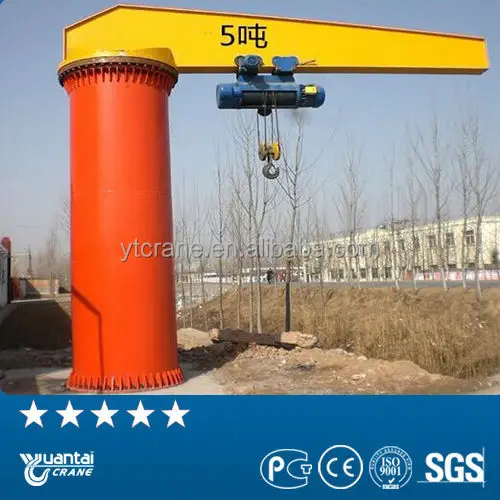

Henan Yuantai 2ton jib crane
Developing in recent years,the jib crane is a set of middle or small type equipment for lifting.
Its structure is unique,it possesses such characteristics as high efficiency,energy saving,effert-saving,time-saving,and smart.Operating arbitrarily in three-dimensional space mkes it show much greater superiority than other conventional equipments for lifting in short-distance and dense lifting occasion.It is widely used in in workshops, warehouses, docks and other fixed place.
Henan Yuantai 2ton jib crane
1. The electric power of the crane is three-phase AC,rated frequency is 50HZ,rated voltage is 380V.
2. The altitude of the crane installation is less than 2000m
3. it is strictly forbid to use in such environment such as Inflammable,explosive and corrosive gas
4. Strictly forbid the common crane to lift such things as Molten metal, toxic substances and flammable and explosive substances
Parameters:
BZ Type arm crane jib | 0.25t | 0.5t | 1t | 2t | 5t | |||||||||
Lifting height | m | 5 | 5.5 | 6 | 5 | 5.5 | 6 | 4 | 4.5 | 5 | 4.5 | 5 | 4.5 | 5 |
effective radius | m | 4 | 4.5 | 5 | 4 | 4.5 | 5 | 4 | 4.5 | 5 | 5 | 5.5 | 5 | 5.5 |
Lifting speed | m/min | 8 | 8 | 8 | 8 | 8 | ||||||||
Rotating speed | r/min | 0.7 | 0.7 | 0.7 | 0.5~1 | 0.5~1 | ||||||||
Travelling speed | m/min | 20 | 20 | 20 | 20 | 20 | ||||||||
rotation angel | ° | 180°,270°,360°,arbitrarily | 180°,270°,360°,arbitrarily | 180°,270°,360°,arbitrarily | 180°,270°,360°,arbitrarily | 180°,270°,360°,arbitrarily | ||||||||
Crane body height | m | 5.93 | 6.43 | 6.93 | 5.987 | 6.487 | 6.987 | 5.28 | 6.78 | 6.28 | 6.254 | 6.754 | 6.522 | 7.022 |
Max lenth | m | 4.59 | 5.09 | 5.59 | 4.61 | 5.11 | 5.61 | 4.626 | 5.126 | 5.626 | 6.32 | 6.82 | 5.94 | 6.44 |
Self Weight | kg | 1733 | 1933 | 2028 | 1860 | 1960 | 2229 | 2478 | 2613 | 2748 | 3577 | 3742 | 4224 | 4430 |

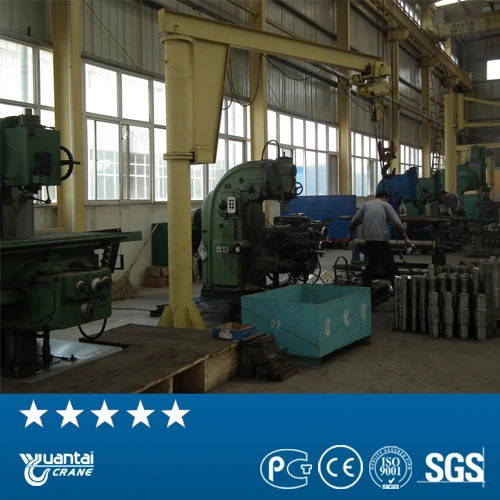

Processing Equipment
Packaging & Shipping
1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying;
2. Main beams, end beams and electric hoist are packed by plastic woven cloth. It can reduce abrasion when transport.
Company information
Yuantai Crane Machinery is professional logistics handling products exporter, with long history trading time having rich technical experience. We are located in Changyuan--- the crane's hometown, have passed the ISO9001 quality system certification, ISO14001 environmental management system certification and OHSAS18001 occupational health and safety management system certification of enterprise, and CE certification. our products are recommend by WTO. Yuantai always adhere to customers first,holding positive attitude to satisfy the customers' the demand.
Our partners
Certifications
We have past CE, ISO, SGS, GOST and so on
FAQ
1.Is your products cuztomized?
Thanks for your question, yes.because the working condition is different, all our products are cuztomized, depending on the detail require, so if you give us more information, the accurate solution we can prepare for you.
2.What the information should i provide when i am inquiry?
Thanks for your question, the more information you provide, the accurate solution prepare for you! The information such as lifting height, lifting capacity, span, power source or other specials you provide will be much apprciated.
3.How many operation methods for my selction?
Thanks for question. The standard operation methods we provide is pendent controller with push buttons, meanwhile,we also can provide remote control with push buttons or the cabin.
4.The space of my workshop is limited, can the crane ok for me?
Thanks for your question. For low headroom workshop, we have special products. The details demension our engineer will be design for you.
5.Do your side can provide lifting tools?
Thanks for your question. Yes, we can provide any kind of lifting tools such as hook, electricmagnetic, grab...
NOTICE:
As this kind of crane is customized, in order to offer you most suitable design and best solution, please confirm following information when you send inquiry.
1. Lifting capacity.
2. Span length.(rail center to rail center)
3. Lifting height.(hook center to ground)
4. Have you installed the rails? Do you need us supply the rails? How long is it?
5. Power supply: Voltage.
6. Working condition: which material to lift? temprature?
7. Would be better if you have drawings of your plant.
Come to us! The best installation team is ready for you!
