Product Overview
Description
Description

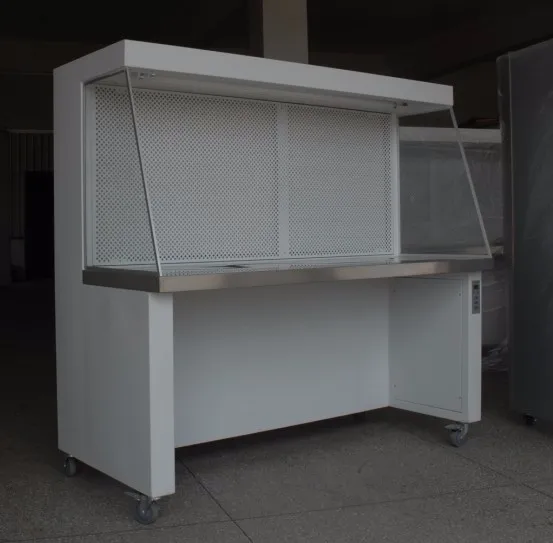

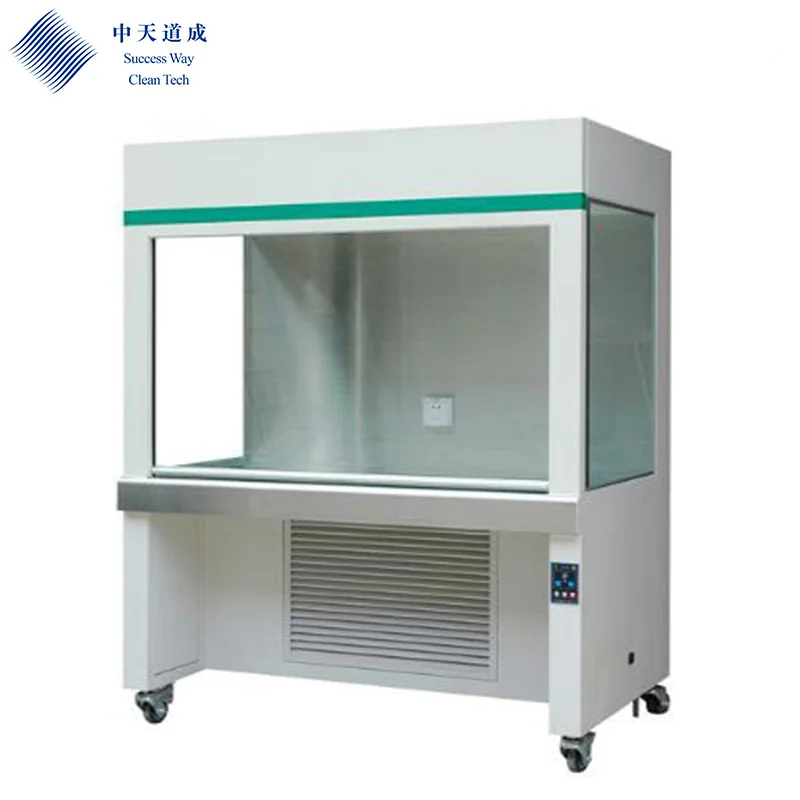

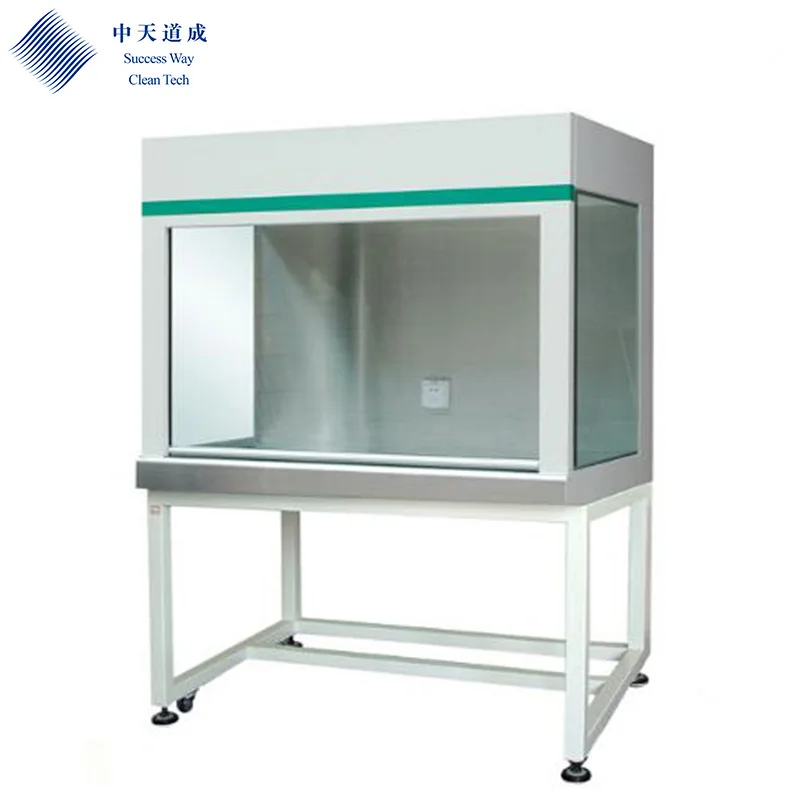

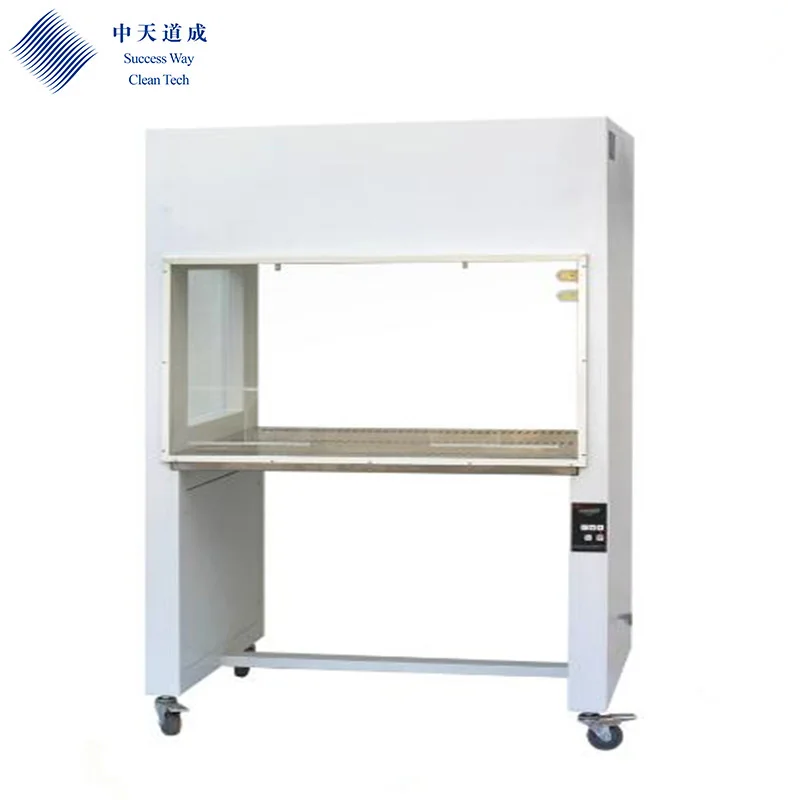

ISO Class 5 Laminar Flow Hood

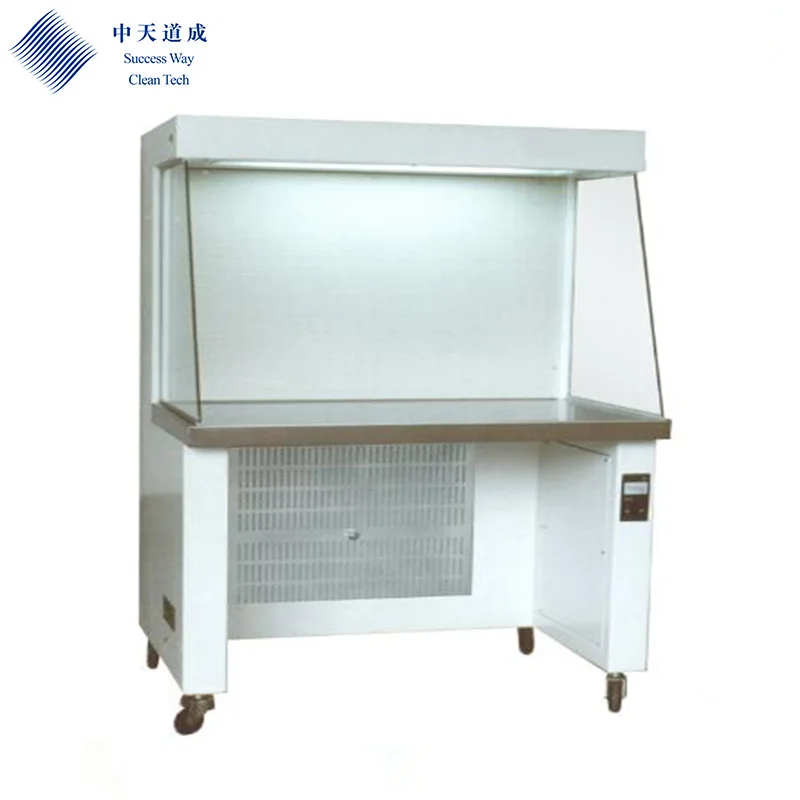

CB-H

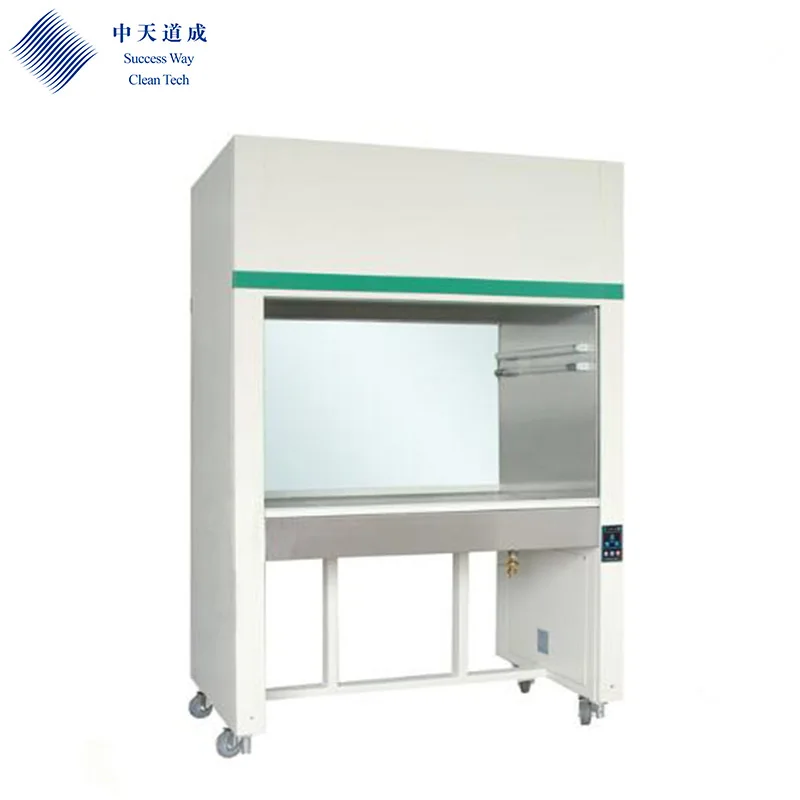

CB-V
CB-S
1.Push-button control panel,easy to operate;
3.Stainless steel work table,easy to clean;
2.Three-gear air velocity,uniform and adjustable;
4.UV lamp,effectively kill microorganism,etc.
Parameter List | ||||||||||||
Model | CB-H | CB-V | CB-S | |||||||||
Flow Type | Horizontal Laminar Flow from Bottom | Vertical Laminar Flow from Bottom | Vertical Laminar Flow from Top | |||||||||
Cleanliness | ISO 5(Class 100) | |||||||||||
Air Velocity | 0.25~0.45m/s(Adjustable) | |||||||||||
Noise | ≤62dB（A） | |||||||||||
Illuminance | ≥300Lx | |||||||||||
Power Supply | AC220V,Single Phase,50Hz(Customized if required) | |||||||||||
Rated Power | 250W | 500W | 250W | 500W | 400W | 800W | ||||||
External Dimension (WxDxH) | 900*700* 1450mm | 1760*700* 1450mm | 840*825* 1625mm | 1300*825* 1775mm | 1035*735*1560mm | 1500*735* 1560mm | ||||||
Working Area Dimension (WxDxH) | 820*480* 600mm | 1680*480* 600mm | 680*650* 570mm | 1140*650* 720mm | 815*700* 500mm | 1340*700* 500mm | ||||||
HEPA Specification | 820*600* 50mm*1 | 820*600* 50mm*2 | 610*610* 50mm*1 | 610*610* 50mm*2 | 600*600* 70mm*1 | 600*600* 70mm*2 | ||||||
Depositing Bacterial Concentration | ≤0.5cfu/vessel.0.5h | |||||||||||
Applied Person and Side | Single-person and single-side | Double-person and single-side | Single-person and single-side | Double-person and single-side | Single-person and single-side | Double-person and single-side | ||||||

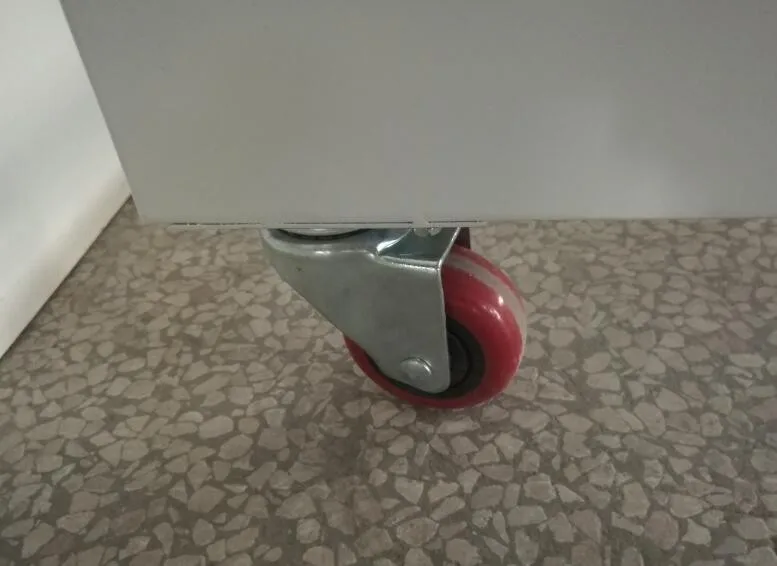

Control Panel Lighting&UV Lamp Air Outlet Universal Wheel
-Meet with CE standard;
-Widely used in laboratory,etc.
-Germany EBM fan;
-Energy saving≥40%.
-H14 filter,≥99.995%@0.3um; -2~3 years' service life.
English User's Manual
Test before Delivery
Package with Company Logo
Laminar flow hood is customized according to actual requirement.

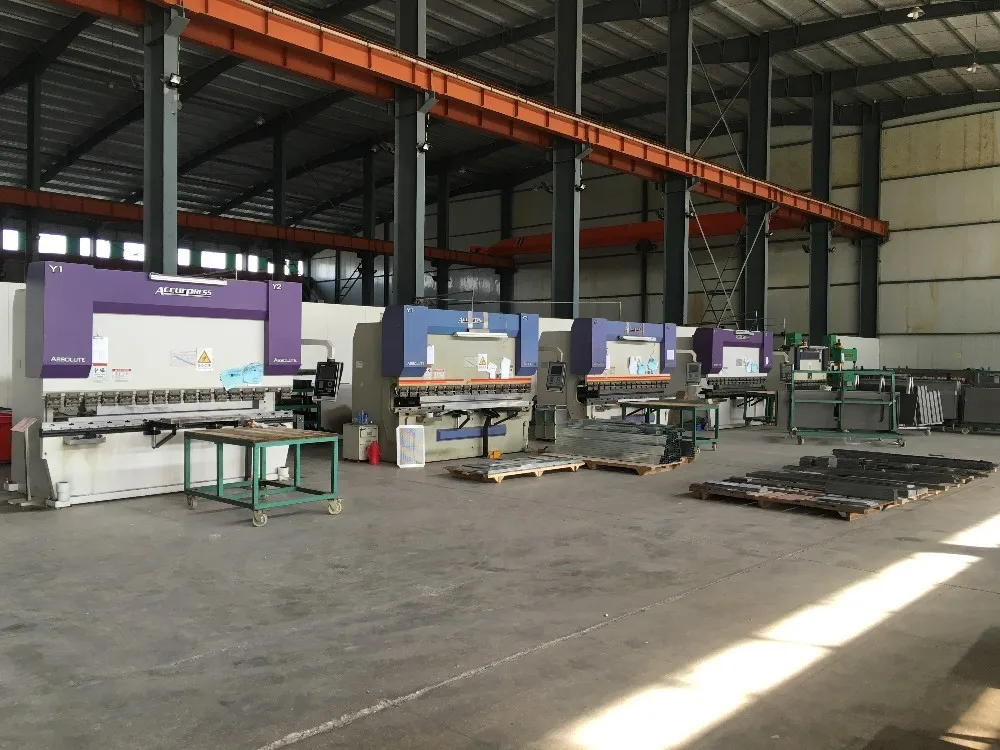

Bending machine is used to sequentially fold steel plate.
