Price:$1,510.00 - $1,610.00

Quantity:


Product Overview

Description



Product Description


Product Application

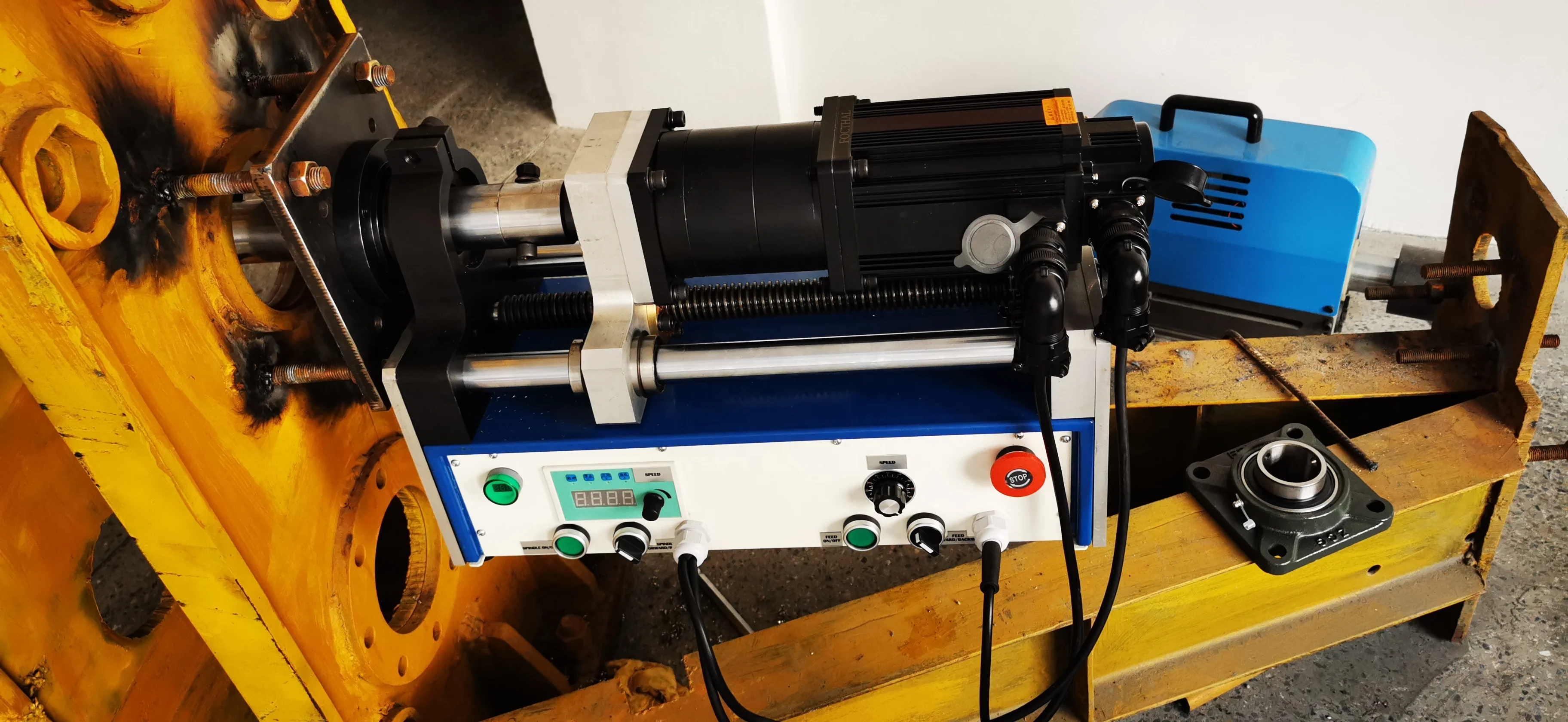

The Portable Boring can bore and weld the holes, the automated machine provides you with an affordable bore  machine. High quality bore technology is now available in a ruggedly constructed, highly portable and easily operation:



Light cutting portable boring
item
Unit
DBQ40
DBQ50
DBQ60
voltage
V
220V
220V
220V
Max.diameter of boring hole
mm
45-200
55-280
65-600
length of boring bar
mm
1500/2000
1500/2000/2500
1500/2000/2500
spindle movement
mm
290
290
400-500
Maximum turning amount
mm
2
2
3
driver system
——
Servo motor
Servo motor
Servo motor
Motor power
KW
1.8
1.8
2
The spindle speed
rpm/min
0-200
0-200
0-55
Feed amount
mm/rpm
6
6
6
The range of feed speed
mm/min
0--90
0-90
0-90
torque
N/M
61
76.4
105
The surface roughness
Ra
3.2
3.2
3.2
Boring roundness error
mm
0.02
0.02
0.04
The support structure
——
screw
screw
One-shaped support
/Tripod
The range of milling
mm（φ）
45-200
55-230
70-350/80-400






Main Features

1) The driver:1.5Kw Dc motor provide enough torque,ensure that cutting process powerful and stable.

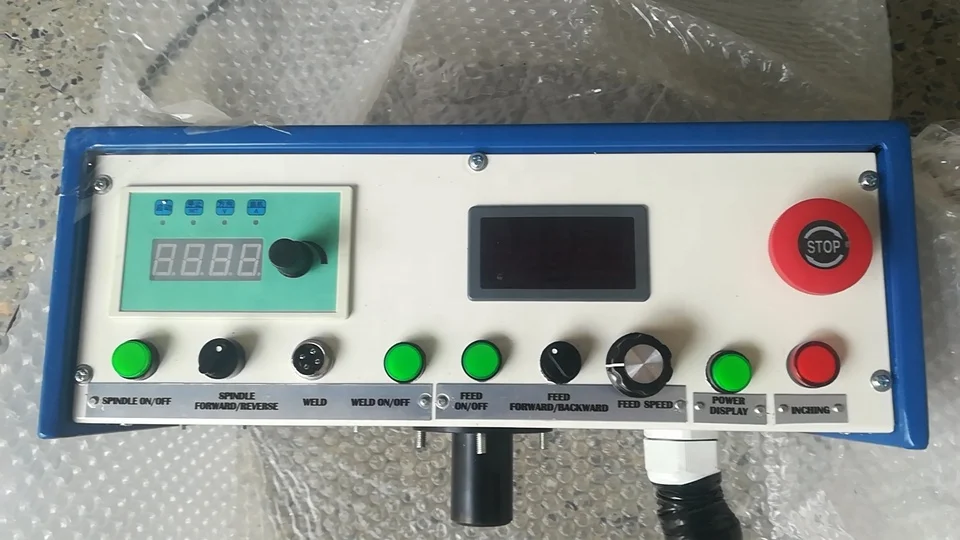

2) Feed forward and reverse can be achieved with a 90w motor in the electric control box.

3) Induction hardened boring bar has high wear resistance and good toughness properties.

4) You can fasten the tool holder anywhere along the boring bar.

5) Modular components make setup quick and easy.

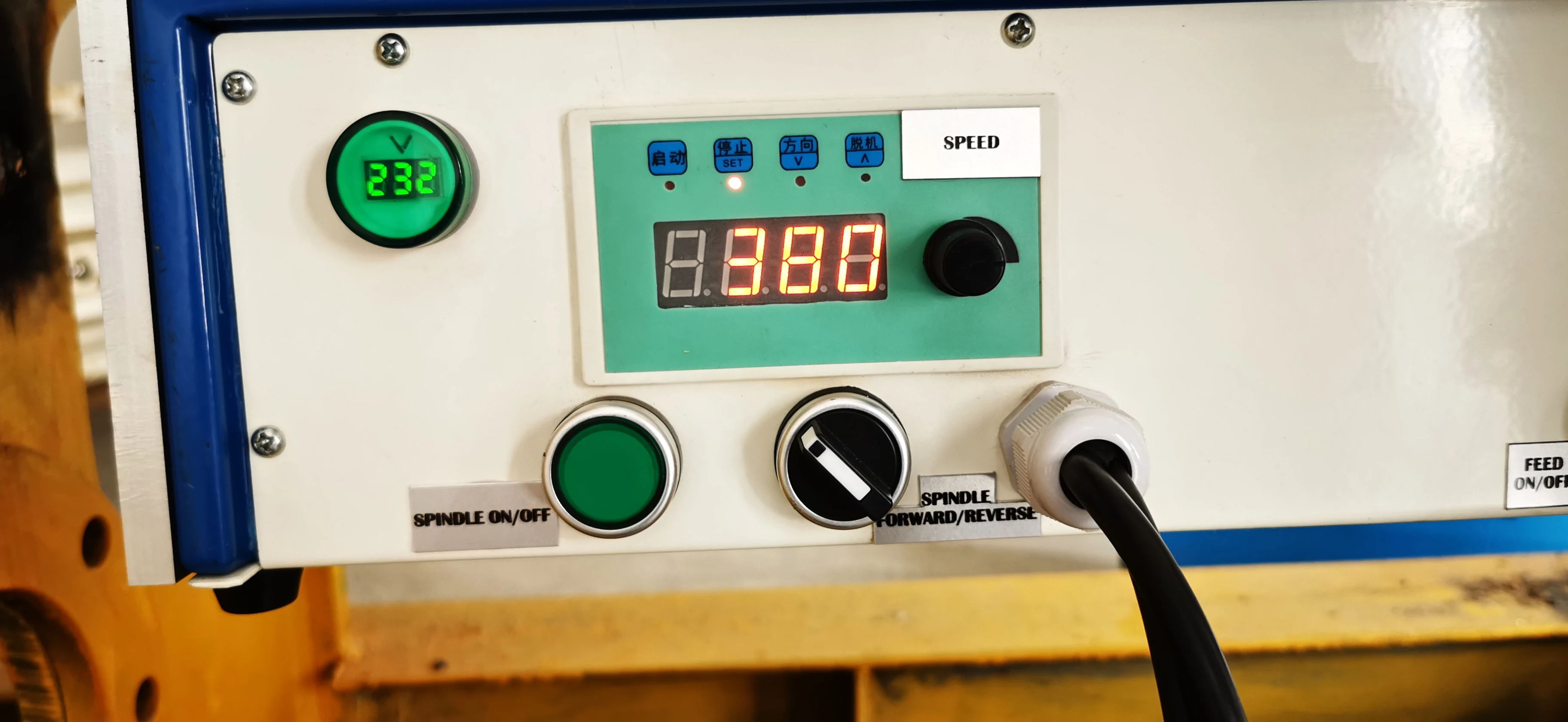

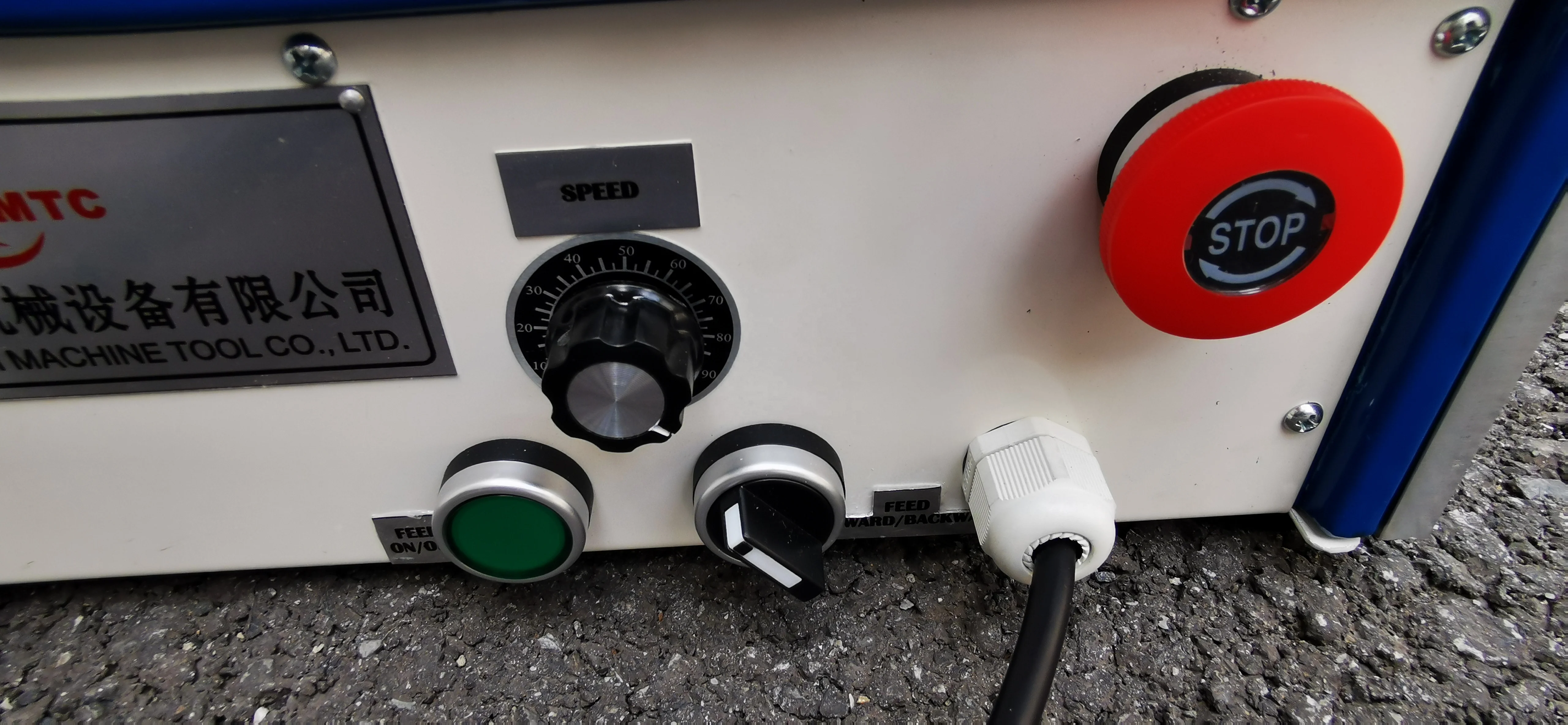

6) Motor controller has the function of delay stopping,so when you stop,the tool will not be demaged easily.

7) With the powerful facing head,you can handle the facing jobs with ease.(Optional)

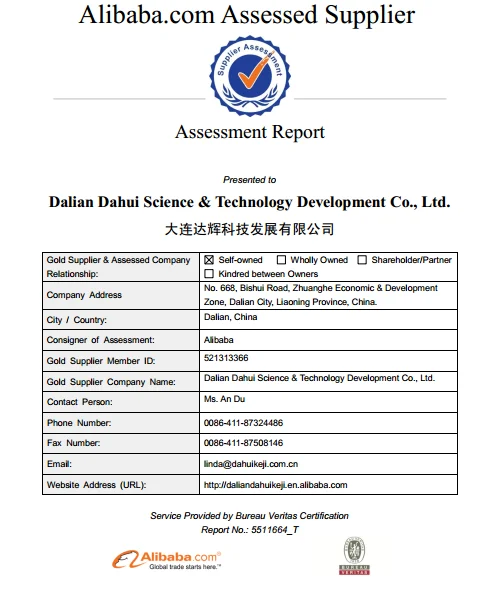

Certifications




Detailed Images

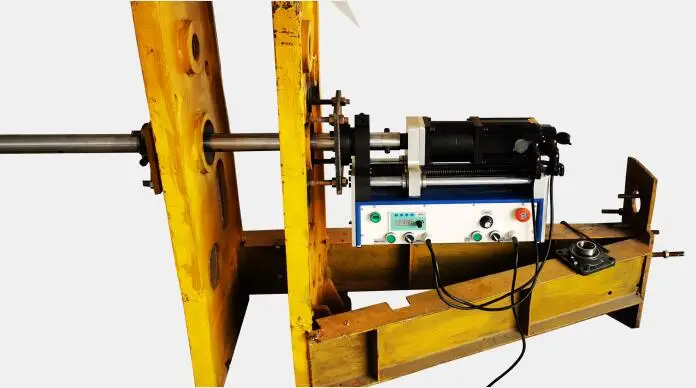

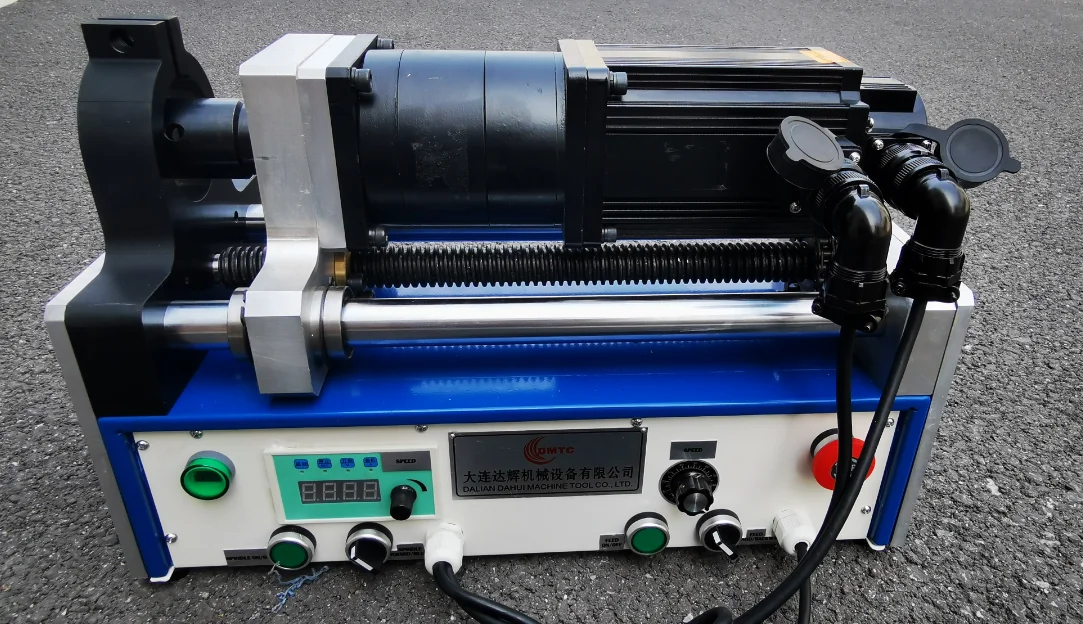

Machine pictures

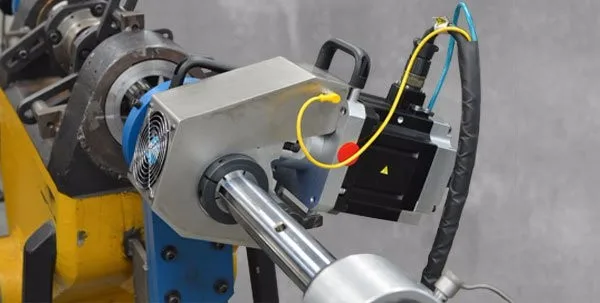

Name: DC powerful motor

Brand: Domestic brand

Original: China

Domestic famous brand, stong rigidity, high performance, high safe grade.



Main Features

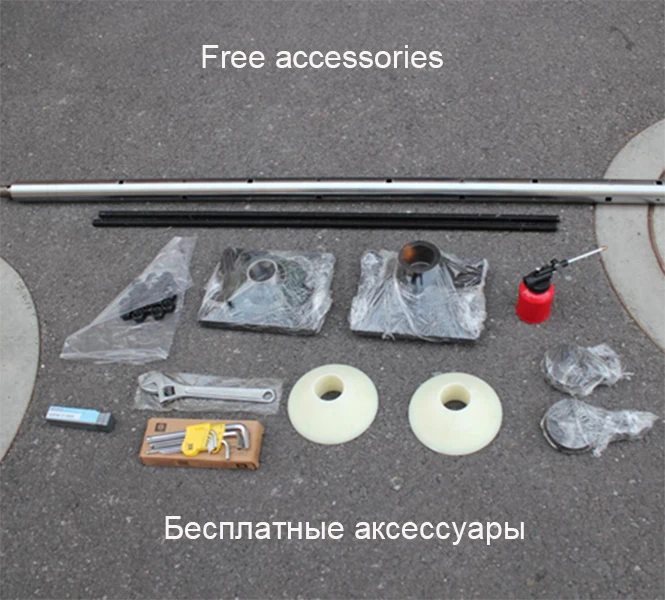

Name: Boring bar
Brand: Domestic brand
Original: China
Buyers will use the bar freely! Length also is optional according to customers, high precision surface will make fine holes.



Customer feedback:

Export year: 2016.06.10

Customer buy one set for his small factory, he needs do many small hols and no need very high precision. However, when he use he found it was far beyond his imagination, he give us a good thump!!!



Customer feedback:

Export year: 2016.12.10
Customer: Pakistan
Customer need a low price machine for his customer, this is also the first time for our cooperation and he worried alot, but our price and Pre-sale service let he made a decision. Now we got a feedback from him, he told us: His customer very happy and will order 3 sets on May, 2017!!!



Machines Picture




Packing & Delivery


Packaging
Size
Accoding to the length of the boring bar
Weight
According to the Bar Length



Packaging Details
For export to foreign countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.


Company Introduction


Dalian Dahui Machinery Equipment Co., Ltd. is a professional manufacturer and trading company engaged in the manufacturing and export of various types of machine tools such like: CNC Lathe Machine, Vertical Lathe Machine, Horizontal Lathe Machine, Boring Machine, Machining Center and their accessories. Since its establishment in 2009, its products have been exported to more than 20 countries and regions, including Italy, Sweden, Turkey, Russia, Saudi Arabia, the United Arab Emirates, Australia, and Mexico. With reliable product quality and meticulous after-sales service, it has won customers' trust and praise.




Our Services & Strength
Our service:
DMTC provides 7x24-hour online pre-sale service, engineer follow-up order service, and logistics operation service.
With years of understanding of various markets, engineers who have toured various countries for a long time provide installation services. In addition, we can help customers successfully complete a series of services such as import clearance, thereby reducing customer costs in all aspects.

Our advantage:
Advantage 1: CE, ISO certification.
Advantage 2: Full production tracking.
Advantage 3: Engineers stationed in thefactory guarantee the highest quality.
Advantage 4: More suppliers as alternatives, guarantee your lowest price.
Advantage 5: Sales staff who have been in the business for more than 10 years, answer your pre-sales / after-sales questions.
Advantage 6:Engineers traveling around the world to ensure after-sales service.
Advantage 7: OEM, ODM production, to meet customer needs in all aspects.
Advantage 8: 5% -10% deposit, giving you the greatest trust and the least pressure on funds.
Advantage 9: Low MOQ for only 1 unit.
Advantage 10: For small equipment (such as boring machines) guaranteed in-stock all year round.
