FHC120 V200 heat exchanger copper brazed plate heat exchanger
- Category: >>>
- Supplier: Zhejiang Forwon Plate Heat Exchanger Co. Ltd.
Share on (60738744916):
Product Overview
Description
Product Description
FHC120:
Heat load up to 20~150 KW

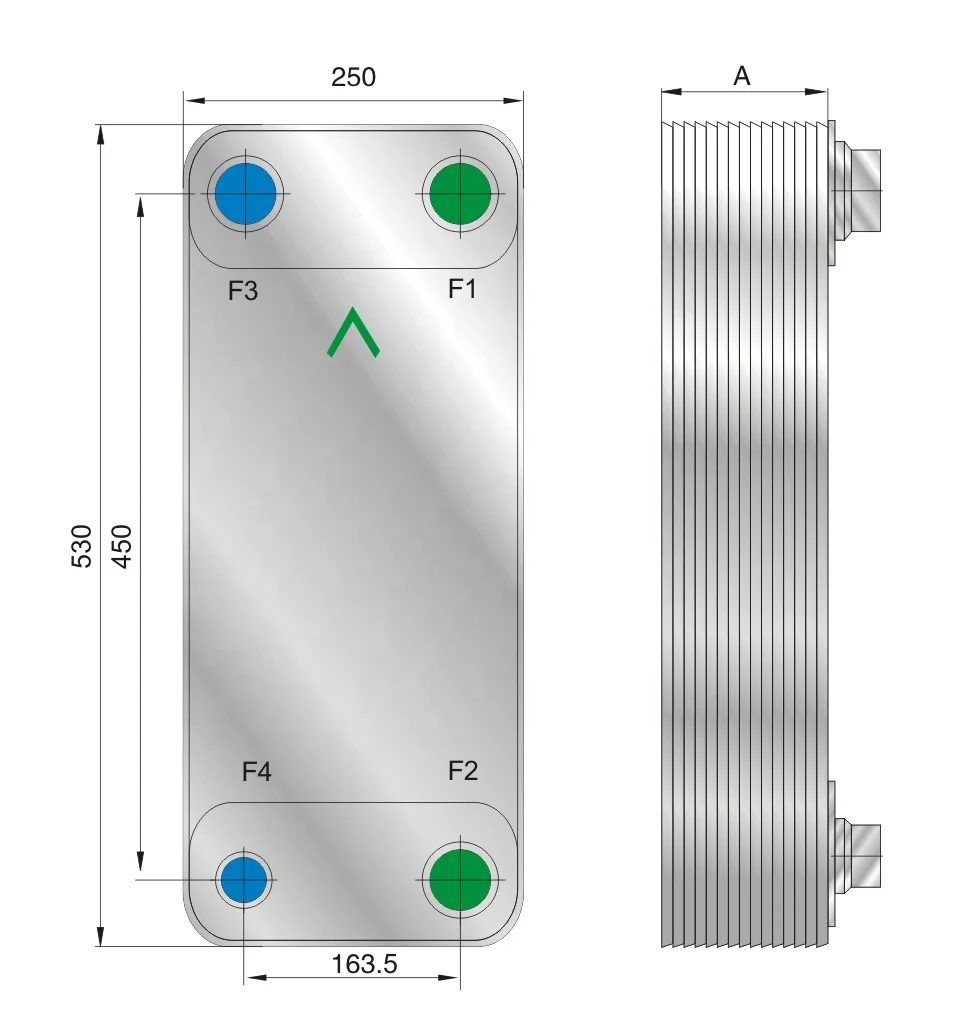

Size 530*250 mm
Thickness of plate0.3mm
Heat exchanger area of each plate 0.12M2
Volume 0.241L/Channel
Quantity of max plates : 150
Design pressure 3.0/4.5MPa
Testing pressure 4.5/6.7MPa
Design temperature : - 196~ +200
Model of flow course plate: H & HQ
The max size of connector : 2"
