Linear Motion Slide Bearing SC25

Product Overview

Description

LINEAR BEARING SLIDE UNIT

Linear Motion Slide Bearing SC25

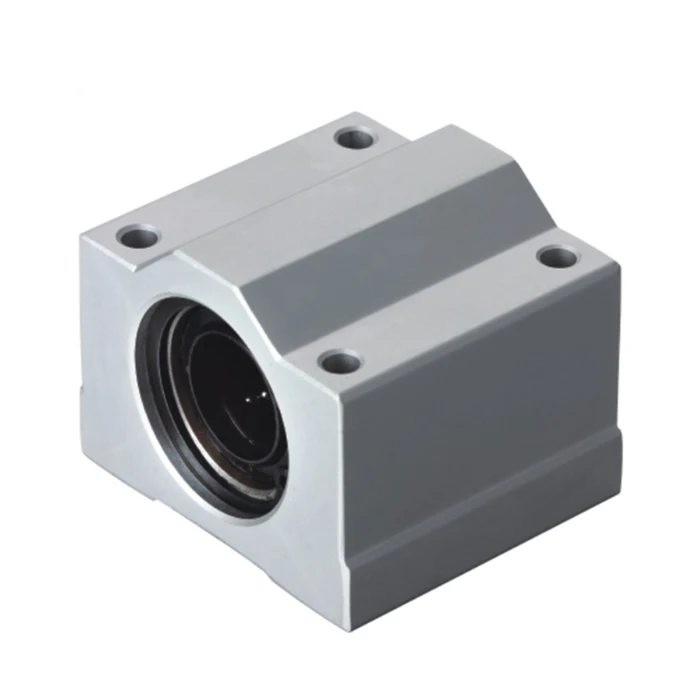

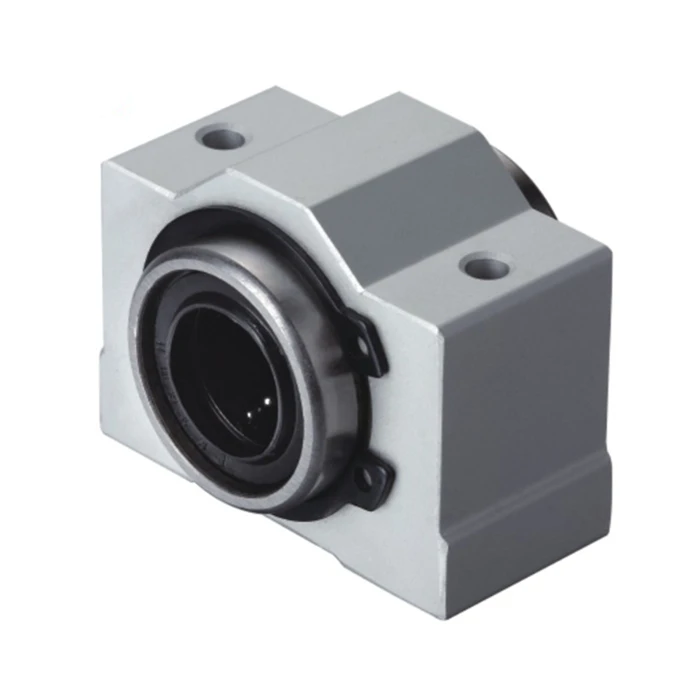

This is a case unit with the standard linear bearing installed in a small and light aluminum case.

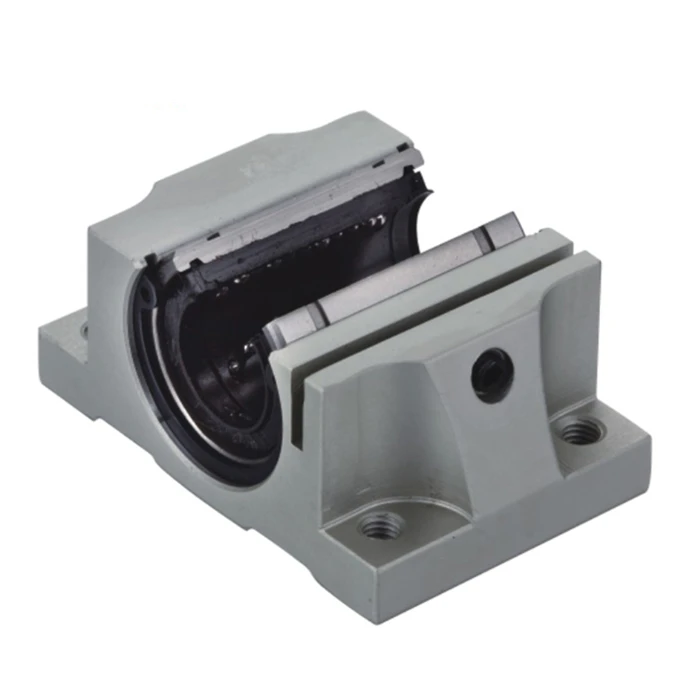

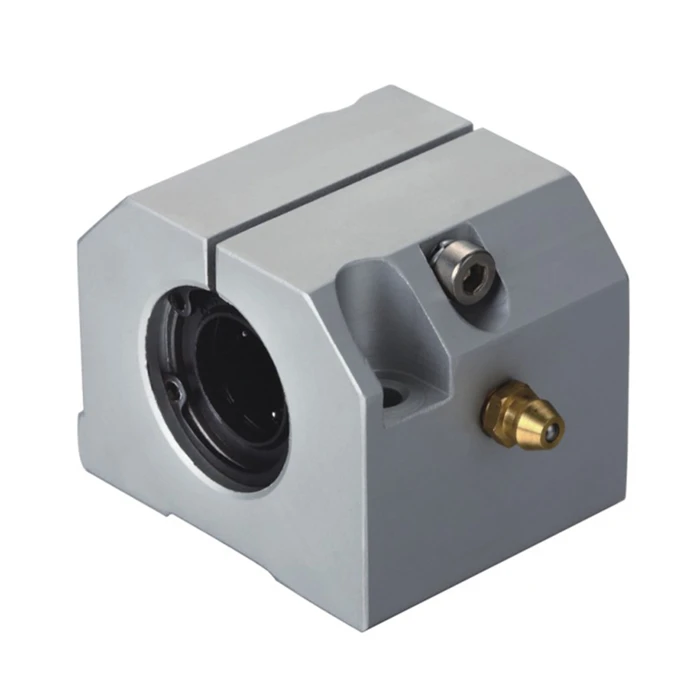

The slide unit series is a line of standardized slide bearing housings and shaft supporters to enable smooth linear motion using ZNZ slide bearings and shafts. ZNZ slide units are designed to optimize the performance of all ZNZ slide bearings including clearance-adjustable and open types. These slide units are made mainly of aluminum, providing high corrosion resistance.



MODEL:

1.STANDARD:

             SMA12UU SMA13UU SMA16UU SMA20UU SMA25UU SMA30UU SMA35UU SMA40UU SMA50UU

             SBR12UU SBR13UU  SBR16UU SBR20UU SBR25UU  SBR30UU SBR35UU SBR40UU SBR50UU

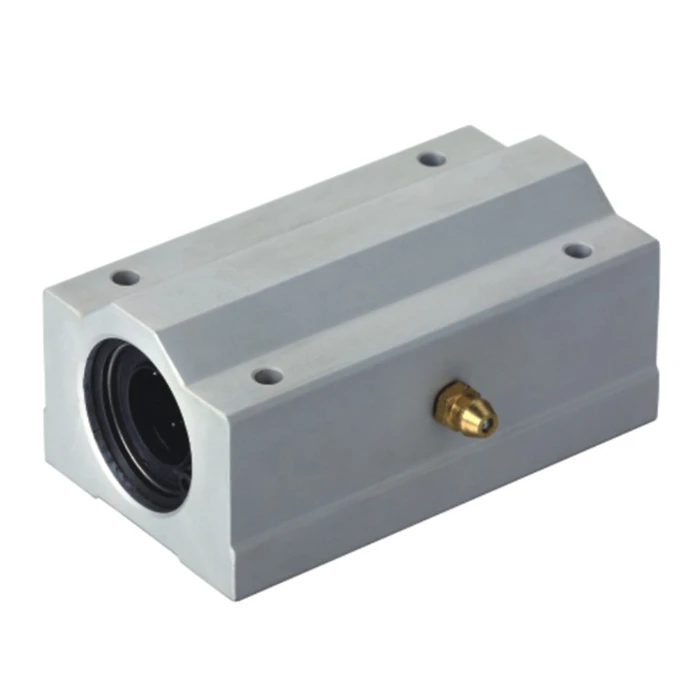

2.LONG TYPE: 1 housing with 2 bearings

             SMA12LUU SMA13LUU SMA16LUU SMA20LUU SMA25LUU SMA30LUU SMA35LUU SMA40LUU SMA50LUU

              SBR12LUU SBR13LUU SBR16LUU SBR20LUU SBR25LUU SBR30LUU SBR40LUU SBR50LUU

3. TBR series: with flange,used with TBR shaft support rail units.

             TBR16UU TBR20UU TBR25UU TBR30UU.

MODEL NO.	SHAFT DIAMETER	MAIN DIMENSIONS							MOUNTING DIMENSIONS						WEIGHT(kg)
		h	E	W	L	F	G	T	B	C	K	S1	S2	l
SMA8	8	11	17	34	30	22	18	6	24	18	5	M4	3.4	8	0.052
SMA10	10	13	20	40	35	26	21	8	28	21	6	M5	4.3	12	0.092
SMA12	12	15	21	42	36	28	24	8	30.5	26	5.75	M5	4.3	12	0.102
SMA13	13	15	22	44	39	30	24.5	8	33	26	5.5	M5	4.3	12	0.12
SMA16	16	19	25	50	44	38.5	32.5	9	36	34	7	M5	4.3	12	0.2
SMA20	20	21	27	54	50	41	35	11	40	40	7	M6	5.2	12	0.255
SMA25	25	26	38	76	67	51.5	42	12	54	50	11	M8	7	18	0.6
SMA30	30	30	39	78	72	59.5	49	15	58	58	10	M8	7	18	0.735
SMA35	35	34	45	90	80	68	54	18	70	60	10	M8	7	18	1.1
SMA40	40	40	51	102	90	78	62	20	80	60	11	M10	8.7	25	1.59
SMA50	50	52	61	122	110	102	80	25	100	80	11	M10	8.7	25	3.34
SMA60	60	58	66	132	122	114	94	30	108	90	12	M12	10.7	25	4.72
