Термоформовочная Машина, многостанционный вакуумный высокоскоростной пластиковый контейнер для фаст фуда, упаковочная компания PP PS PET PVC
- Category: Plastic Product Making Machinery >>>
- Supplier: Shantou Auto Packaging Machinery Co. Ltd.
Share on (60738765376):
Product Overview
Description
Product Description
| Specification Information | |
| Suitable Material | PP,PS,PET,PVC,OPS, etc. |
| Sheet Width | 390-830mm |
| Thickness of Sheet | 0.16-2.0mm |
| Max. Formed Area | 780×560mm |
| Min. Formed Area | 360×270mm |
| Availability Punching Area(Max) | 780×560mm |
| Positive formed part height | 150mm |
| Negative formed part height | 150mm |
| Work Efficiency | ≤50pcs/min |
| Heating Power | 134kw |
| Main Motor power | 5.7kw |
| Winding Diameter(Max) | Φ1000mm |
| Suitable Power | 380V,50Hz |
| Air Pressure | 0.6-0.8Mpa |
| Air Consumption | 5000-6000L/min |
| Water Consumption | 40-45L/min |
| Machine Weight | 18,500kg |
| Dimension | 16m × 2.45m × 3.05m |
| Installed Power | 182kw |

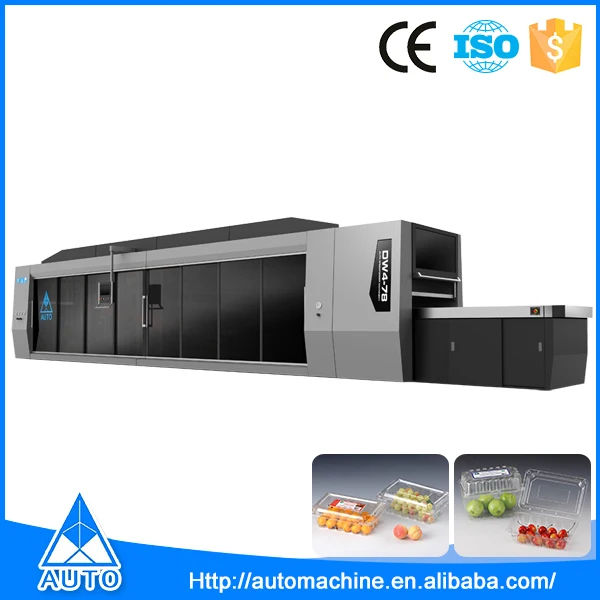

Multi-station Pressure and Vacuum High Speed Plastic Thermoforming Machine
Outstanding Features:
→ Although this machine runs at a quite fast speed, 50 times per minute at most, the noise is comparatively low. Though the structure is complex, it is still easy to operate and shows high reliability. Servo-control system is applied to all the machines. Moreover, the advanced automatic system is also adopted. DW high speed machine runs perfectly in the processing of PP, PS, BOPS, PET, PVC production.
→ With the following three optimized parts, the replacement can be finished in quite short time, and the productivity is greatly improved. The three parts are as follows: the newly-designed mold replacement structure, simplified replacement system, which is optimized according to human body ergonomics, and cutting knife punching and stacking device.
→ By adopting newest temperature control module, the advanced heating system shows quick response rate, short processing time, high efficiency and low power consumption.

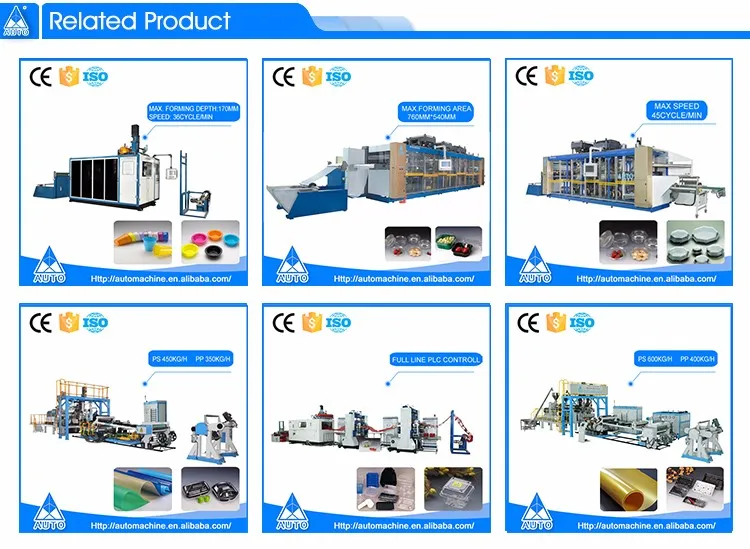

Related Products
More products
Company Information
About machinery, we are just professional
We are leading packaging machine manufacturer in China, we are famous disposable products manufacturer in China (//lhpack.en.alibaba.com/) as authorized Coca Cola supplier.
We started manufacturing disposable product in 1992, more than 20years effort now we have both disposable product factory and machinery factory. We have our own R&D department with our experienced engineer team which guarantee the best quality of product, professional & efficient machinery maintenance and after sale service.
With 20 years experience in producing thermoforming quality products, we can give our customer more useful suggestion and technical support from the tooling making and final production.
Our top selling item are extrusion machine, high speed full automatic thermoforming machine, including mould design and produc tion, our professional sales team is very familiar with the disposable products material & production process , hence possibility for them to provide customer the most professional purchase solution of machine.
Our mission is to provide good quality machine to our customer and to be the leading packaging machinery manufacturer in the world.
Our Services
Packaging & Shipping
FAQ
If you have any question or require,just contact me
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: How does your factory do regarding quality control?
A: We have a special QC department in charge of products' quality.
3. Q: How long is the warranty period?
A: All of our machiner have one year warranty.
4. Q: What's the main market of your company?
A: We have customers all over the world.
5. Q: How much production capacity of your company one year?
A: This depends on your needs.
6. Q: Can we visit your machine operation in your factory?
A: We have own plastic products company, you can see all the machine operation.
7. Q: Where is your factory located? How can we visit there?
A: Our factory is located in Shantou City, Guangdong Province, China,
about 50 minutes from Guangzhou by air. We offer transportation service.
