Product Overview
Description
Product Description
Hot Sale Portable CNC Plasma Metal Cutting Machine
(Plasma Cutting Machine Model: Handyman1530)
HIGH precision,
LOW COST portable mini CNC cutting machine.
Simple and Easy to use
Product Feature
Hot Sale Portable CNC Plasma Metal Cutting Machine
(Plasma Cutting Machine Model: Handyman1530)

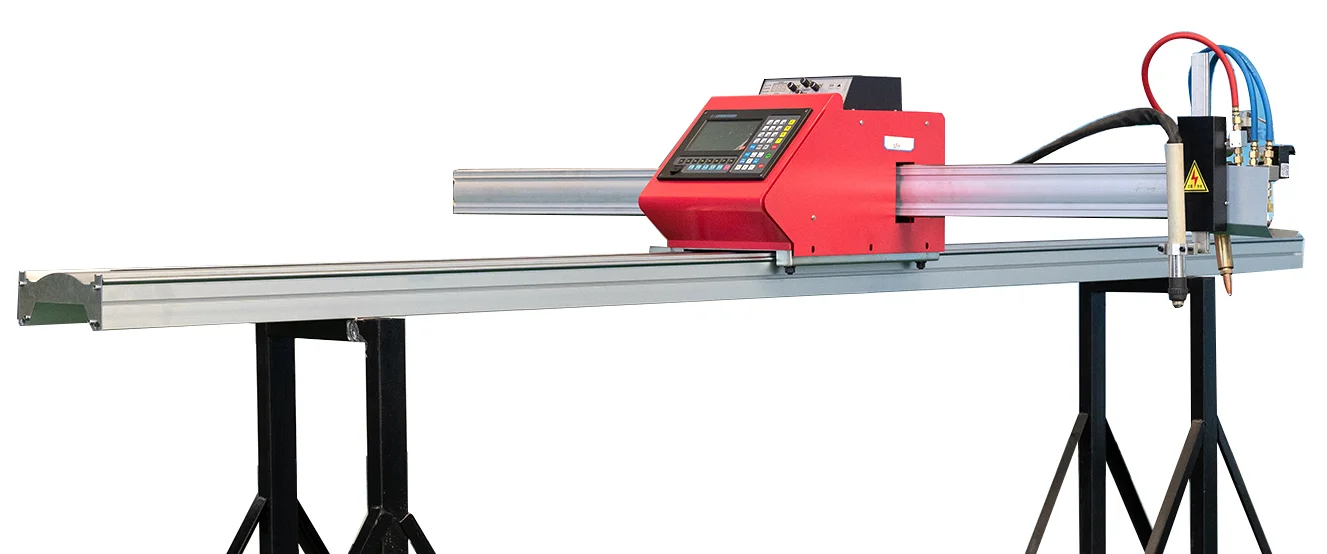

Portable cnc plasma cutting machine:
Handyman is a single drive portable CNC cutting machine, which can cut any graphics you need with wide track structure design. Plasma cutting is a kind of processing method that makes use of the heat of high temperature plasma arc to melt (and vaporize) the metal at the cut of workpiece and eliminate the molten metal by the momentum of high speed plasma to form the notch. Flame cutting is used to cut carbon steel by the high temperature generated during the combustion of iron oxide , and the flame cutting torch is designed to provide sufficient oxygen to the combustion iron oxide to ensure a good cutting effect .
Product Parameter:
Model | Seanior-Handyman |
Power source | machine:AC220V/50hz / palasma cutter: AC380V/50hz |
Effective cutting width | 1500mm |
Effective cutting length | 3000mm /6000mm ( accept tailor-made length) |
Cutting process | plasma/ flame |
Cutting thickness(flame) | 6.0-150mm (oxygen+acetylene or propane) |
Cutting thickness(plasma) | 0.5-40mm Depending on the customer's plasma power supply |
Cutting speed | 20-3500mm/min (max.4000mm/min) |
Cutting accuracy | ±0.5m |
Torch lifting distance | ≤80mm |
Gas pressure | Max 0.1Mpa |
Oxygen pressure | Max 0.7Mpa |
Applicable gas type | Oxygen and propane or acetylene |
Working interface | Chinese and English (other languages can be customized) |
Duty cycle | 24hours |
CAD drawing conversion | nesting cut code |
Processing Materials | carbon steel, stainless steel, aluminum sheets, galvanized sheets, Titanium plates |
Product advantage
The plasma cutting speed is high, especially during common carbon steel sheet cutting, the plasma cutting speed is 5-6 times that of flame cutting.
Low price,you still need to expect best service,Cut mild steel with flame process.Cut high carbon steel, stainless steel, and other non-ferrous metal with Plasma process
Small size, great capability.High precision, low price.
You buy not because it's cheap, you buy because it fits
Applicable Industry
Plasma cutting machine are wide used in automobiles, pressure vessels, chemical machinery, nuclear industry, general machinery, engineering machinery, steel structure, and other industries.
Applied Materials
Suitable for low carbon steel, copper plate, iron plate, aluminum plate, galvanized plate, titanium plate and other metal plates.

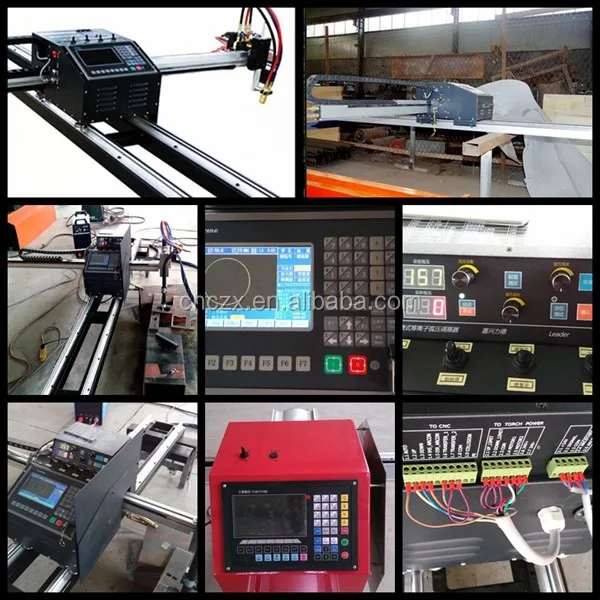

Cutting Samples
Seanior CNC Systems
Seanior CNC Systems
Seanior CNC Systems manufactures and sells cutting machines, provide services for the metal-working industry, offering complete solutions and focus on customer-driven innovation.
Why you Choose Seanior CNC Systems
Our technical team is your excellent cutting performance guarantee and our perfect service plan solve all your problems.
1. 12 months warranty for the whole machine.
2. Technical support by phone, email 24/7
3. English version manual and operation tutorial video
4. Engineer available to service machinery overseas.
