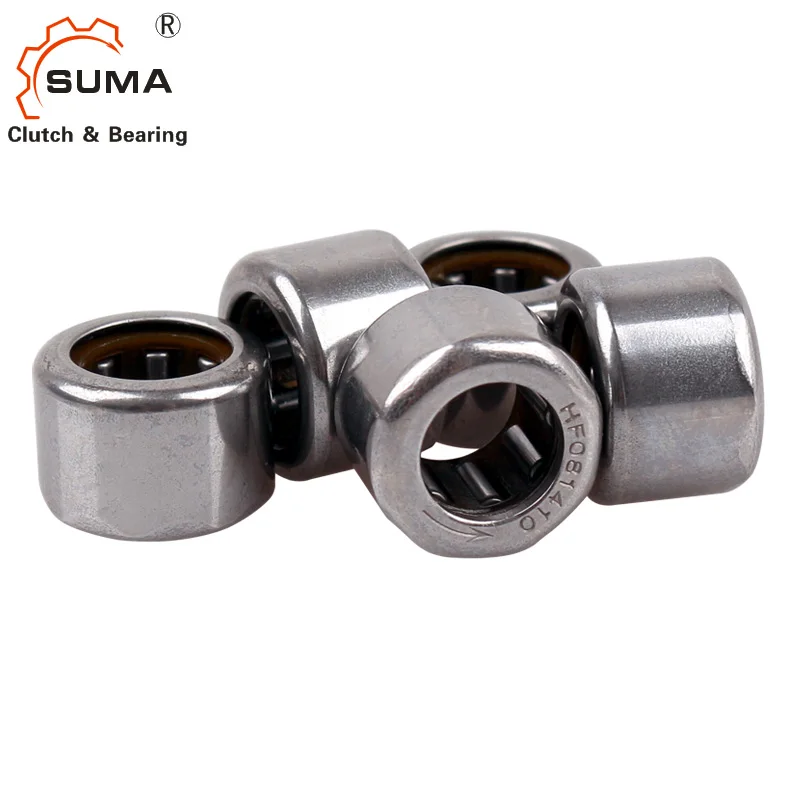

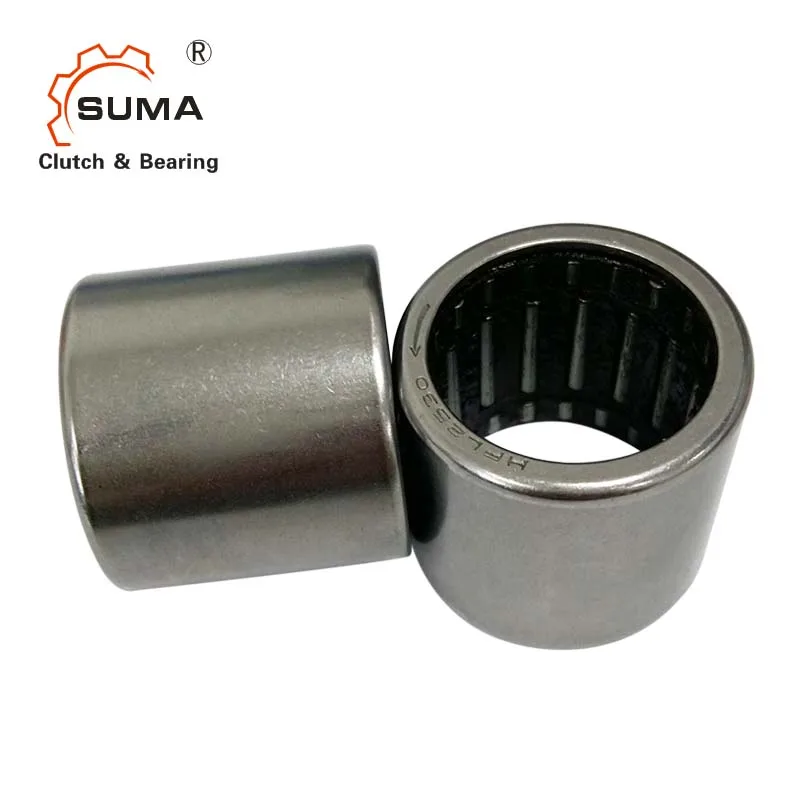

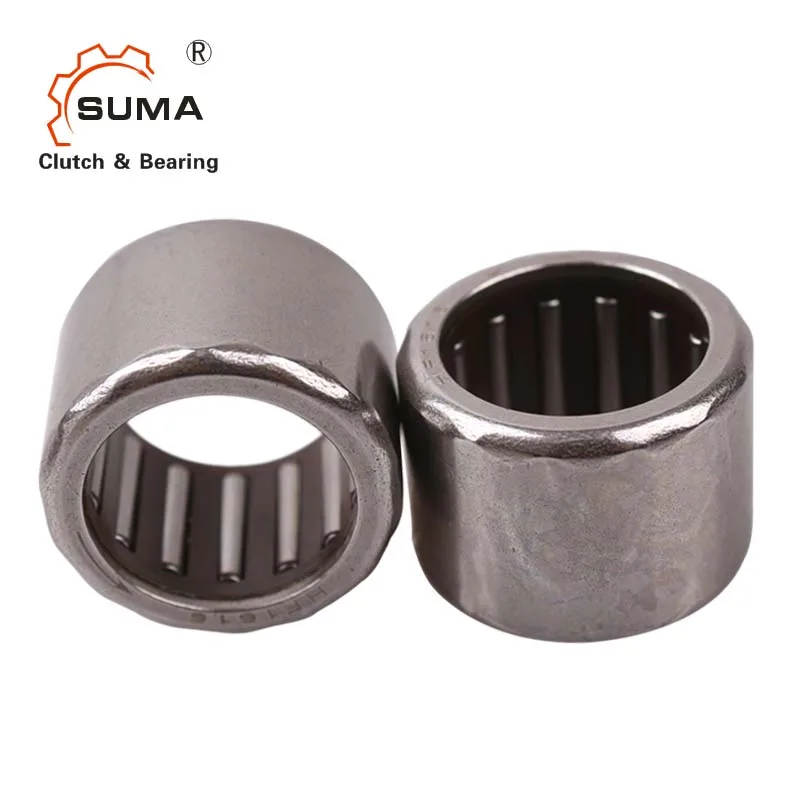

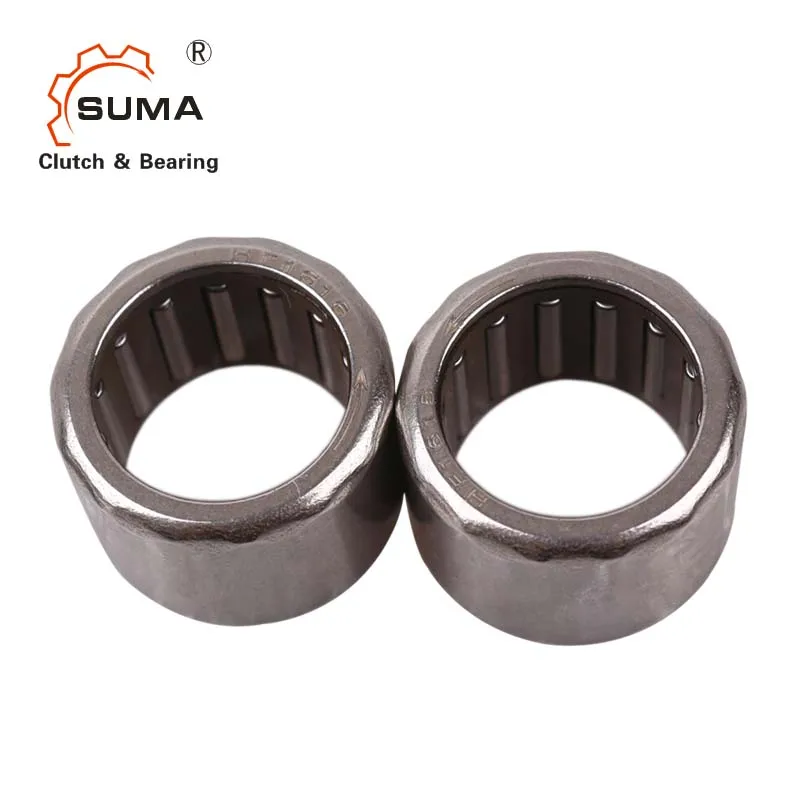

HF1216 HF1416 Drawn Cup Bearings One Way Needle Clutch
- Category: Other Roller Bearings >>>
- Supplier: Changzhou Suma Precision Machinery Co. Ltd.
Share on (60738787867):
Product Overview
Description
HF1216 HF1416 Drawn Cup Bearings One-Way Needle Clutch
Product Description
Features of HF drawn cup bearing
♦ Having a small cross section still has a higher load bearing capacity, therefore, especially suitable for the radial space-constrained.
♦ Suitable for unidirectional rotation device.
| SPECIFICATIONS | |
| Model | HF1416 |
| Material | Outer race: ST14, Holder: Nylon , Needle: Stainless Steel |
| Inner diameter | 14mm |
| Outer diameter | 20mm |
| Thickness | 16mm |
| Torque capacity | 17.3Nm |
| Weight | 13g |
| Package | roll pack |
| Delivery time | 1 days for sample, 5-7 day for big order |
| Payment Terms | TT, L/C, D/P, D/A, Western Union, Paypal |
Catalogue of hf drawn cup bearing for your choice
| Shaft Diameter | Bearing Designation | Mass Approx | Dimensions | Permissible Torque | Limiting Speed | Suitable Drawn Cup Bearings | ||||
| Fw | D | C | Rotating Shaft Min-1 | Rotating Outer Ring Min-1 | ||||||
| mm | Plastic Springs | Steel Springs | g | mm | Nm | rpm | rpm | |||
| 3 | HF0306KF | 0.9 | 3 | 6.5 | 6 | 0.2 | 36000 | 7000 | HK0306TN | |
| 4 | HF0406KF | -- | 1 | 4 | 8 | 6 | 0.34 | 34000 | 8000 | HK0408TN |
| HF0406KFR | -- | 1 | 4 | 8 | 6 | 0.1 | 34000 | 8000 | HK0408TN | |
| 6 | HF0608KF | 2.8 | 6 | 10 | 8 | 1.5 | 20000 | 11000 | HK0608 | |
| HF0612KF | HF0612 | 3 | 6 | 10 | 12 | 1.76 | 23000 | 13000 | HK0608 | |
| HF0612KFR | HF0612R | 3 | 6 | 10 | 12 | 1.76 | 23000 | 13000 | HK0608 | |
| HF061210 | 3.5 | 6 | 12 | 10 | 3 | 20000 | 13000 | HK061208 | ||
| 8 | HF0812KF | HF0812 | 3.5 | 8 | 12 | 12 | 3.15 | 17000 | 12000 | HK0808 |
| HF0812KFR | HF0812R | 3.5 | 8 | 12 | 12 | 4 | 17000 | 12000 | HK0808 | |
| -- | HF061210 | 3.2 | 8 | 12 | 10 | 3 | 16000 | 12000 | HK0808 | |

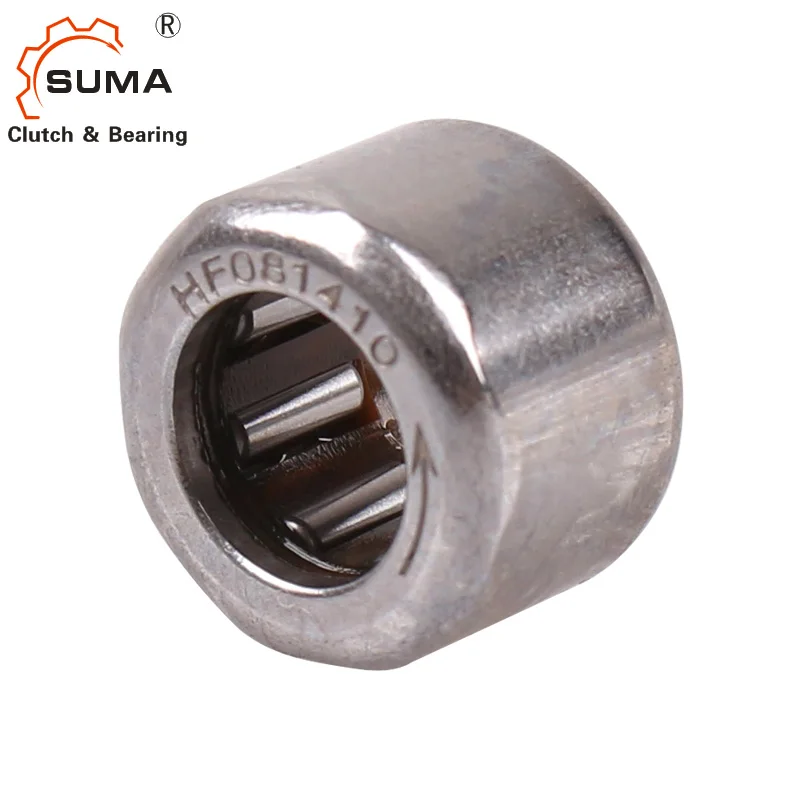

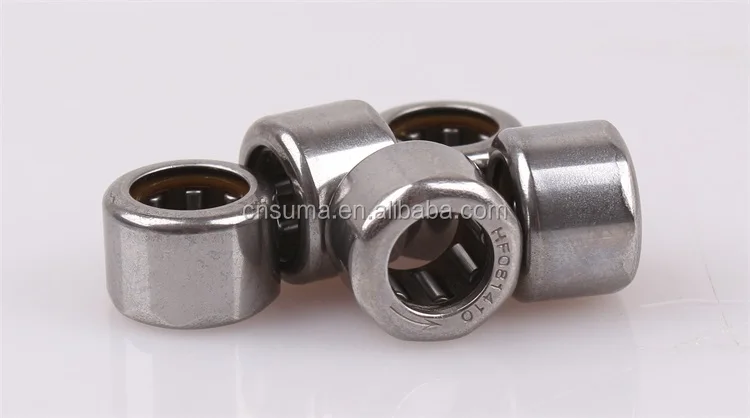

| -- | HF081410 | 3.6 | 8 | 14 | 10 | 4.6 | 15000 | 11000 | HK081410 | |
| -- | HF081610 | 4.1 | 8 | 16 | 10 | 5.5 | 15000 | 11000 | HK081610 | |
| -- | HF081412 | 4 | 8 | 14 | 12 | 5 | 16000 | 12000 | HK081410 | |
| 10 | HF1012KF | HF1012 | 4 | 10 | 14 | 12 | 5.3 | 14000 | 11000 | HK1010 |
| HF1012KFR | HF1012R | 4 | 10 | 14 | 12 | 1.5 | 14000 | 11000 | HK1010 | |
| 12 | -- | HF1216 | 11 | 12 | 18 | 16 | 12.2 | 11000 | 8000 | HK1212 |
| 14 | -- | HF1416 | 13 | 14 | 20 | 16 | 17.3 | 9500 | 8000 | HK1412 |

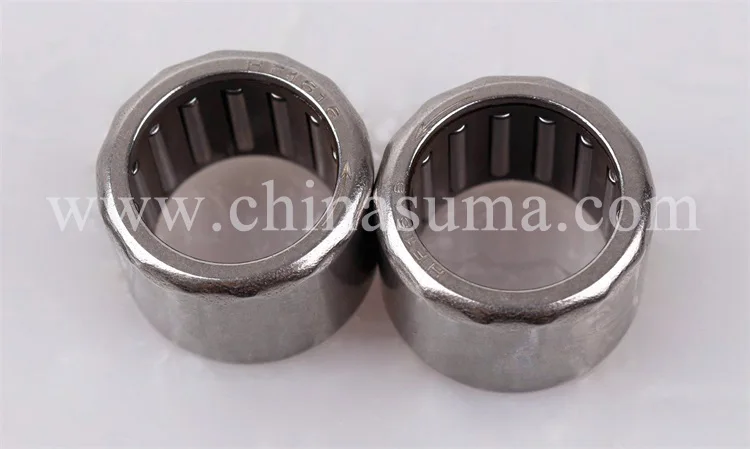

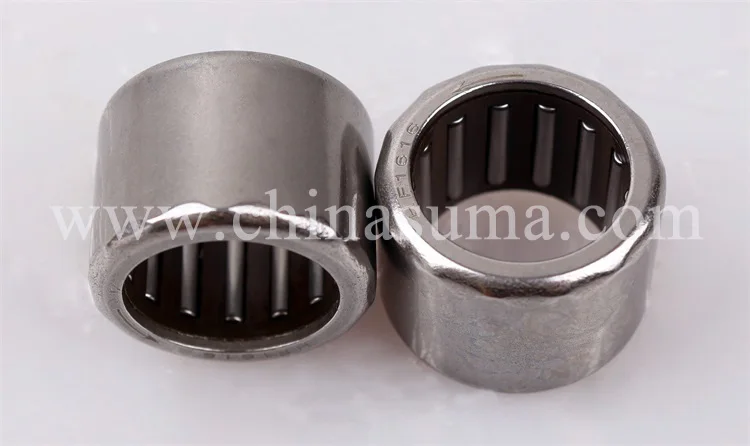

| 16 | -- | HF1616 | 14 | 16 | 22 | 16 | 20.5 | 8500 | 7500 | HK1612 |
| 18 | -- | HF1816 | 16 | 18 | 24 | 16 | 24.1 | 7500 | 7500 | HK1812 |
| 20 | -- | HF2016 | 17 | 20 | 26 | 16 | 28.5 | 7000 | 6500 | HK2010 |
| 25 | -- | HF2520 | 30 | 25 | 32 | 20 | 66 | 5500 | 5500 | HK2512 |
| 30 | -- | HF3020 | 36 | 30 | 37 | 20 | 90 | 4500 | 4500 | HK3012 |
| 35 | -- | HF3520 | 40 | 35 | 42 | 20 | 121 | 3900 | 3900 | HK3512 |
Detailed Images
Company Information
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Production flow
Certifications
Clients Visit
FAQ
Q: How do you pack the goods?
- Small Quantity :
Roll Pack - in 19x18x9CM carton box - 29*28*19CM carton box
- Big Quantity : 29*28*19cm carton box + Wooden box /Wooden pallet
Q: Can i get the samples from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the goods in time?
- Small items: In stock.
- Medium Items: 10-15 Days
- Big items: 20-25 Days
