3. Patented compact, concise handrails drive system
4. 8mm unique safety profile of anti-skid border and the yellow border
5. Streamlined miller-- with more in line with ergonomic handles

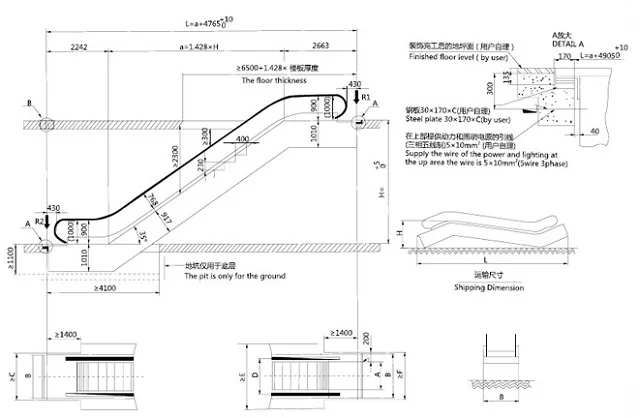

Construction Layout Drawing:
30° Escalator
Type
Step Width
Outside Cladding
Construction Layout Opening Width
Handrail Spacer
A
B
C
E
F
D
600
600
1200
1260
1838
1260
838
800
800
1400
1460
2038
1460
1038
1000
1000
1600
1660
2238
1660
1238
35° Escalator
Type
Step Width
Outside Cladding
Construction Layout Opening Width
Handrail Spacer
A
B
C
E
F
D
600
600
1200
1260
1838
1260
838
800
800
1400
1460
2038
1460
1038
1000
1000
1600
1660
2238
1660
1238

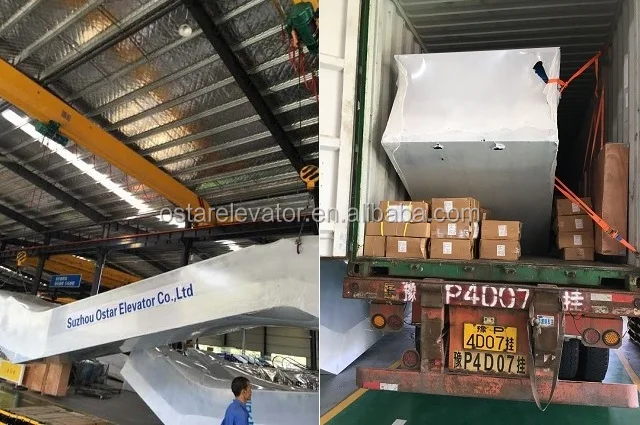

Packaging & Shipping
Company Information
Suzhou Ostar Elevator Co., Ltd. provides various kinds of complete lifts, cover home lift, observation lift, hospital lift, freight lift, escalator etc. Our elevators are with novel structure, outward apperance and elegant models, which are popular in Southeast Aisa, Middle East, South America, South Africa and other regions. So far we have been a partner with customers from more than 30 countries. We, Ostar Elevator, will continue to provide excellent service for overseas clients with philosophy of strict standard, high quality and best service.
FAQ
Q1: What is manufacturing norms for your escalators?
Our elevators are designed and manufactured according to elevator norms GB7588: 2003 (Equal to EN81).
Q2: What is the lead time of your escalators?
Our lead time is within 35 working days upon receipt of down payment and confirmed technical documents.
Q3: What is your payment term?
Our payment term is 30% down payment by T/T in advance and balance payment paid before shipment.
Q4: What is the guarantee for your escalator?
Our guarantee period is one year; but not includes damage caused by the human reason or force majeure.
