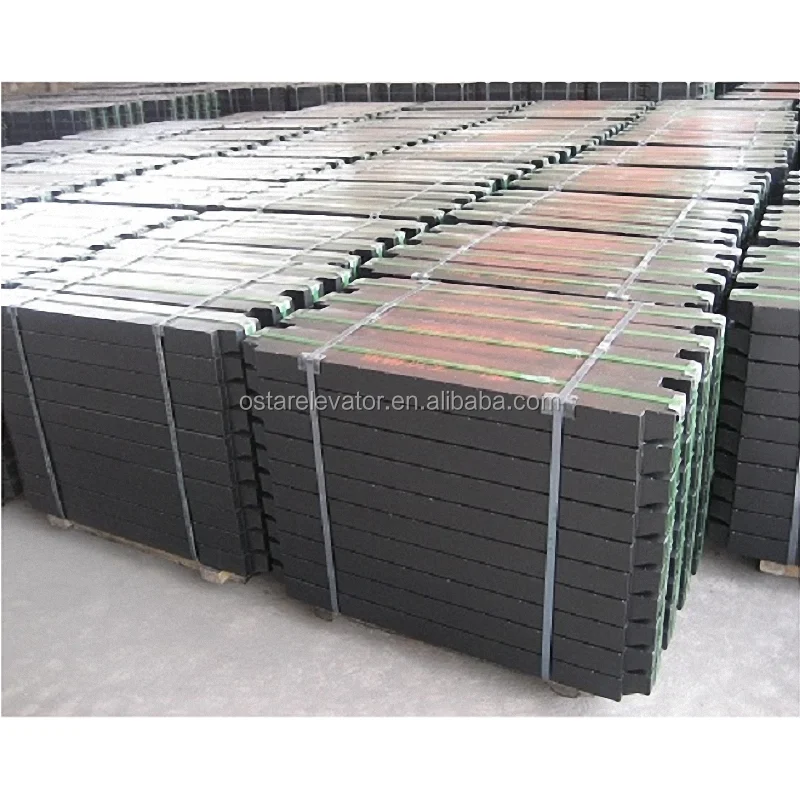

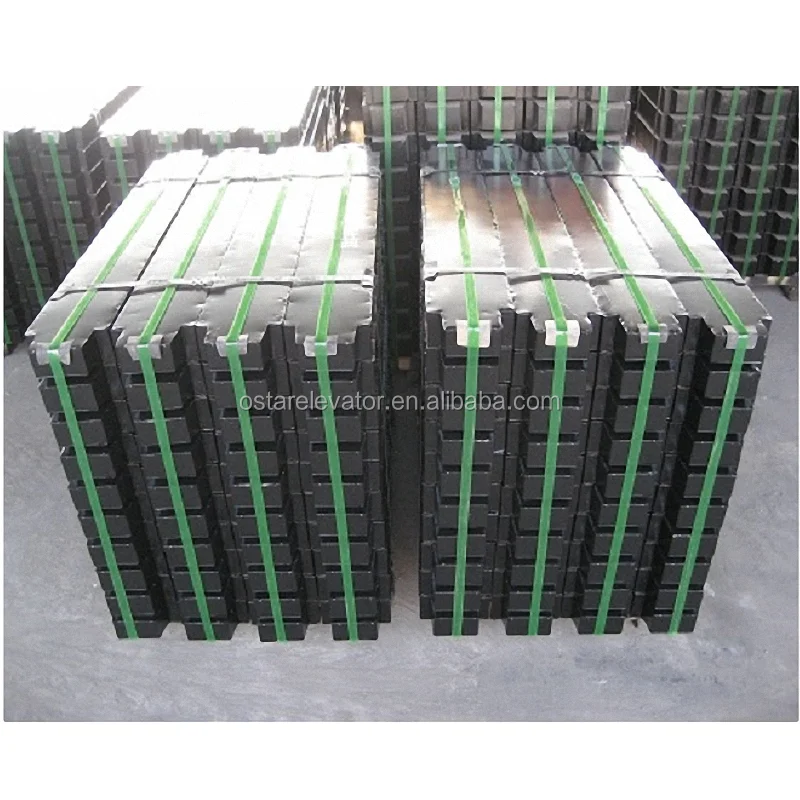

Elevator Parts Passenger Lift Counterweight Block
Product Description
Main Counterweight Block:
1. Cast Iron Counterweight Block (hot product)
2. Compound Counterweight Block (main product)
3. Steel Plate Counterweight Block

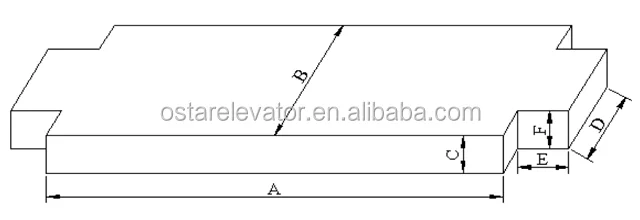

Sizes:
| Compound CW Blocks | |||||||
| Main Part Sizes (mm) | Embedded Part Sizes (mm) | Unit Weight | |||||
| A | B | C | D | E | F | (KG/Piece) | |
| 1 | 860±5 | 100±5 | 120±5 | 70±5 | 50±5 | 100±5 | 40(±1) |
| 2 | 590±5 | 100±5 | 150±5 | 70±5 | 50±5 | 100±5 | 35(±1) |
| 3 | 1070 | 160 | 75 | 95/105 | 55 | 50 | 45 |
| 4 | 630 | 220 | 80 | 138 | 60 | 80 | 35 |
| 5 | 860 | 130 | 120 | 70 | 50 | 120 | 40 |
| 6 | 750 | 180 | 100 | 70/75 | 55 | 100 | 44 |
| 7 | 1070 | 110 | 60 | 45/55 | 55 | 60 | 25 |
| 8 | 990 | 180 | 80 | 70/80 | 55 | 80 | 47 |
| 9 | 825 | 200 | 72 | 95 | 55 | 72 | 40 |
| 10 | 650 | 220 | 90 | 105 | 60 | 90 | 44 |
| 11 | 650 | 200 | 100 | 75/80 | 45 | 100 | 46 |
| Cast Iron CW Blocks | |||||||
| Main Part Sizes (mm) | Embedded Part Sizes (mm) | Unit Weight | |||||
| A | B | C | D | E | F | (KG/Piece) | |
| 1 | 430 | 160 | 52 | 120/100 | 60 | 52 | 30 |
| 2 | 640 | 160 | 52 | 120/100 | 60 | 52 | 40 |
| 3 | 880 | 160 | 52 | 120/100 | 60 | 52 | 50 |
| 4 | 430 | 220 | 52 | 120/100 | 60 | 52 | 40 |
| 5 | 640 | 220 | 52 | 120/100 | 60 | 52 | 50 |
| 6 | 810 | 160 | 52 | 95 | 50 | 52 | 45 |
| 7 | 650 | 200 | 53 | 138 | 50 | 53 | 48 |
| Steel Plate CW Blocks | |||||||
| Main Part Sizes (mm) | Embedded Part Sizes (mm) | Unit Weight | |||||
| A | B | C | D | E | F | (KG/Piece) | |
| 1 | 660 | 150 | 20 | 100 | 50 | 20 | 21 |
| 2 | 870 | 150 | 20 | 78 | 40 | 20 | 23 |
Remark: Customization is available and surface sprayed with antitrust paint (black, yellow, red).

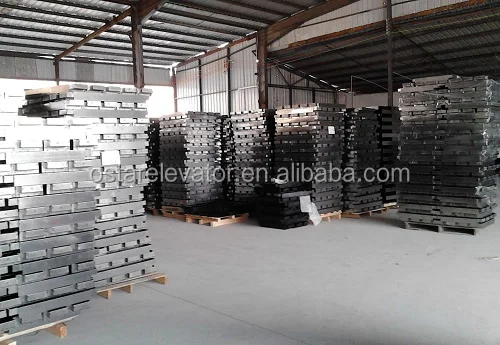

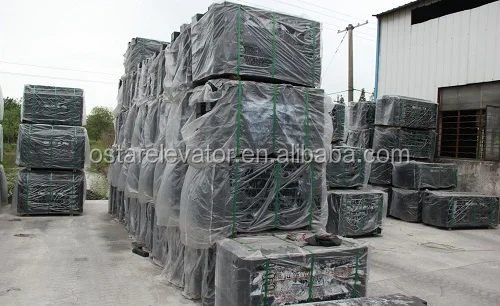

Packaging & Shipping
Company Information
OSTAR Elevator is one-stop elevator parts supplier, and following parts can be provided by us.
Shaft Components includes
Machined/ Cold Drawn/ Hollow Guide Rail, Fishplate, Fasteners, Anchor Bolt, Rail Bracket etc.
Elevator Cabin includes
Complete Elevator Cabin, Car Frame, Counterweight Frame and Counterweight Block, Guide Shoes, Rope Attachment etc.
Door System includes
Mitsubishi, Fermator and Selcom Door Operator and Landing Door, Door Panel, Door Spare Parts, Safety Light Curtain/Photocell etc.
Safety Components includes
Safety Gear, Speed Governor, Rope Brake, Oil Buffer and Rubber Buffer etc.
Traction System includes
Geared/ Gearless Traction Machine, Pulley Sheave, Anti-vibration Pad, Steel Wire Rope etc.
Electrical Components includes
Integrated and Separated Controlling Cabinet, Yaskawa L1000A Inverter, Elevator Display, COP & LOP & HOP, Elevator Push Button, Flat Travelling Cable etc.
