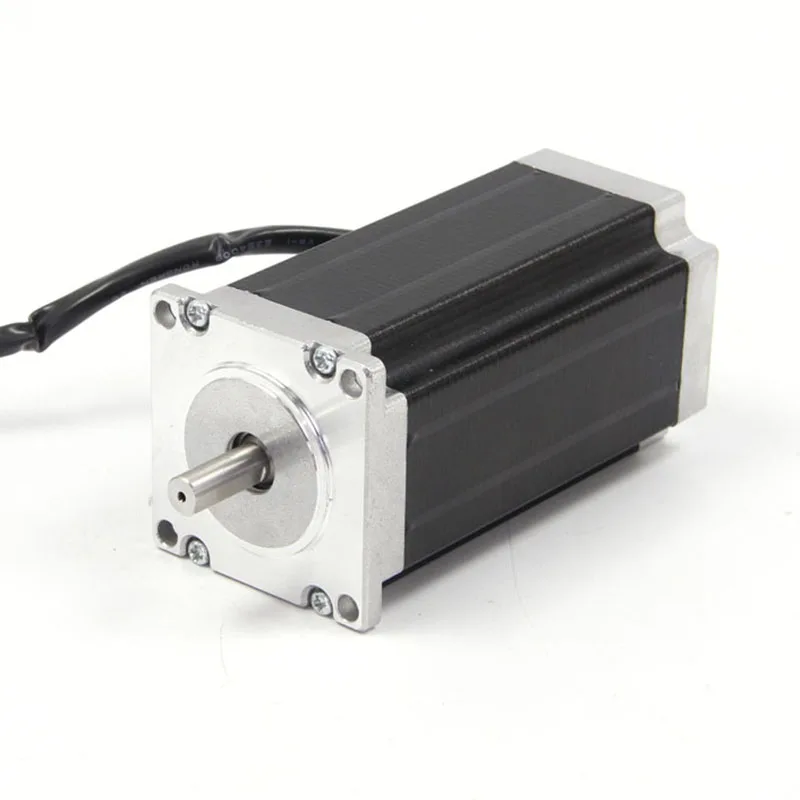

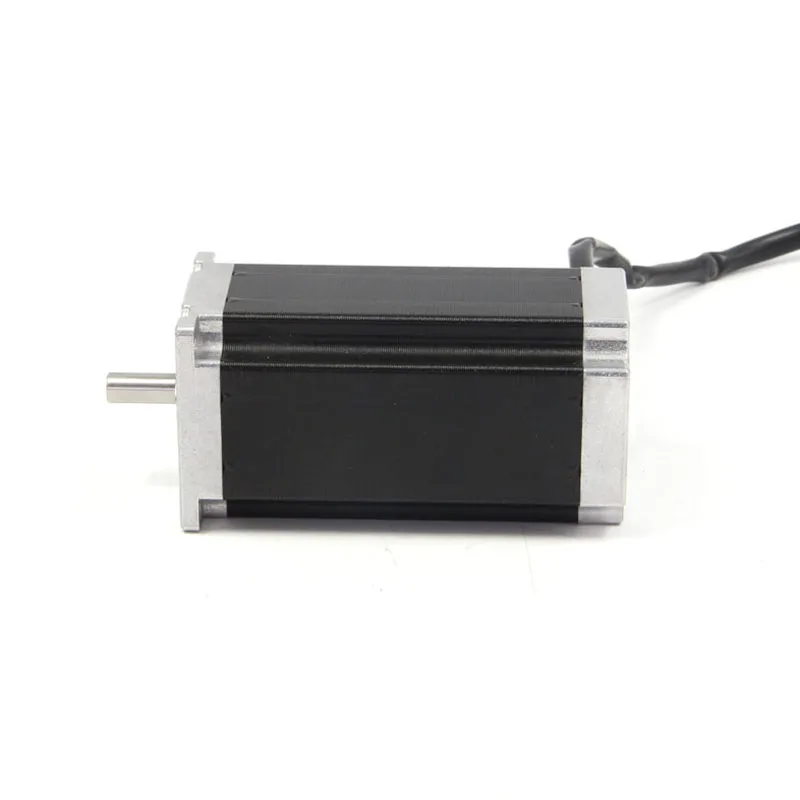

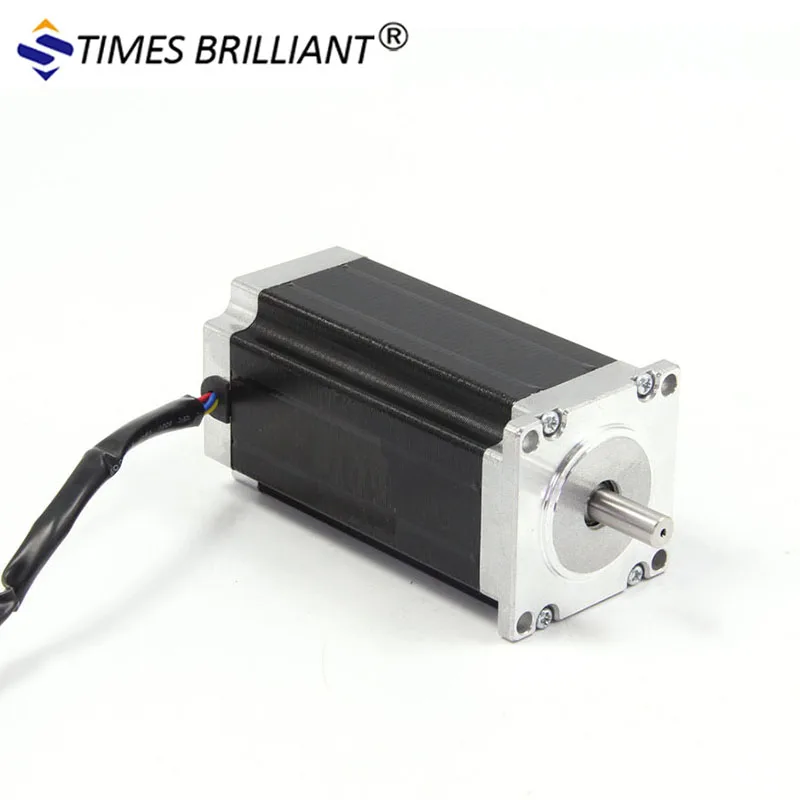

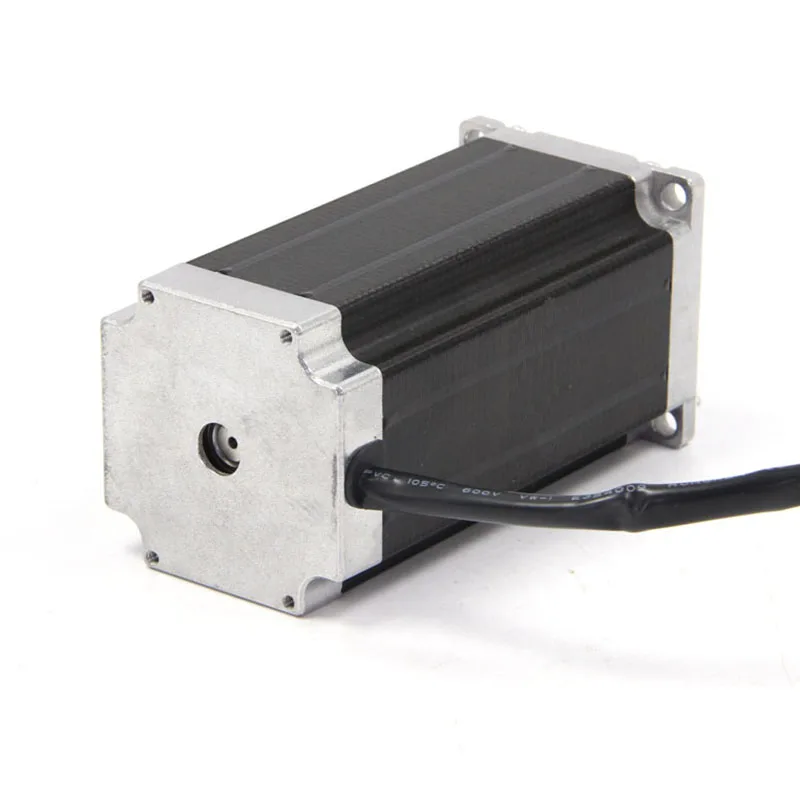

Hybrid 2 phase Nema 23 1.8degree 2.8Nm 3A stepper motor cnc machine motor
- Category: >>>
- Supplier: BEIJING TIMES-CHAOQUN ELECTRONIC APPLIANCE COMPANY
Share on (60738807176):
Product Overview
Description
Product Description
Hybrid 2 phase Nema23 1.8degree 2.4Nm 3A stepper motor cnc motor
| Basic Parameters | |
| Type | Mixed Stepper |
| Motor Model | 57HBP112AL4-TF0 |
| Phase | 2 |
| The Temperature Rise | 80K Max |
| Environment Temperature | -40 ℃ + 55 ℃ |
| Insulation Grade | B Class |
| Insulation Resistance | 100MΩ |
| Insulation Strength | 500VAC 50Hz 1mA/Min |
| Electrical Parameters | |
| Step Angle | 1.8° |
| Torque | 2.8Nm |
| Current | 3.0A |
| Power Supply Voltage | 10-48V |
| Resistance | 0.9Ω |
| Inductance | 3.8mH |
| Adapter Driver | DM542 |
| Defects Liability Period | 2 years |
| Mechanical Parameters | |
| Length | 112mm |
| Spigot | 38mm |
| Hole Dist | 47mm |
| Shaft L | 22mm |
| Shaft Dia | 8mm |
| Shaft | D-shaft |
| Lead Wire | lead type |
| Wire No. | 4 |
| Weight | 1.65Kg |
Related Products
| Type | Phase | Angle | Nm | Current A | Axial Long mm | Shaft DIA mm | Kg |
| 57HBP40AL4 | 2 | 1.8 | 0.4 | 2 | 22 | 6.35 | 0.4 |
| 57HBP51AL4 | 2 | 1.8 | 0.75 | 3 | 20 | 6.35 | 0.8 |
| 57HBP56AL4 | 2 | 1.8 | 0.9 | 2 | 21 | 6.35 or 8 | 0.8 |
| 57HBP56AL4-DF0 | 2 | 1.8 | 0.9 | 2 | 21/21 | 6.35 or 6.358 | 0.9 |
| 57HBP76AL4 | 2 | 1.8 | 1.5 | 3 | 21 | 6.35 or 8 | 1.03 |
| 57HBP76AL4-DF1 | 2 | 1.8 | 1.5 | 3 | 20/21 | 8/8 | 1.05 |
| 57HBP76AL4-TF0B | 2 | 1.8 | 2.0 | 3 | 21 | 6.35 or 8 | 1.1 |
| 57HBP80AL4 | 2 | 1.8 | 2.0 | 3 | 22 | 8 | 1.08 |
| 57HBP80AL4-TF0 | 2 | 1.8 | 2.0 | 3 | 22 | axial 9 key 3 | 1.08 |
| 57HBP102AL4 | 2 | 1.8 | 2.2 | 3 | 22 | 8 | 1.4 |
| 57HBP112AL4 | 2 | 1.8 | 2.4 | 3 | 22 | 8 | 1.5 |
| 57HBP112AL4-TF0 | 2 | 1.8 | 2.8 | 3 | 22 | 8 | 1.65 |
Size
Company Information
Certifications

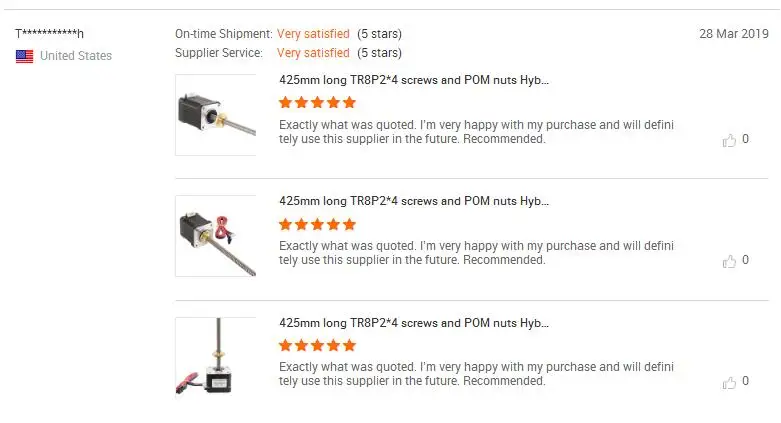

Customer reviews
