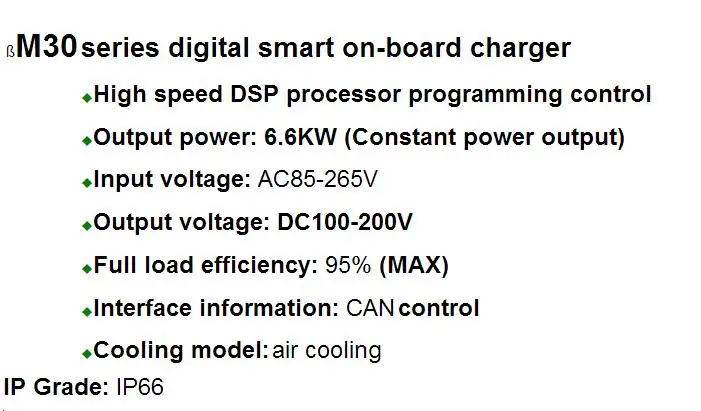

DILONG M30 6.6kw ev зарядное устройство 150v зарядное устройство

Model

Specification/unit

DA6K6M30-150C

Mains Input

Rated  Voltage

Vac

220 (charger intelligent detection ac input voltage, lower than AC185V, half power output)

Voltage Range

Vac

85~265

FREQ RANGE

HZ

47~63

Efficiency

%

≥95   (Not including auxiliary power supply)

Power Factor

≥0.99@220Vac,rated power

Current

A

≤32@220Vac

Mains output

Rated output voltage

Vdc

150

Max current

A

50@100Vdc

Constant power output

W

6000

Constant voltage output range

Vdc

100~200

Output voltage accuracy

V

≤±1%Vo  input 175Vac-265Vac,output 10%-100% load

Line regulation

%

≤±1Vo   input 175Vac-265Vac,output 100% load

Load regulation

%

≤±1Vo   input 220Vac,output 10%-100% load

Ripple and noise

mV

≤±3%Vo  20M oscilloscope,Twisted-pair cable test.

Auxiliary supply

Rated output voltage

Vdc

12

Rated output power

W

2  (For BMS awakening signal)

Property

Input over-voltage protection

Vac

>275  CAN directive warning protection

Input under-voltage protection

Vac

<85 CAN directive warning protection

Output Over-current protection

A

≥110%Io  CAN directive warning protection

Output under-voltage protection

Vdc

< 90  CAN directive warning protection

Output over-voltage protection

Vdc

>205 CAN directive warning protection

Over-temperature protection

℃

85±5  CAN directive warning protection

Output short circuit protection

Yes

Reverse polarity protection

yes

Dynamic response

us

≤200

CAN communication

Communication interrupt, timeout of 20 seconds intelligent shutdown, communication normal recovery.

Work environment

Operating temperature

-40℃~+70℃(Intelligent derating shell temperature above 70 ℃)

Storage temperature

-45℃~+95℃

Operating humidity

%RH

20-90(No condensation)

Storage  humidity

%RH

10-95(No condensation)

Degree of protection

IP66

Type of cooling

air-Cooling

Safeguard

Isolation Voltage

shell←input→output:2.8KVdc;

Main Output→shell:2KVdc;

Auxiliary Output→shell:700Vdc

Insulation resistance

MΩ

input—output—shell>10 (25℃,70%RH)

Structure

weight

Kg

12

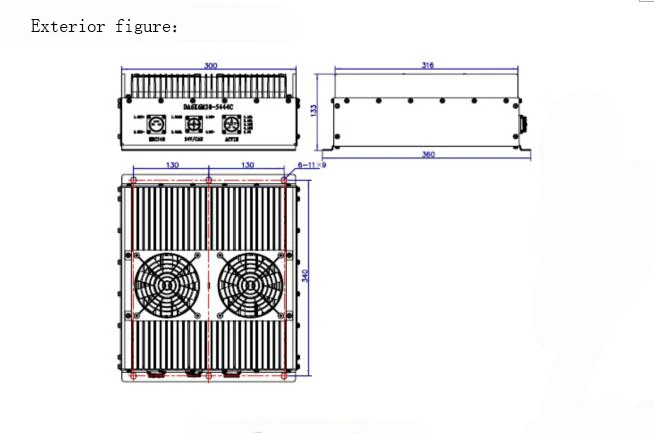

Dimensions

mm

316*301*133
