Sunforson standard double row carport solar mounting vertical panel installation mounting rack
- Category: >>>
- Supplier: Sunforson Power (Xiamen) Co. Ltd.
Share on (60738822776):
Product Overview
Description
SunRack Carport Mounting System
Installation Site | Open ground | Ground clearance | 2.0-3.5m |
Panel | Framed or Thin Film | Inclination | 5°，10° or 15° |
Structural materials | Aluminum alloy 6005 T5 | Panel direction | Horizontal or vertical |
Survival wind load | Up to 130mph | Design standard | BS 6399-2-1997 |
Design snow pressure | Up to 30psf(1.4kn/m2) | Warranty | 10 years on material |

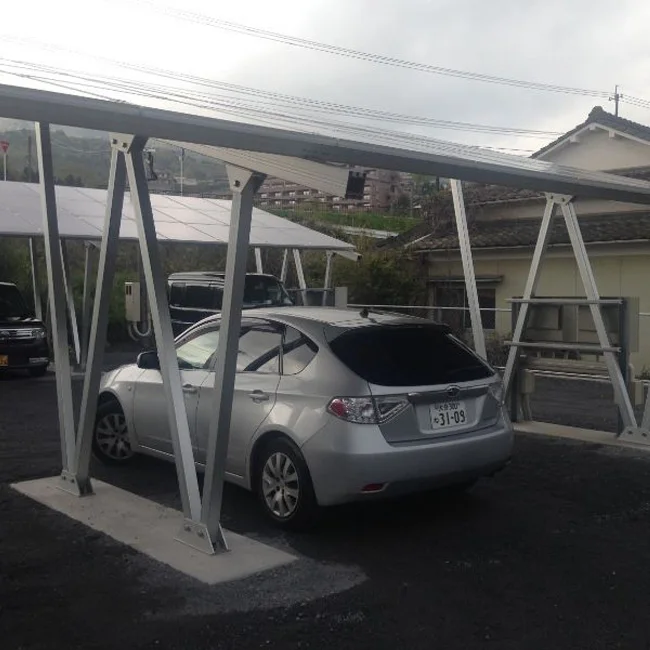

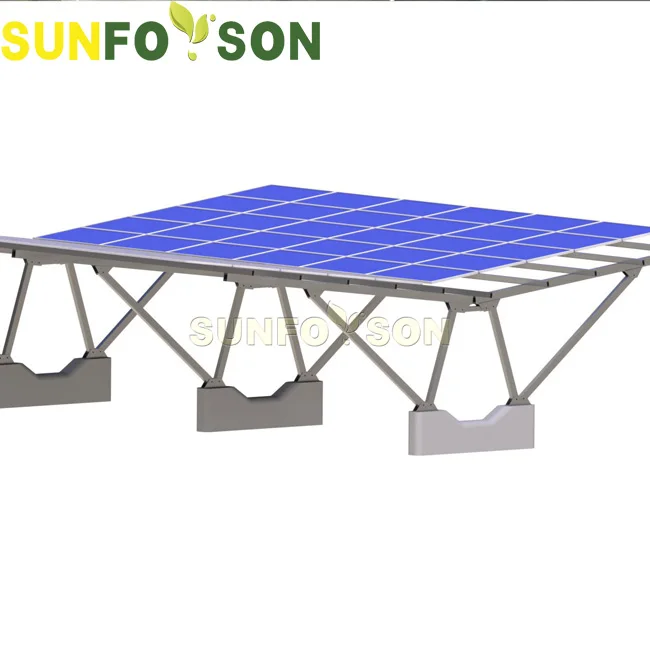

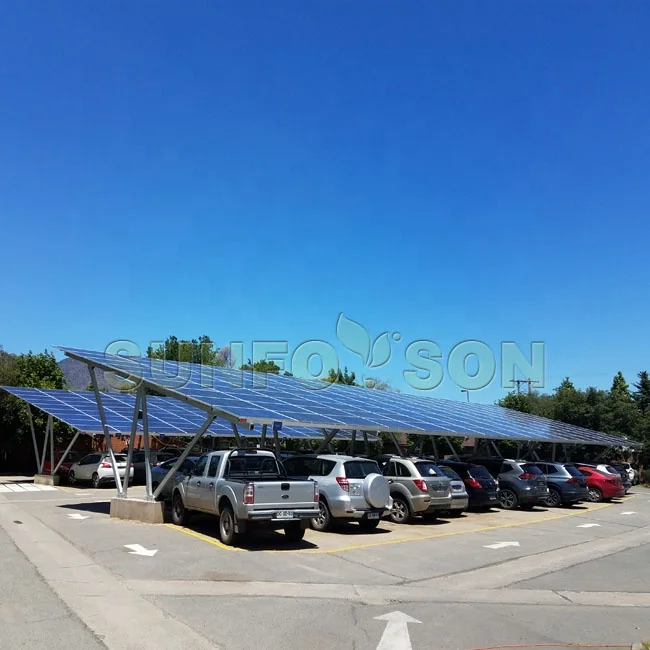

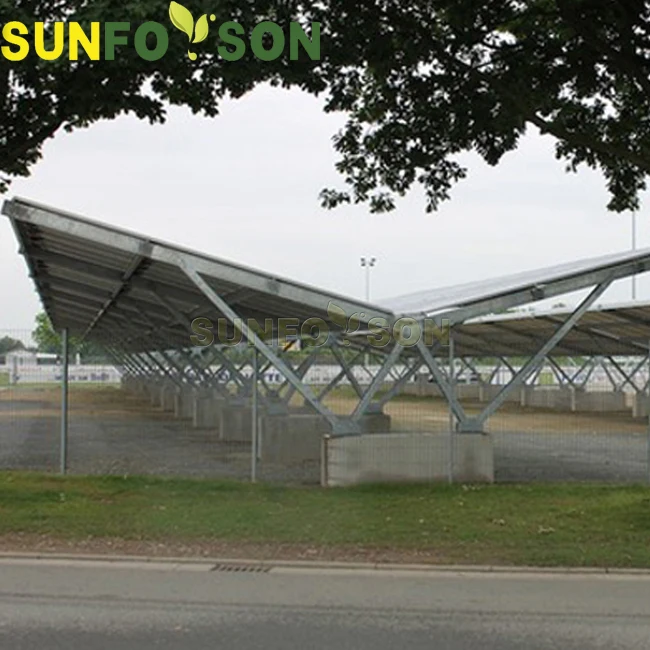

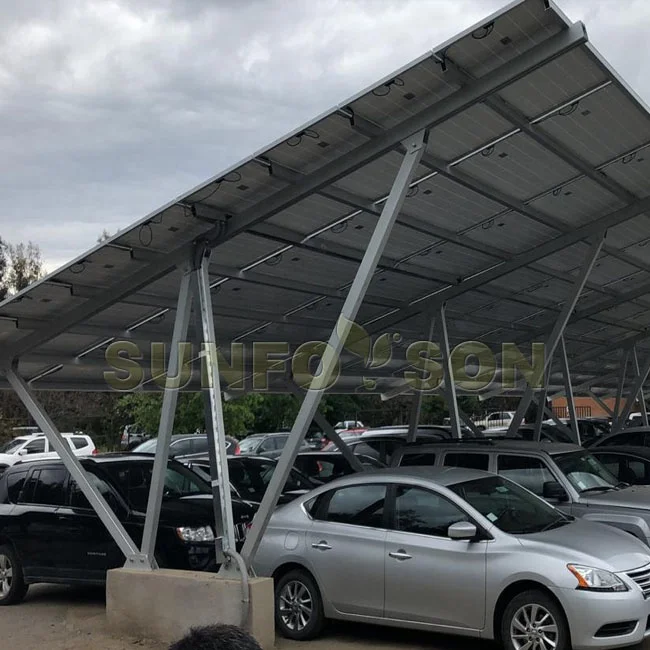

SFS-CP-03 SunRack Carport Mounting System
SunRack SFS-CP-03 double row carport mounting adopts trianle supporting structure technology, which is very strong and secure.With full aluminum alloy and SS304 bolt&nuts material,it is with concise and elegant apperarance.It is quite easy and fast installation without any welding in the site.
Features
1. Quick installation, saving schedule: Sunforson PV systems have produced the assembly parts in advance with professional design,so they can be quickly assembled no drilling or welding on site.
2. Professional design, lower costs: Products were designed by the experienced designers which have the systematic design,stable structure,mature technology,can meet the AS/NZS 1170 and save cost for the customers.
3. Load design, Safety Guarantee: Sunforson PV bracket system design take full account of component weight,combine factors of wind,snow and earthquake load,dynamic load and static load,they have long-term performance and high load capacity in practical applications.
4. Beautiful Appearance: In order to make SunRack Carport become a beautiful building,the bracket system adopt the unique rail design can come up to the unique appearance design,they also have a good rain proof performance.
5. High reliability, 10-year quality Assurance: All components are made of quality extruded aluminium and stainless steel.The high corrosion resistance guarantees the maximum possible lifespan and is also completely recyclable.
2. Professional design, lower costs: Products were designed by the experienced designers which have the systematic design,stable structure,mature technology,can meet the AS/NZS 1170 and save cost for the customers.
3. Load design, Safety Guarantee: Sunforson PV bracket system design take full account of component weight,combine factors of wind,snow and earthquake load,dynamic load and static load,they have long-term performance and high load capacity in practical applications.
4. Beautiful Appearance: In order to make SunRack Carport become a beautiful building,the bracket system adopt the unique rail design can come up to the unique appearance design,they also have a good rain proof performance.
5. High reliability, 10-year quality Assurance: All components are made of quality extruded aluminium and stainless steel.The high corrosion resistance guarantees the maximum possible lifespan and is also completely recyclable.
Necessary info. for Sunforson to design and quote the solar mounting structures:
Part 1:
What kind of solar mount do you want?Roof mount,ground mount or carport mount?
Part 2:
1.Solar panels dimension:__mm(Length)x__mm(Width)x__mm(Thickness)
2.The layout of the solar panels__Nos.in a row,__Rows
3.How many panel are you going to install?__Nos
4.Max wind load:__m/s or __km/h or __mph
5.Max snow load:__kn/m2(if have)
Part 3:
6.For pitch roof solar mounting system:
Roof type:tile roof,tin roof,asphalt shingle roof or other?
7.For flat roof mount brackets/ground mount supports/carport mount structures:
1)Ground/flat clearance(Height between lowest point of panel and ground/roof floor):__mm
2)Solar mount installation tilt angle:__degree
