Automatic Label Jumbo Kraft Paper Roll Cutter Slitter Rewinder Cutting Rewinding Slitting Machine Price(JINSHI company)





Product Description



This machine is suitable for slitting and rewinding such various roll materials as BOPP, PET, CPP, CPE, PVC, aluminum foil and paper, etc. and can cut edge, separate and cut material according to different requirements during production.

I. .Performance and Features:
1. This machine is a kind of vertical slitting & rewinding machine
2. Independent master control panel, more flexible and even easier operation.
4 Automatic EPC for unwinding, photocell is suitable for tracking the edge and color of transparent material.

4. standard shaft for unwinding, automatic tension controller and magnetic powder brake for unwinding tension control

5. Double cam shaft for rewinding, Magnetic clutch control for rewinding tension control
6. Main motor with frequency converter for speed regulation
7. Equipped with rim charge conveying device.
8. Automatic meter counting device

Main technical parameter

Type

WFQ-1100

WFQ-1300

Max.Width of Mother Roll

1100mm

1300mm

MAX.Diameter of Mother Roll

Φ600mm

Φ600mm

Width of Final Roll

20-1000mm

20-1300mm

Slitting and Rewinging Speed

5-160m/min

5-160m/min

Tolerance of EPC

<±0.5mm

<±0.5mm

Main Power

3kw

5.5kw

Weight of Machine

1600kg

1800kg

Overall Dimension

2300×1110×1400mm

2600×1110×1400mm





Advantages



1.This machine adopts DC motor to keep stable speed when increasing speed. ( Inverter speed controller is optional)

2.It has function of auto meter counting and alarming etc.

3.The rewinding part is equipped with A&B air shafts for easy unloading operation;

4.The unwinding part is equipped with auto EPC system for proper slitting for some abnormal materials.

5.The waste edge is slitted by straight blade and then automaticall rewinding

Materials are loaded manually with air shaft(3” inch air shaft cores)



Detailed Images

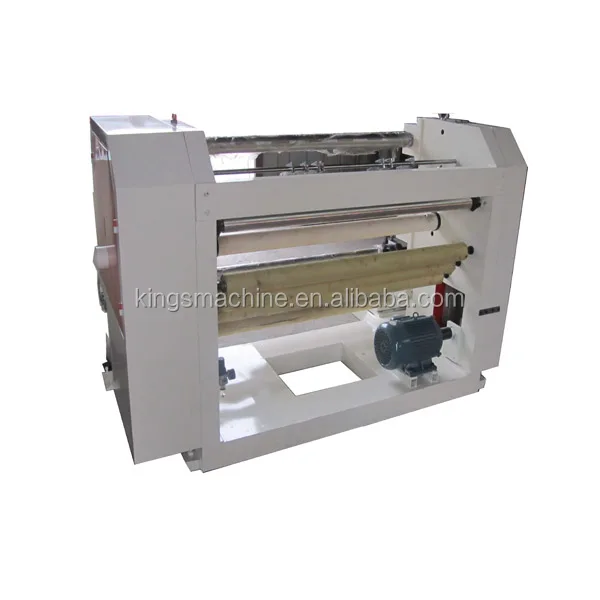

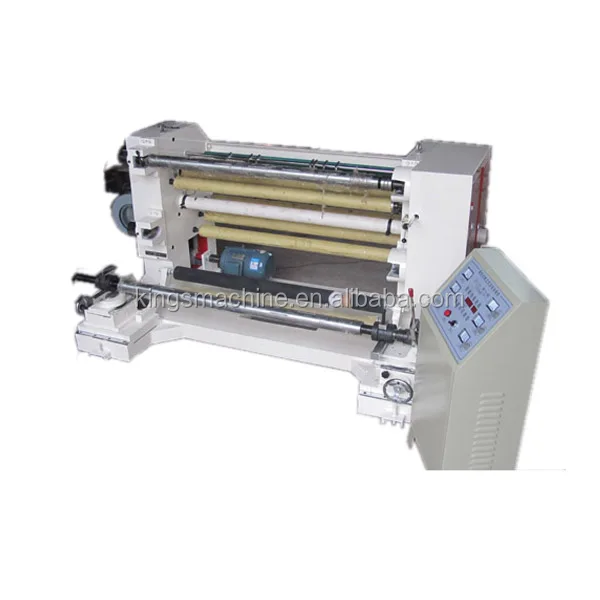

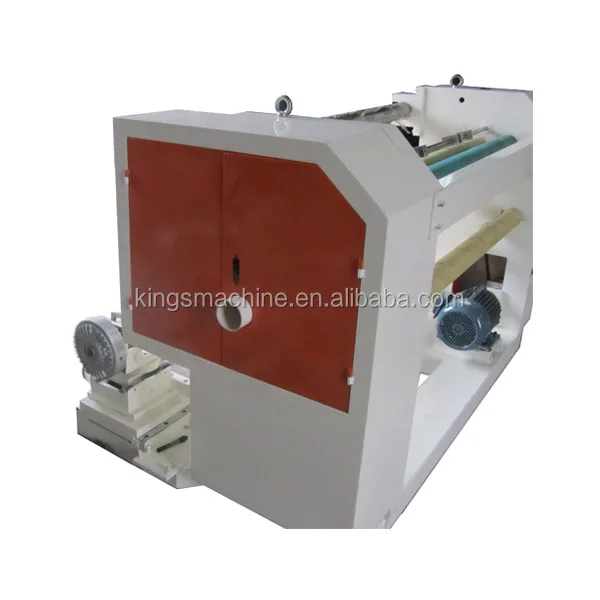

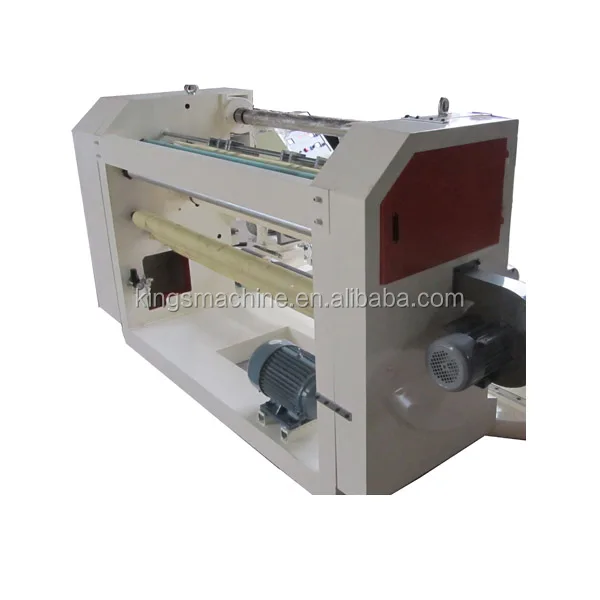

slitting mc 5.jpgslitting mc1.jpgslitting mc2.jpgslitting mc3.jpg





Packaging

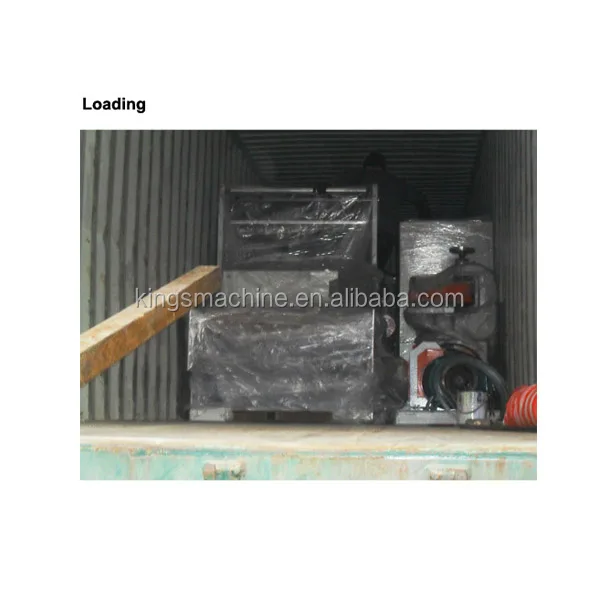

 slitting mc013.jpg

Our Services



We provide 24 hours phone- service. And our engineers are available any time for installation and service.



Company Information

We are specializing in producing kinds of plastic packaging machines for more than 15 years. We owes excelllent technician,sales and service team.   Our achines have been popular with customers from all of the world. Both old and new customers are warmly welcome to visit us! Let's work together! Let's share the same sunshine!
