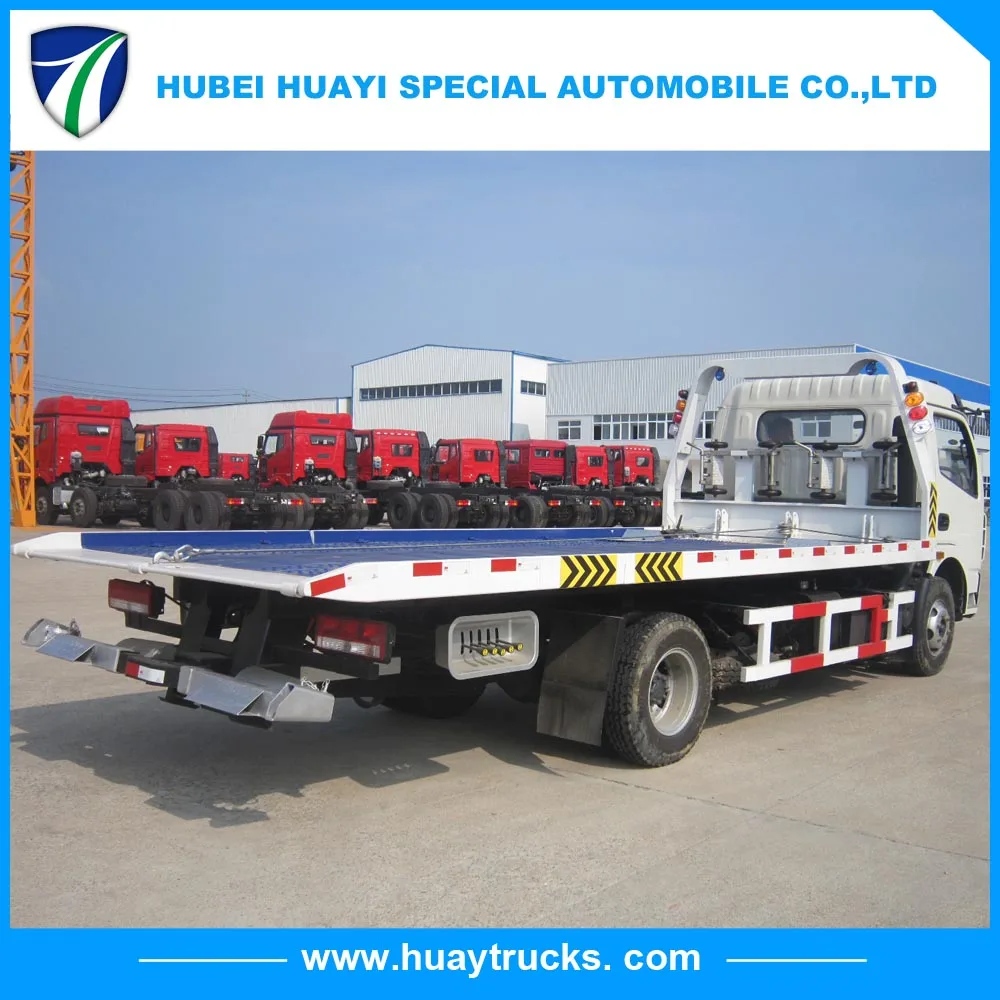

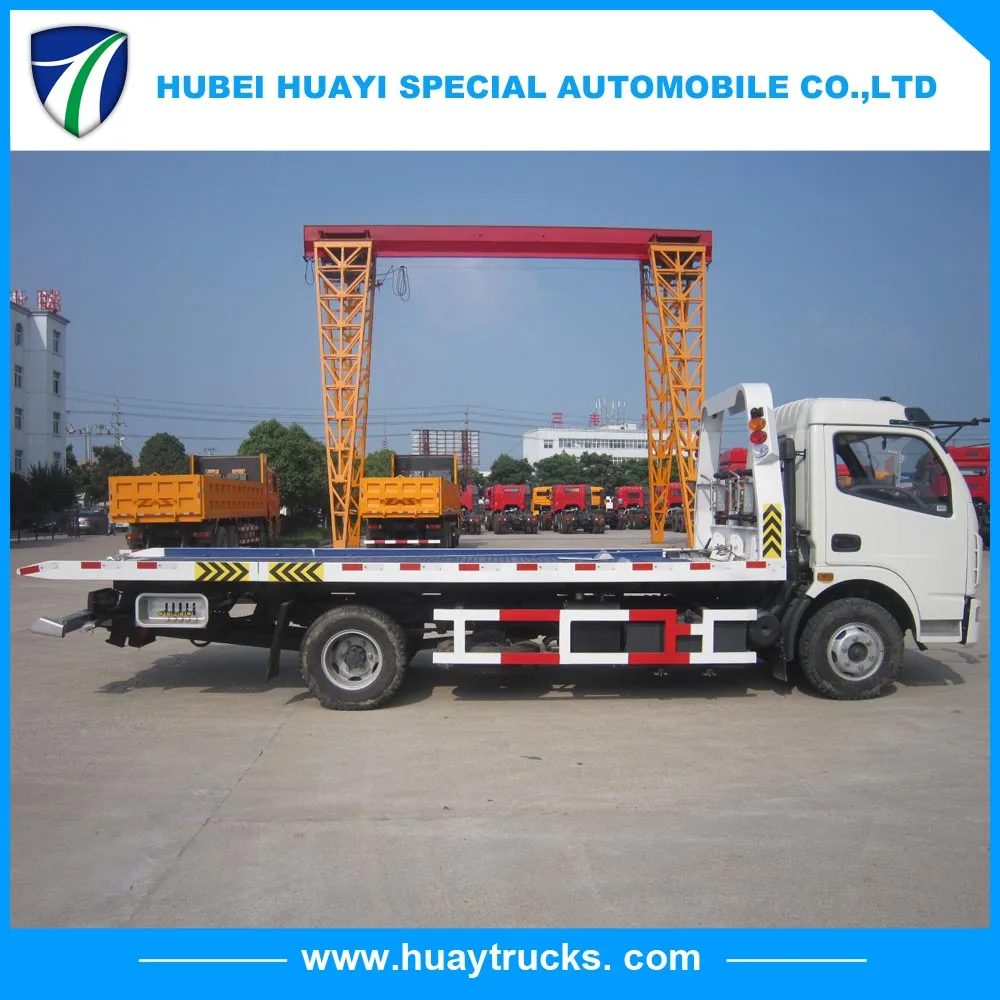

Dongfeng Duolika 4 tons wrecker truck, tow truck wrecker, wrecker body

Vehicle parameters

Vehicle Model

EHY5090TQZE

Vehicle Brand

HUAYI

Overall dimensions

7450X2300X2650mm

Curb weight

5295kg

Chassis parameters

Chassis model

EQ1090T9ADJ3AC

Chassis brand

DONGFENG

Overall dimensions

6695x2180x2350mm

Wheel base

3800mm

Front/rear wheel track

1750/1586mm

Front/rear suspension

1180/1715mm

Approach/departure angle

22/13°

Maximum speed

80km/h

Chassis Manufacturer

Dongfeng Automobile Co.,Ltd

Cab

Configuration

Single row cab,air conditioner,allowable 3 passengers,cab can be flipped

Color

White,other color is optional

Engine

Model

YC4FA120-33

Emission

Euro 3

Type

4 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine

Rated power

120hp,rated power speed 2800rpm

Displacement

3856ml

Bore x stroke

102x118mm

Manufacturer

Dongfeng Chaoyang Diesel Power Co. Ltd.

Tire

Size

7.50R16,steel wire tire

Number

6+1 nos

Frame

192mm

Brake

Air break, electronic flame out, exhaust brake

Fuel tank

100L,steel

Front axle

2.4T

Rear axle

4.2T

Drive form

4X2

Rated voltage

24V,DC

Transmissions

5 speed forward 1 reverse.

Steering device

Power assisted steering

Steering wheel

Left hand drive

Selective configuration

Air Conditioner, Cummins engine B140 33(140hp)

If there is a slight change in the chassis parameters above,please take the actual product as the standard

Wrecker structure parameters

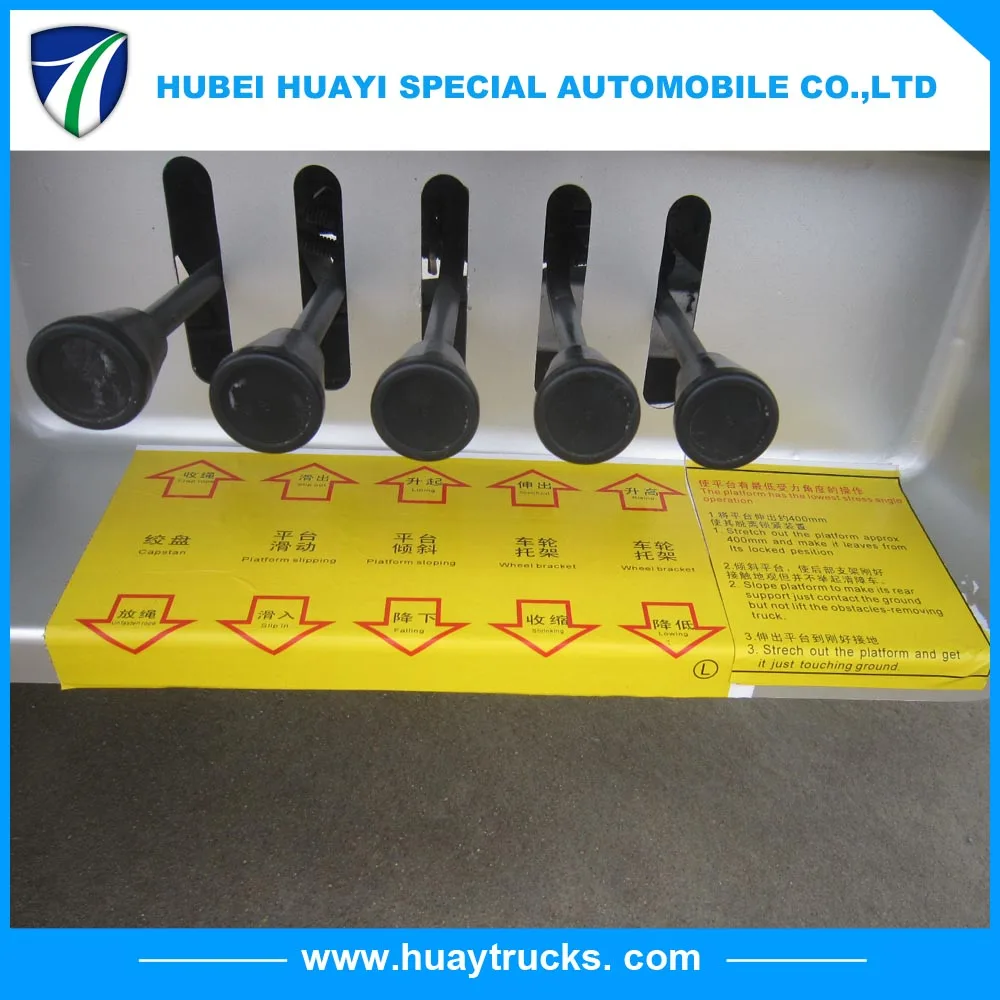

Equipment

2 units of towing wheel, 1 unit of 4 ton winch, 1 unit of steel wire rope, 1 unit of spare tire, 1 unit of jack, 1 unit of tire sleeve, 4 units of wrecker binding, 1 unit of alarm lamp.

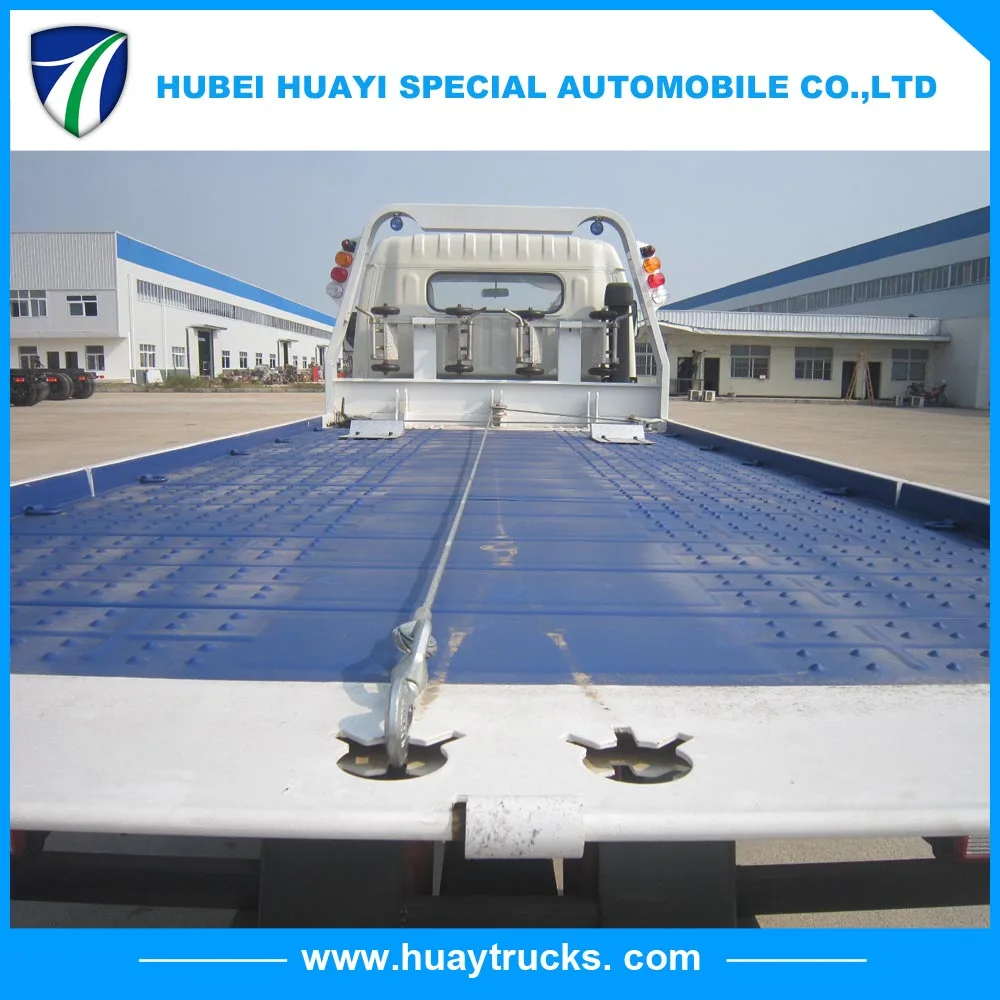

Flat-bed dimensions

5600*2300mm

Flat-bed Max capacity

4000kg

Max under-hoisting capacity

1800kg

Winch numbers

1 unit

Max towing capacity of winch

5000kg

Max towing speed

40km/h

Length of steel wire rope

20m

Speed of steel wire rope

8 m/min
