Factory Price SD3500 Circuit Board Electrical Insulation Silicone Waterproof Coating Adhesive
- Category: >>>
- Supplier: Huizhou Sandao New Material Co. Ltd.
Share on (60738898728):
Product Overview
Description
Product Description

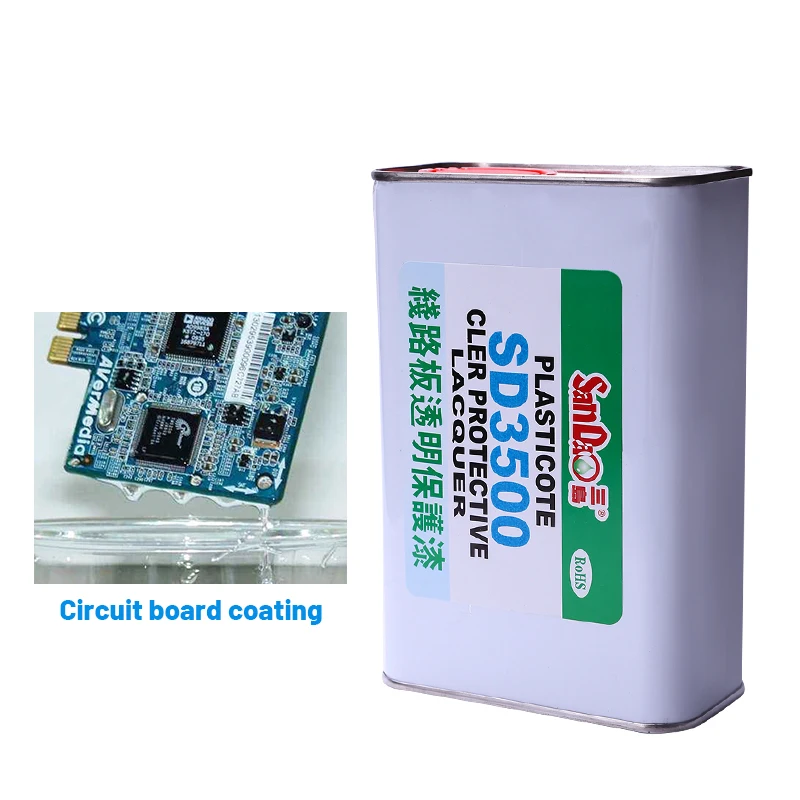

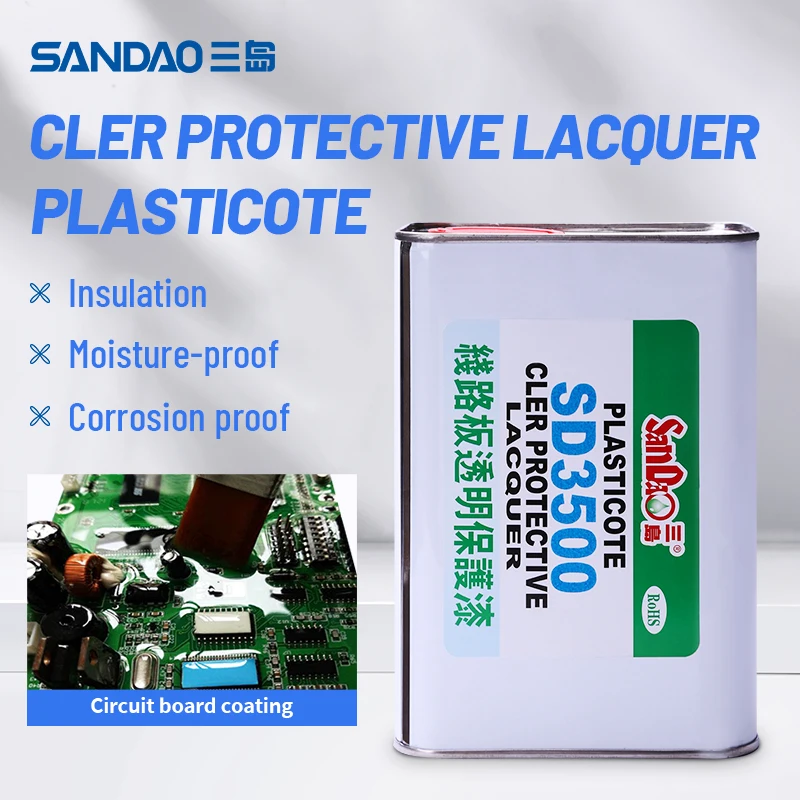

SD3500 Electronic Circuit Board Protective Paint Adhesive
1.Feature:
it is a low viscosity at room temperature curing one component products, this product is simple: suitable for brushing, spraying, dipping three kinds of process, fast curing speed, good adhesion to various circuit boards. With good temperature resistance under the condition of 100 DEG C, good heat aging property; a layer of transparent the protective film after curing, excellent insulation, moisture-proof, anti leakage, shockproof, dustproof, anti corrosion, anti aging, corona resistant performance
2.Usage
Widely used in a variety of electronic components, IC chip, circuit board which has been assembled in the protection line network board from all kinds of chemicals, salt fog, moisture, dust, vibration and electrical insulation, high temperature and other harsh environment impact

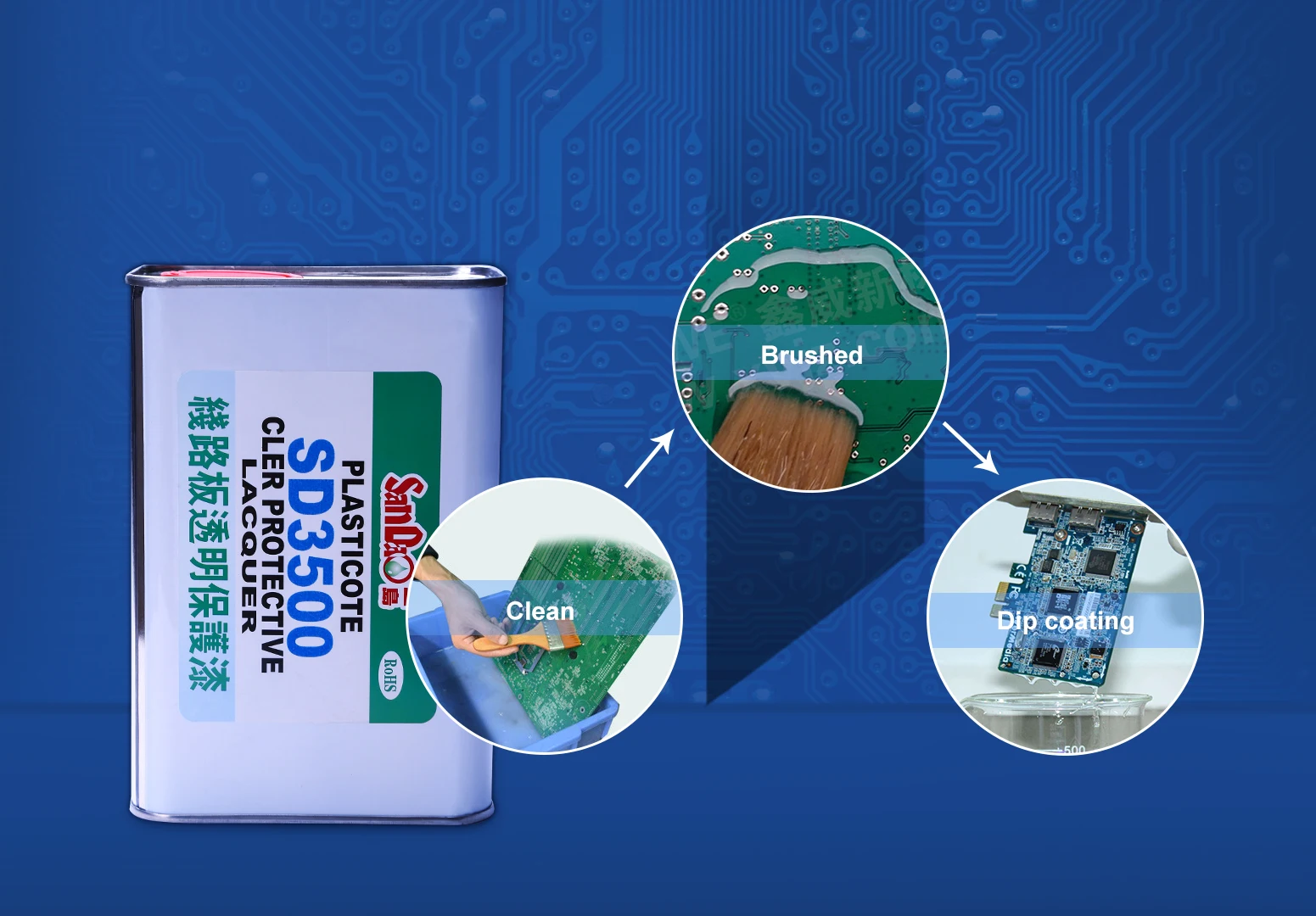

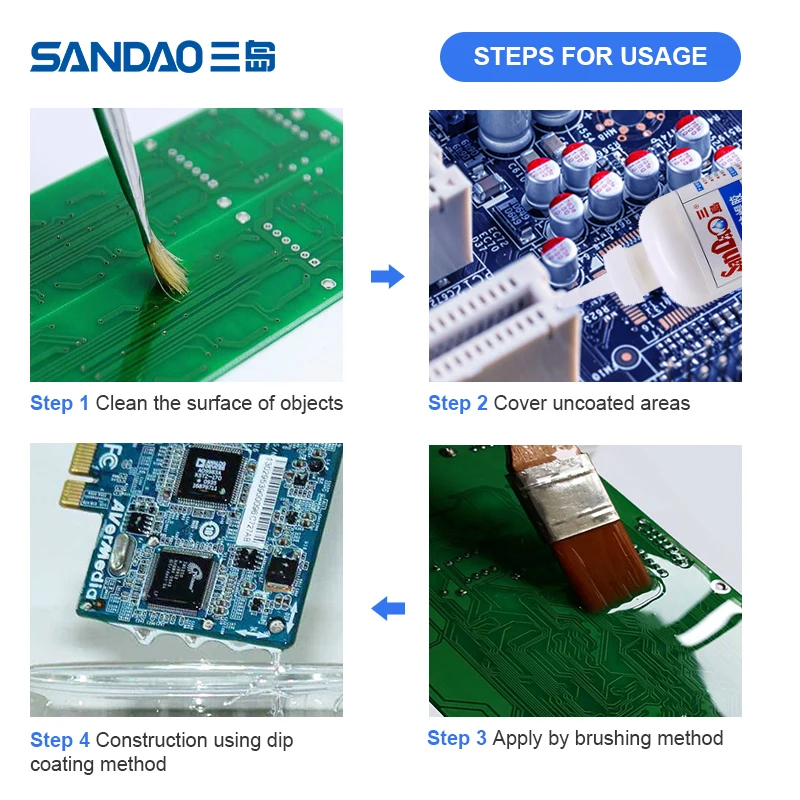

3.Using process
*The best operation: direct glue or brush, if the concentration is larger, can also add thinner.
*Use our 3000 special diluent
*Will be diluted into the glue spray bottle, spray
*Use thinner cleaning after coating sprayer
Before curing | |
color | transparent |
density | 0.85~0.90g/cm3 |
viscosity | 1000-1300 mPa•s |
surface drying time | 2~10mins |
after curing | |
hardness(shore A,24hr) | 60 |
volume resistivity(Ω•cm) | 5.0×10^14 |
dielectric strength(kv/mm) | 21 |
tensile strength(MPa) | 4.5 |
Temperature Range | -50~120 |
Revelent Product Recommend

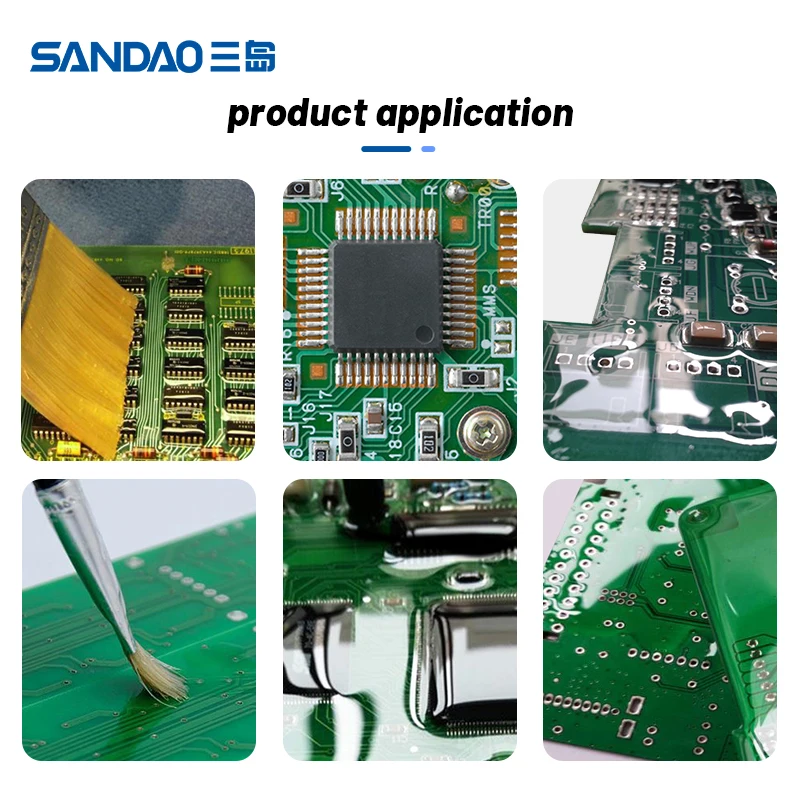

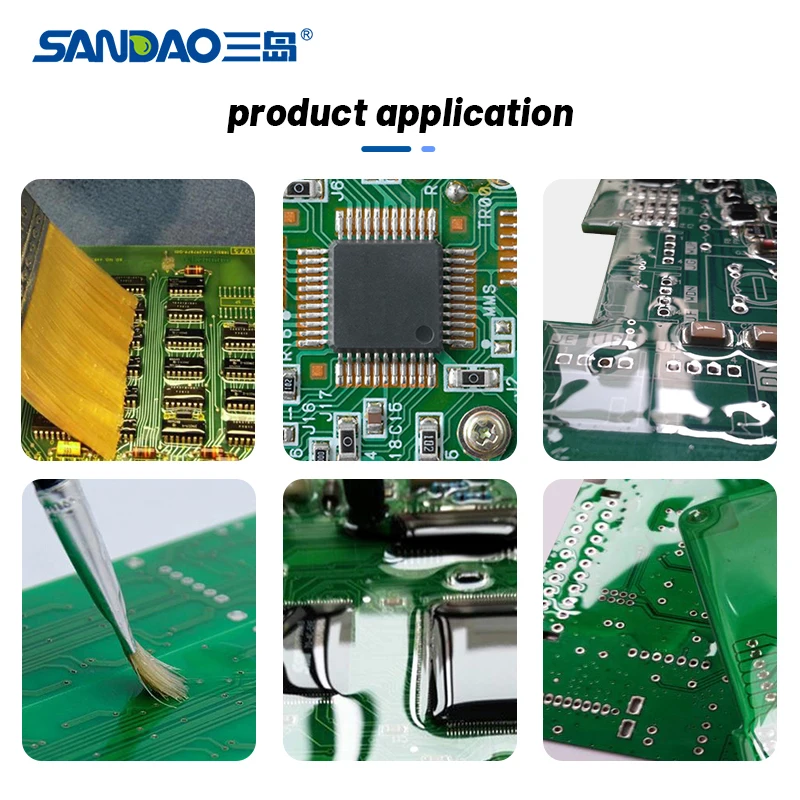

Application
Company Profile
Huizhou SANDAO New Material Co., Ltd, manufacturer founded in 2004 , with Headquarter in Shenzhen and factory in Huizhou,Guangdong. We specialized in producing adhesive and sealant for 14 years.
Main products include thermal conductive gel adhesive,heat conductive grease, RTV silicone rubber, glass glue, epoxy resin AB glue, UV glue , anaerobe etc.
Our products are widely used in LED display products, high-tech semiconductors, electronics, electrical appliances, optoelectronic display, optics, toys, solar photovoltaic modules, power modules, automotive, mechanical, metal, aviation, construction and other industries.
Our company has 2 production departments, laboratory and testing centers, 2 branch factories, equipped with perfect product testing equipment, such as gas chromatograph, particle size meter, thermal conductivity meter, pressure tester, etc. Infrared spectrometer, electron microscope, X-ray fluorescence spectrometer (ROHS detector) and hot impact test box, aging resistance constant temperature oven, etc.
As a national new and high-tech enterprise, we are aimed to offer customers high quality products which is safe and healthy. All our products meet the requirements of ROHS, REACH and UL. Thanks to our strong R&D team ,we developed wide range of product series
which cover more than 150 items.
We have 2 Sub-plants with an annual output of 5000 tons. So the delivery time is very fast, normally within a week. Many items are in stock. Now Sandao customers are from all over the world, we're continuous upgrading our sweet service.
SANDAO, Trustworthy!
Our products are widely used in LED display products, high-tech semiconductors, electronics, electrical appliances, optoelectronic display, optics, toys, solar photovoltaic modules, power modules, automotive, mechanical, metal, aviation, construction and other industries.
Our company has 2 production departments, laboratory and testing centers, 2 branch factories, equipped with perfect product testing equipment, such as gas chromatograph, particle size meter, thermal conductivity meter, pressure tester, etc. Infrared spectrometer, electron microscope, X-ray fluorescence spectrometer (ROHS detector) and hot impact test box, aging resistance constant temperature oven, etc.
As a national new and high-tech enterprise, we are aimed to offer customers high quality products which is safe and healthy. All our products meet the requirements of ROHS, REACH and UL. Thanks to our strong R&D team ,we developed wide range of product series
which cover more than 150 items.
We have 2 Sub-plants with an annual output of 5000 tons. So the delivery time is very fast, normally within a week. Many items are in stock. Now Sandao customers are from all over the world, we're continuous upgrading our sweet service.
SANDAO, Trustworthy!

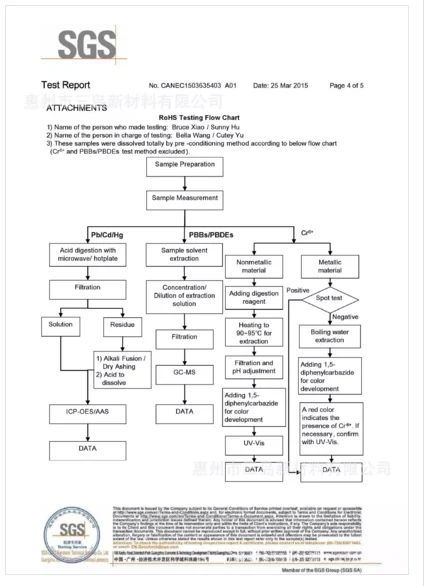

Certifications
