low price plastic laundry washing water face basin baby bathtub feet basin making machine injection molding moulding machine

Product Overview

Description

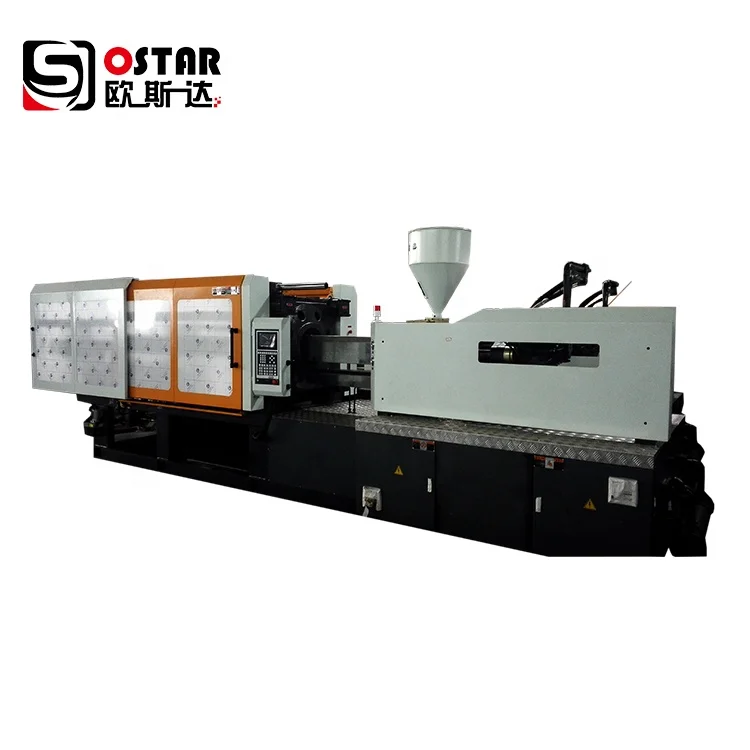

Products Name: plastic washing water face basin baby bathtub feet basin making machine injection molding moulding machine

Machine Specification:

MACHINE MODEL	UNIT	OST-3000
INJECTION DEVICE
SCREW DIAMETER	MM	60	65	70
SCREW DOAMETER RATIO	L/D	25.2	23.3	21.6
THEORETICAL SHOT VOLUME	CM3	847	995	1154
INJECTION WEIGHT ( PS)	G	771	905	1050
INJECTION RATE ( PS)	G/S	238	279	324
INJECTION PRESSURE	MPA	198	169	145
PLASTICIZING CAPACITY( PS)	G/S	31	35.5	39.8
SCREW SPEED	RPM	140
CLAMPING UNIT
CLAMPING FORCE	KN	3000
TOGGLE STROKE	MM	610
SPACE BETWEEN TIE-BARS	MM	630X630
MIN-MAX MOULD THICKNESS	MM	250-630
EJETION STROKE	MM	160
EJECTING FORCE	KN	90
EJECTOR NUMBER	PC	13
OTHER
MAXIMUM SYSTEM PRESSURE	MPA	16
OIL PUMP MOTOR POWER	KW	30(31)
HEATER POWER	KW	23
OIL TANK CAPACITY	KG	520
OVERALL DIMENSION (ROUGH )	MM	6590X1665X2100
MACHINE WEIGHT ( ROUGH )	TONS	11

Machine Features:
  1) Optimized machine mechanical designe, for better products quality.
  2) Imported brand hydraulic component, electrical component, for machine stability.
  3) Professional PLC controller, fast response system, high precision operation.
  4) High hardness tie bars, durable Ceramic or cast aluminium heaters.
  5) Large torque oil motor, guarantee good plasticizing for all kinds of plastic material.
  6) Balanced double cylinders injection system, enlarged tie bar space and toggle stroke.
  7) Servo motor energy saving system, reduce over 60% electricity consumption.
  8) Safety device on hydraulic, electric and mechanical, avoid any potential damage.

Machine Introduction:

Company Introducation:
  Zhangjiagang Ostar Machinery Co. Ltd, one of the professional manufacturer for plastic injection molding machine in China, focus on machine manufacturing, developing and sales. Company founded in 2000, mainly on plastic injection molding machine, mold and related auxiliary, our main purpose is to offer top quality machine, professional service, growing together with our customers.
  Ostar Machinery manufacture machines from 70T to 2000T, injection weight from 50g to 10000g, more than 30 different model machines, over 1500sets machine output ability yearly. Due to continually developing innovation and technological improvement, our machines has exported worldwide, with a good reputation all around world.

More Photos of our Company and machine:
