New PE Color Striped Plastic Film Blowing Machine,Blow Moulding Machine
Product Description
1- It is used for blowing plastic film like low density polyethylene(LDPE),high density polyethylene(HDPE)and linear low density polyethylene(LLDPE)etc, which are widely used for packing industrial products, garments and food and for covering farmland.
2- The cylinders and the screw are made of high-quality alloy steel with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment.
3- The machine is equipped with a platform for making operation easy.
4- The coiling unit adopts torque motor to keep proper tension and make rolling even and roll-changing easy.
Main Technical Variables:
Model
SJ-45/FM600
SJ-55/FM800
SJ-60/FM1000
Screw Diameter
45mm
55mm
60mm
Screw Ratio
L/D30:1
L/D30:1
L/D28:1
Screw Speed
10-100r/min
10-100r/min
10-100r/min
Power of Main Motor
7.5kw
11kw
15kw
Max. Extrusion output
35kg/h
50kg/h
65kg/h
Max. Folding Width of Film
600mm
800mm
1000mm
Single-sided
Thickness of Film
0.006-0.10mm
0.006-0.10mm
0.006-0.10mm
Total Power
18kw
22kw
28kw
Weight of machine
2000kg
2200kg
2800kg
Overall Dimensions(L*W*H)
4200X1800X3600mm
4400X2000X4000mm
4600X2300X4200mm
Model
SJ-65/FM1200
SJ-80/FM1500
SJ-100/FM2000
Screw Diameter
65mm
80mm
100mm
Screw Ratio
L/D30:1
L/D30:1
L/D30:1
Screw Speed
10-100r/min
10-100r/min
10-100r/min
Power of Main Motor
18.5kw
30kw
55kw
Max. Extrusion output
76kg/h
86kg/h
160kg/h
Max. Folding Width of Film
1200mm
1500mm
2000mm
Single-sided
Thickness of Film
0.006-0.10mm
0.01-0.10mm
0.01-0.10mm
Total Power
32kw
52kw
80kw
Weight of machine
3300kg
4300kg
5800kg
Overall Dimensions(L*W*H)
4800X2500X4500mm
5200X2800X5000mm
5800X3300X6000mm
Accessories
Main Components of HDPE-LDPE Dual-Purpose Film Blowing Machine
Model
SJ-45/FM600
Suitable products
LLDPE,LDPE,HDPE
Max.film width
600mm
Screw Diameter
45mm

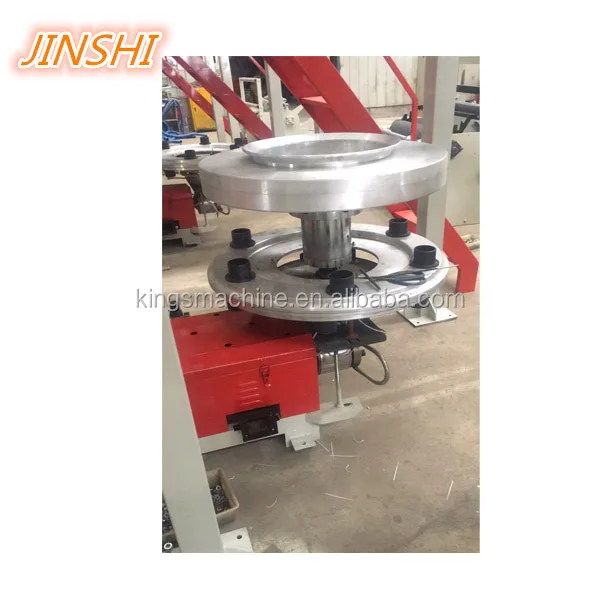

Mould Head
2 pcs (60 &100)
Gap between Die exit
1mm
Electric Heating Power
6kw
Main Motor
11kw (Huifeng brand, best in China)
Rewinding motor
Torque motor (10Neton)
Traction motor
Inverter 1.5kw (Huifeng brand)
Cooling fan for main machine
1.1 kw
Cooling fan for material tank
0.25kw
The diameter of Air Ring
620mm

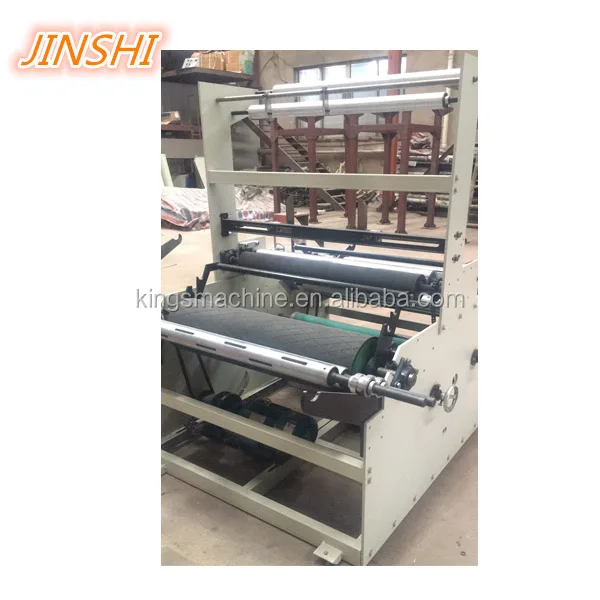

Rewinding roller's width
650mm
Max.Output
35kg/h
Heating circle
Cast Aluminium
Air compressor
1.1kw
Contactor
Zhengtai brand
Screw
38CrMoALA
Gearbox
Made-in-china
Controller for Toque motor
Made-in-china
Machine Size
4200*1800*3600mm
Machine Weight
2000kg

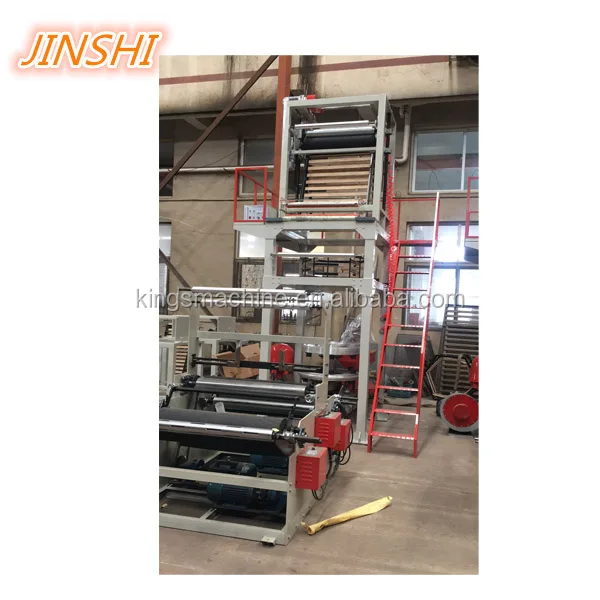

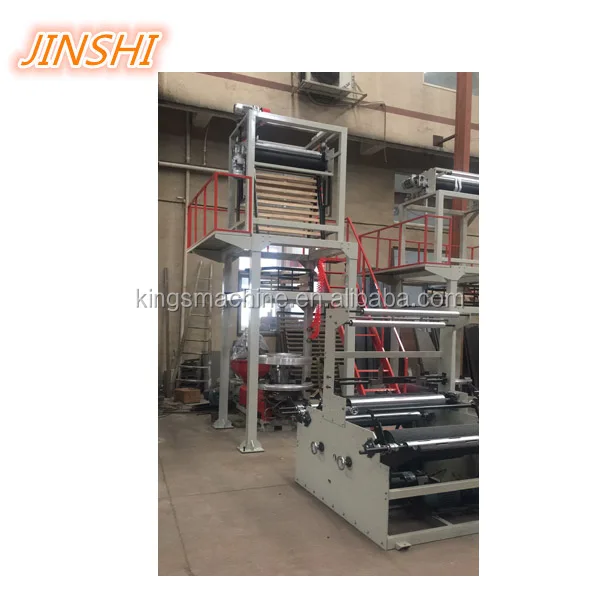

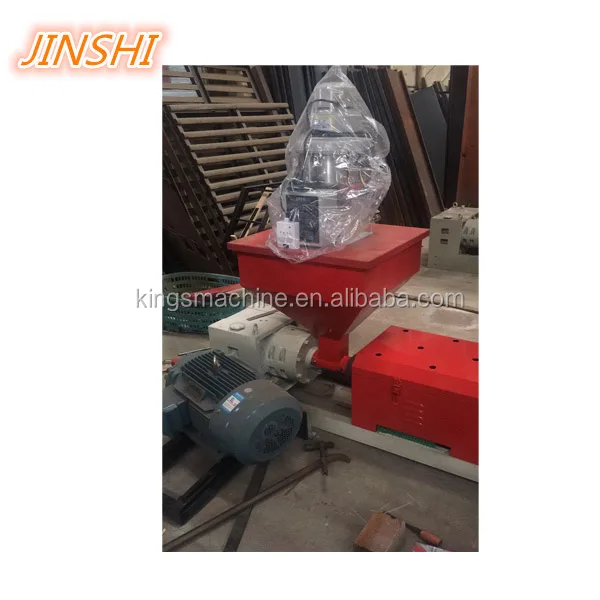

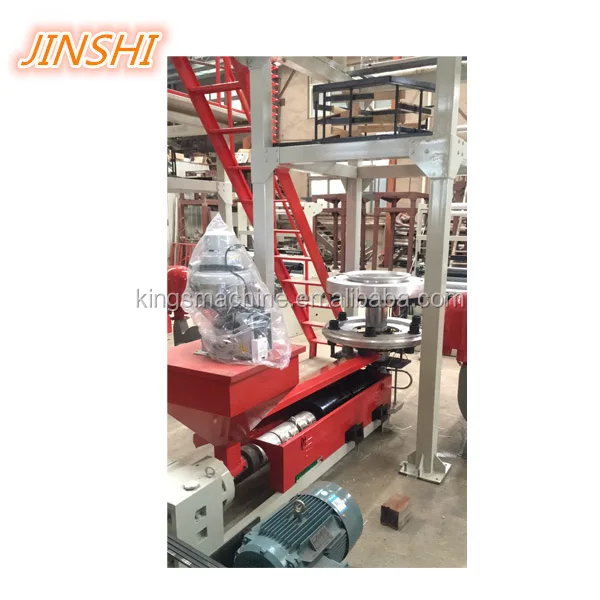

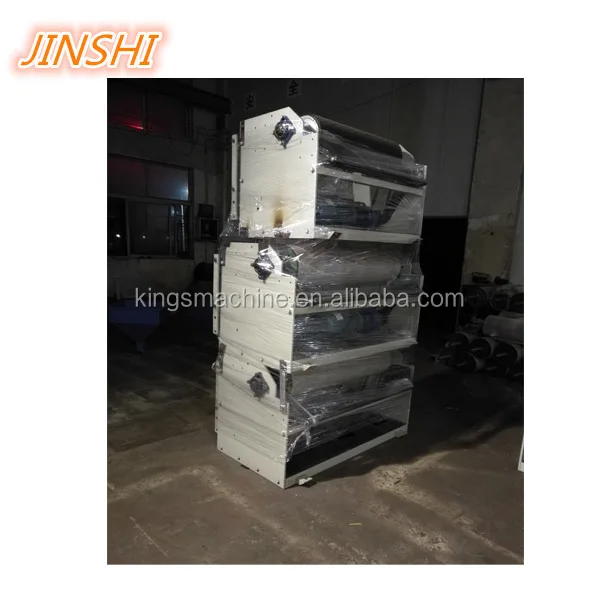

Detailed Images

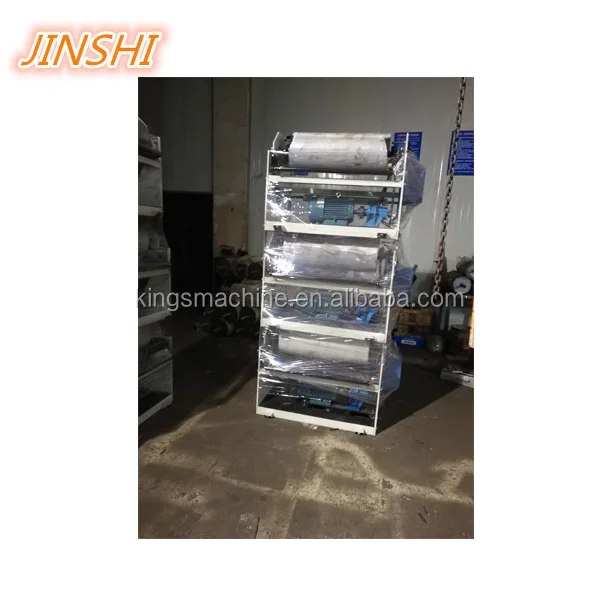

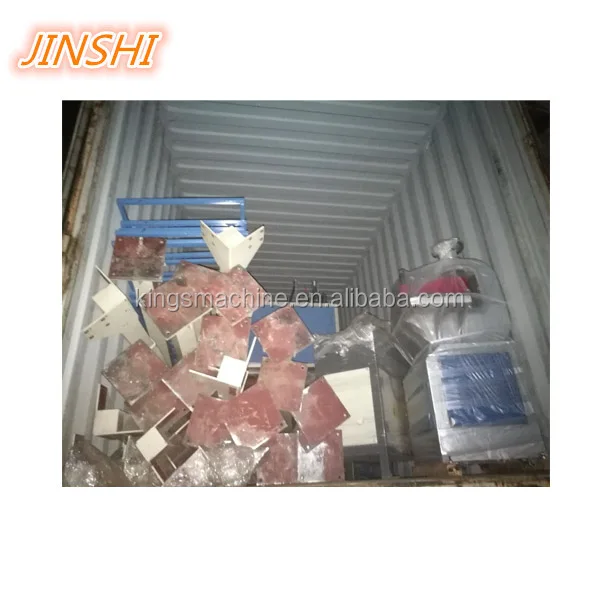

Packaging
After-Sales Service
1- We provide 24 hours call service-- 0086-18815155383
2- We can provide you skillfull knowlege on the machines.
3- Our engineers are available to install and test your machines at any time if requested by the customers.
4- All machines will be examined and tested before shipment.
5- All of our machines are with CE certification.
6- We have already exported to Vietnam, India,Indonesia,Kenya,Egypt,Russia,Turkey etc.
