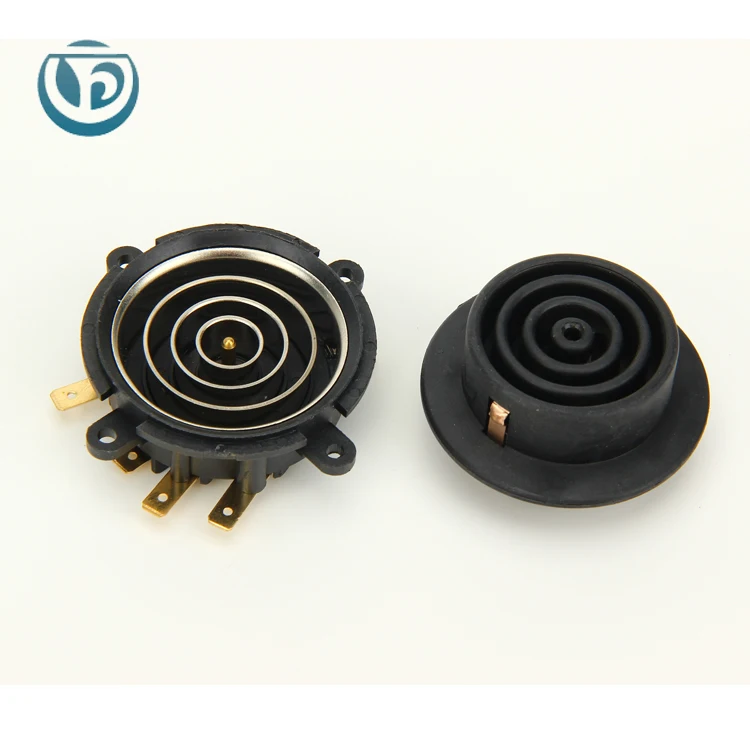

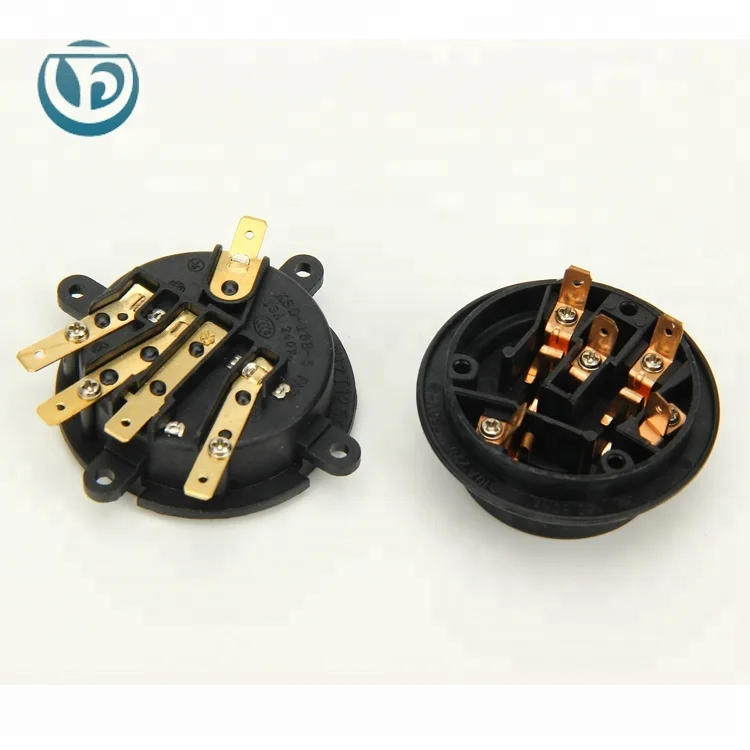

KSD 168 5C general samovar mechanical thermostat

Product Overview

Description

2. automatic switch off when dry burning, manually rest, Precision controlled 120°C.

3.Bimetal inside or flexibility mechanism is not influenced by setup and using below the heating element.

Suitable for direct insert steam control of electric kettle without rope .

The bimetal piece has high quality and acumen ;

The insulated plastic material could be ensured high temperature ;

Reasonable configuration and easy assemble .

Specification

items	parameter
Rated voltage	110V-250V
Rated current	13A
Max. Ambient temperature	T125
Operating life	10000 cycle
Temperature tolerance	±5 ℃
Hi-pot	2200V AC 1 minute
Approval	CQC  TUV  CE  CCC  CB
