AnkhMaway Ble Tag nrf52810 Chip Small Beacon with Motion sensor BLE 5.0 Support Android iOS Ble Sensor
- Category: >>>
- Supplier: Shenzhen AnkhMaway Electronic Technology Co. Ltd.
Share on (60738976977):
Product Overview
Description
iBeacon Feature

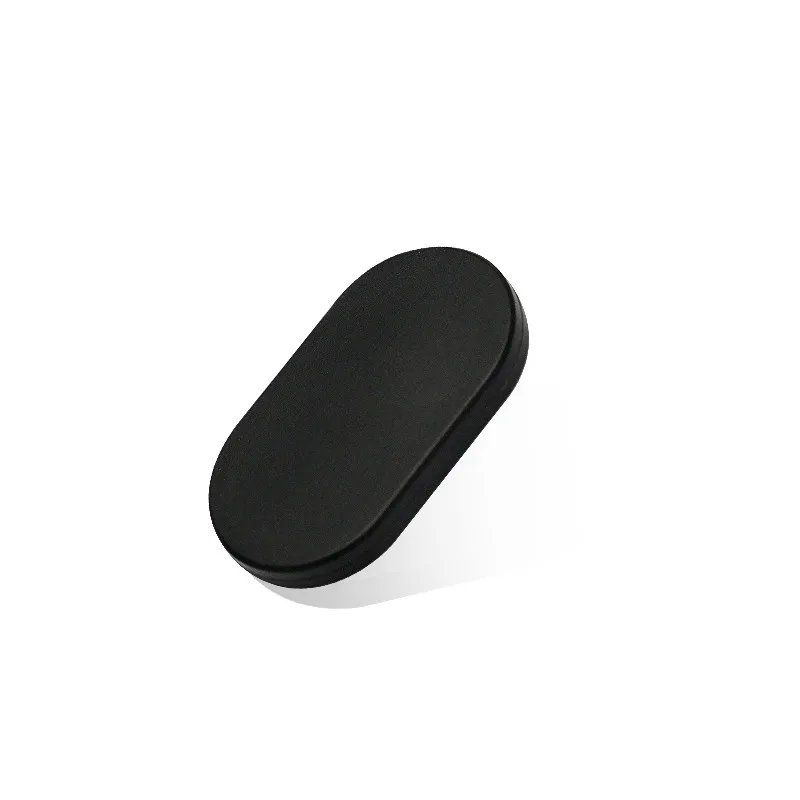

Round Case Nordic nrf52810 Chipset Ble iBeacon Eddystone
Feature: Support iBeacon and Eddystone.
Chipset: nRF 52810
Battery type: Panasonic CR2032 battery
Ble range: 30 meters in open air
Battery life: 12 months based on broadcasting rate 1 second
Sensor: null
Buzzer: Yes
All the parameters can be configured (UUID, Major, Minor, Measured Power, TX Power, etc.)
iBeacon Parameters
Item | Test Data | Remarks |
Chip | NRF51822 | Nordic |
Battery model | CR2032 | Null |
Operation Voltage | 2.0-3.6V | DC |
Operation Frequency | 2400-2483.5MHz | Programmable |
Frequency Error | +/- 20KHz | Null |
Modulation | Q-QPSK | Null |
Standby current | 12uA | Null |
Output Power | 4 dBm - -40dBm | Programmable |
Receiving Sensitivity | -93dBm | High gain mode |
Transmission distance | 30m | BER<0.1%, Open space |
Antenna | 50ohm | Onboard |
State | Operation Current (uA) |
Sleeping Mode | 3.6 |
Connectable Mode | 142 |
Non-Connectable Mode | 22.5 |
Application
Our Company
Our Service
Case customization
For the bulk purchase consumer, we provide the case customization and even the hardware design just for your customized housing
Logo printing customization
We can print your own logo on the case in any color (Gradient color will relatively cost more).
Firmware customization
We provide the firmware customization.you can change the UUID, major, minor and other parameters.
Contact US
Contact | Lynn Lee |
Skype | live:lynn_4813 |
TM | cn1521749104ubby |
Mob | 86-13145840152 |
