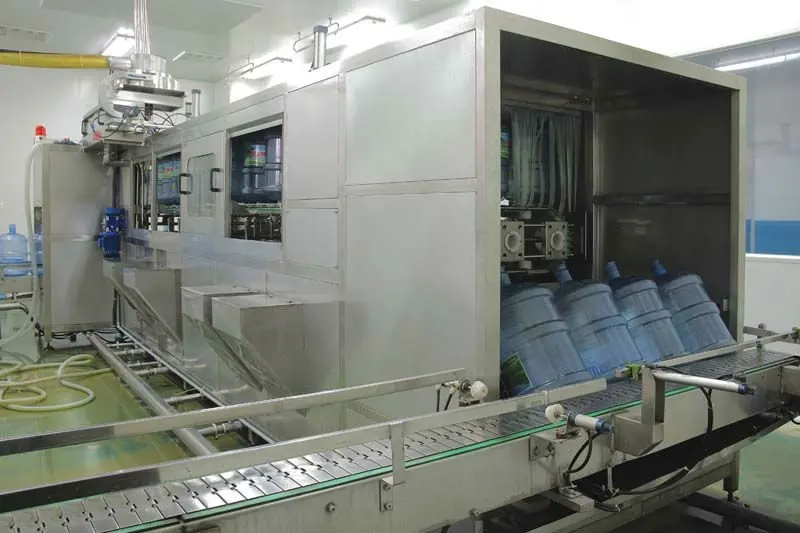

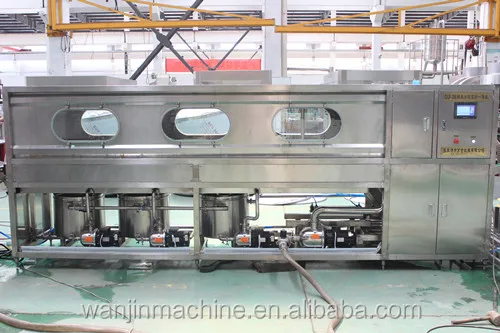

QGF Series barrel machine is specially designed for 3gallon and 5gallon barrel drinking water.This machine integrates washing filling and capping into one unit.It is the good ideals for produce the mineral water,pure water equipments.Whole machine adopt the high quality stainless stell,strong for erosion proof ability,easy to wash.Mostly electric components are adopted SIEMENS,OMRON and related famous
parts.The machine is advanced in construction,occupying small area,steady in performance,high in production efficiency,high in automatization degree.Easy in operation,which integrates machinery,electricity and pneumatics technologies together into one unit full automatic barreling machine.
Technical parameters
Model
QGF-100
QGF-200
QGF-300
QGF-450
QGF-600
QGF-900
QGF-1200
filling heads
1
2
3
4
4
6
8
volume(L)
18.9
18.9
18.9
18.9
18.9
18.9
18.9
barrel size(mm)
φ270*490
φ270*490
φ270*490
φ270*490
φ270*490
φ270*490
φ270*490
capacity(b/h)
100
200
300
450
600
900
1200
gas pressure(Mpa)
0.4-0.6
0.4-0.6
0.4-0.6
0.4-0.6
0.6
0.6
0.6
gas consumption(m3/min)
0.37
0.37
0.6
0.8
1
1.5
1.8
moto voltage(V)
1.38
1.75
3.8
3.8
7.5
9.75
13.5
rated voltage(V)
380V/50HZ
380V/50HZ
380V/50HZ
380V/50HZ
380V/50HZ
380V/50HZ
380V/50HZ
weight(KG)
680
800
1500
2100
3000
3500
4500
Main Features
1) The one unit main machine includes the washer,dryer,filler and capper for the production of 3-5 gallon barreled drinking water.
2) The whole washing ,filling,and sealing process is controlled by PLC,and has the safe device for interlock,signal and self-detection.
3)The whole unit is made of the stainless steel,meets the demands of food hygiene,with the feature of reasonable structure,easy in operation,exact action,it is the ideal equipment for the barreled water.
Detailed Images
Machine Parts

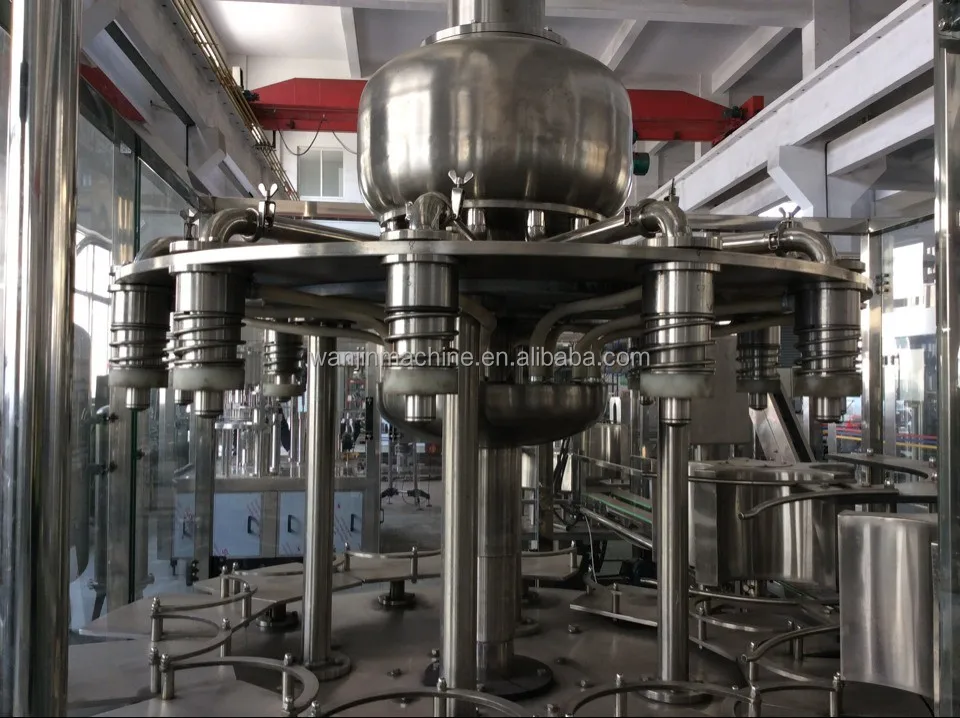

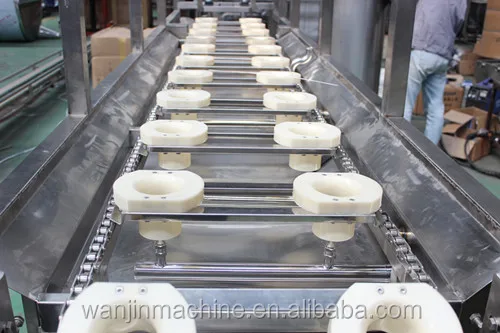

Name: filling heads
materials: sus304/316
It is mainly used for filling gallon barreled, and the speed can be adjusted. Run smoothly and accurately.
Main Features

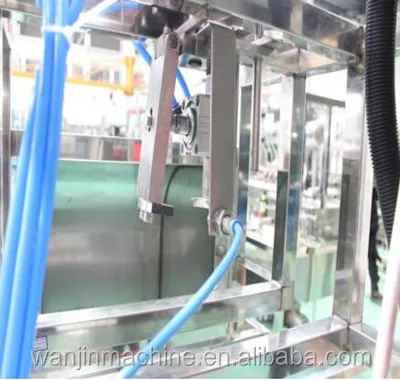

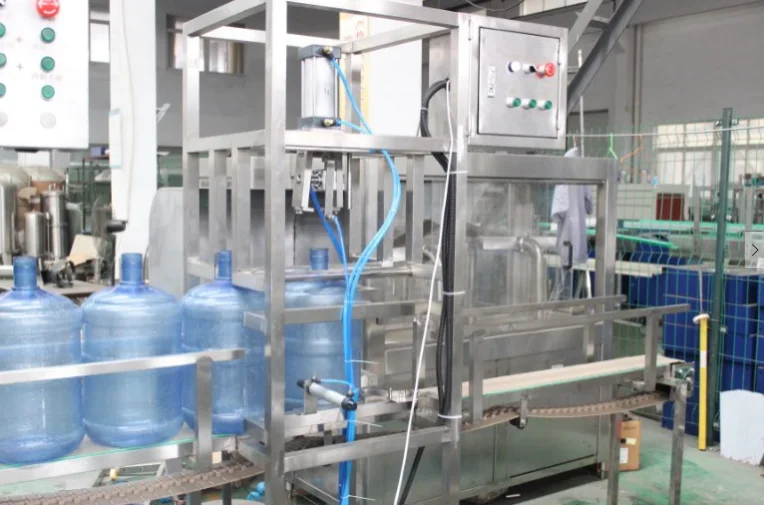

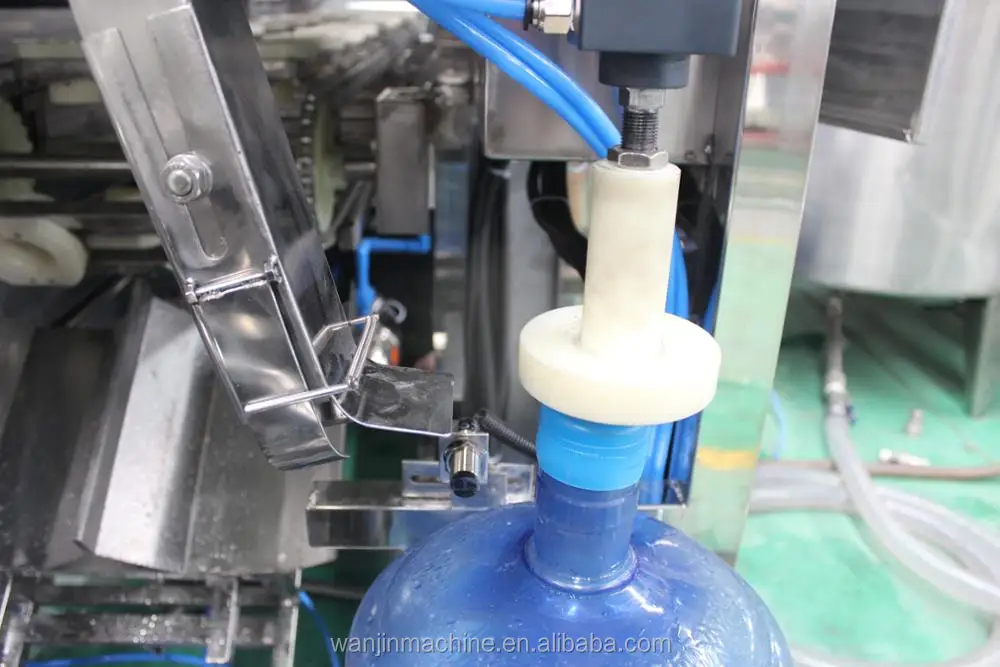

Name: Pulling lid machine materials: sus304/316 Used to pulling the lid of the barrel, the operation is simple, the action is accurate, easy to carry out the next process.
Machine Parts

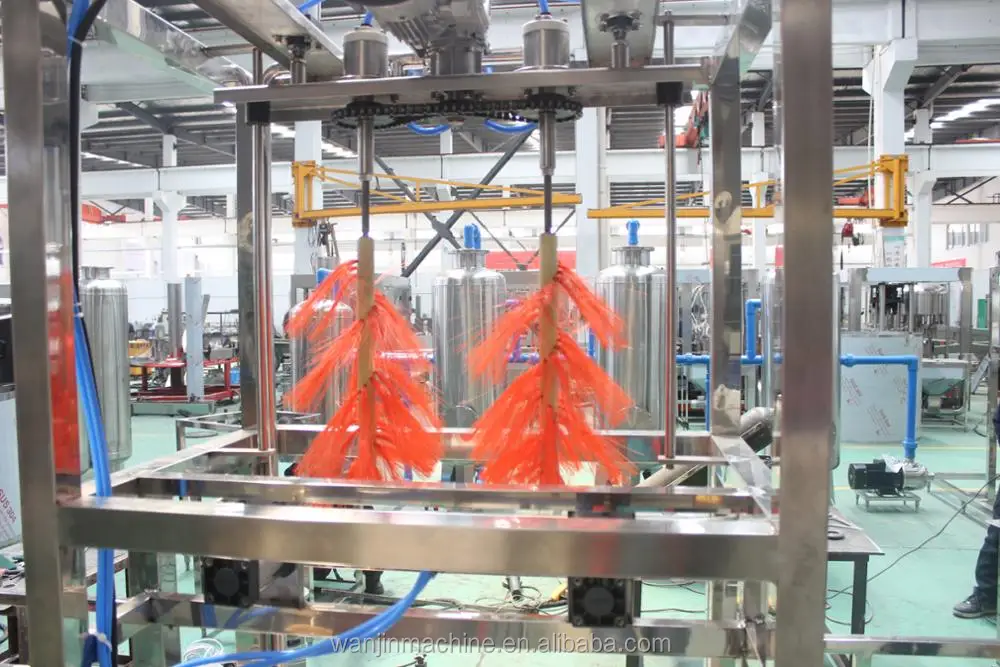

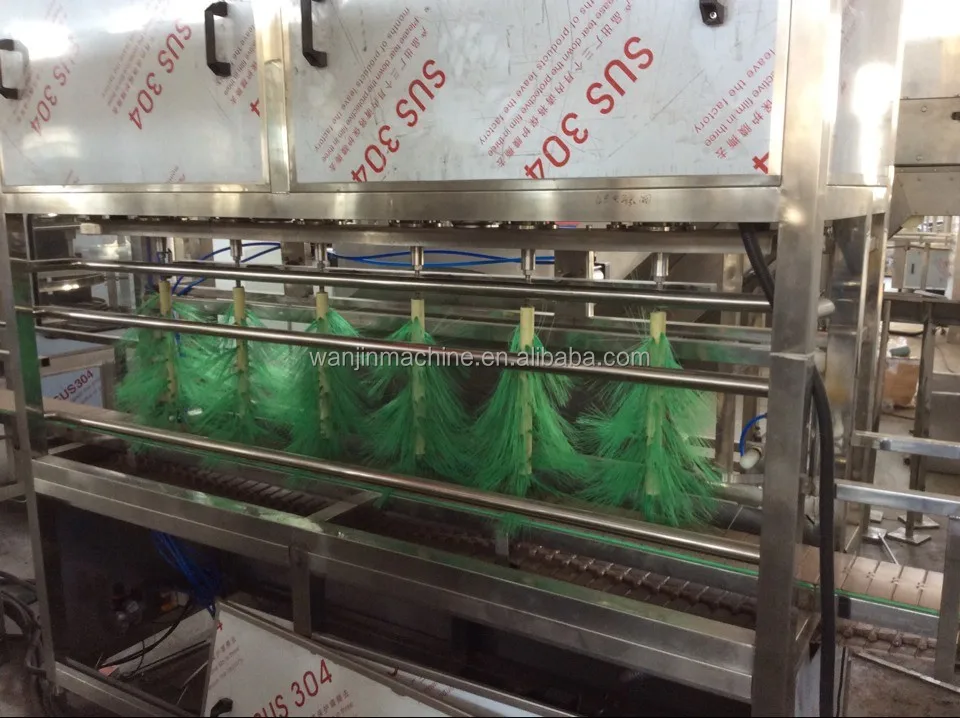

Name: Brush barrel Used for washing in barrels, easy to operate and meets the demands of food hygiene..
Main Features

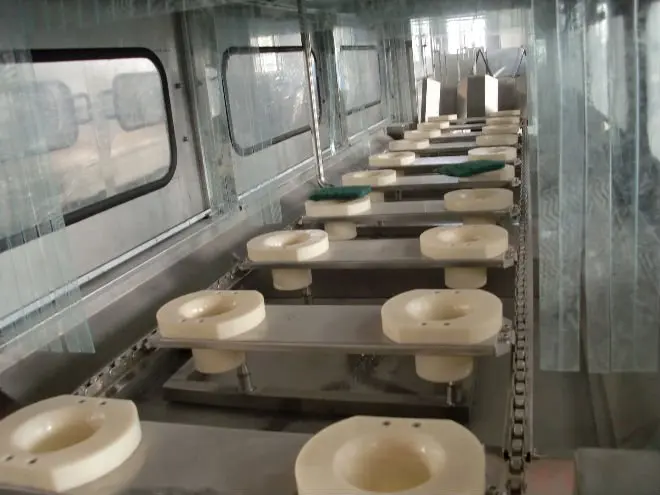

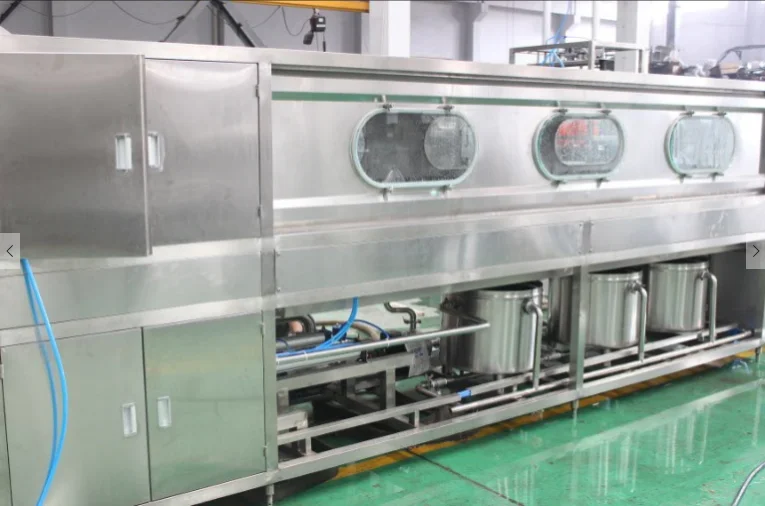

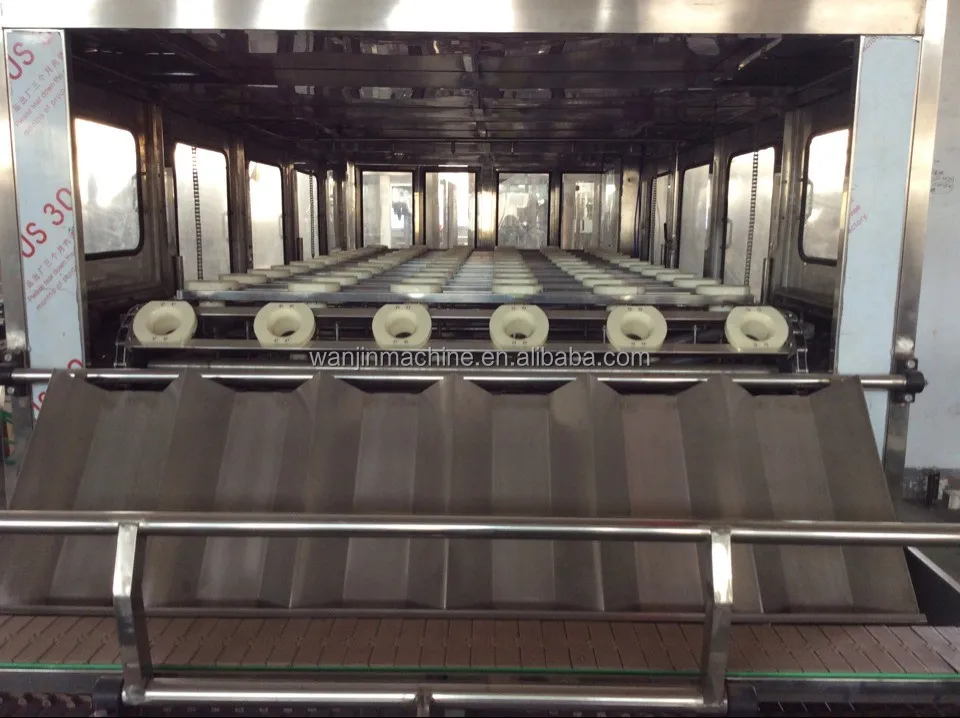

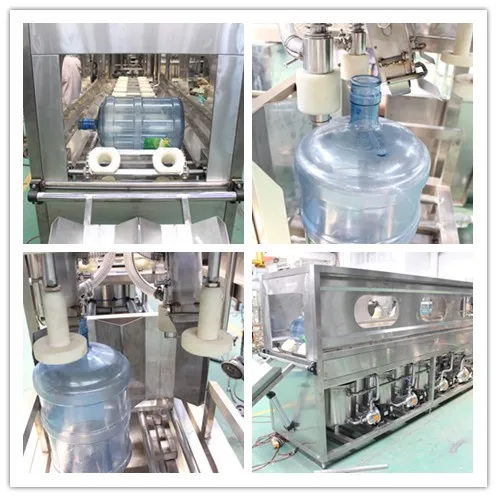

Name: washing gallon barrel The whole barrel is cleaned and disinfected, the structure is reasonable, the action is accurate.
