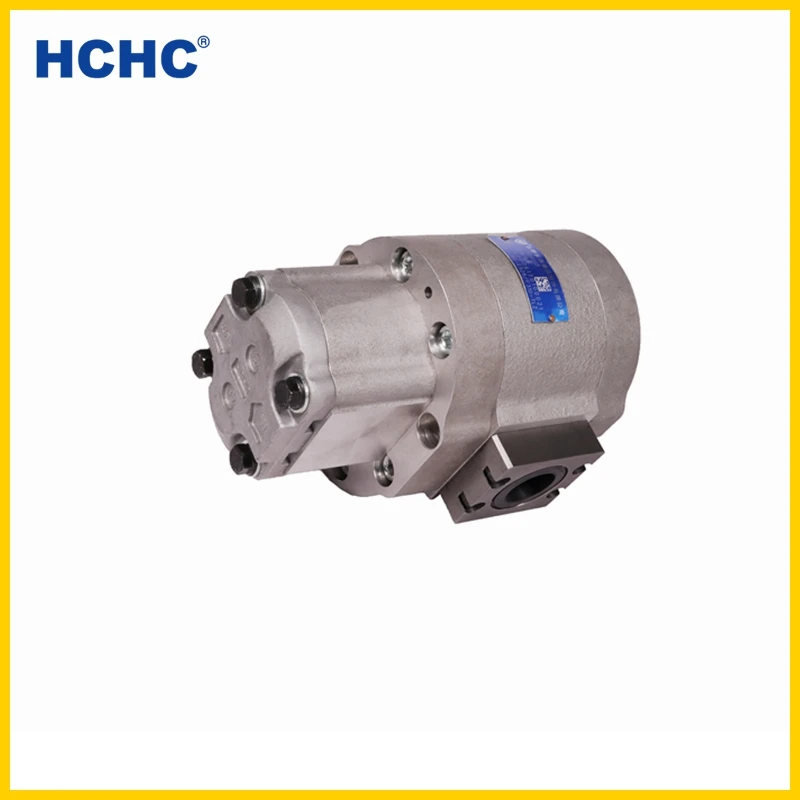

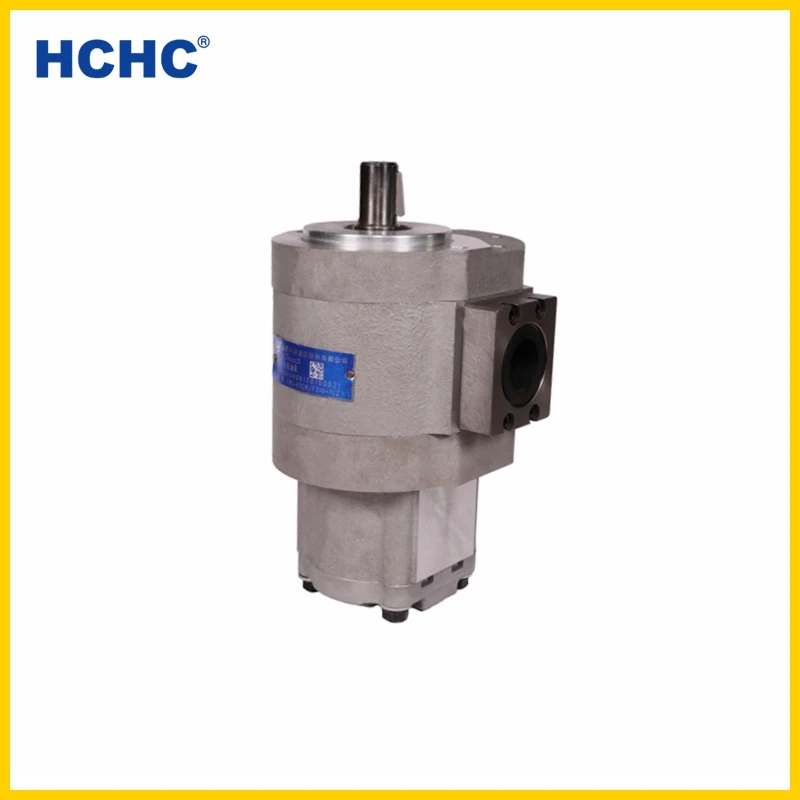

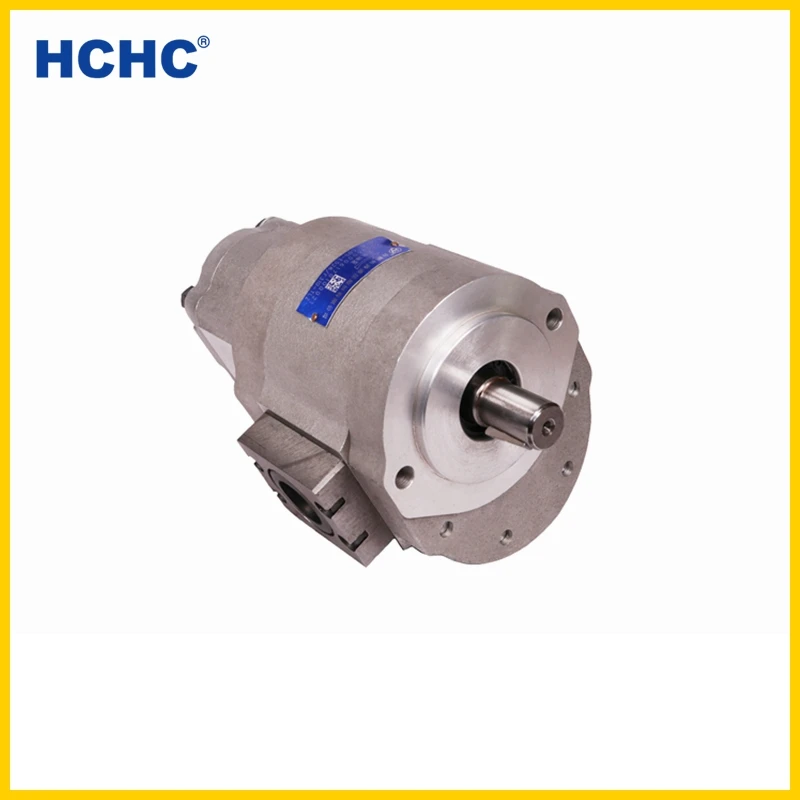

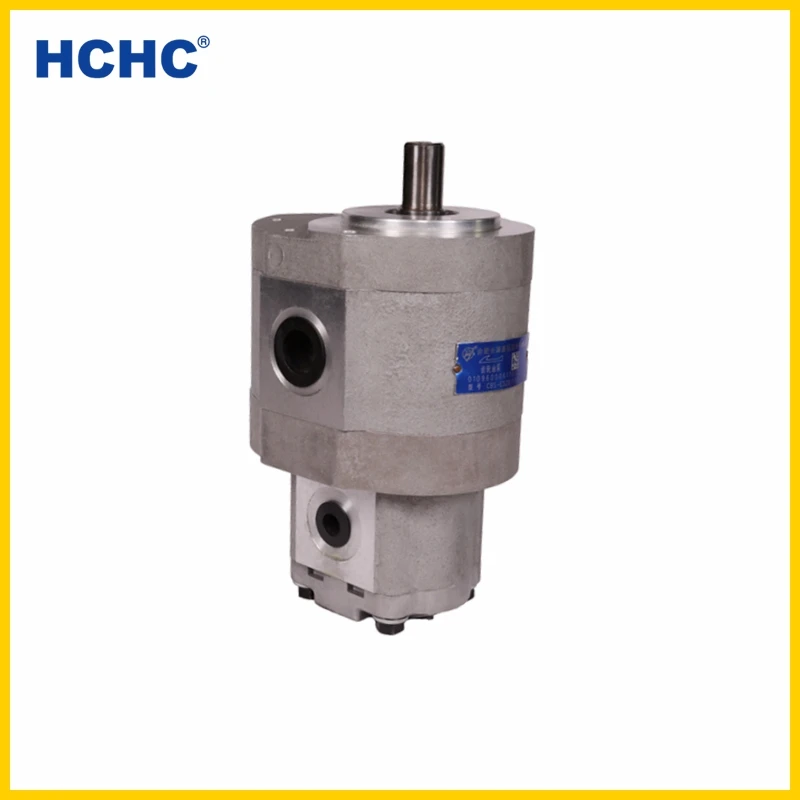

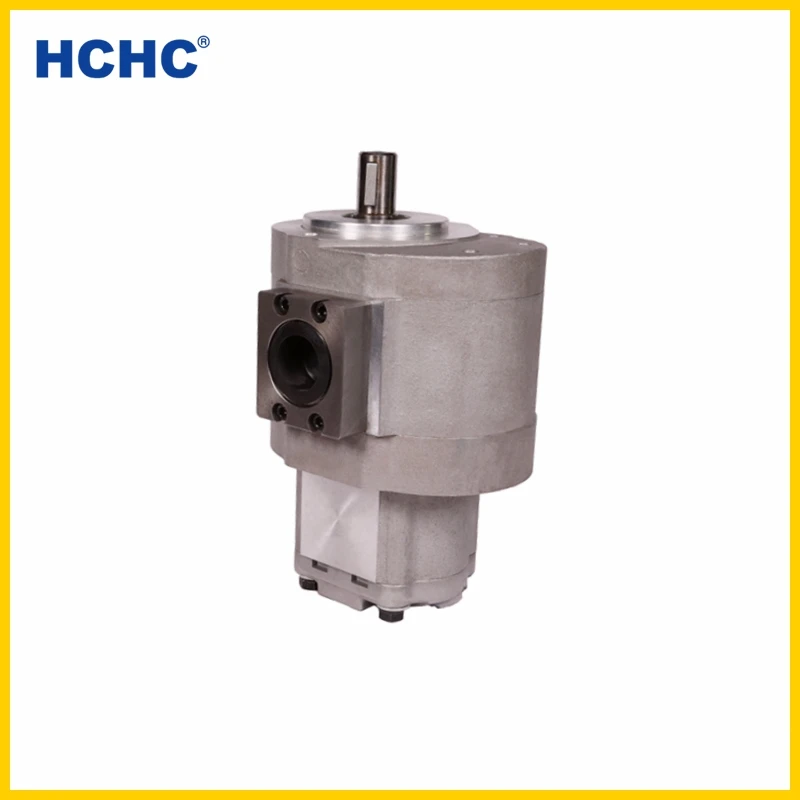

top quality high pressure hydraulic gear pump CBS for agricultural machinery
- Category: >>>
- Supplier: Hefei Changyuan Hydraulic Co. Ltd.
Share on (60739028110):
Product Overview
Description
Product Description
top quality high pressure hydraulic gear pump CBS for agricultural machinery
Performance Characteristics:
★ Pump housing is made of high strength aluminum alloy material.
★ The shaft extension type: P (plain key), H (rectangle spline), involute spline.
★ The auto-compensation unit of axial clearance ensures the high volumetric efficiency.
★ Higher working pressure, wider speed range.
★ Keep higher volumetric efficiency when the speed is 600 rpm/min.

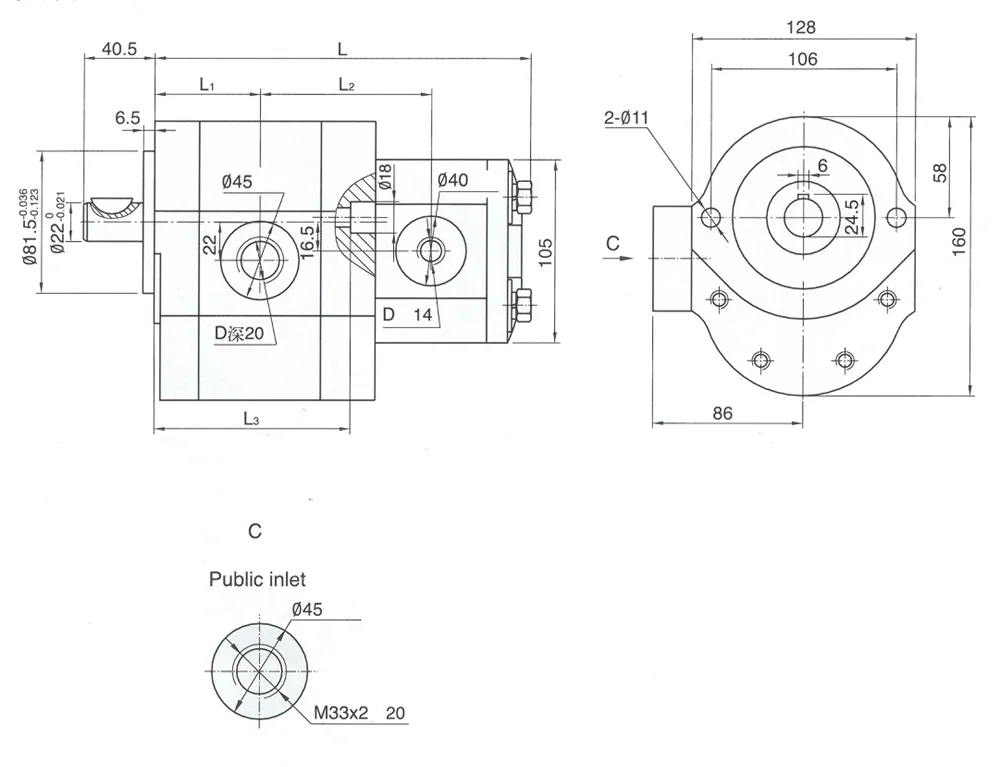

Specification
Model Code
CBS - E 5 ** / F 3 ** - T L Z *
① ②③④ ②③④ ⑤⑥⑦⑧
①Product code
②Pressure grade: E=160bar, F=200bar
③Gear modulus
④Nominal displacement (mL/r)
⑤Mounting type: T=special flange
⑥Joining port type: L=thread
⑦Shaft extension type: Z=woodruff
⑧Rotation direction:
L=counterclockwise, R=clockwise
Model | Nominal Displacement (mL/r) Fore pump/ Rear pump | Pressure (MPa) Fore pump/ Rear pump | Speed (r/min) | Volume Efficiency (≥%) | Weight (kg) | ||||||
Rated | Max. | Min. | Rated | Max. | |||||||
CBS-E525/F304-TLZ* | 25/4 | 16/20 | 20/25 | 800 | 2500 | 3000 | 91/90 | 8.4 | |||
CBS-E525/F306-TLZ* | 25/6 | 8.5 | |||||||||
CBS-E525/F310-TLZ* | 25/10 | 91/91 | 8.6 | ||||||||
CBS-E525/F315-TLZ* | 25/15 | 8.7 | |||||||||
CBS-E528/F304-TLZ* | 28/4 | 91/90 | 8.5 | ||||||||
CBS-E528/F306-TLZ* | 28/6 | 8.6 | |||||||||
CBS-E528/F310-TLZ* | 28/10 | 91/91 | 8.6 | ||||||||
CBS-E528/F315-TLZ* | 28/15 | 8.7 | |||||||||
CBS-E532/F304-TLZ* | 32/4 | 91/90 | 8.7 | ||||||||
CBS-E532/F306-TLZ* | 32/6 | 8.8 | |||||||||
CBS-E532/F310-TLZ* | 32/10 | 91/91 | 8.9 | ||||||||
CBS-E532/F315-TLZ* | 32/15 | 9.0 | |||||||||
