Semi Automatic POF Film heat shrink tunnel

Product Overview

Description



Products Feature:



 LEBON shrink tunnel for PE film is suitable for packing unitary case which consist single big and other small goods. Intelligence temperature control and strong turbine motor. Conveyor is alternative with roller or stainless steel mesh.
Its suitable for PVC, POF, PP shrink film. Especially for PE.

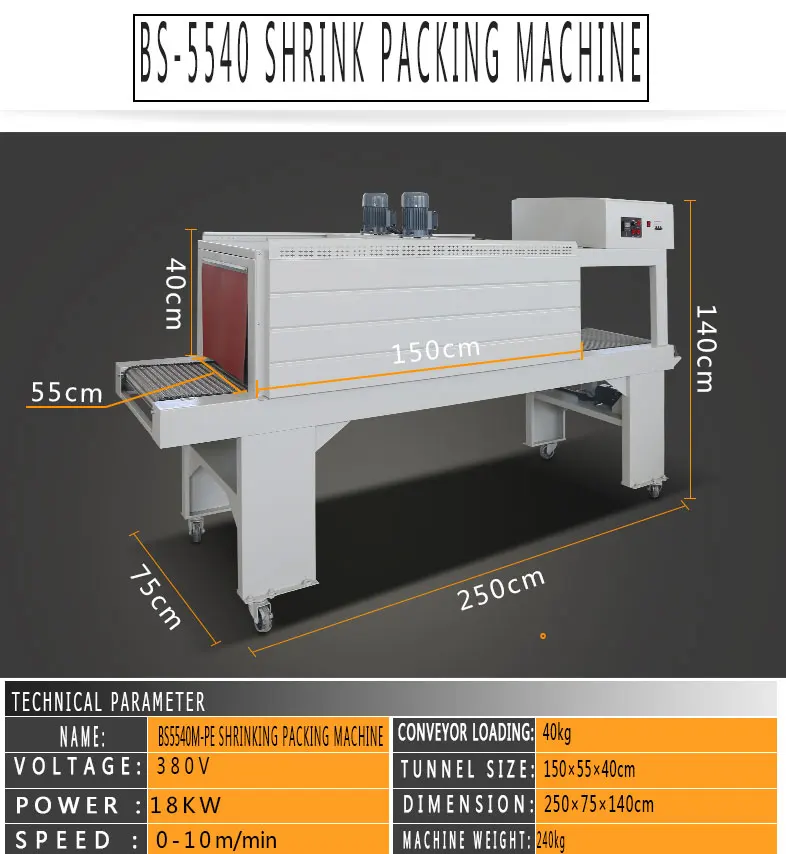

Technical Specification

Model	BS5530N	BS5540N	BS5530M	BS5540M
Voltage(V/Hz)	380/50  220/60(3 phases)		380/50  220/60(3 phases)
Power(kw)	24	27	18	21
Load(kg)	80		40
Conveying Speed(m/min)	0~10		0~8
Tunnel Size(L×W×H)(mm)	1950×550×300	1950×550×400	1450×550×300	1450×550×400
Dimension(L×W×H)(mm)	3100×850×1400	3100×850×1500	2550×850×1400	2550×850×1500
Net Weight(kg)	350	400	260	300
