Hot sale full automatic 100mm paper honeycomb core machine

Hot sale full automatic 100mm paper honeycomb core machine:

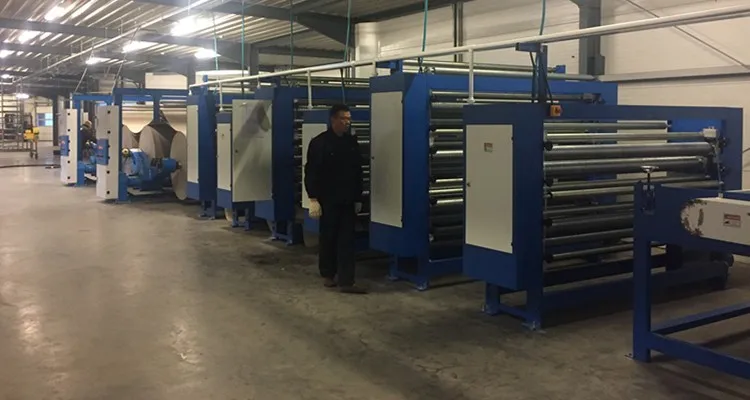

This machine not only can make endless honeycomb core, but also honeycomb sheets(  honeycomb core stick).It makes the paper from rolls to honeycomb core, the proceed as following:Paper Roll Loading -> Feeding-> Gluing -> Lamination & Heating ->Surface paper gluing ->Core Cutting -> Notching -> Slitting-> Stacking. Paper honeycomb core widely using in door stuffing; paper panel lamination.

Main Features:

1) Working paper rolls width 1600--2300mm, we also can customize!

2) Endless ( Continuous ) ore or Block Core( Core Stick) both available

3)Alignment Device for Easy and fast Setting

4) Paper layers numbers: 2--8 layers

5) Edge positioning controller

6) Auto paper tension system with hydraulic control

7) Superior cutting system with Servo control

Machine Parts

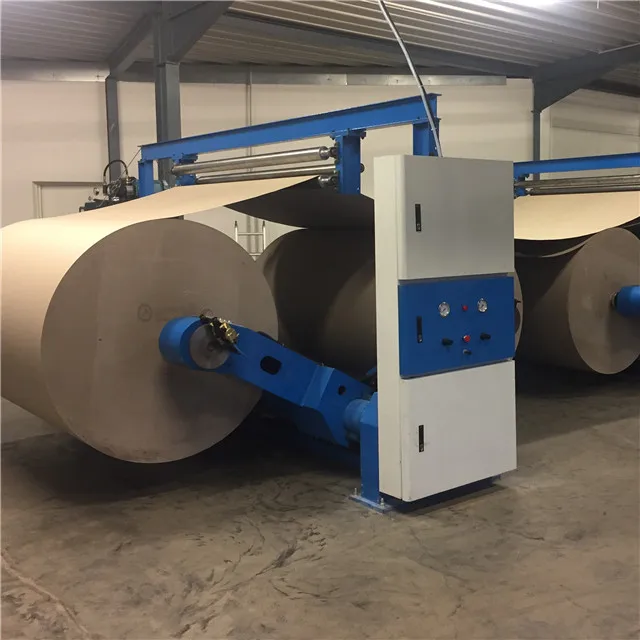

Name: Hydraulic Paper Holder

•Paper roll setting with Hydraulic control
•Paper roll handling toward up or down and left or right
•With auto tension controller- electric control
•With extension structure for different width paper rolls

Machine Parts

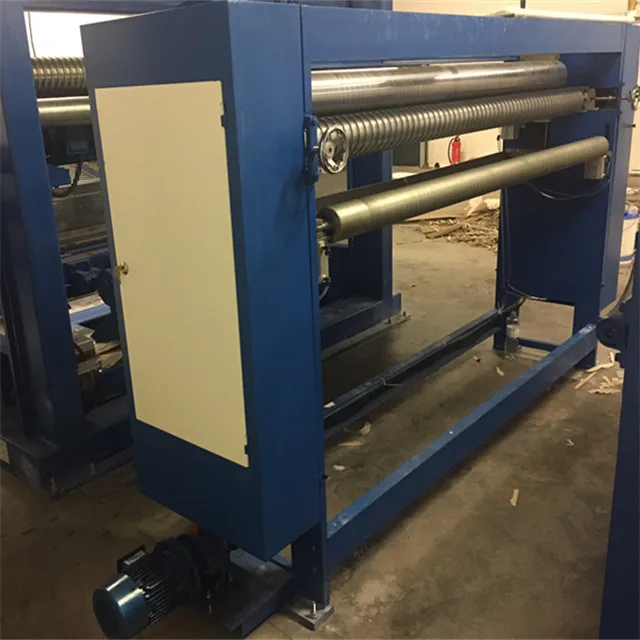

Name: Gluing Machine

•Using sticking roller stick glue; uniforming roller uniforming glue, and application roller application glue on paper, which makes glue quantity very uniform;

•Using cylinder to change the cell size roller, it is very easy only needs 5 seconds , and it is very safe;

•Using eccentric gear to adjust the glue quantity, more easy and more higher accuracy; Using spill-type gluing dish, the glue automatically recycle,

Machine Parts

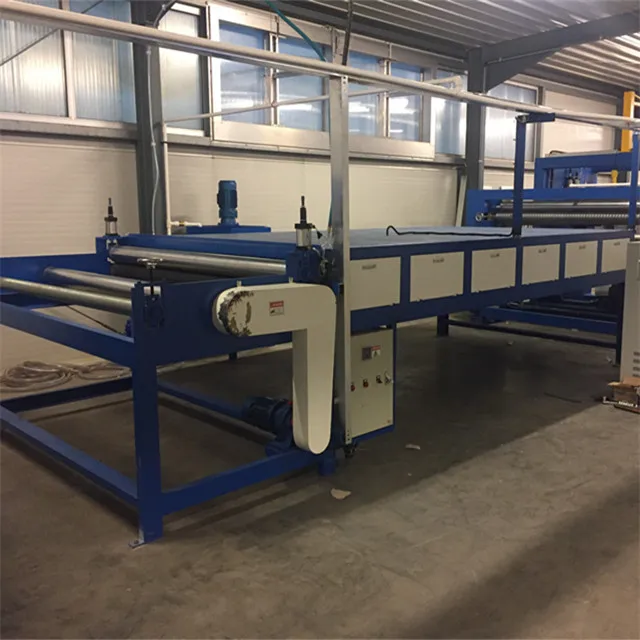

Name: Heating Machine
•Four-sides and up & down surrounded by insulation cotton, oven four sides with monitoring doors the temperature can be 0 to 120 •Temperature control: Digital temperature control, automatically adjust the heating temperature

Machine Parts

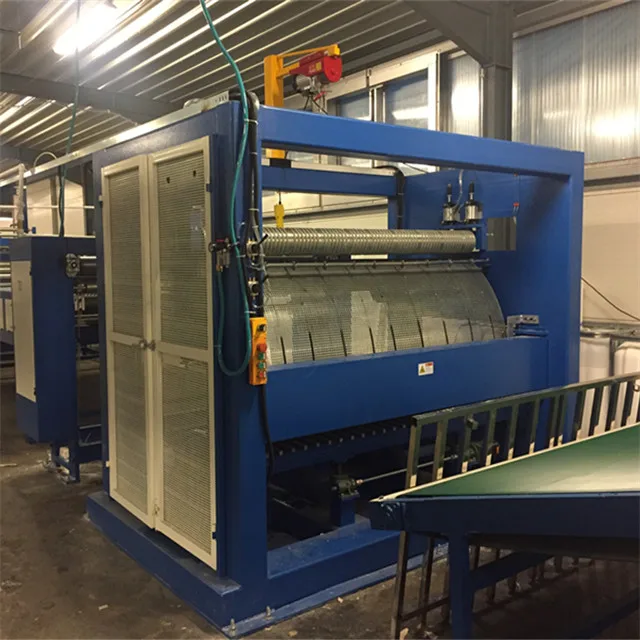

Name: Cutting Machine

•Max Cutting Speed is 700cuts/min

•Min and Max Cutting thickness is: 6--100mm

•Endless core production.Not only ENDLESS CORE but also BLOCK CORE STICK can be produced (option).

•Thicknesses of honeycomb cores are adjusted for main touch panel and sub-controller

•Cutting is controlled by Servo motor



Pre-Sales Service

* Inquiry and consulting support.
* Machine Design and Quotation Sheet with Technical Details
* View our Factory and See the Machine Running

After-Sales Service

* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
