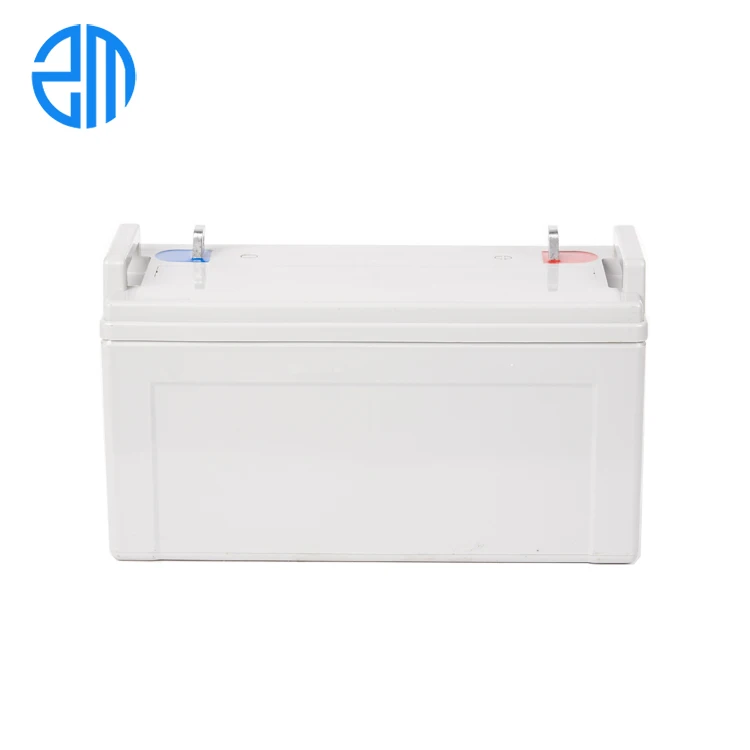

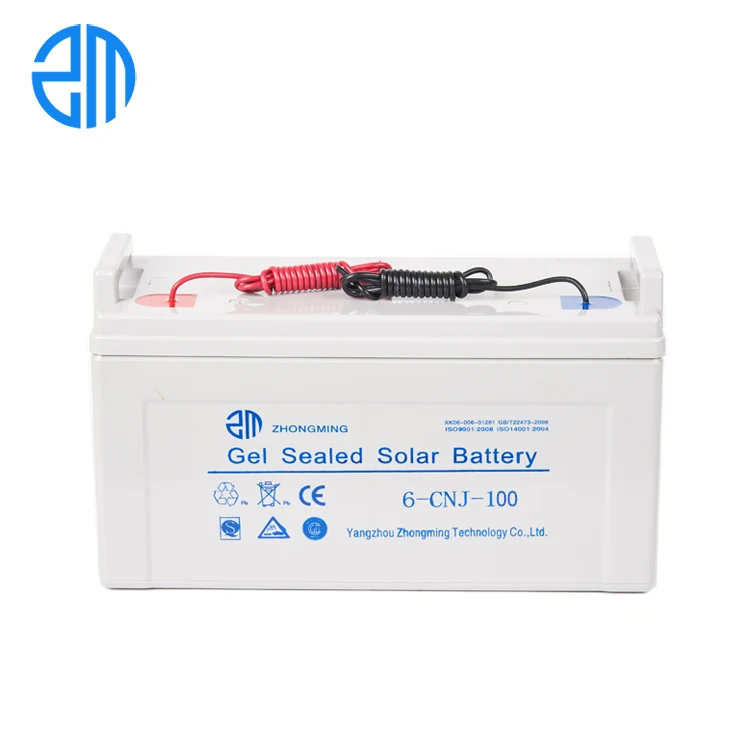

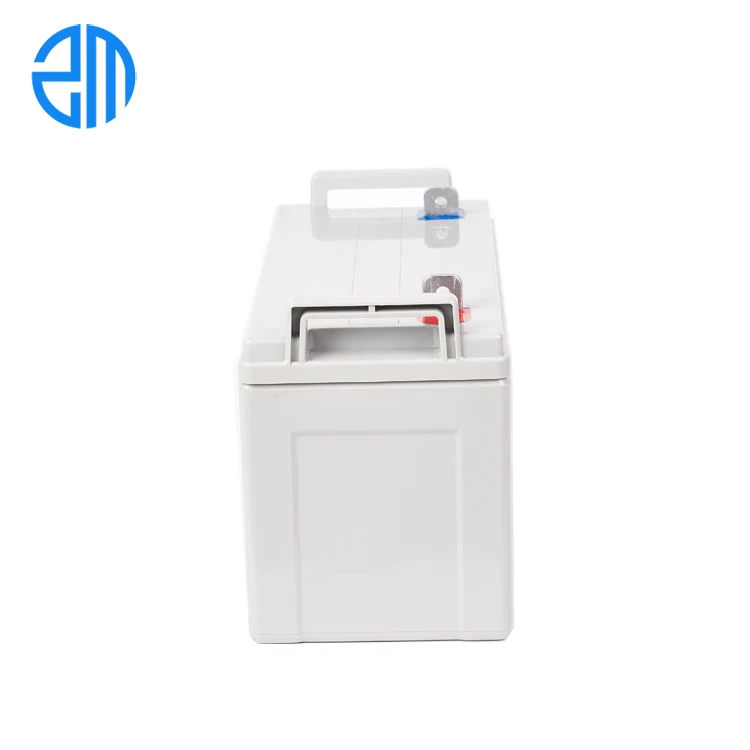

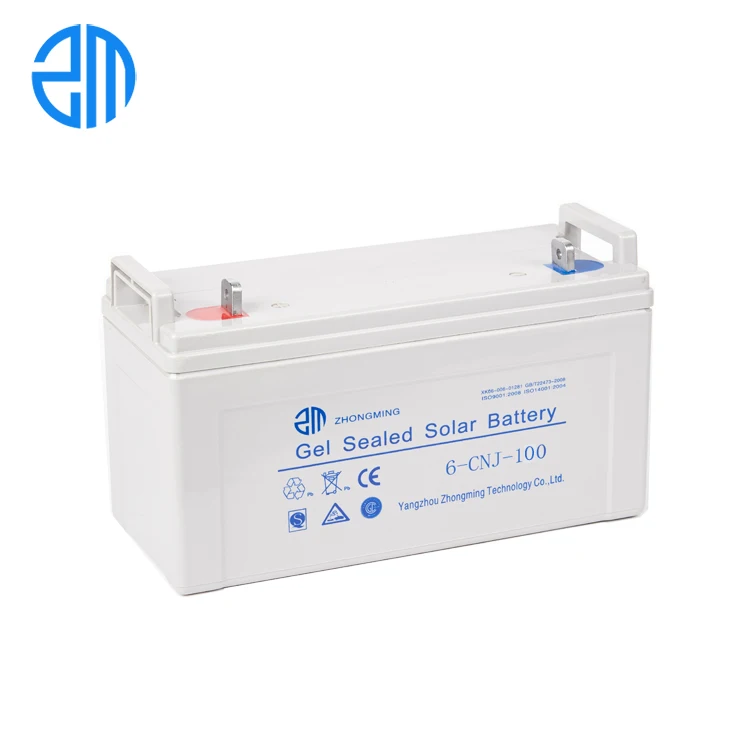

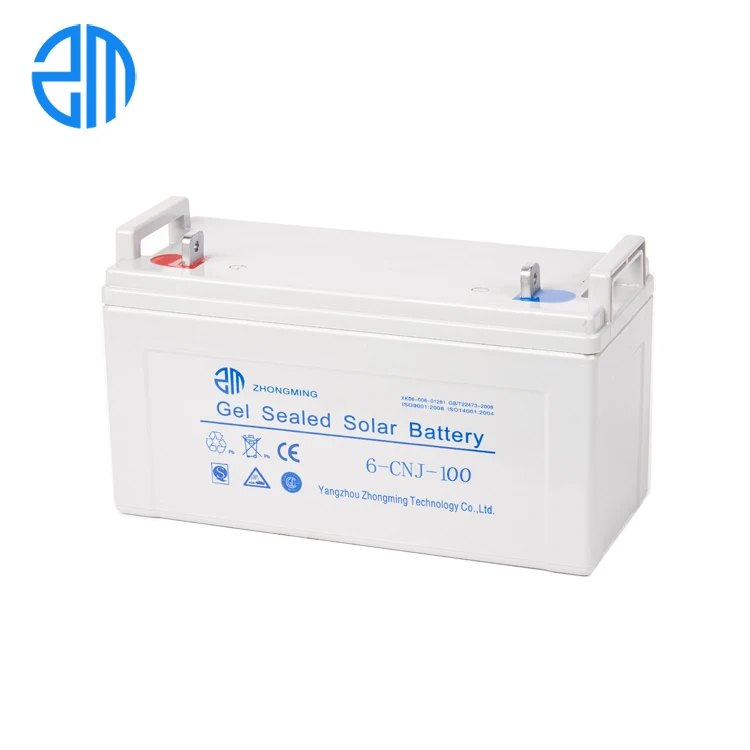

ZM GEL Lead Acid Sealed 100amp Maintenance Free Agm Battery 12v 100ah
- Category: >>>
- Supplier: Yangzhou Zhongming Technology Co. Ltd.
Share on (60739212801):
Product Overview
Description
Product Description
Gel AGM Battery Advantages:
1.The cycle charging capacity is higher, and the service life is longer.
2. It has higher capacitance stability in the whole life cycle.
3. Low temperature performance is more reliable.
4. Reduce accident risk and environmental pollution risk (due to acid 100% sealing)
5. Maintenance is simple, reducing deep discharge.
1.The cycle charging capacity is higher, and the service life is longer.
2. It has higher capacitance stability in the whole life cycle.
3. Low temperature performance is more reliable.
4. Reduce accident risk and environmental pollution risk (due to acid 100% sealing)
5. Maintenance is simple, reducing deep discharge.
Model | 6-CNJ-100 | ||
Nominal voltage | 12V | ||
Nominal capacity(10hr) | 100.0AH | ||
Dimensions | Length 405±3mm Width 173±3mm Container Height 231±3mm | ||
Approx. weight | Approx.30.0 kg | ||
Container material | ABS | ||
Rated capacity(25℃/77℉) | 111.0AH/20 hour rate (5.55A) 91.5.0 AH/5 hour rate (18.3A) 66.5AH/1 hour rate (66.5A) | ||
Internal resistance | Approx 5.3mΩ | ||
Operating temp. range | Discharge : -15- 50℃ (5 -122℉) Charge : 0 -40℃ (32- 104℉) Storage : -15- 40℃ (5- 104℉) | ||
Nominal Operating temp. range | 25 ± 3℃ (77 ± 5℉) | ||
Charge (constant voltage )25℃(77℉) | Float | Initial Charging Current less than 25.0A. Voltage 13.6V-13.8V | |
Cycle | Initial Charging Current less than 25.0A. Voltage 14.4V-14.9V | ||
Self-discharge Capacity 25 ℃/77℉) | Remaining capacity after 3 months of storage :90% Remaining capacity after 6 months of storage:80% Remaining capacity after 12 months of storage:62% | ||
Capacity affected by temperature | Discharge : -15- 50℃ (5 -122℉) Charge : 0 -40℃ (32- 104℉) Storage : -15- 40℃ (5- 104℉) | ||
System Applications
Our Factory
Yangzhou Zhongming Technology Co.,ltd is a professional manufacture of new energy products,mainly include solar battery,solar panel,solar power system,etc.
We insist on quality first,customer first.Our products are qualified with CE,ROHS,IEC,FCC,TUV,CCC,ISO,SONCAP,SASO certification.
We also have a factory in Vietnam,specialized in solar panels,annual output:1000MW
Your satisfaction is our goal!
We insist on quality first,customer first.Our products are qualified with CE,ROHS,IEC,FCC,TUV,CCC,ISO,SONCAP,SASO certification.
We also have a factory in Vietnam,specialized in solar panels,annual output:1000MW
Your satisfaction is our goal!
Product packaging
PACKAGE:
Standard export carton packing.
carton box with pallet, wooden case.
Standard export carton packing.
carton box with pallet, wooden case.
(12V 150AH)Container | 20GP | 40GP | 40HC |
Pcs/Pallet | 32 | 32 | 32 |
Pallets/Container | 14 | 28 | 28 |
Pcs/Container | 448 | 896 | 896 |
By Air
usually need 7days
By Sea
usually need 15-45days,according to different country

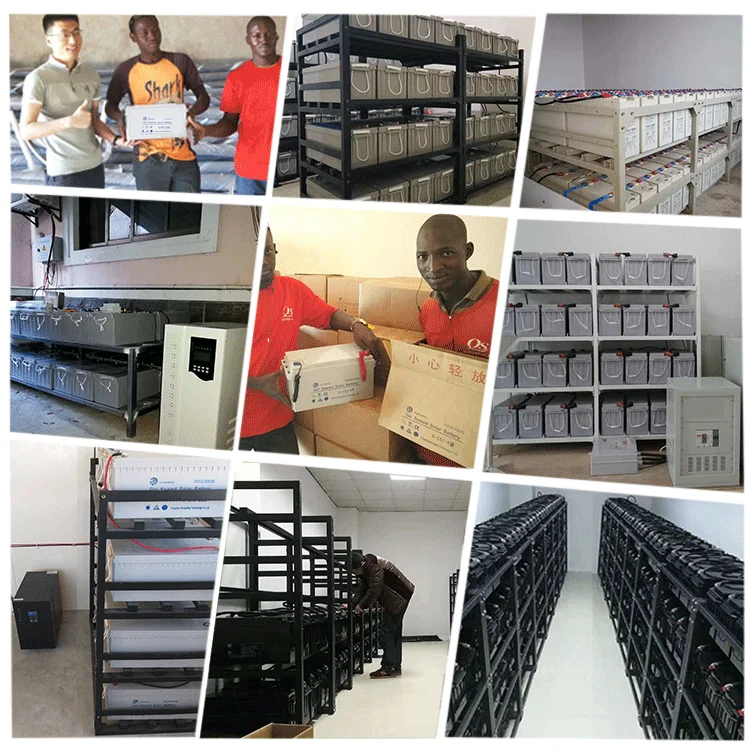

Project Case
Contact Us
Hi, I am Bella
Tel:+86 514 82358918
Fax:+86 514 82358918
Whatsapp:+86 15252572806
Wechat:+86 15252572806
Skype:zhongmingsolar
Email:zm003(at)zhongmingsolar.com
Related Products
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q3. Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q4. Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
