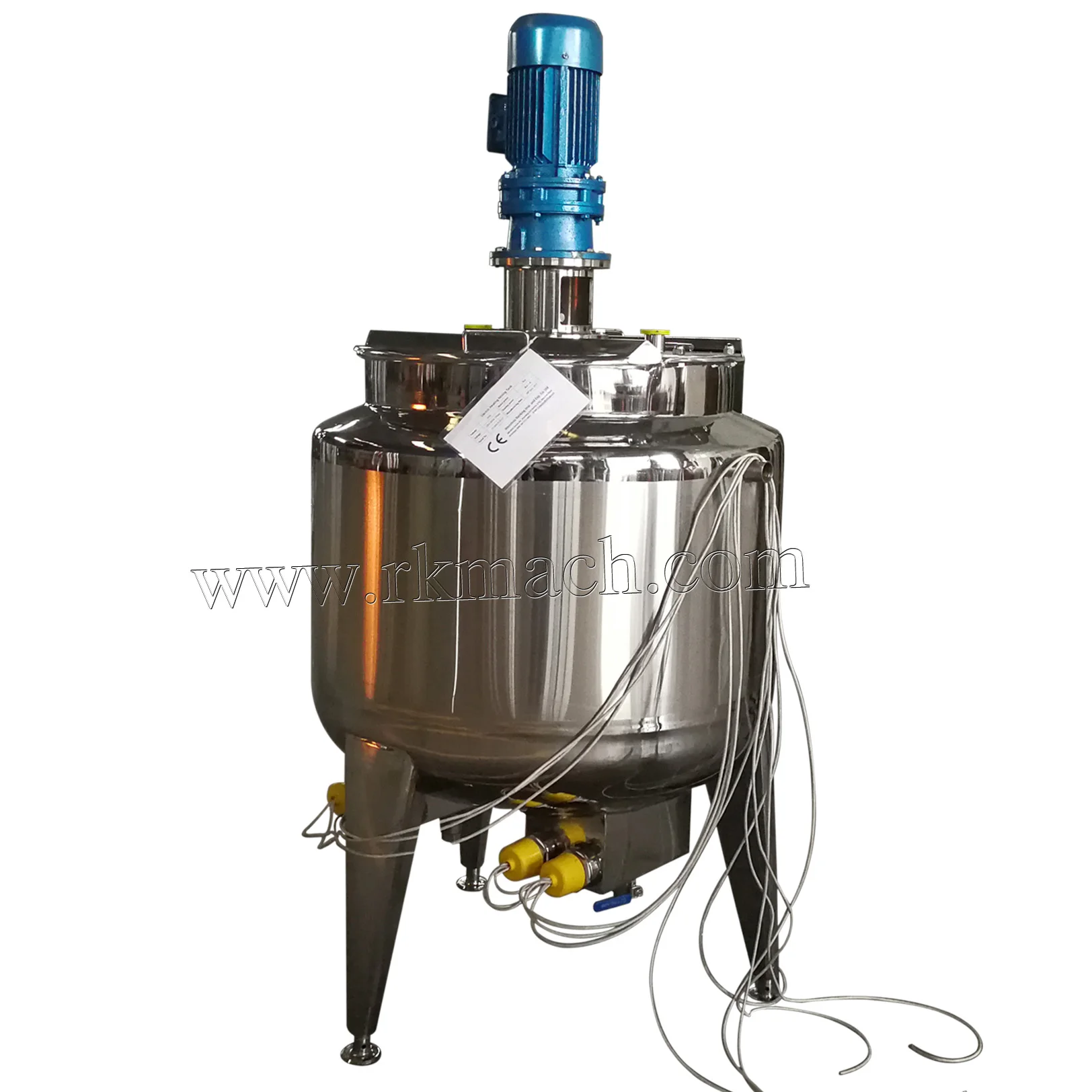

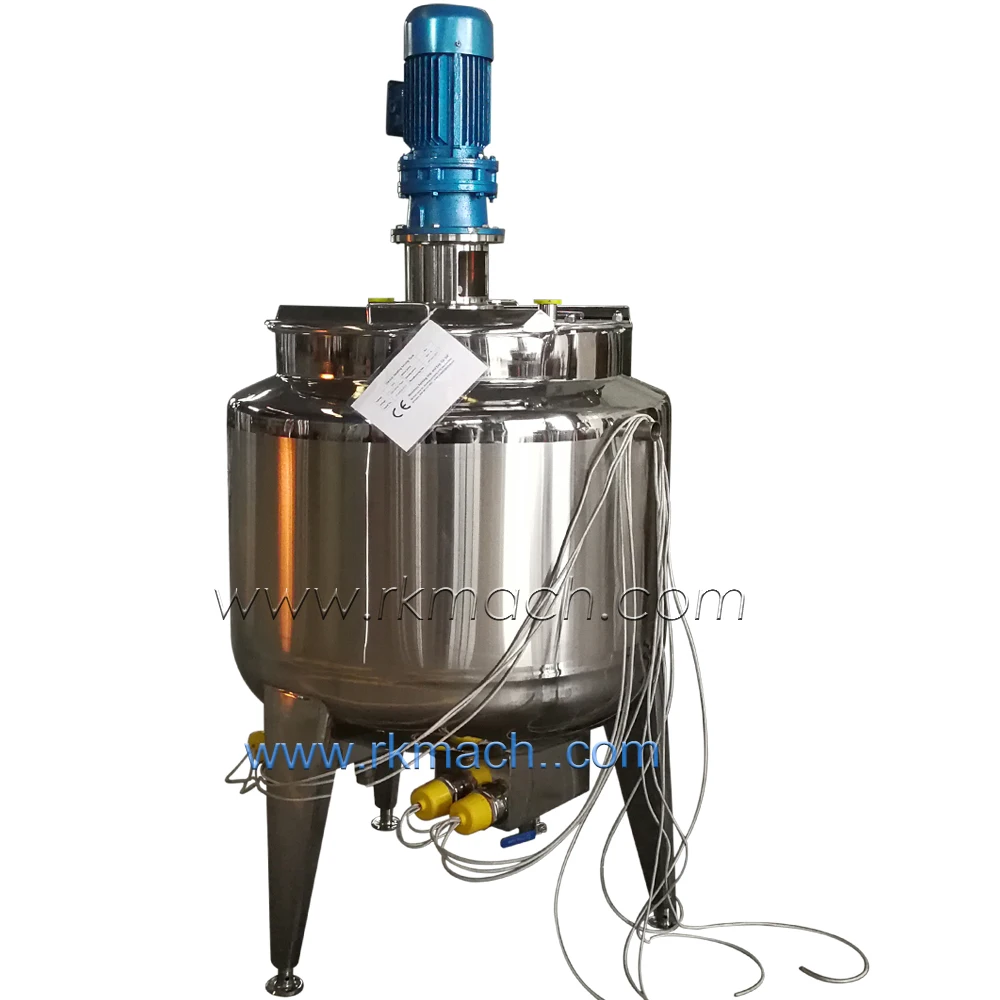

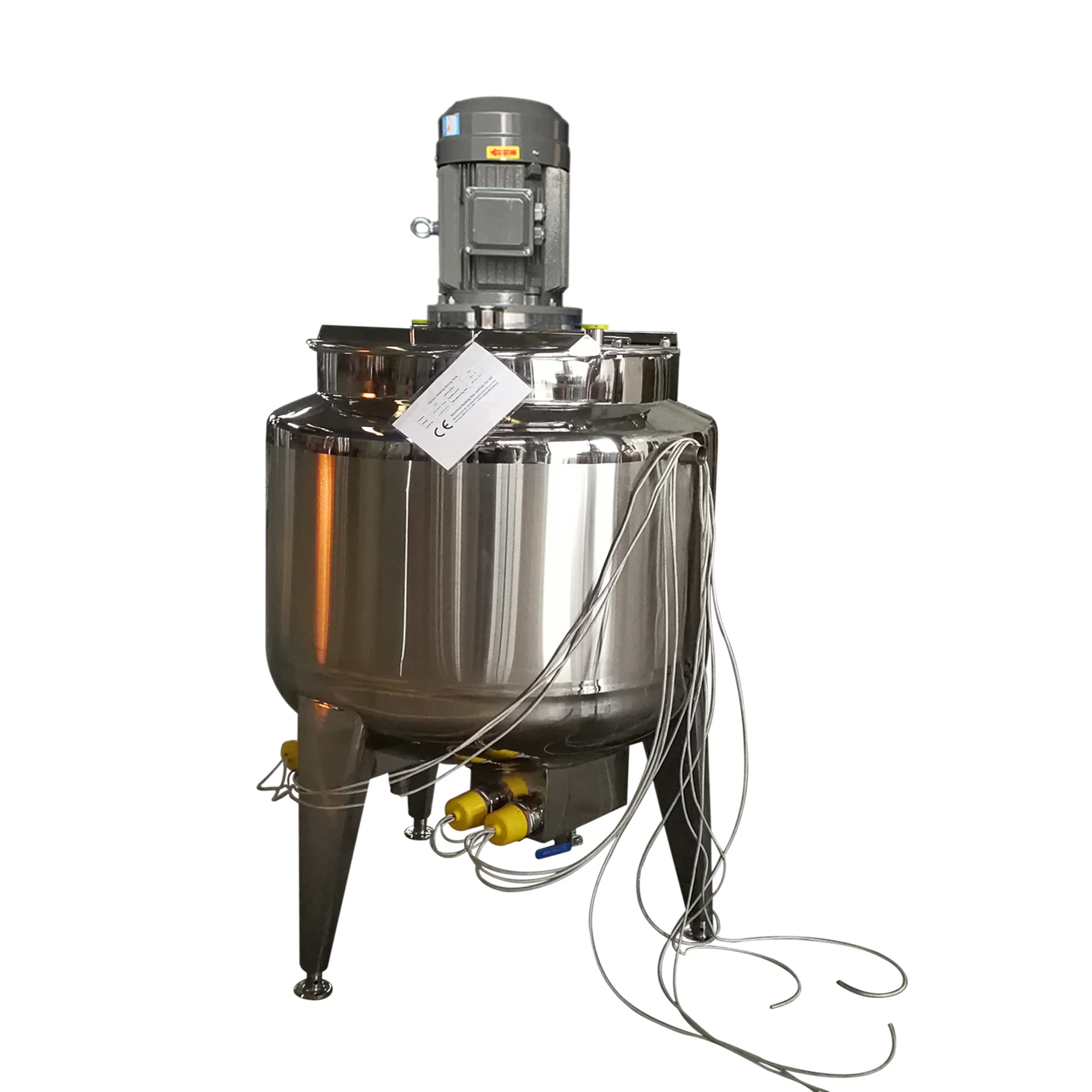

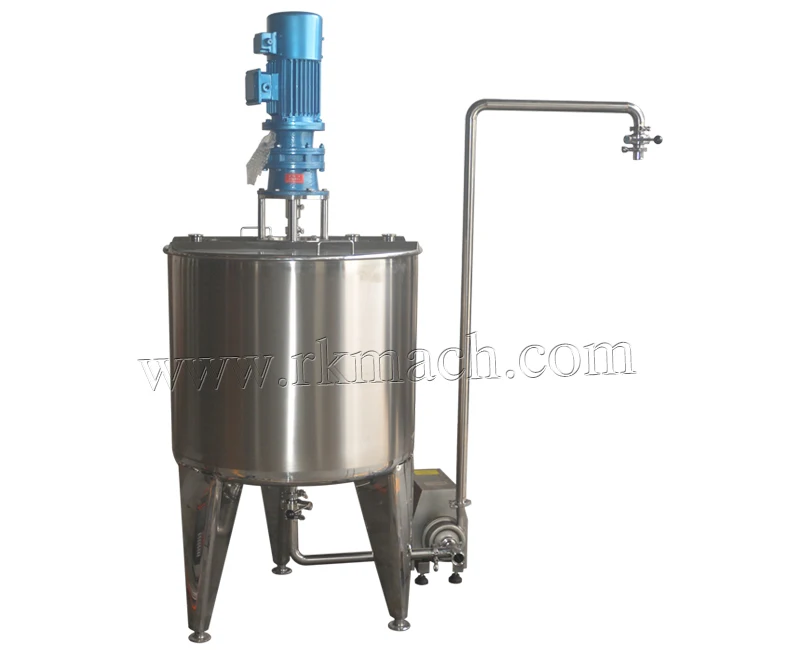

200L homogenizer emulsifier emulsion emulsifying mixer mixing tank with homo mixer
- Category: >>>
- Supplier: Wenzhou Ranking Imp.& Exp. Co. Ltd.
Share on (60739228825):
Product Overview
Description
Product Description
Specialized in the Production of :
High Shear Mixer Bottom Entry Emulsifying MixerIn-Line Emulsifying Pump Sanitary Centrifugal Pumpjacketed tanks for heating, cooling, mixing, reaction, fermentation and pasteurization
600L steam jacketed mixing tank with homogenizer emulsifier
stainless steel homogenizer emulsifier mixing tank

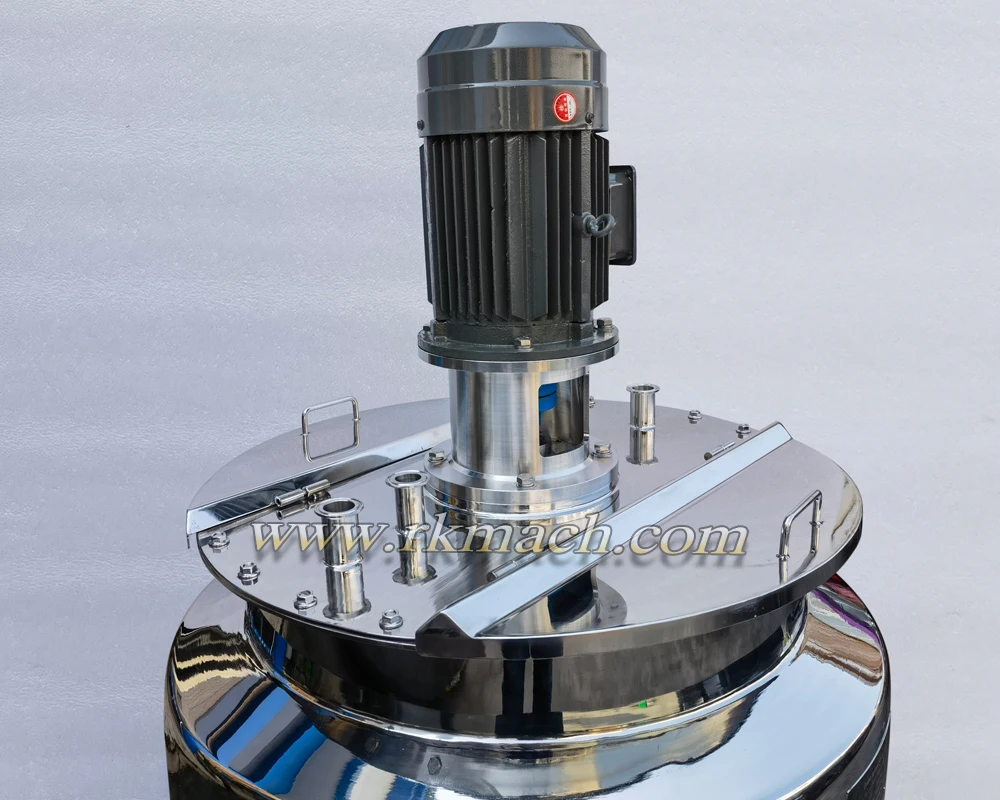

This is a 600Liter stainless steel mixing tank for cream and paste. this 600L mixing tank is amde of stainelss steel 304 / SS316L. heated by steam, (steam jacket was also made of stainless).there is a low speed heavy duty mixer, mixing speed is about 36rpm. this mixer will scrape the tank bottom and tank side wall completely. With this scraper mixer, the cream, syrup or paste inside this steam heating mixing tank will not get burnt.
The high shear mixer can be top mount, bottom mount or side mount as per user's reqeust.
about the high shear mixer / homogenizer
Their is a high shear mixer on this tank. some buyer call the high shear mixer as homogenizer, homo-mixer, shear mixer, emulsifier, emulsification machine or emulsifying mixer. High shear mixer / homogenization mixer is used for the homogenization of various types of material, such as tissue, plant, food, soil, and many others. The mixing speed is 2800rpm or 3600rpm.
Certifications
Detailed Images

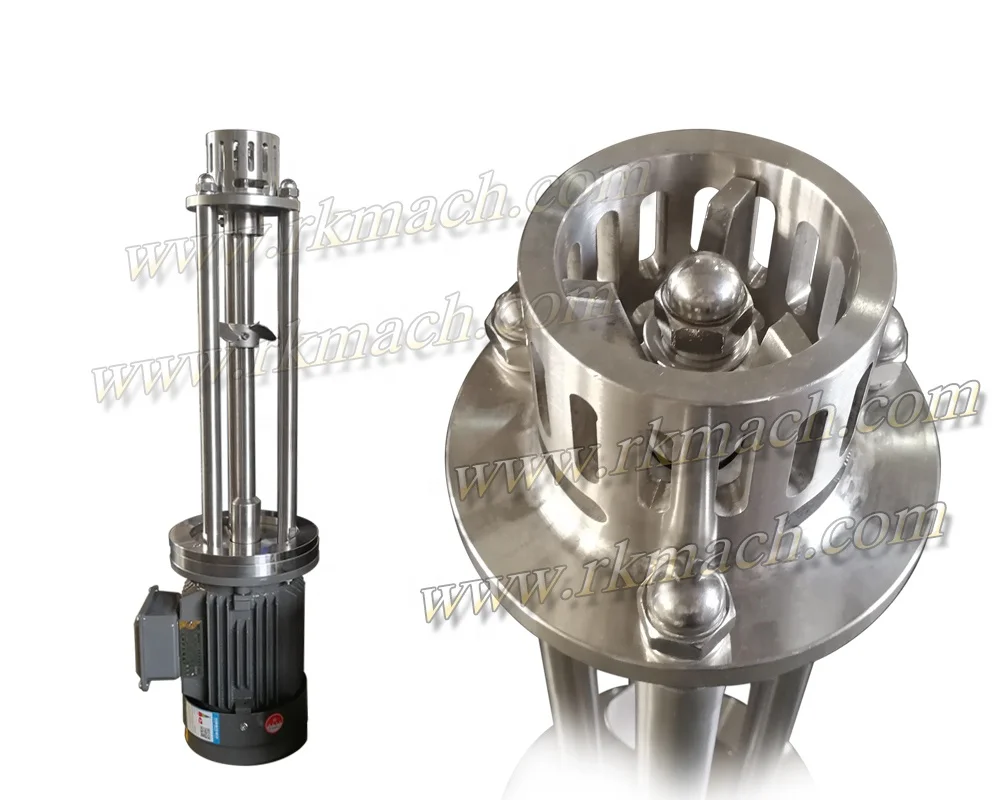

High shear mixer / homo-mixer / homogenizer
Material: SS304 / SS316L
Mixing speed: 2800rpm / 3600rpm
this mixer can be 2800rpm or 3600rpm. power supply 220V 60Hz 3phase or 380V 50Hz 3 phase.
high shear mixer. homogenizer mixer, homo-mixer, emulsifier, High Shear Mixer ,Bottom Entry Emulsifying Mixer
In-Line Emulsifying mixing tank

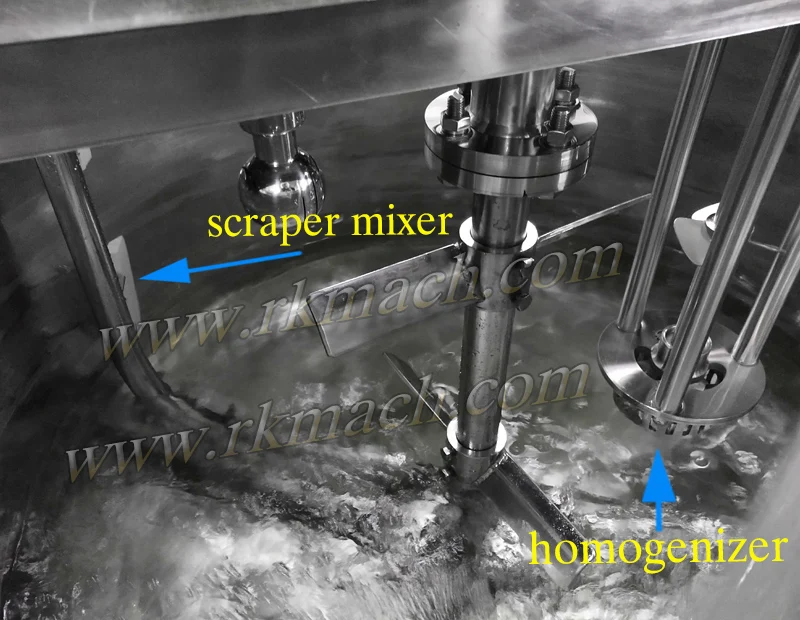

double mixer for the high shear mixing tank
mixer 1: anchor mixer with 36rpm mixing speed
mixer 2: high shear mixer 2800rpm / 3600rpm
homo-mixer / high shear mixer / homogenizer can be installed onto the G-D serial mixing tank together with the anchor mixer. this kind of configeration (high shear mixer and anchor agitator used together) is widelly used for oil, cream, paste or fluid with low viscosity.

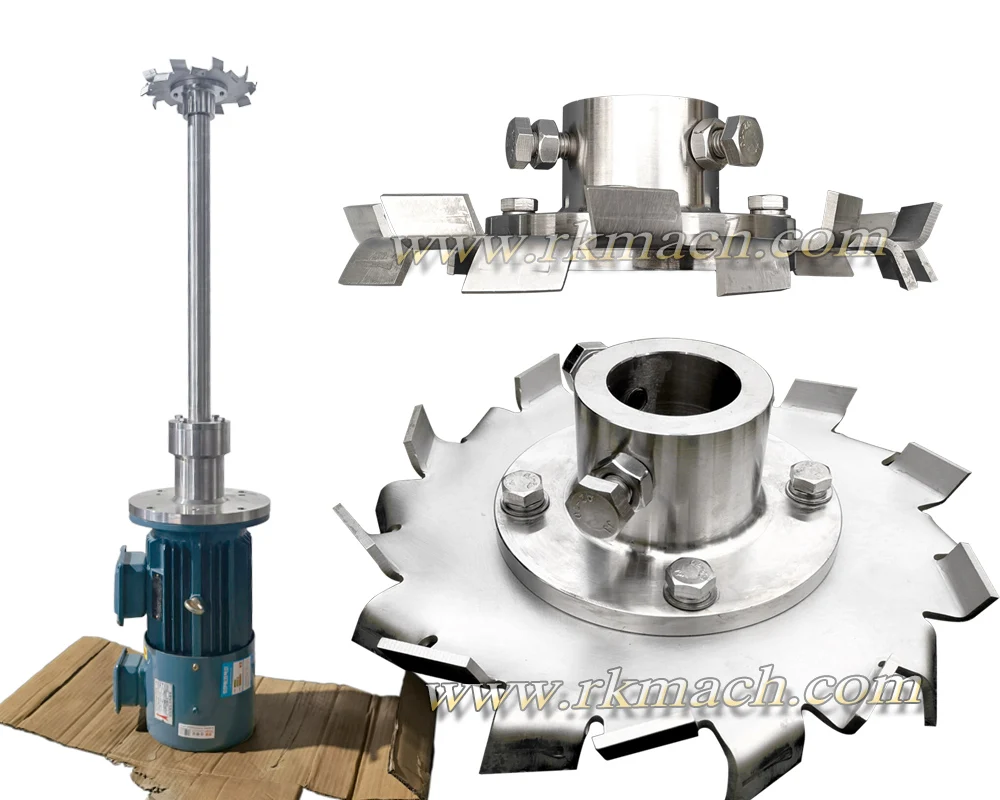

Scraper mixer & cowles disc / dispersor
scraper agitator rotation speed: 36rpm / 60rpm / 0~100rpm
sawtooth disc mixing speed: 960rpm / 1450rpm
scattered disk dispersion disc also called as sawtooth disc or dispersion disc. for high viscosity cream, paste, syrup or oil product with particles, homogenizer / high shear emulsifier and scarper agitator or / and dispersion disc can be used together to increas the mixing effect.

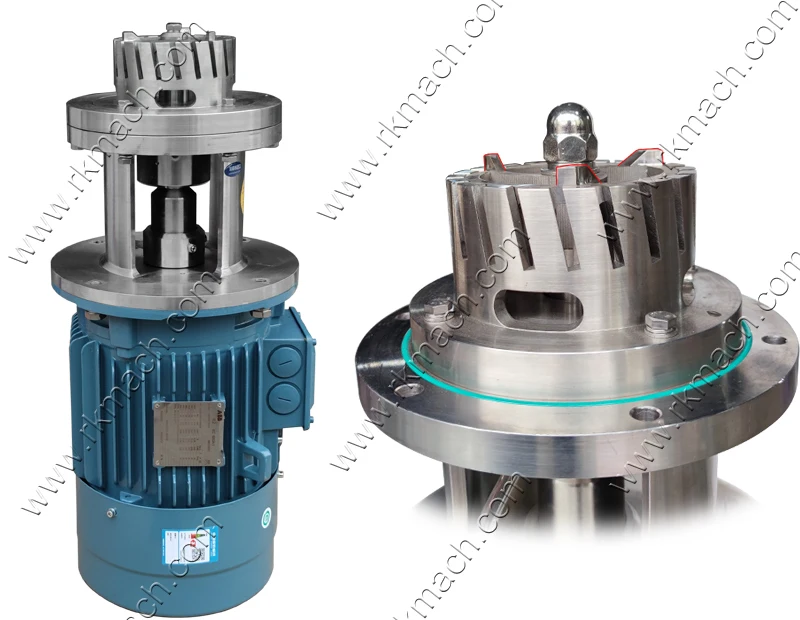

Bottom Mount High Shear Mixer

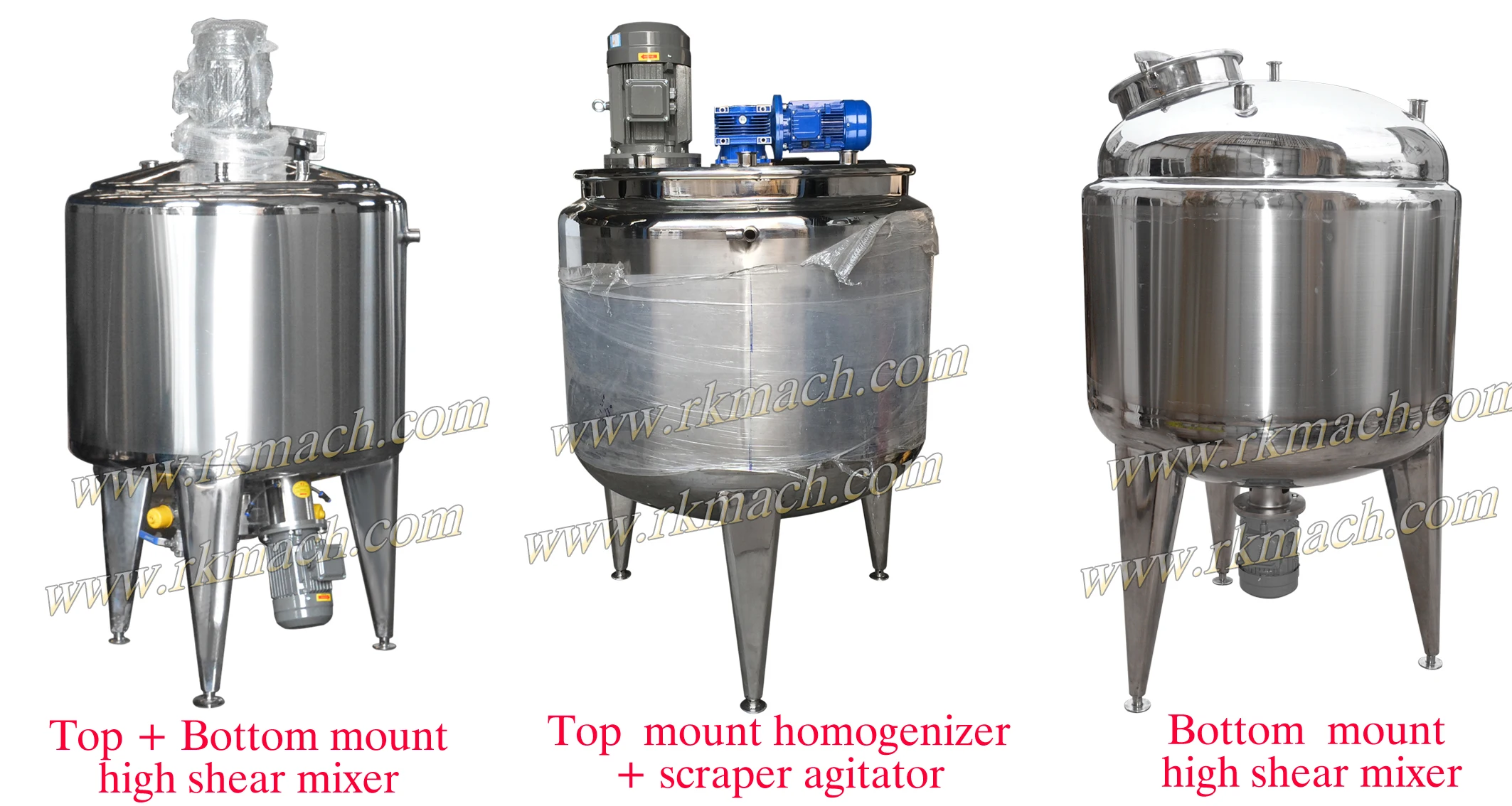

Mounting position: Top mounting / bottom mounting
Seal type: High quality mechnical seal kit
high shear mixer can be mount on tank top or tank bottom as per user's production request. Top mount homogenizer is widely used in food and chemical industrial.Bottom mount high shear mixer emulsifying mixer is also widely used for food and beverage production.
Specification
200L ~2000Liter jacketed mixing tank with homogenizer (emulsifier)
electric heating / steam heating jacketed mixing tank with homogenizer (emulsifier)
High shear mixing tank can be many different structure for different product and production request. The main tank capacity ranging from 200Liter to 2000liters. Here below we list out all the hot sell high shear mixing tanks’ specification
No. | Item | Specification & explanations |
1 | Tank capacity | 200L ~ 2000L |
2 | Material | Stainless steel 304 / SS316 |
3 | Function | High shear + steam heating / electric heating |
4 | Optional Structure | a.\tDouble layer with dish top flange connection b.\tSingle wall with bottom mount high shear mixer c.\tHigh shear tank with steam jacket and insulated wall d.\tOil jacketed high shear mixing tank |
5 | Diameter | Φ600 ~ Φ1800 |
6 | Height | 800 ~ 2500 mm |
7 | Heating type | Electric (oil) heating / steam heating / hot water heating |
8 | Heating elements | Made of SS304, 3~36KW |
9 | High shear motor | 1.1~15KW use 3phase electricity |
10 | Mixing speed | 1400rpm, 2800rpm, 3600rpm |
11 | Discharge | Drainage from tank bottom with 1~2” thread pipe |
12 | Liquid inlet | Inlet from dish top with 1~2” thread pipe |
13 | Spare hole | A spare hole available on the dish top with 1~2” pipe thread |
14 | Cleaning | CIP cleaning ball with 1” clamp connection on dish top |
Packing & Delivery
Packaging | ||
Size | 1200x1200x1700mm (for this 600L high shear mixing tank) | |
Weight | 460kg | |
Packaging Details | Packing size may be different for different tank capacity. for high shear mixing tank / homogenizer mixing tank / emulsifying mixing tank from 200Liter to 1000liters, we usually use wooden case as packing. for high speed mixing tank with more tahn 2000Liter capacity, Nylon packing will be better. | |
Packaging | ||
Size | 1100 (L) * 1150 (W) * 1600 (H) | |
Weight | 320kg | |
Packaging Details | Nylon packing for large capacity mixing tanks with high shear mixer. also, Nylon Packing also being used for FCL loading. | |
