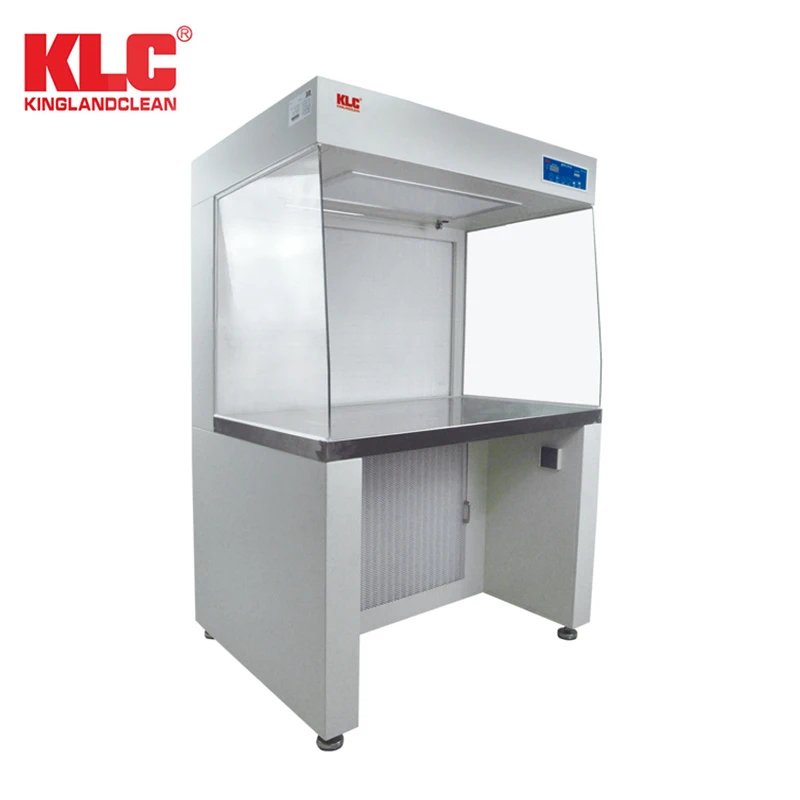

KLC ISO 5 Dust Free Clean Room Laminar Flow Air Flow Bench
Product Description
1) Laminar Flow Bench Application field
ISO5 Clean bench is widely used in scientific research and production department which needs clean sterile working environment in local,such as medicine,biopharming,foodstuff,medical experiment,optics,electron,sterile laboratory,sterile microbial inspection,plant tissue.
KLC ISO 5 Dust Free Clean Room Laminar Flow Air Flow Bench
2) Laminar Flow Bench Characteristic
1.It is adopt the super thin air filter without clapboard to minimize the size of structure,the clean bench is matched stainless steel,table-board and glass on sides.It makes the workaround roomly and bright.
2.The prefilter that with big wind speed is convenient to take down.It is not only protect the HEPA filter's life but also ensure the wind velocity.

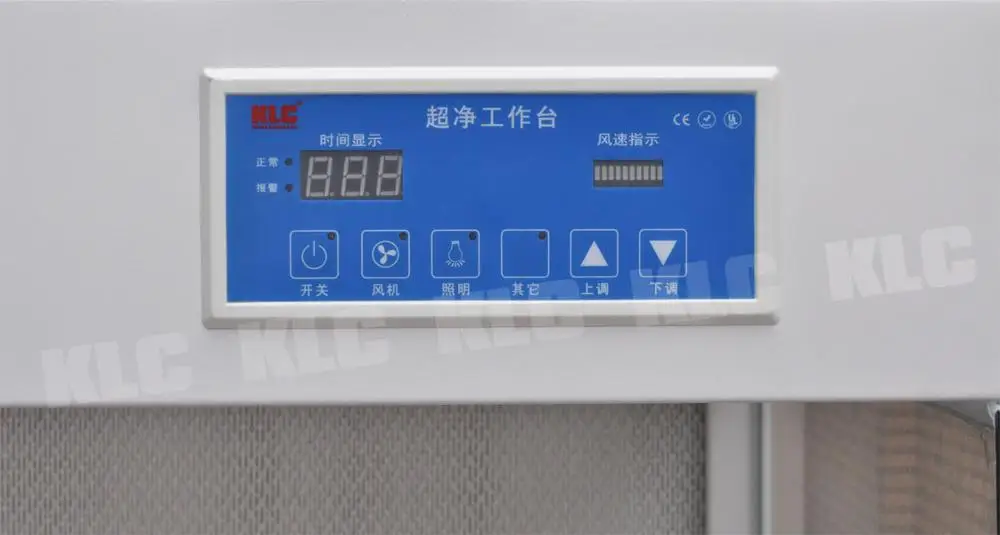

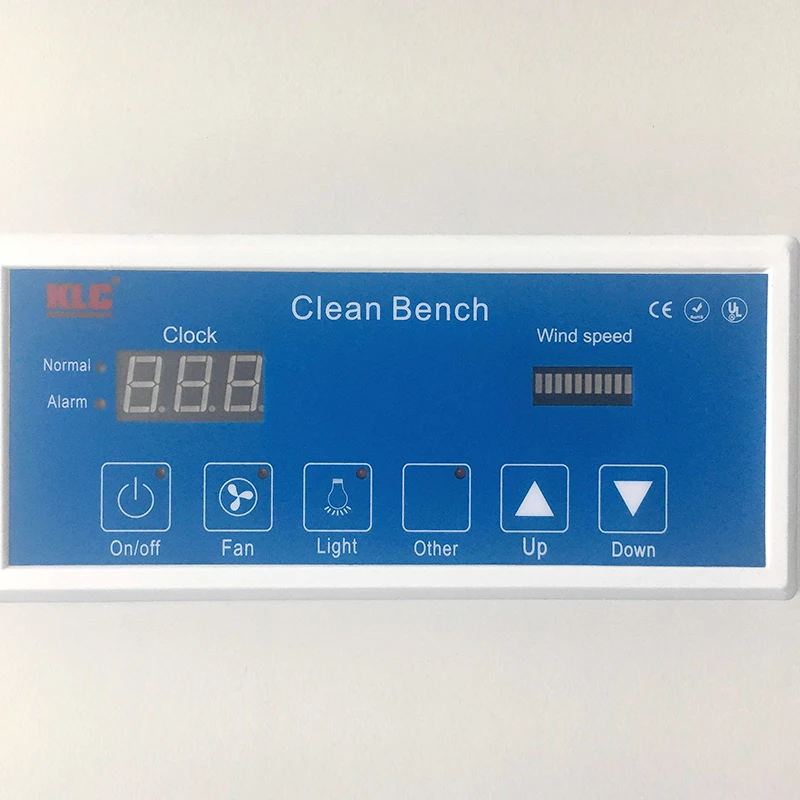

3.Adopt send-off wind system that the air velocity is adjustable by touch the switch lightly,with makes the wind speed prefect.
4.Level air current,opened desk type and convenient operation.
KLC-VC-1
KLC-VC-2
KLC-VC-3
External size (mm)
(WXDXH)
1000x700x1800
1200x700x1800
1500x700x1800
Work zone (mm)
(WXDXH)
900x650x600
1100x650x600
1400 x650x600
Purification rank
FS209E 100Rank
Rating airflow(m3/h)
1200m3/h
1800m3/h
2300m3/h
Filtration efficiency
More than H13-H14
Average wind speed
0.3-0.6m/s
Intensity of illumination
>300lx
Power
208w
405w
490w
Noise
<65dB
<65dB
<65dB
Power supply
220V-240V AC 50HZ
Fluorescent lamp
20Wx1
30Wx1
40Wx1
Material
The table-board is stainless steel and the cabinet is cold rolled steel or stainless steel
