Brief introduction

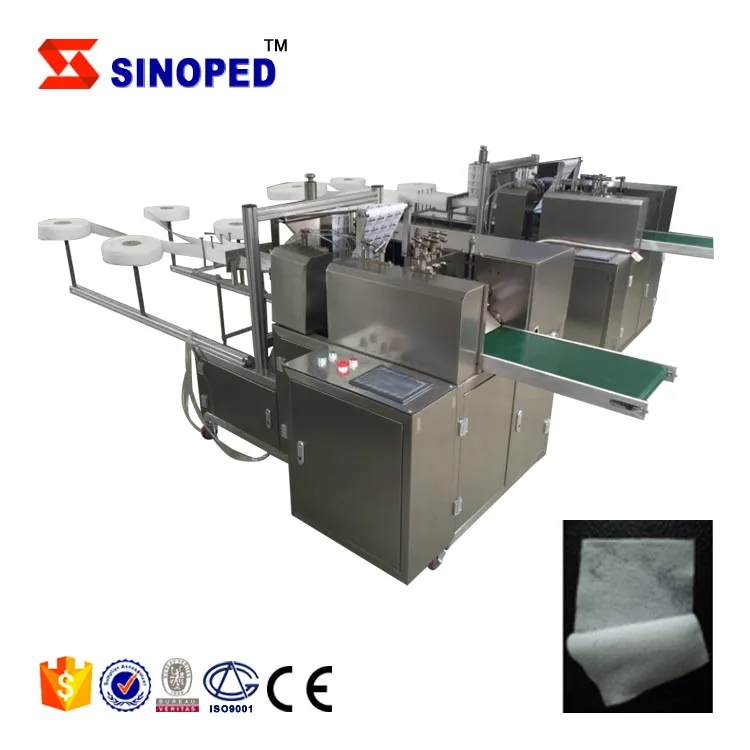

Model full-automatic alcohol pre-pad wipes packing machine

This is the professional machine for the alcohol pre-pad wipes or the isopropyl alcohol pre-pad wipes, and there are features as following:
1.The liquid content is higher, the band sealing is tight, and there is no liquid leakage or bubbling.
2.Productivity: 240-280package/min.
3.Size of the internal non-woven fabrics: 60×30mm.
Size after folding: 30×30mm. There are two layers when the non-woven fabrics are folded once.


Process:
Put non-woven fabrics & packing membrane onto the machine → Fold non-woven fabrics vertically →Cutting →Wetting →

Folded wipes outputting →Packages making →Packing →Band sealing →Finish product.

Main configuration:
1. The intelligent controller is adopted for the setting of bag length, the color mark’s automatic tracing and the counting, and it’s the patented machine.
2. With the four edge’s sealing system, bags are made by two rows, and the overlapping curve is used for the sealing.
3. Intelligent temperature control system.
4. Quantitatively liquid filling device.
5. Intelligent vertical photoelectric mark positioning system.
6. Manually horizontally correcting system for the packing film’s unwinding.
7. Non-woven fabrics’ unwinding, folding and cutting devices.
8. For the stainless steel housing, all parts which are contacted with fabrics are made of stainless steel or rust-proof material.
9. There is the control panel, the emergency switch, the regulating switches for the conveyor, the motor switch and the panel of the temperature controller in the electrical control box.



Product Description






Main technical parameters
Model
SINO-AHT
Full size of the alcohol wipes
L30mm × W60mm
Size after the alcohol wipes are folded once
L30mm × W30mm
Folding method
There are two layers after the wipes are folded once
Bag size
L50mm × W50mm
Productivity
240-280 package/min
Packing film
73-110g/m2 paper-aluminum compound
Size of packing film
Φ≤350 mm. Width: 400mm. Inner diameter of paper core: 76.2mm
Wet tissues
Roll shape 30-60g/ m2 spun-lace non-woven fabrics
Size of non-woven fabrics
Φ: ≤ 600mm,Width: 60mm
Inner diameter of paper core
76.2mm (=3")
Total power
220v, 50hz, 5kw
Weight
700 kg
Dimension
L2800×W1100×H1500mm
Carton size
L2200×W1500×H1500mm


There will no further notification if the appearance or parameters of our products are modified. Thanks.



Detailed Images




Spare parts:
1.\tHeating rods: 3                                                 2.\tFabrics cutting knife: 1                                          3.\tBags cutting knife: 1
4.\tFilm cutting knife: 1                                          5.\tThermal couple: 2                                                  6.\tTool kit: 1set



Other Products






Why choose us?

1. SINOPED has been engaged in the purification technology and application. And we have the R&D team, performing continuous product research and improvement from time to time.
2. Our products are certificated by the most prestigious national and international institutes.
3. Each procedure of the production process is conducting under the strict quality control system. Our QC inspects each lot of the incoming material and the finished products carefully, so that we can supply the best products for customers.
4. From the design to the producing, each procedure is controlled strictly, so we can control the product costs optimally, and offer products with the best quality and the most competitive price. Win-win is our ultimate purpose.







Our Company






Sino Pharmaceutical Equipment Development (Liaoyang) Co., Ltd. (SINOPED) is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment in China. We belong to SINOPEC International Group.
We have a well-experienced team to manufacture pharmaceutical machinery and equipments and a professional design institute. With rich experiences in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipments including clean room project, soft-gel production line, glass-lined reactor, fermentor, centrifuge, granulator, mixer, dryers, pulverizer, tablet press, soft and hard blister packing machine, capsule filling machines, cartoner and rollers, etc.
Due to our good credit and service, , we have made great achievements in the past years. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China. Our products are exported to many countries & areas, such as Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Japan, Denmark, Romania, Bulgaria, Russia, South Africa, Nigeria, the USA, Australia, Canada, Argentina and Chile. Besides machinery and equipment, we also supply production lines and turn key projects.
In SINOPED you can get your desired goods with the best prices and good quality. Welcome your enquiries from all over the world.





Packing & Delivery






Feedback




Our Service & FAQ


One-year warranty period for whole machine except of tubes and human factors etc, and 12-month of after-sale service from the date when you receive machine or 12 months when installation finished;
Consultant services for whole machine life, and 24 hours technical support by email;
UPS, English software, user manual and the installation & debugging by our experienced technicians.

1. Can your machine meet our need well?
We will supply you a proposal as to your specific requirement, and each machine is customized to satisfy customer’s need well.
2. Are you a factory or a trading company?
We are the manufacturer, and have been in industry for more than ten years.
3. What's your payment way?
T/T by our bank account directly, or by Alibaba’s trade assurance service, or by the West Union, or in cash.
4. How can you ensure the machine’s quality after we put the order?
Before the delivery, we will send you machine’s pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.
5. We are afraid you won't deliver us the machine after we pay you the money.
Please note our above business license and certificates. And if you don't trust us, you can use Alibaba’s trade assurance service or by LC.
6. Why choose your company?
We have been engaged in the manufacturing of various packing machines professionally over 10 years, and we can provide better after-sales service.
