MP750 750l hydraulic aggregate skip hopper planetary concrete mixer capacity

Product Overview

Description

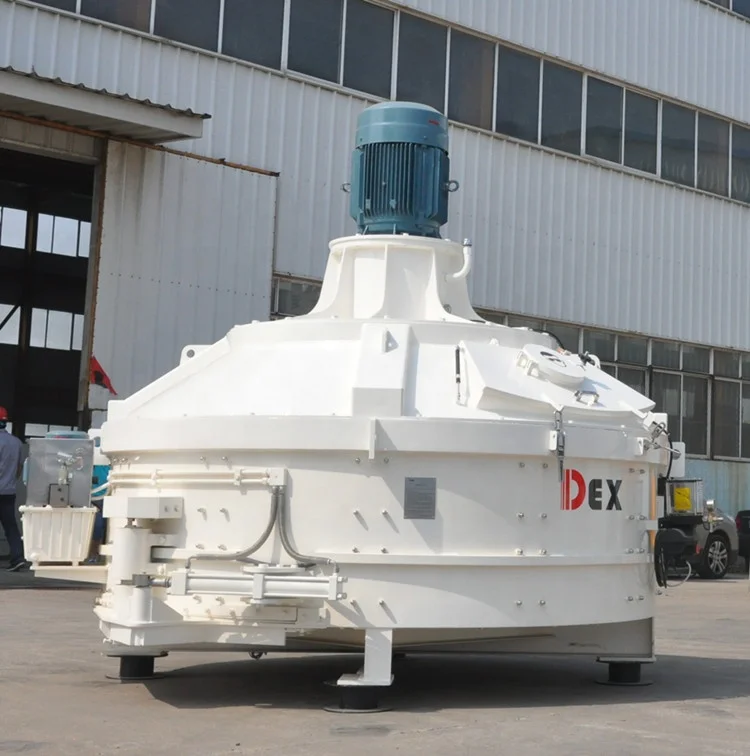

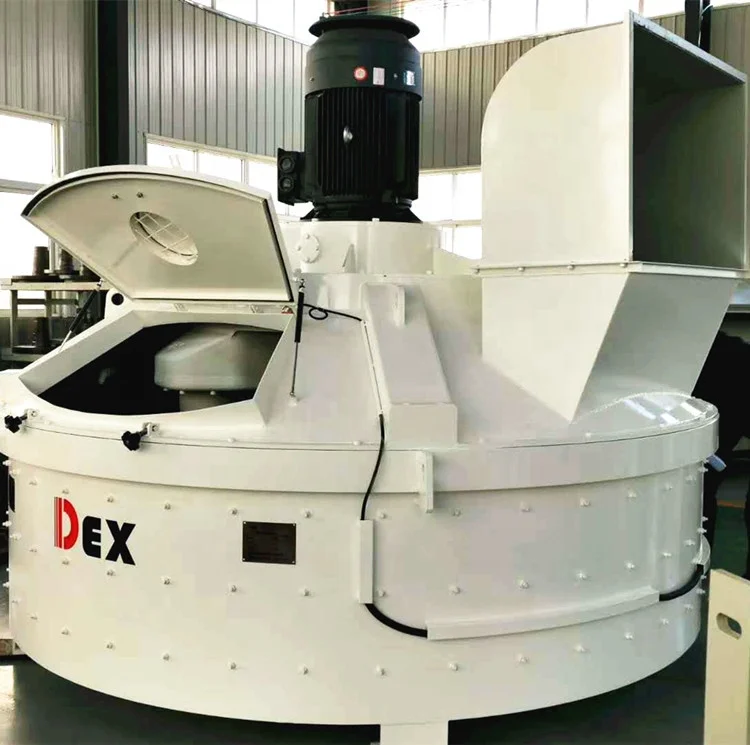

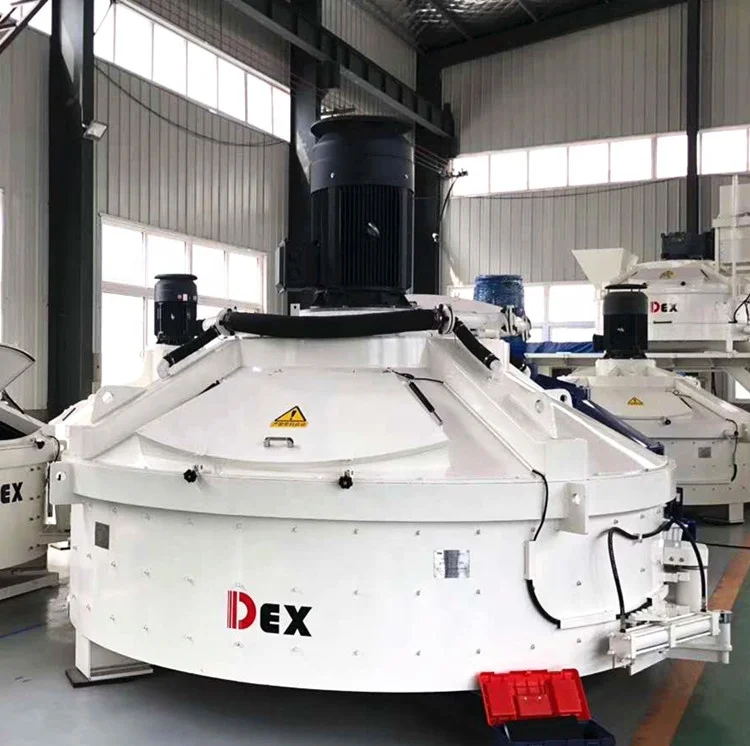

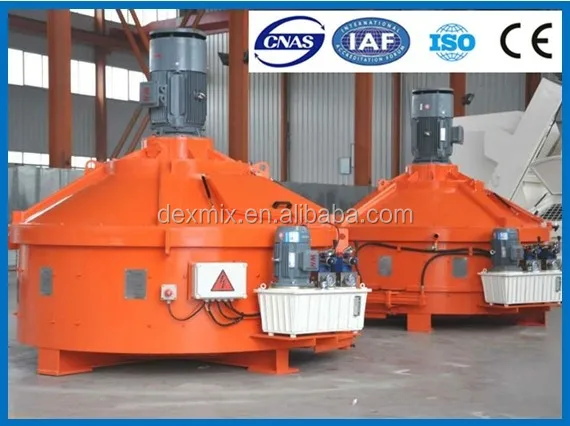

MP750 750l hydraulic aggregate skip hopper planetary concrete mixer



The MPC750 Planetary concrete mixer is designed for high quality concrete. It improves the mixing efficiency compared with traditional type MP750.

Technical data:

Item/Model	MPC750
Filling Volume(L)	1125
Feeding Capacity (Kg)	1800
Compacted Concrete (L)	750
Mixing Power (Kw)	30
Mixing Star* Mixing Blade (Qty)	1*3
Side Scraper/ Discharge Scraper (Qty)	1/1
Discharging Power (Kw)	2.2kw



Introduction of MPC Planetary Concrete Mixer

*Planetary concrete mixer suitable for mixing all types of quality concrete (dry, semi-dry and plastic), include UHPC. Also in the mixing of materials for the production of glass, ceramics, refractory castable.   *Counter-current design, make our mixing time is shorter with lower powerconsumption. The gearbox unit (patent technology), specially designed for a balanced distribution of power to the various mixing device, ensure a low-noise rotation.     * According to different materials, the liners and tiles can be cast-iron, HARDOX steel plate (Import from Sweden) or surfacing materials.



Details for MPC750 planetary concrete mixer

Maintaining door and observing port   Can observe the mixing status during the mixer running.   Big maintaining space, easy to go into the mixer for cleaning, changing the blades.

Mixing part Can mix all materials in the mixer. The mixing baldes and arms are secially designed.

	Safety sensor Have safety sensor, once the maintaining door is open, the mixer will stop running.
	Control panel We can design and supply different control systems according to different demand.

Moisture sensor For some products need high precision moisture, need this moisture sensor. Made in UK.

Job site show

Why choose us?

*We are factory, not trading company.

Better production and after-sales service.



*Top technology in our field.

Dex is the No.1 and only company to adopt counter-current technics in China.



*We have a big excellent team to service you.

We have office in many countries, can supply better service.



*Special design for different requirements. supply drawing to our clients.



 All models of planetary mixer

Model	Input capacity	Output capacity	Motor power
MPC50	75L	50L	3Kw
MPC100	150L	100L	5.5Kw
MPC150	225L	150L	7.5Kw
MPC250	375L	250L	11Kw
MPC330	500L	330L	15Kw
MPC500	750L	500L	18.5Kw
MPC750	1125L	750L	30Kw
MPC1000	1500L	1000L	37Kw
MPC1500	2250L	1500L	55Kw
MPC2000	3000L	2000L	75Kw
MPC3000	4500L	3000L	110Kw
MPC4000	6000L	4000L	150Kw
