lightweight foamed concrete solid wall panel machine for buildings from Jinan Oyade

Share on (60739312566):


Price:RUB 7,667,530.00 - RUB 14,568,307.00

Quantity:


Product Overview

Description

Product Description

Brief Introduction of automatic wall sandwich panel production line:


eps sandwich panel machine line is in order to adapt to recent development trend of building materials, our company bold innovation design of highly automated production lines, which enables the waste water and materials be reused through elaborate design.
This is our unique design, can full automatically demoulding, 20panels/time. So can save a lot of your labor cost

Machinery Parameters
Capacity
20,000sqm~600,000sqm per year
Thickness
50-250mm thickness. special sizes need to be customized
Length
2440~3600mm, special sizes need to be customized
Width
610mm , special sizes need to be customized
Raw material
There are mainly two different types
1. Cement+fly ash/eps/ceramsite/sand, etc (optional, can choose to add or not add)
2. Fomed cement+additives
Finished board type
1. Composite board/sandwich board, with surface board

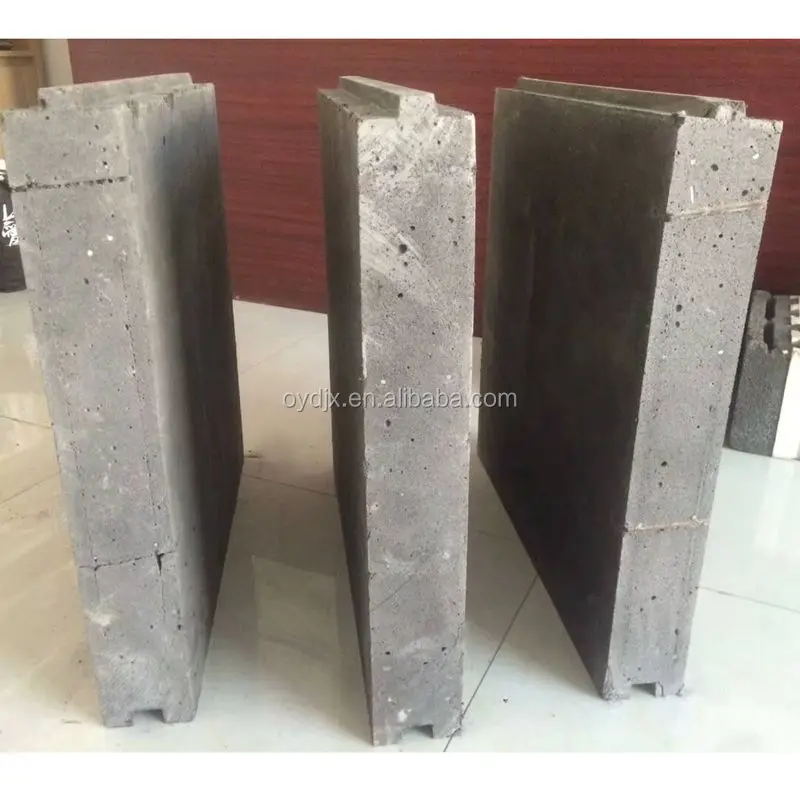

2. Lightweight solid panel, without furface board
Surface board types
1. Calcium silicate board
2. Fiber cement board
3. Mgo board
Electrical components
There are mainly two different types

Main Features

1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Main Equipment


Name: full automatic mixing platform

Brand: OYD brand

Measuring materials. Weighing system uses the gravity center of the pressure sensor structure measuring scale design, measuring scale adopts anti vibration and abrasion-proof , the accuracy of measurement is always guaranteed in construction process. We adopt double-shaft mixer, which has compact structure, beautiful appearance, stable running, convenient operation, high production efficiency.

Full automatic meteriing for raw materials

Each raw material is automatically mesured, so can ensure the eaxct formula.

Name: Pumping system
Brand: OYD brand
Used to paste into the mold, can avoid the air holes.

The feeding machine can be movable, or fixed, matched well with the mold car, easily operate

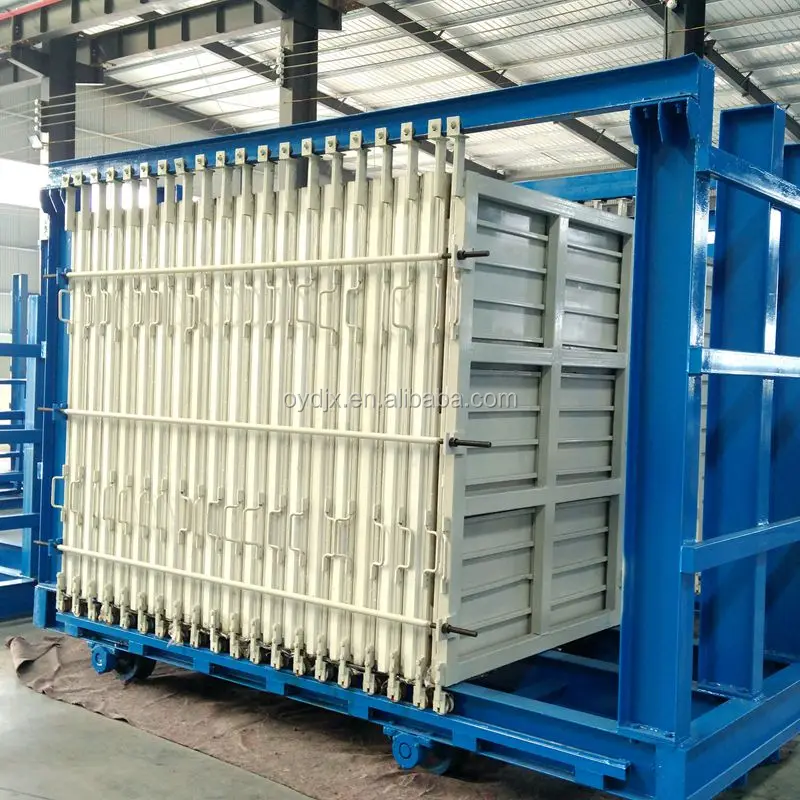

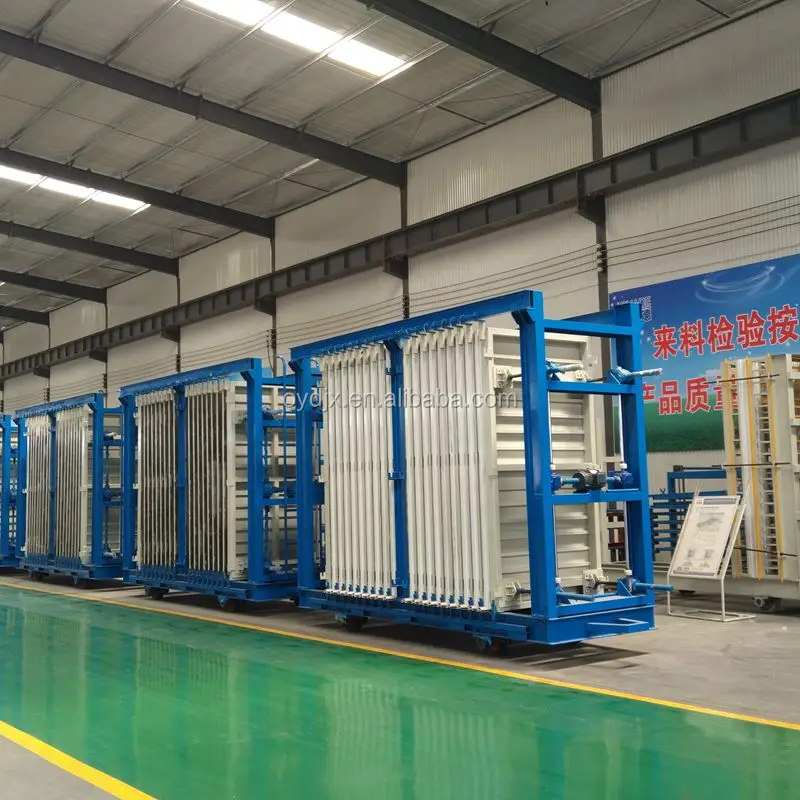

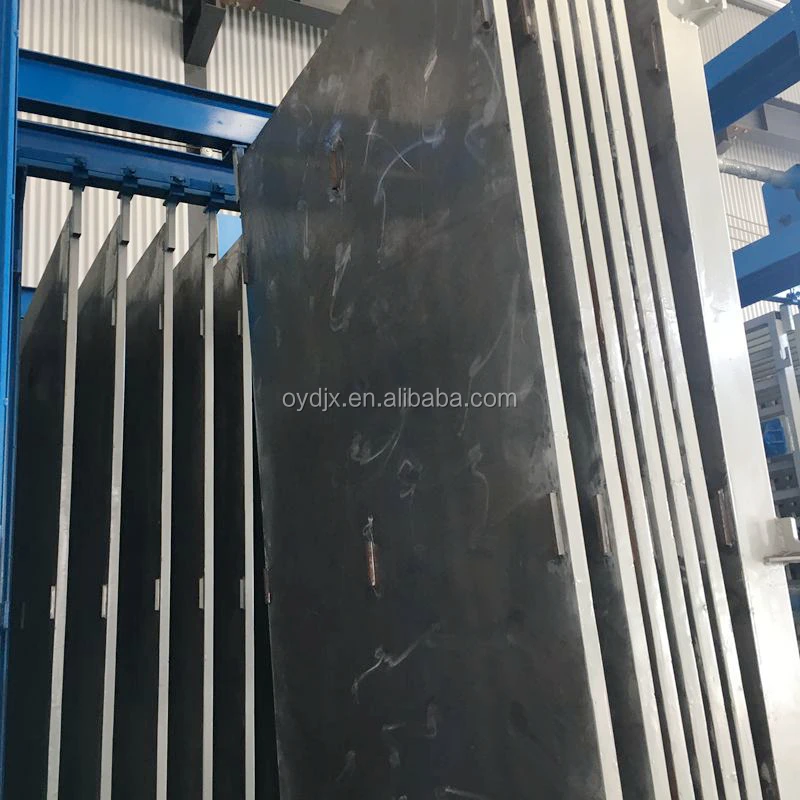

Name: Full automatic mould car
Brand: OYD brand

Full automatic open and demoulding, no need workers to lift the panel

Name: Automatic unloading machine
Brand: OYD brand

After curing, unloading the wall panel and stacking.

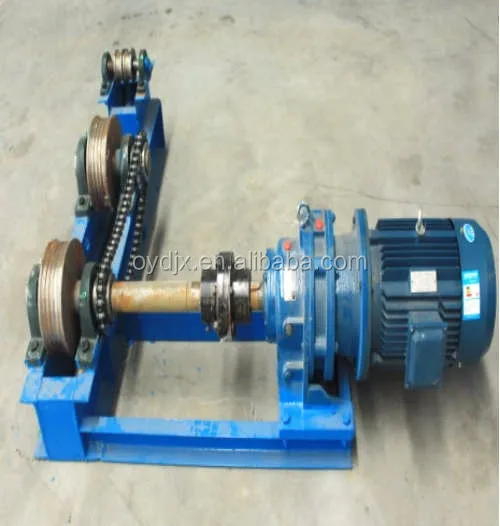

mold car traction system

Boiler system

EPS foaming machine

Main parameters

Popular product Specifications

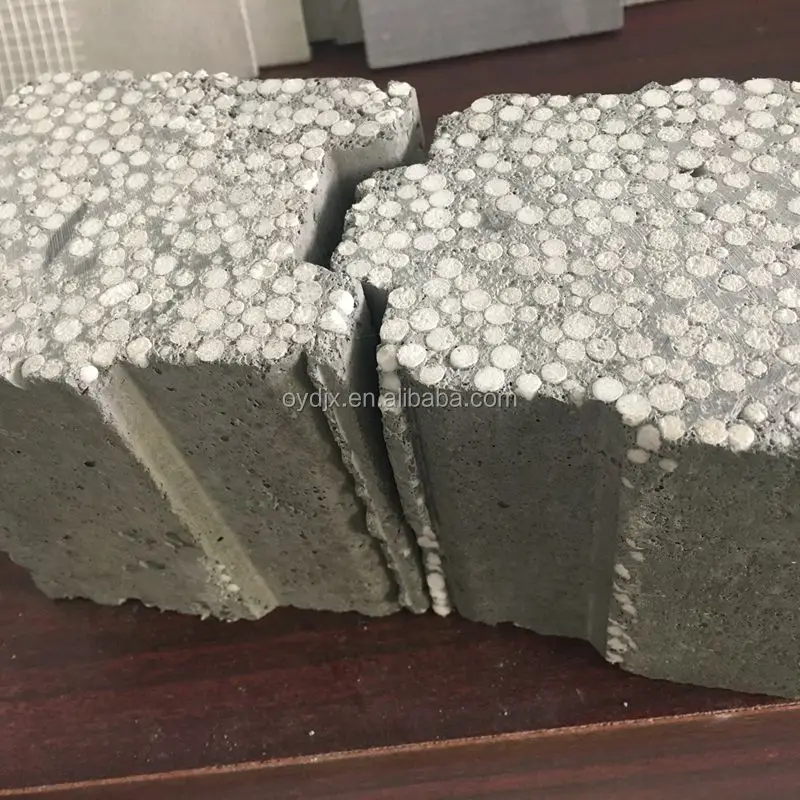

EPS Lightweight wall panel

Panel thickness(mm)
Panel width(mm)
Panel length(mm)
60
610
2440-3000
75
610
2440-3000
90
610
2440-3000
100
610
2440-3000
120
610
2440-3000
150
610
2440-3000
180
610
2440-3000
Raw material
Name
Cement
Fly ash
Sand
Polystyrene particles
Admixtures
Calcium silicate board
Water
