Fail Safe Type Flush Mounted Electric Drop Bolt

Product Overview

Description

Features
•Fail safe type released as power off.
•With magnetic switch door position sensor
•With DIP switch for setting time delay for opening(4, 5, 10sec.) & relock door
•Electric drop bolt design suitable for double swing door with 180° opening angle
•With power LED indicator
•Low working current, no over heating problem.
•With exit function thru low current contacts.

Specifications
•Nominal voltage: DC 12V
•Standby current: 120mA±10%
•Working current: 1000mA±10%
•Temp. range:-20°C ~ 70°C

Application

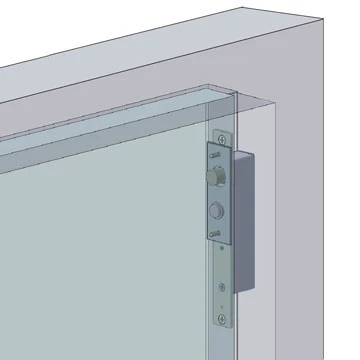

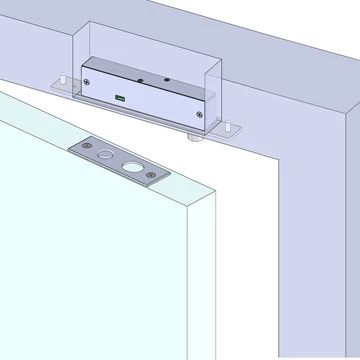

For emergency door, swing glass door, wooden door

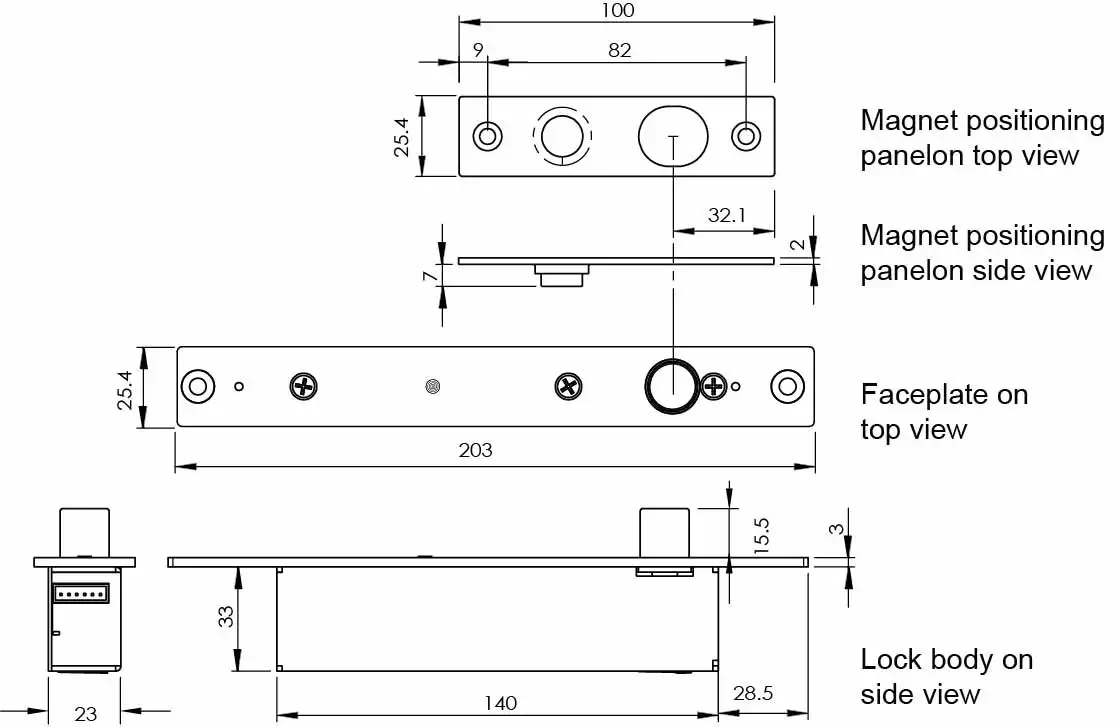

Dimension: Unit(mm)

Ordering information
DA-66S: Fail safe type Flush Mounted Electric Bolt, Door Release Time(4, 5, 10sec.)

DA-66S-I: Fail safe type Flush Mounted Electric Bolt, Lock immediately









We reserve the right to change the specification without prior notice or obligation!
