portable high frequency induction heating machine
- Category: >>>
- Supplier: Tianjin Century Electronics Co. Ltd.
Share on (60739426218):
Product Overview
Description

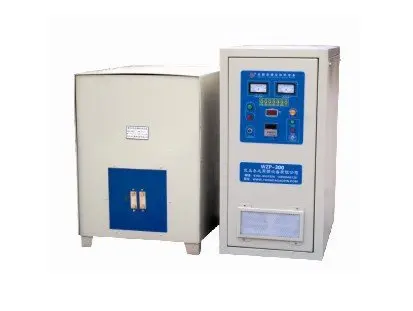

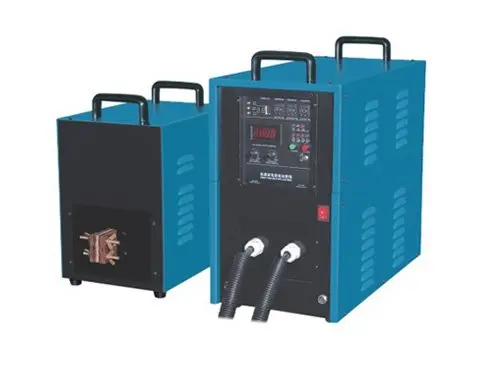

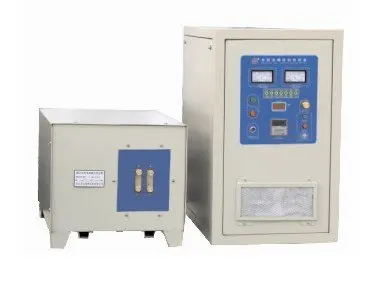

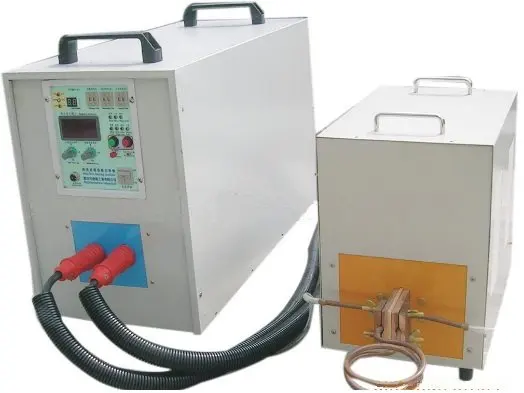

High Frequency Induction Heating Machine
1. Small HF induction heating machine
A series- All-in-one machine B series- Split type machine
Specifications:
Model | XJH-4kw-A | XJH-15kw-A | XJH-15kw-B | XJH-25kw-A | XJH-25kw-B | |
Input voltage | single phase 220V 50-60Hz | single phase 220V 50-60Hz | single phase 220V 50-60Hz | 3*380V 50-60Hz | 3*380V 50-60Hz | |
Input current max | 15A | 32A | 32A | 23A | 23A | |
Oscillate power max | 4kw | 15kw | 15kw | 25kw | 25kw | |
Duty cycle | 80%30°c | 80%30°c | 80%30°c | 80%30°c | 80%30°c | |
Weight | 20kg | 24kg | 30kg | 29kg | 34kg | |
Cable length | 2-6m | |||||
Oscillate frequency | 100-250kHz | 30-80kHz | 30-80kHz | 30-80kHz (standard 50Hz) | 30-80kHz (standard 50Hz) | |
Dimension | Host | 495*240*485mm | 495*240*485mm | 495*240*485mm | 550*240*485mm | 550*240*485mm |
Extension | 340*205*340mm | 340*205*340mm | ||||
Model | XJH-35kw-B | XJH-45kw-B | XJH-60kw-B | XJH-90kw-B | XJH-120kw-B | |
Input voltage | Three phase 380V 50/60Hz | |||||
Input current max. | 53A | 68A | 105A | 160A | 200A | |
Oscillate power max. | 35kw | 45kw | 60kw | 90kw | 120kw | |
Duty cycle | 100% 30°C Indoor temperature | |||||
Weight | 56kg | 64kg | 81kg | 95kg | 105kg | |
Cooling water flow | 0.3MPa, ≥6L/min | 0.4MPa, ≥10L/min | 0.5MPa, ≥12L/min | |||
Cable length | 2-6m | |||||
Oscillate frequency | 30-80kHz | |||||
Dimension | Host | 550*240*485mm | 550*240*535mm | 650*285*610 mm | 650*350*455 mm | 650*350*560 mm |
Extension | 470*265*440 mm | 470*265*440 mm | 510*265*430 mm | 700*350*450 mm | 700*350*460 mm | |
The features:
1. Adopt MOSFET, IGBT power electric device and unique the second generation inverter technology.
2. The power and time are adjustable in the process of keeping, which can improve the quality and repeatability of heating to simplify worker operation.
3. Install simple, connect to single phase 220V or three phase 380V power supply, inlet and outlet water, which need only several minutes.
4. Small occupy, simple operate, easy study, safety is especially. the output voltage is less than 36V,which can avoid the possibility of HV electrical shock.
5. No fire, more safe. To Use eddy current causing electromagnetic induction to fight any metal.
Application:
- Sanitaryware brazing
- Hardware quenching
- Tubes soldering
- Iron bar forging
Company Information
Tianjin Century Electronics Co,.Ltd (TCEC) is the first Chinese professional supplier of the power electronics and semiconductor devices, power unit and induction heating equipment since 1997. We have a global market network covering over 40 countries and regions. United States, Europe, South Asia, South Africa and Korea are the traditional markets. Meanwhile the emerging markets include Middle East, Africa and South America. Our main products are:
1. Power semiconductor devices: Thyristor, Rectifier, Diode, IGBT, GTO, Light Triggered Thyristor and component of Silicon Wafer, DCB and other material.
2. Power equipment of rectification and inversion.
3. Power semiconductor assemblies: rotating excitation, power factor reactive, pulse power supply.
4. MF/HF induction heating application and foundry casting plant.
With years of experience along with excellent quality, advanced services and competitive prices, TCEC has won numerous customers' trust and support.
