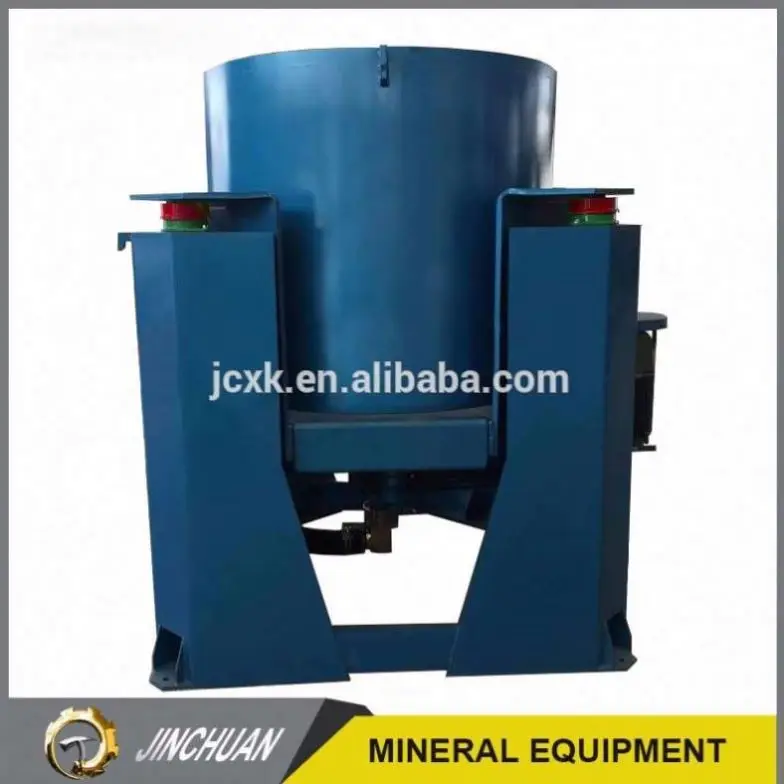

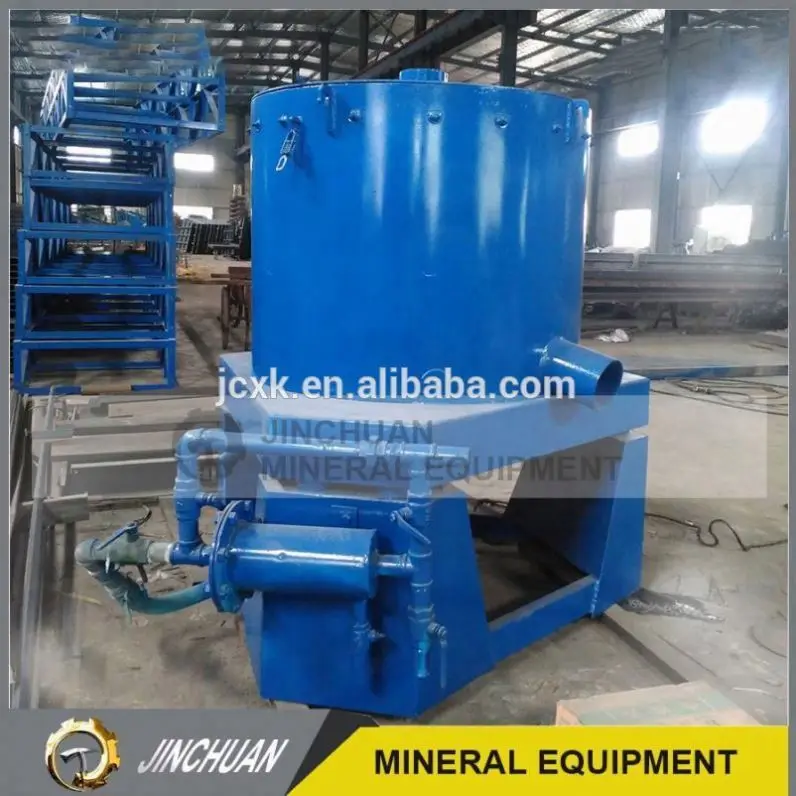

Silver recovery machine custom made centrifugal machine

Centrifugal Concentrator was patented in China. It is an efficient equipment for recovering free gold in all particle  size ranges,specially for recovery of fine gold which is lost during the operation of the gravitational concentrators (sluice boxes and jigs). It can be used not only for placer gold mining, but also for hard rock mining to recover the  natural gold, replacing amalgamation, and recover gold from the old tailings.

Main Features of gold prospecting centrifugal machine equipment

1.High concentrating ratio and high recovery;
2.Steady recovery performance;
3.Center discharge design for fast,secure concentrate removal;
4.Environmentally friendly(requires no chemical additives or reagents);
5.Low water and electricity requirements;
6.Low production costs, durable wear parts, minimal maintenance requirements;
7.Compact design requiring less space, easy merged into the existing mining processing;
8.Quick payback on investment, typically lass than half year;

Features

A).Hard Rock Mining: (No Chemicals Required) - NO Mercury, NO Cyanide

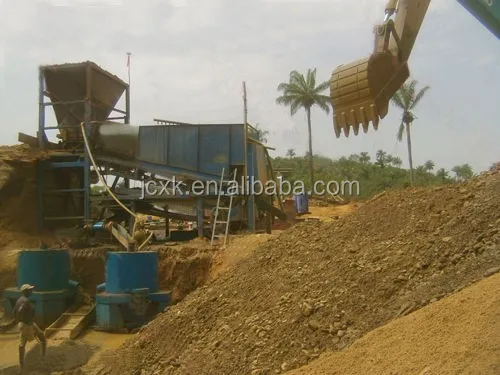

B).Alluvial / Placer Deposit Mining & Dredging
Primary gold processing when you know your gold is too fine for a sluice
Reprocessing years of old fine mineral concentrates
Processing daily sluice box fine mineral concentrates

C).Enriching/Upgrading Fine Mineral Concentrates
Classifying and upgrading sluice concentrates
Upgrading concentrates for regional processing
D). Prospecting / Drilling / Bulk Sampling

Application

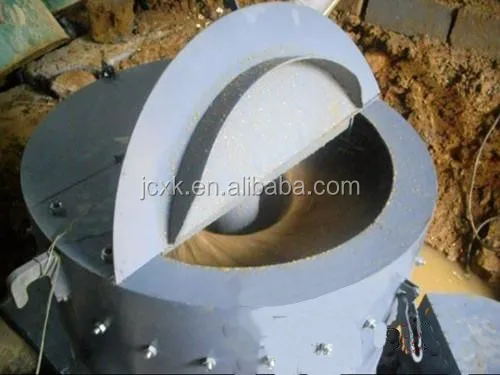

The feed slurry contacts the base plate of the vessel and, due to its rotation, is thrust outward. The outer extremities of the concentrated bowl house a series of ribs, and between each pair of ribs is a groove. During operation the lighter material flows upward over the grooves and the heavy mineral particles (usually of economic value) becomes trapped within them. Pressurized water is injected through a series of tangential water inlets along the perimeter of each groove to maintain a fluidized bed of particles in which heavy mineral particles can be efficiently concentrated. The Knelson concentrator typically operates as a batch process, with lighter [gangue] material being continuously discharged via overflow and a heavy mineral concentrate periodically removed by flushing the bowl with water.

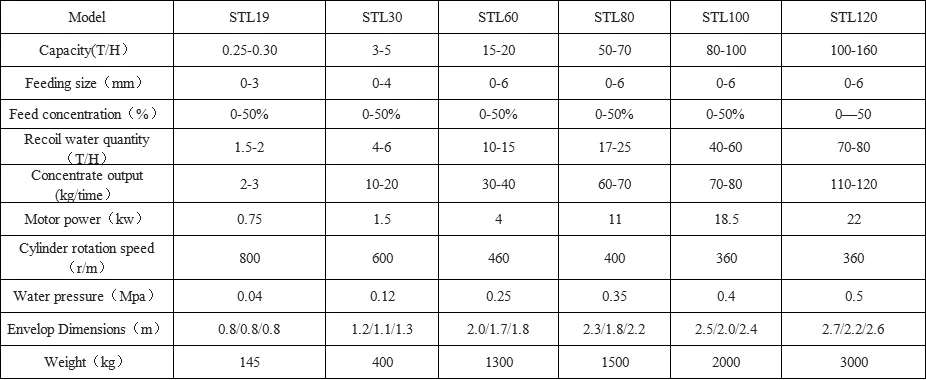

Advanced centrifugal concentrator design 2016

1).ItemAD(Automatic Discharge) Centrifuge Gold Concentraor
2).ModelSTL-120(47Inch)
3).Capacity120-150 tons per hour (Dry Solids Capacity)
4).Feeding Size-2mm for rock gold,-5mm for alluvial gold
5).Feeding Concentration0-35%
6).Back Wash Water/Fluidization Water80-100tons per hour
7).Output100-120kg per shift
8).Power45kw
9).Outline2500*2500*3000mm
10).Weight4000 kg
11).G-Force60-180G
