Coil winding hydraulic decoiler machine

Share on (60739464722):


Price:RUB 690,077.70

Quantity:


Product Overview

Description

Product Description


hydraulic Manual decoiler main details:

1.Technical parameters :

Coil inner diameter: 450mm-650mm

Maximum width of coiling: 1250mm

Maximum weight of loading: 5 ton / 10 ton / 15 ton

Hydraulic power: 3kw

Motor power: 3kw

Working speed: 0-15m/min

Oil pump inner diameter: 120mm

Working press: 10Mpa

Voltage: 380V-50HZ-3Phase

Dimension: 3110x1650x1780mm

2.Features :

1.   Types available: hydraulic decoiler,mandrel decoiler

2.   Adopts hydraulic expand/loosen and hydraulic driving system

3.   Easy to operate

4.   Suitable for pre-painted coil,cold rolled coil, and galvanized coil

Products Showing

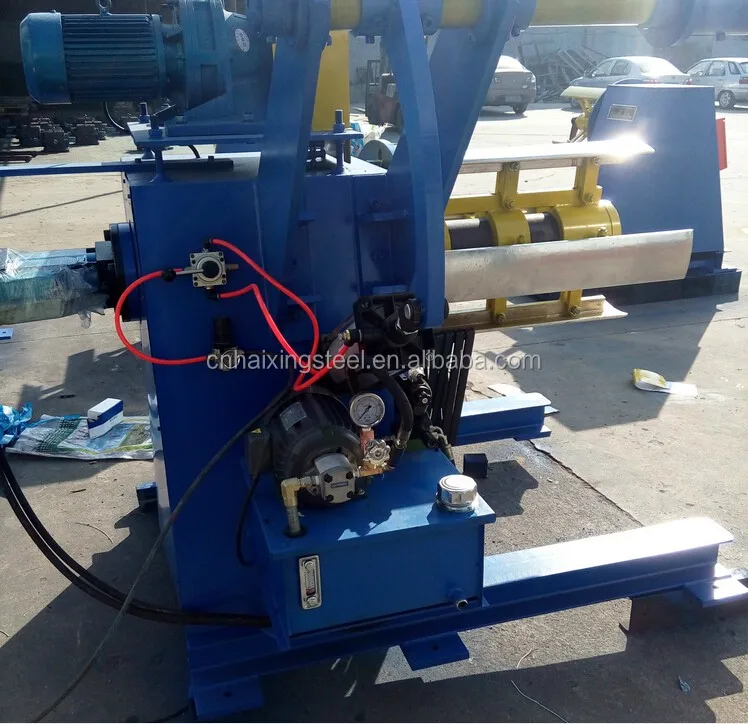

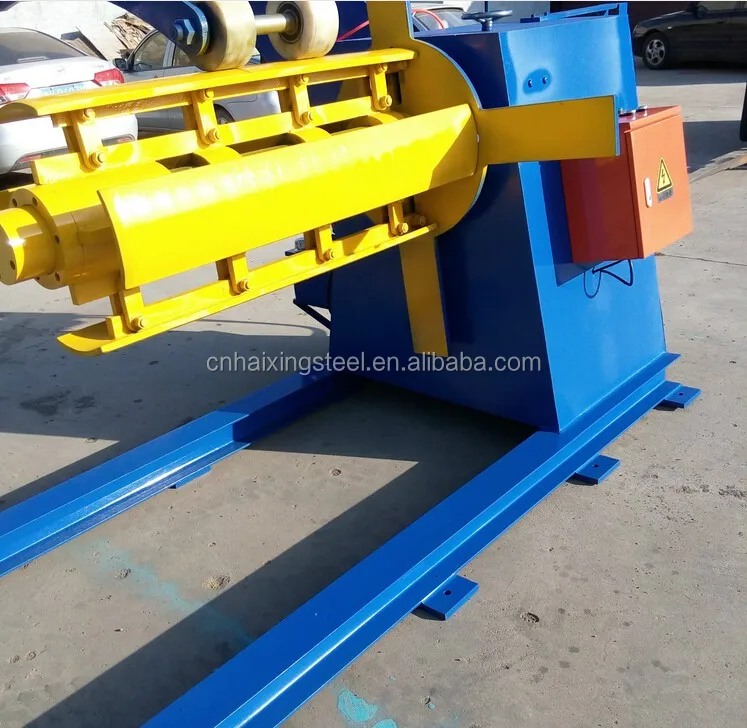

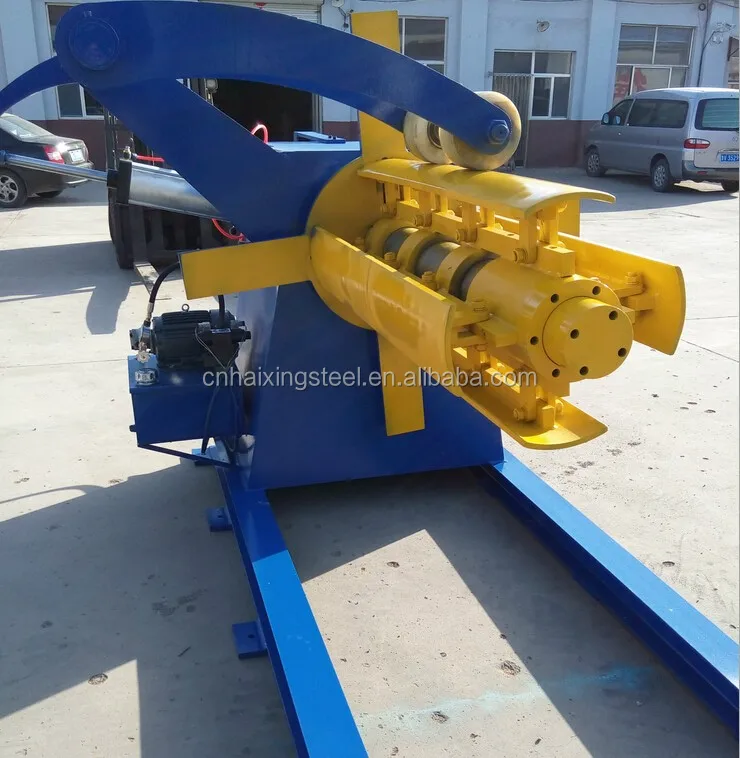

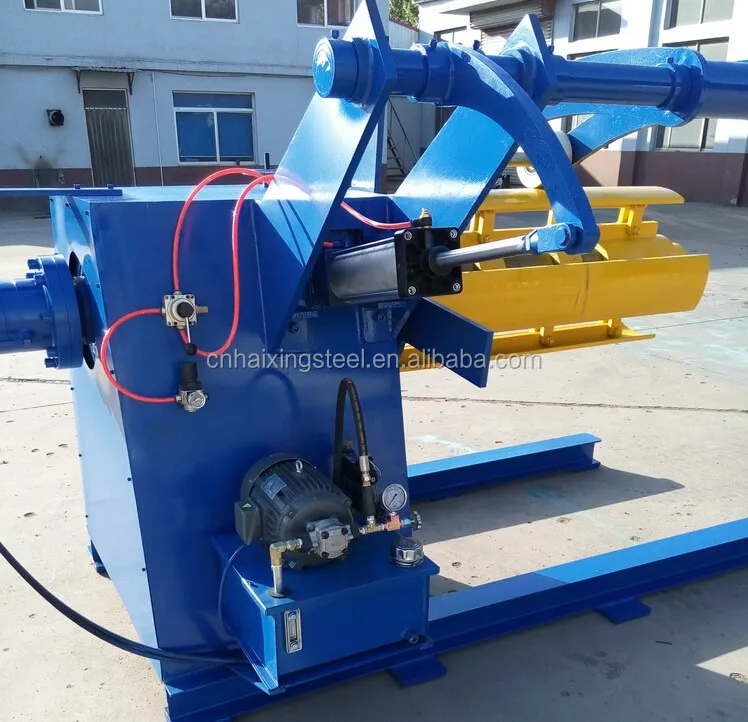

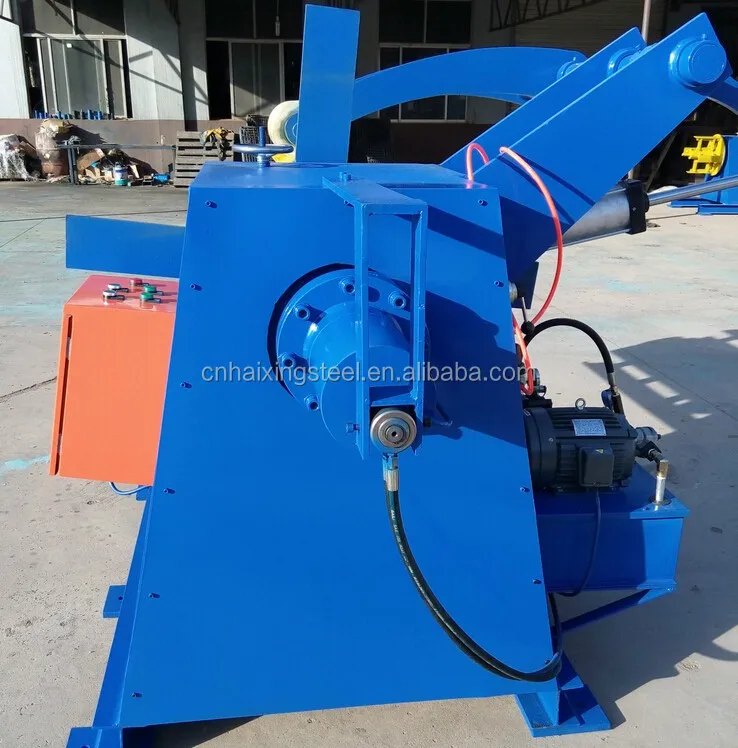

hydraulic Manual decoiler picture showing :

QQ20160729144801QQ20160729145414QQ20160729145307QQ20160729145517QQ20160729144734

Product Application

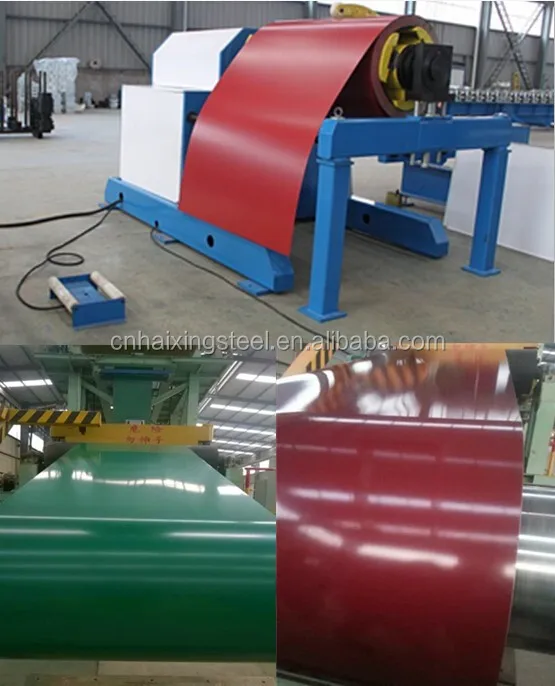

hydraulic Manual decoiler appliacations :

Automatic colour Steel Coil Decoiling Machinery

Steel uncoiler machine for decoiler hot rolled steel slit coils

Hydraulic automatic decoiler with trolley

Supply various decoilers, like manual decoiler,  electric decoiler, hydraulic decoiler etc

Strong machines with competitive prices

Supply technical support for all life


Packaging & Shipping

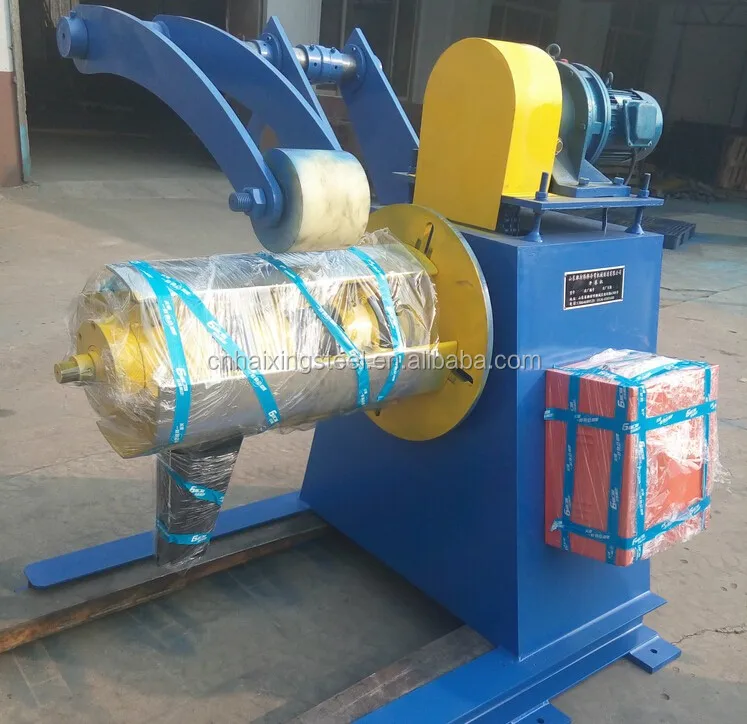

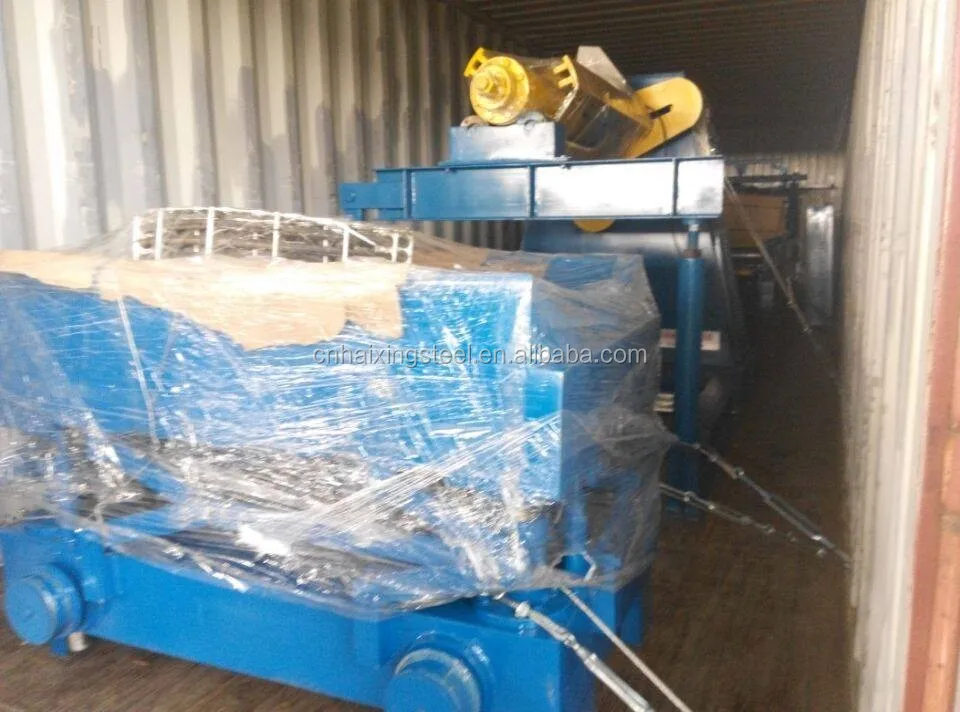

hydraulic Manual decoiler package and shipment details :


Company Information

 _04.jpgWe have profuse designs with series quality grade, and expressly, our price is very competitive because we are manufactory, we are the source.Our first focus is quality improvement and customer's satisfaction,we have exported the products to Africa, South America, Russia, India, Pakistan,Southeast Asia etc. the custormers of domestic and foreign evaluate highly for our stable quality and cost effective.
