25TON Small Vertical type Plastic injection moulding machine

Product Overview

Description

 FEATURES:

 vertical injection molding machine price , servo plastic injection molding machinery

l  Vertical clamping and injection design, especially suitable for the insert molding production





l  User-friendly LCD display shows various functions with 66 sets of mold memory

TOOTH PASTE TUBE PLASTIC TUBE HEAD,SOFT TUBE HEAD AND SHOULDER,OVER MOLDING INJECTION

l  Injection and clamping controlled by multiple pressures and speeds ensure easy setting and accurate processing

AUTOMATIC SOFT TUBE HEADING,AUTOMATIC SCREW DRIVER INJECTION,LAMINATED TUBE PLASTIC HEADING

l  The P.I.D temperature control is accurate for every section

VERTICAL INJECTION MOLDING MACHINE,SHUTTLE TABLE INJECTION MACHINE

l  Dual injection and carriage design provides smooth movement and precision molding

máquina de fabricación de plástico,    máquina de moldeo por inyección vertical

l  Professional designed screw and barrel, suitable for various plasticizing demands

Vertical Injection Molding Machine PRICE, plastic Injection Molding Machine PRICE

l  High torque screw motor ensures superior plasticizing ability Bakelite machine for plastic

máquina de moldeo por inyección de plastic,    mesa corrediza

l  Oil-less bushings used on all moving units for better cleanness and easy maintenance

Vertical Injection Molding Machine PRICE, plastic Injection Molding Machine PRICE

l  High-rigid frame structure assures stable and smooth sliding movement

 Rotary table injection machinery, shoes sole molding machine

vertical injection moulding machine



PHOTO:









 injection moulding machine



SPECIFICATION :





INJECTION UNIT	Screw Diameter	mm	φ25	φ28	φ32
	Maximum Injection Pressure	Bar	1814	1446	1107
	Theoretical Shot Volume	cm3	49	61	80
	Maximum Shot Weight(PS)	g	45	56	74
		oz	1.6	2.0	2.6
	Injection Rate	cm3/sec	37	46	60
CLAMPING UNIT	Clamping Force	kN	250
	Top Platen Size	mm	490×350
	Bottom Platen Size	mm	535×405
	Mold Size	mm	355×225
	Minimum Mold Thickness	mm	100/180
	Opening Stroke	mm	180
	Open Daylight	mm	280/360
	Ejector Force	kN	13
	Ejector Stroke	mm	35
OTHERS	Hydraulic System Pressure	Bar	140
	Oil Tank Volume	L	120
	Electric Power	hp(kW)	5.5(4)
	Barrel Heating Power	kW	2.7
	Total Wattage	kW	6.7
	Machine Dimensions(approx.)	m	1.6×0.9×2.3
	Machine Weight(approx.)	kg	900





double injection molding machine

SMALL VERTICAL INJECTION MOLDING MACHINE



OPTION : HYDRAULIC SERVO SYSTEM:







plastic molding machine price

LL VERTICAL INJECTION MOLDING MACHINE

 OPTION 1 : TECHMATION BRAND SERVO:

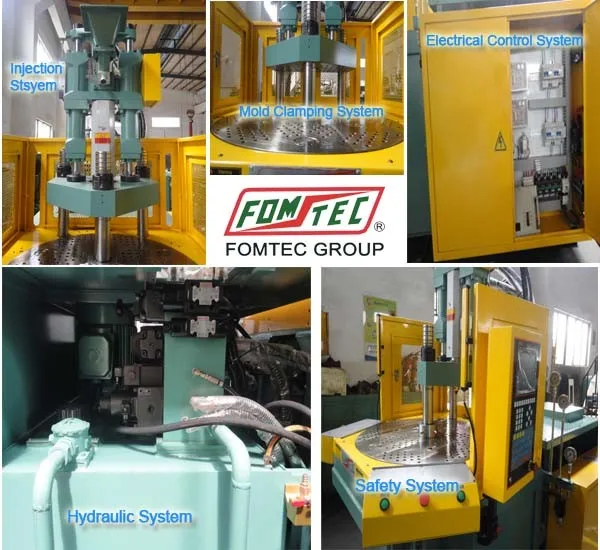

PRODUCT COMPOSITION:      PMMA injection and blow machine

plastic Injection Molding machine, SMALL VERTICAL INJECTION





 automatic motor cycle handle

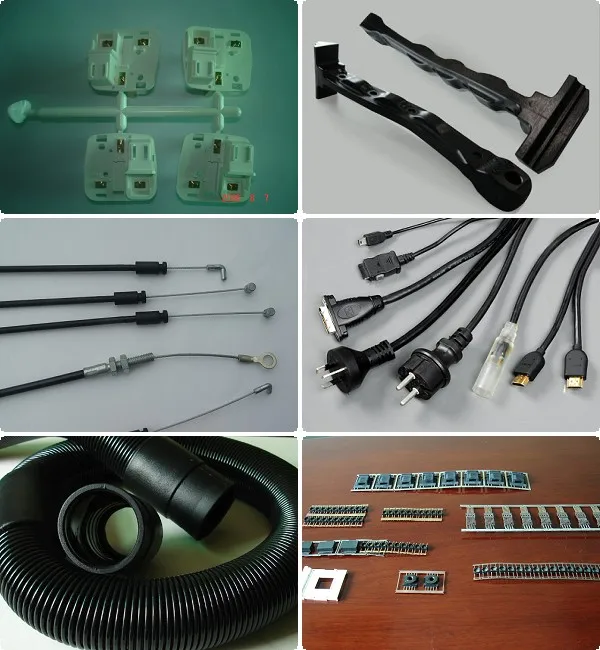

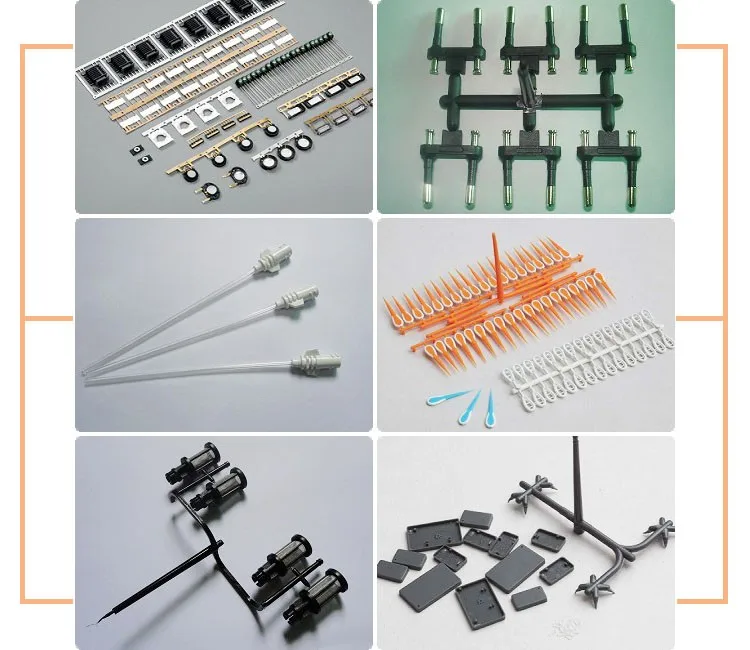

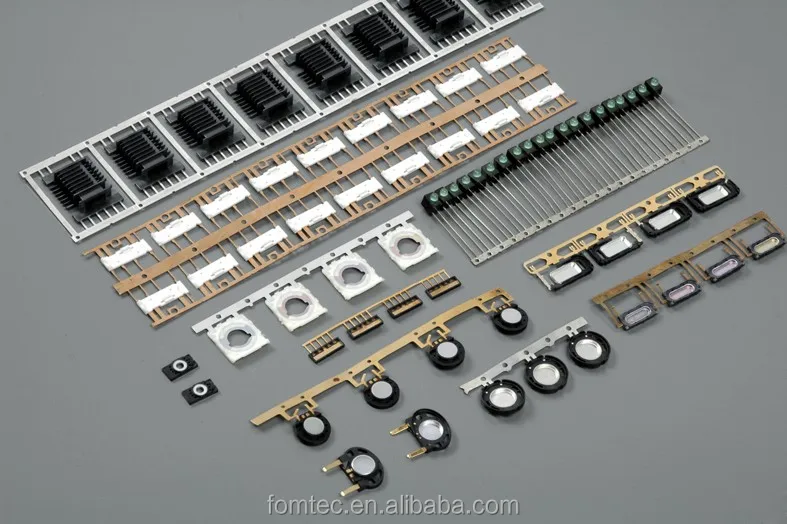

PRODUCT APPLICATION:

  automotive filter molding machine









INSPECTION CERTIFICATION:

injection moulding machine





plastic injection machines prices

injection molding machine price

EXISTING CUSTOMERS:

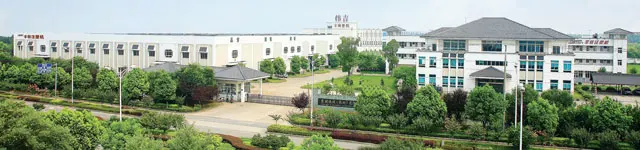

FACTORY TRAVEL:

  two material vertical molding,multi-color vertial machine











GLOBAL SERVICES:

small injection molding machin multi-color vertial molding,multi- material vertial machine
