  • 50 150 16KN стальная проволочная рукоятка промышленный стальной проволочный зажим из алюминия
50 150 16KN стальная проволочная рукоятка промышленный стальной проволочный зажим из алюминия
50-150 16KN стальная проволочная рукоятка промышленный стальной проволочный зажим из алюминия
50-150 16KN стальная проволочная рукоятка промышленный стальной проволочный зажим из алюминия
50-150 16KN стальная проволочная рукоятка промышленный стальной проволочный зажим из алюминия

50 150 16KN стальная проволочная рукоятка промышленный стальной проволочный зажим из алюминия

Share on (60739484793):


Price:12,00 $ - 21,00 $

Quantity:


Product Overview

Description


Product Description

industrial grade steel wire clamp aluminium

Specification.

According the usage of the products , our products
include four different types:
1.JB wire grip （Aluminium alloy）
2.JB wire grip (copper)
3.JB insulated wire grip
4.JB Auto grounding wire grip

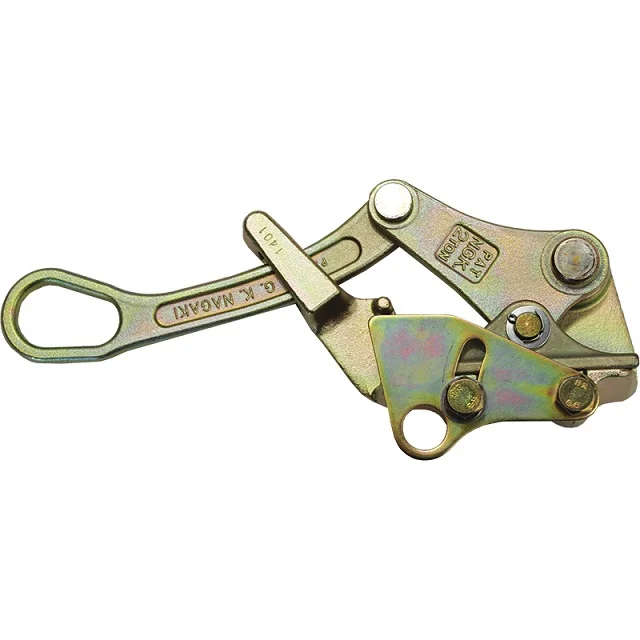

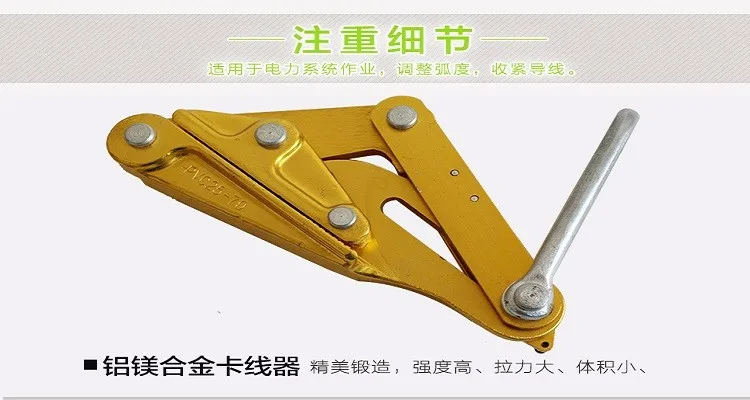

JB wire grip(Aluminium alloy).

Usage:Suitable for overhead power line adjustment sag and tighten wire

Character:High strength aluminum alloy material, forging and forming, high strength, small volume and light weight

\t
Model
\t
wire
LJ/LGJ
\t
Rated Load
KN
\t
Max Load
KN
\t
Max .Openning
mm
\t
Weight
KG
\t
lk-1
\t
25-70
\t
10
\t
20
\t
14
\t
1.1
\t
lk-1.5
\t
95-120
\t
15
\t
30
\t
18
\t
1.8
\t
lk-2.5
\t
150-240
\t
25
\t
50
\t
24
\t
2.8
\t
lk-4
\t
300-400
\t
40
\t
80
\t
32
\t
4.1

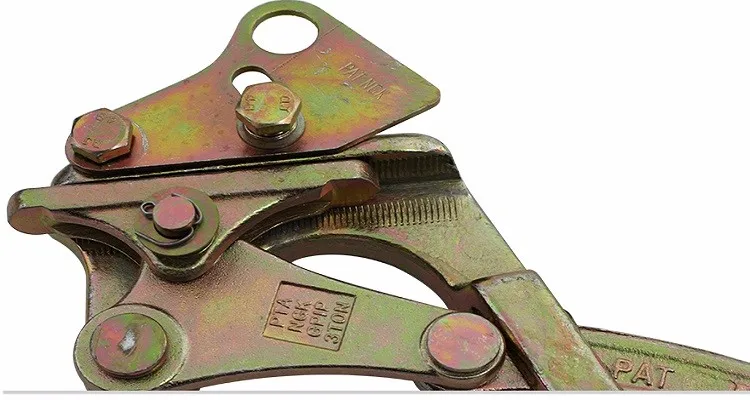

JB wire grip (copper)

Usage:Suitable for aluminum-clad steel conductors overhead power adjustment sag and tighten wire

Character:High quality steel forging, strong grip strength

\t
Model
\t
wire
LJ/LGJ
\t
Rated Load
KN
\t
Max Load
KN
\t
Max .Openning
mm
\t
Weight
KG
\t
GK-1
\t
25-70
\t
10
\t
20
\t
14
\t
1.6
\t
GK-1.5
\t
95-120
\t
15
\t
30
\t
18
\t
2.5
\t
GK-2.5
\t
150-240
\t
25
\t
50
\t
24
\t
3.5
\t
GK-4
\t
300-400
\t
35
\t
70
\t
32
\t
5.0

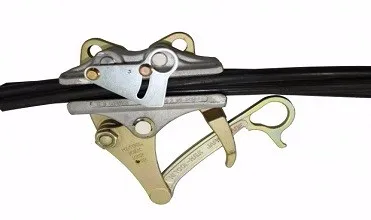

JB insulated wire grip.

Usage:Tighten the insulated wire, adjust the sag, tighten the wire and fix it.

Character:High strength aluminum alloy material,light weight and protect insulated layer


\t
Model
\t
Wire
mm2
\t
Rated Load
KN
\t
Max Load
KN
\t
Wire Dia.
mm
\t
Weight
\t
SLK-1
\t
25-70
\t
10
\t
20
\t
13.8-17.8
\t
1.1
\t
SLK-2
\t
95-120
\t
15
\t
30
\t
19.6-21
\t
1.8
\t
SLK-3
\t
150-240
\t
20
\t
40
\t
22.6-26.4
\t
2.8
\t
SLK-4
\t
300-400
\t
25
\t
50
\t
27.4-32
\t
4.1

JB Auto grounding wire grip

Usage:It is suitable for wire rod  tower line adjustment and ground wire tight ， light weight and no damage to wire

\t
Model
\t
Suite for aluminum-clad steel conductors
MM2

\t
Rated Load

KN
\t
Max Load

KN
\t
Max .Openning

mm
\t
Weight
\t
SRDZ-1
\t
GJ25-50
\t
10
\t
20
\t
11
\t
1.6
\t
SRDZ-2
\t
GJ50-70
\t
20
\t
40
\t
13
\t
2.4
\t
SRDZ-3
\t
GJ70-120
\t
30
\t
60
\t
15
\t
3.2
\t
SRDZ-4
\t
GJ150-185
\t
50
\t
80
\t
20
\t
6.0
Detailed Images
Certifications
Contact us
\t
Company
\t
Hebei Jiubai technology Co.Ltd
\t
Contact:
\t
Lizzy Bai( General Manager)
\t
Mobile No/Whatsapp/Wechat
\t
86+13832160269
\t
Email
\t
sales(at)insulator.tech
\t
Website
\t
www.insulator.tech
\t
Address
\t
Room1818,Wanda Plaza,Yuhua district ,Shijiazhuang Hebei China
FAQ

 How long is your products warranty ?

A: The warranty period of our products is 18 months.

2 How about inspection?

A: We have the whole inspection system from raw material to end products include temperature test,strength test and so on.

3 What do you have for certificate?

A: Our products are passed through IEC60947and IEC60269standarded.

4 What is payment terms?

A: T.T,Western Union and L/C isacceptable.

5 What is the service offered by company?

A: We have the professional enginer team which can design and develop the mold to arrive different customer nequirement.

We also have the sales team to offer good service from pre-sale to after-sale.

6 How to become the agents for JIUBAI?

A: It is OK! We will depend on the sales turn over and also do research on your market. If your have interest,let us discuss more !
