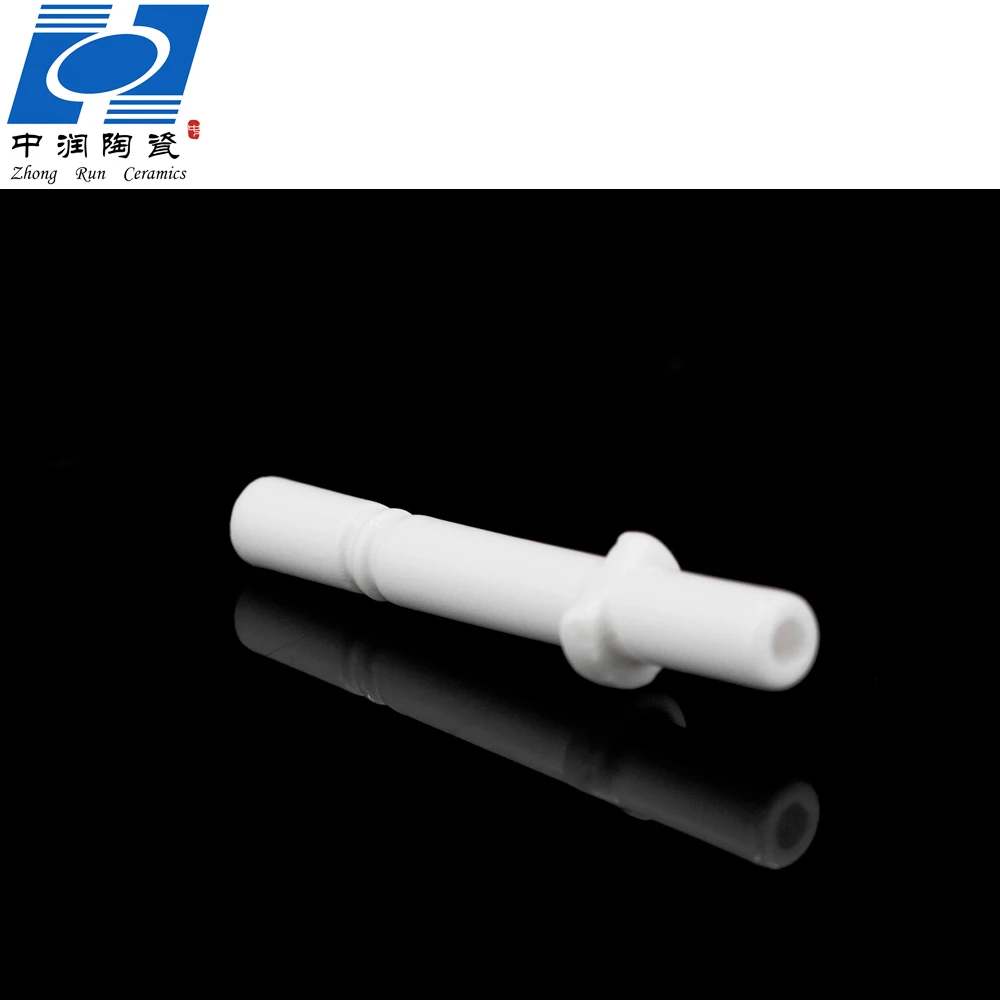

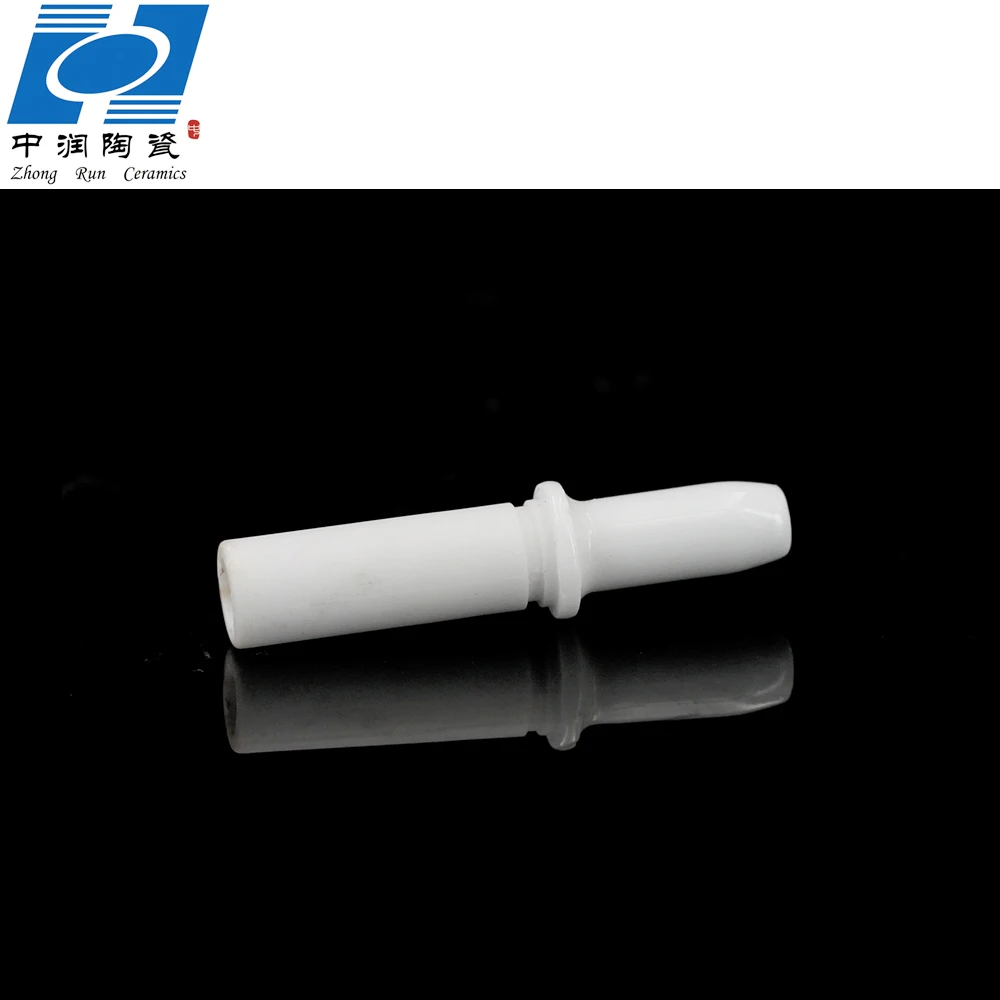

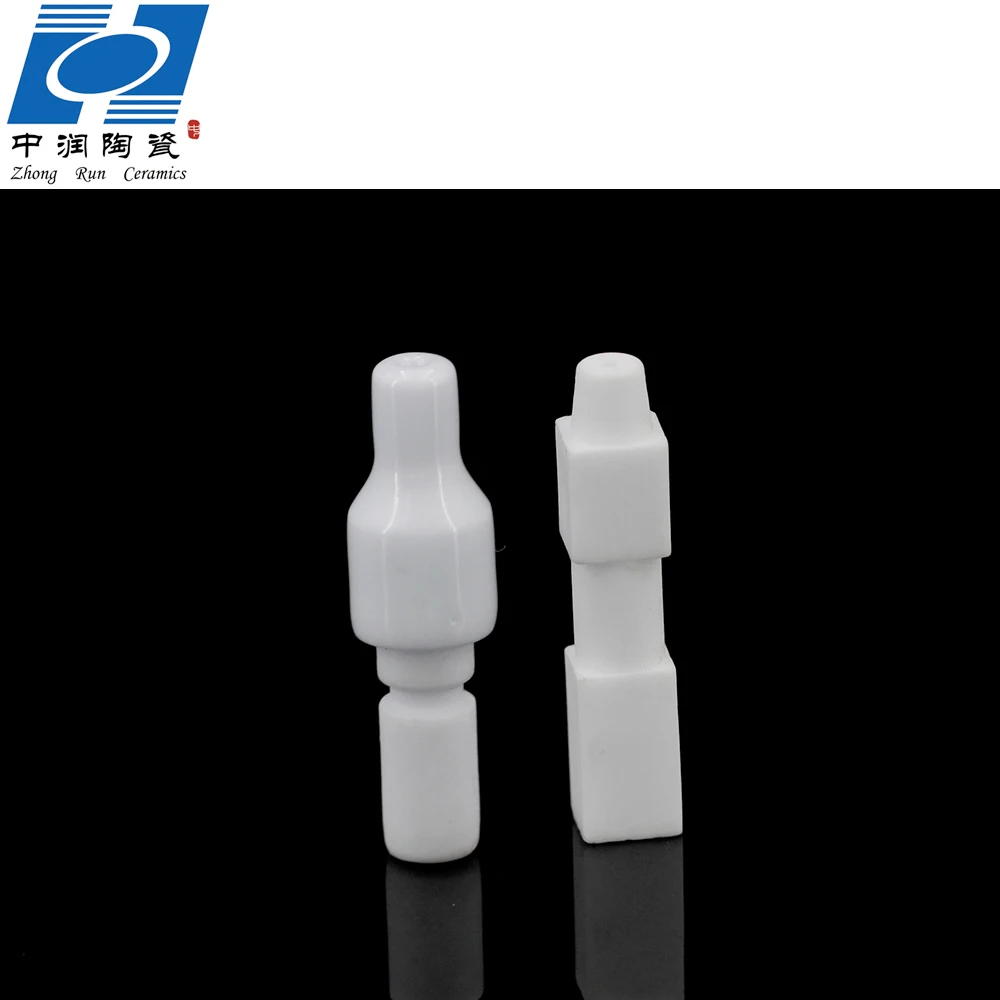

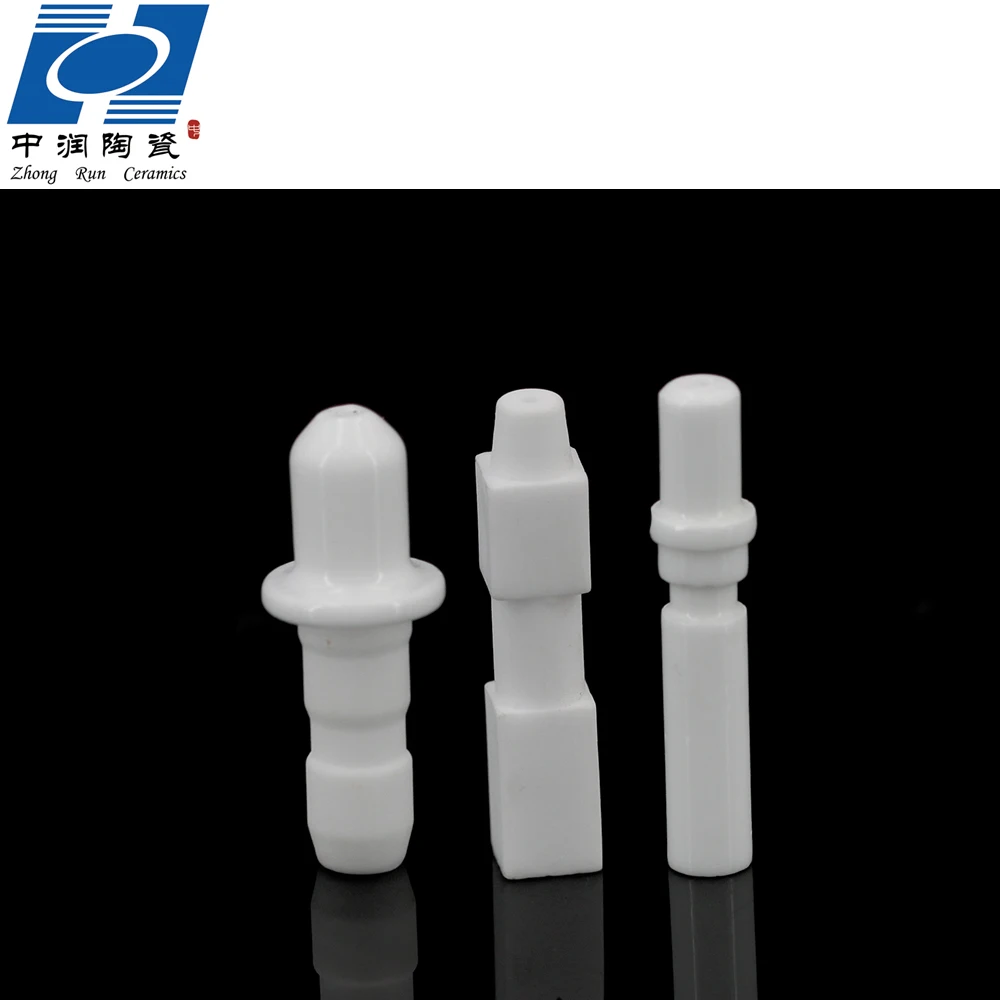

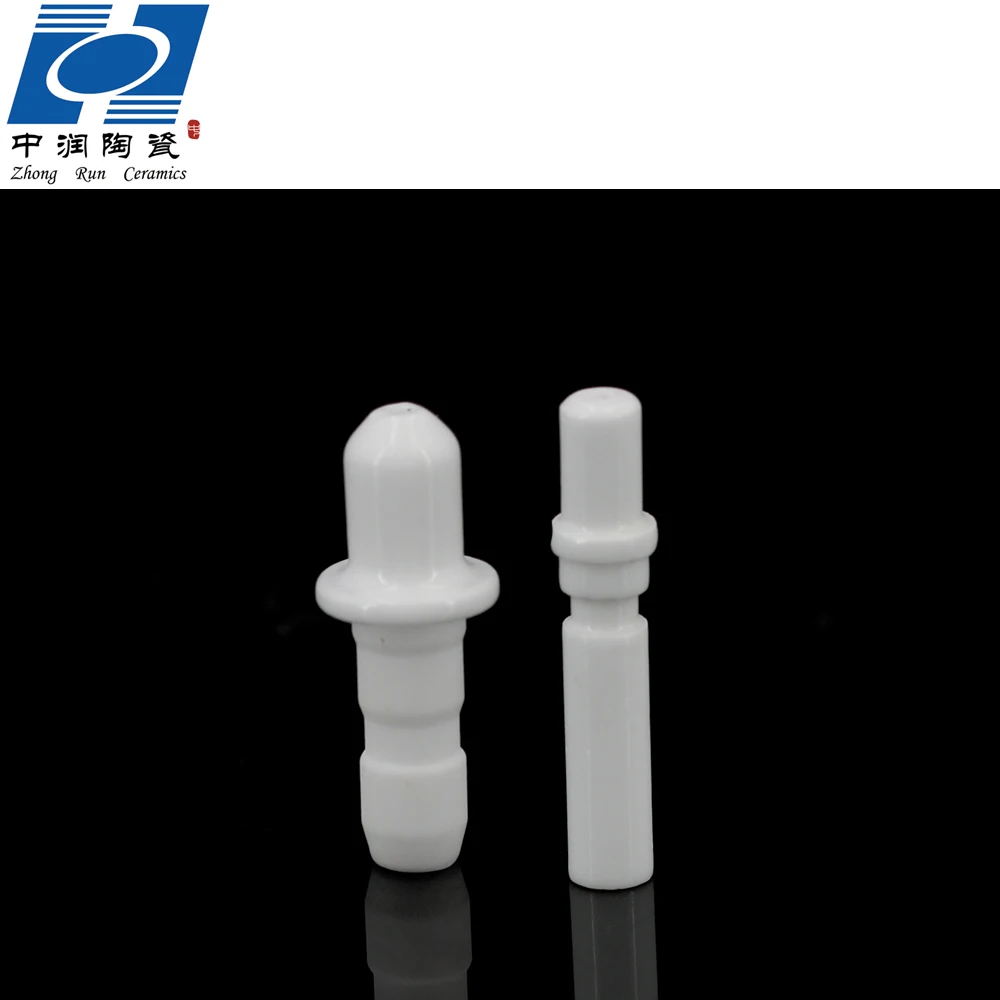

Alumina ceramic spark plug ignition electrode for gas heater
- Category: >>>
- Supplier: Yixing Zhong Run Ceramics Technology Co. Ltd.
Share on (60739527985):
Product Overview
Description
| Alumina ceramic spark plug ignition electrode for gas heater | ||
|---|---|---|
Product Display
• All items According to client's drawing
Product Description
| Product Description |
| Product name | alumina ceramic spark plug ignition electrode for gas heater |
| Place of Origin | Jiangsu, China(mainland) |
| Brand Name | Zhong Run |
| Type | Ceramic Ignitor |
| Material | Alumina Ceramics |
| Color | White |
| Size | Customzied |
| Shape | Custom-shaped |
| Producing Method | Hot pressing/Dry pressing |
| Design | ceramic spark electrode |
| Payment | T/T, Western Union |
| MOQ | 1000pieces |
| Packing | Carton /Pallet/Wooden case (According to clients requirement) |
| Delivery time | Standard Product: Within 3 days |
| New developed items: 15days | |
| Application | Heating |
| Features | 1. Many kinds of insulated ceramics available |
| 2. It can satisfy constant's technical request | |
| 3. Good lead-heat capability | |
| 4. High resistance | |
| 5. High temperature and high voltage resistant |
ceramic spark electrode insulator selected raw materials
We manufactures custom technical ceramics, covering a wide range of customer requirements .We make use of several forming and machining techniques to process components made from alumina Ceramics.
| Alumina Ceramics Technical Parameter |
| Alumina Content | 80-85% | 90-96% | > 99.5% | 99% |
| General Application | Lower Cost Electrical & Mechanical | High Strength, Wear Resistant, Electronic, Insulating, Mechanical, Structural & Metalizing | Extremely High Purity, Temperature & Strength; Excellent Corrosion & Wear Resistance | Porous, Easily Degassed & Machinable |
Porosity (%) | 0-.05 | 0-.05 | 0-.05 | Variable |
Density (gm/cm3) | 3.45-3.50 | 3.55-3.75 | 3.75-3.95 | 2.4 |
| Flexural Strength (kpsi) | 35.0-40.0 | 40.0-50.0 | 50.0-55.0 | - |
Comprehensive Strength (kpsi) | 260.0 | > 300.0 | > 300.0 | - |
Tensile Strength (kpsi) | 15.0-20.0 | 20.0-28.0 | 20.0-28.0 | - |
Linear Coefficient of Thermal Expansion ((cm/cm/°C) 25-300°C 25-700°C) | 5.9X10-6 6.5X10-6 | 6.3X10-6 7.0X10-6 | 6.5X10-6 7.5X10-6 | 6.5X10-6 7.5X10-6 |
Dielecctric Constant at 25°C (1 MH 10 MH) | 8.5-8.9 8.4-8.8 | 9.2-9.8 9.0-9.6 | 9.5-9.9 9.3-9.7 | - |
Dielectric Strength (Volt/mil) | 200 | 225 | 225 | - |
Te Value (°F °C) | 1472 800 | > 1832 > 1000 | > 1832 > 1000 | > 1832 > 1000 |
| Thermal Conductivity at 25°C (cal/sec/cm2/cm/°C) | .03-.04 | .04-.06 | .07-.08 | - |
| Thermal Shock | Good | Good | Good | Good |
| Safe Use Temperature (°F °C) | 2550 1400 | 3000-3100 1650-1700 | 3275 1800 | 3275 1800 |
Technical process
Technical process for producing alumina ceramic spark electrode ceramic tubes
Our products
| Hot-selling Products |
| Main Raw Materials |
|---|
Alumina ceramics
Alumina Ceramic may be used in applications that require high elevated temperatures, excellent electrical resistance, wear or corrosion resistance, High dielectric strength, high temperature capability. High Electrical insulation.
Zirconia ceramics
Zirconia (ZrO2) is a unique advanced ceramic. Products manufactured from zirconia powder exhibit superior mechanical properties such as high strength and flexibility.
Steatite ceramics
Steatite is a good high voltage insulator. It holds up under thousands of volts without breaking down.
Steatite is used to support heating elements in electric heaters, toasters, and ovens.
Cordierite ceramics
The main chemical ingredient of cordierite ceramic is 2MgO·2Al2O3·5SiO2, main material is steatite, clay, alumina, feldspar, etc. Manufactured by normal ceramic technic, can be used for loop frame work, insulators of arc-resistance, element of composite materials, burnable nozzle of electrical insulators, etc.
Contact us
Company Information
Yixing Zhong Run Ceramics Technology Co.,Ltd
is a manufacturing company specialized in pressing Industrial Ceramics.
We make use of several forming and machining techniques to process components made from Alumina Ceramics, Steatite Ceramics, Zirconia Ceramics, Cordierite Ceramics, Mgo Ceramics, Corundum Ceramics electrode alumina ceramic spark plug insulator etc. These materials may be used in applications that require wear or corrosion resistance, high temperature capability, abrasion resistant, electrical resistance. Our mainly materials are widely used in electrical appliance industry, Automotive industry, Mechanical Industry, Led lighting industry, Heating industry, Electrothermal Industry, Engineering Industry etc.
Zhong Run Ceramics believes in Manufacturing Quality products and delivers the products as per the customers drawing or samples.
We aim for excellence by setting Superior standards of performance and Commitments!
Moulding
The moulding methods are manual, automatic and dry pressing. Ceramic are made by these three methods.
Sintering
Our company has two kilns, which have advantages in similar enterprises. We can burn more ceramic spark electrode insulator in a short time.
Packing
When the electrode alumina ceramic spark plug insulator is finished, the person will be responsible for the packing.
FAQ
Q1. Are you a factory or trading company?
A: We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.
Q2. Is it available to provide customize products?
A: We always support custom-made spark plug ceramic insulator as per clients' different raw material, specification and finish treatment.
Q3. How can you get quotation?
A: Please kindly send me your drawing with technic requirement and demand quantity.
If you don’t have the drawing,please kindly courier samples to us.
We will quote our best price in 24 hours
