Mechanical Jacks Lifting 25 Ton 30 Ton 50 Ton Hydraulic Tank Jack
$600.00-1,000.00
Construction prestressing 30 tons mono stressing hydraulic mono jack
- Category: >>>
- Supplier: Liuzhou Lingqiao Prestressed Machinery Co. Ltd.
Share on (60739582841):
Product Overview
Description
Construction prestressing 30 tons mono stressing hydraulic jacks
Product Description

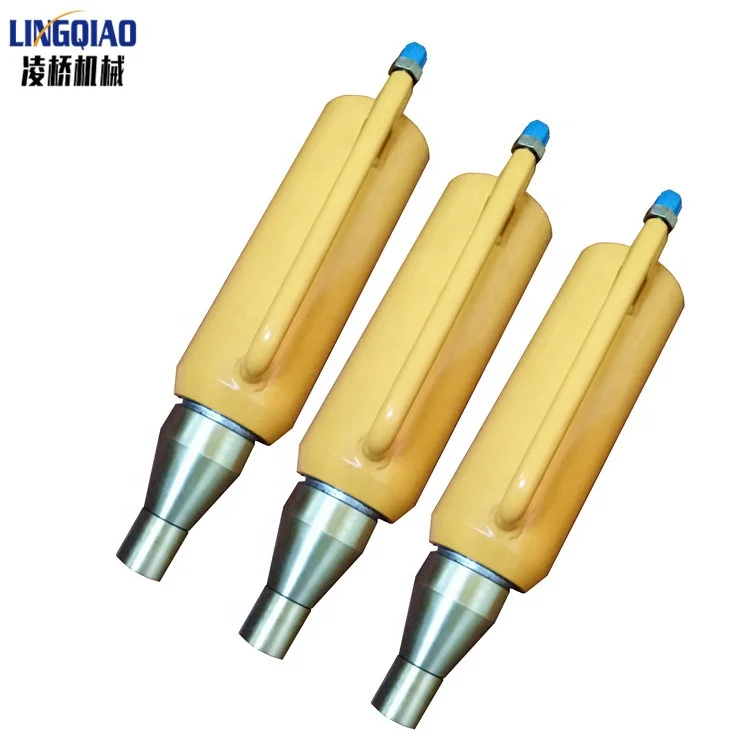

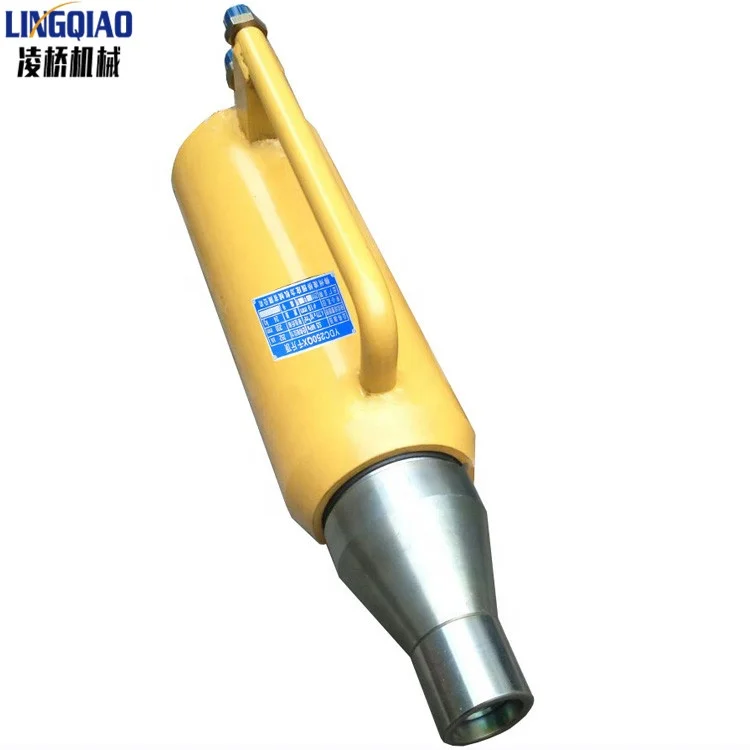

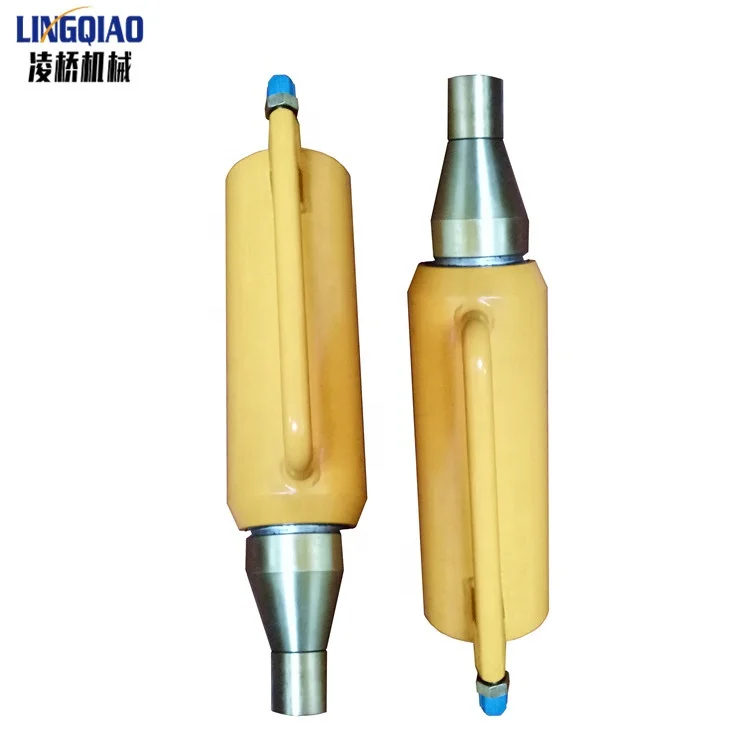

Mono jack products show:

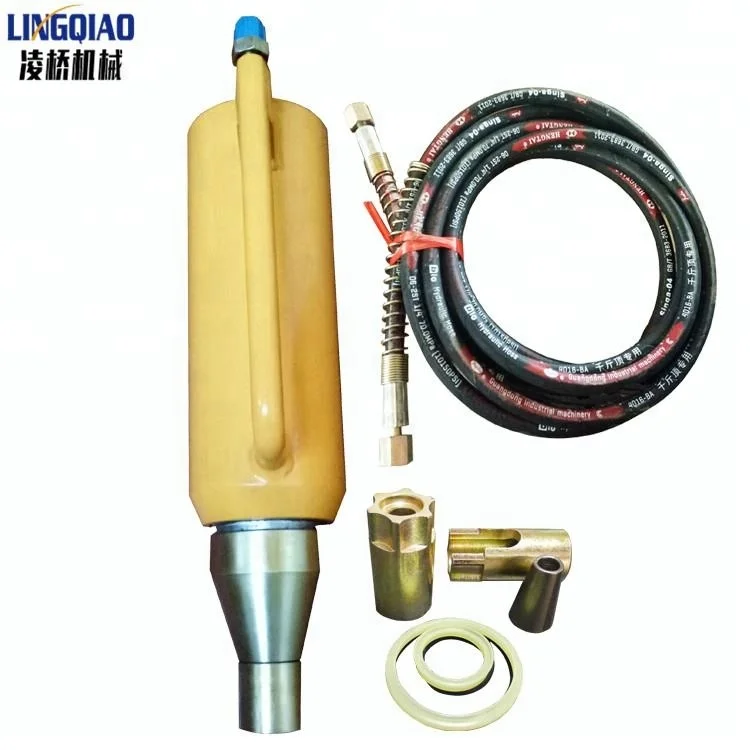

Main Accessories :
One Set jack will complete with 2pcs oil pipe;stressing device,retracting device,1 set wedge,and seal rings.
Production Line and Flow Chart:
Mono jack Description:
Construction prestressing 30 tons mono stressing hydraulic jacks are a multipurpose prestressed tensioning device, easy to operate. Mainly used for single hole tension. also used for,porous preloaded , tensioning and troubleshooting,and can be applied to a variety of sizes of high strength steel wire and steel strand.
mono stressing hydraulic jacks Especially for high-altitude operations, easy to carry.Steel stranded wire reserve length is 200 mm can be tensioned , can save prestressed tendon material.
Technical parameters
The following form is the technical parameters of our mono jack:
| Type | Nominal tension force KN | Nominal oil pressure MPg | Tension piston area m2 | Return piston area m2 | Stroke for tension mm | Overall size mm | Coss-core aperture Φ mm | Mass KG | Supporing oil pump |
| YDC250QX-200 | 250 | 52 | 4.77×10-3 | 1.335×10-3 | 200 | Φ114×474 | 19 | 21.5 | zb4-500 |
Send inquiry or contact us,
Click here
Engineering
construction and range of application:
Packaging & Shipping
Packaging is Plywood wooden box .
Company Information
Our Services
Pr e-sales service
* Inquiry and consulting support.
* Custom processing services
* View our Factory.
After-sales service
* Technical support
* Quality assurance services
Certifications
FAQ
Q WIi
Are there calibration certificate of the jack?
A
Our Jack are calibrated by China authority,is our China standard.But please kindly confirm you need.
Q
What can I get the anchorage?
A
If you need the anchorage based on your drawing,just kindly provide the drawing for our check before producing.and we have 12.7mm(0.5") and 15.24mm(0.6") types of wedge.
Q
What is your term of delivery?
A
We accept EXW, FOB Shenzhen,FOB Guangzhou,CIF,DDU.You can choosethe one which is the most convenient or cost effective for you.The DDU is often delivery by express.
Q
What about the lead time for the mass production?
A We often arrange our product within 7 working days .But h onestly, it depends on the order quantity and the season you place the order.
