HY VTF306BE Visibility Sensor fog detector Aids to navigation foghorns monitor
- Category: >>>
- Supplier: Hongyuv Technology Co. Ltd.
Share on (60739587264):
Product Overview
Description
Product Description
Overview
HY-VTF306B Visibility detector measures atmospheric visibility by determining the amount of light scattered by different particles (smoke, dust, haze, fog, rain or snow) in the air that pass through the optical sample volume.
Features
l Especially built for Traffic Applications
l 10m to 10km measurement range
l Ideal for road long distance visibility data collection
l Accurate and traceable measurement
l High mechanical strength
l Low maintenance requirement
l Simple Installation and Maintenance
l Compact forward design
l Not affected by local lights
l Easily installed by one person
l Hood heating for use in extreme environments
Application
The forward scatter measurement principle and unique design ensure the output is both accurate and reliable in all weather conditions and will not be influenced by local lights sources, even those that flash.
With a measurement range of 10m to 10km the sensor is suitable for use in road and aviation constructed from robust aluminium and finished with a high quality powder coat, the sensor will provide years of reliable service. Heating of the optical windows and sensor hoods is provided as standard allowing use in the harshest of conditions. Both optical windows are monitored for contamination and the visibility output is automatically compensated to reduce maintenance requirement.
Specification
Visibility measurement | |
Measures Range | 10m to 10km |
Accuracy | ±10% |
Measurement principle | Forward scatter meter with 39° to 51° angle |
Output | |
Baud Rate | 9600 |
Serial outputs | RS232 or RS485 |
Protocol | ModBus and ASCII |
Environmental | |
Operating temperature | -40°C to +60°C |
Operating humidity | 0 – 100% RH |
Protection rating | IP65 |
Power Requirements | |
Sensor power | 12-24 VDC |
Power consumption | 3.8W |
Physical | |
Material | Powder coated Hard-Anodized aluminium |
Weight | 3.2 Kg |
Dimensions | 706x250x170mm |
Lifetime | >10 Years |
Phontos on site
Our weather station,visibility monitor, tunnel photometer,illuminance monitor, road surface state detector are widely used in high way, tunnel for traffic control.
Free IoT platform
If you buy data transfer unit (DTU) from us, we can pre-configure it and upload data to our platform for your remote browsing.
Such free IoT platform is available for test or study purpose.
DTU is a device with RJ45(ethernet interface) or WiFi interface that can upload data to our server.
You can access data from APP on phone or your web browser.
RJ45 ethernet interface DTU: $50/UNIT
RJ45 WiFi interface DTU: $70/UNIT

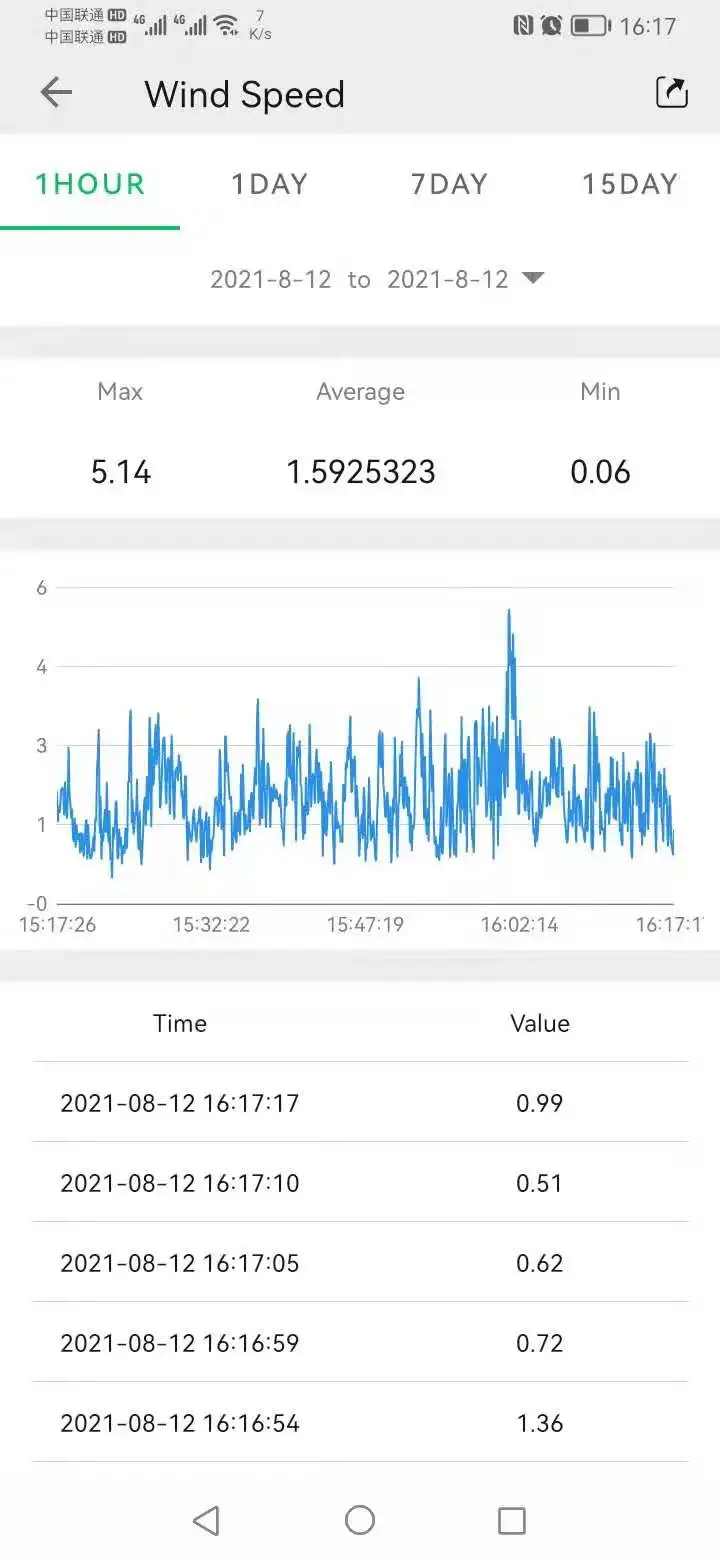

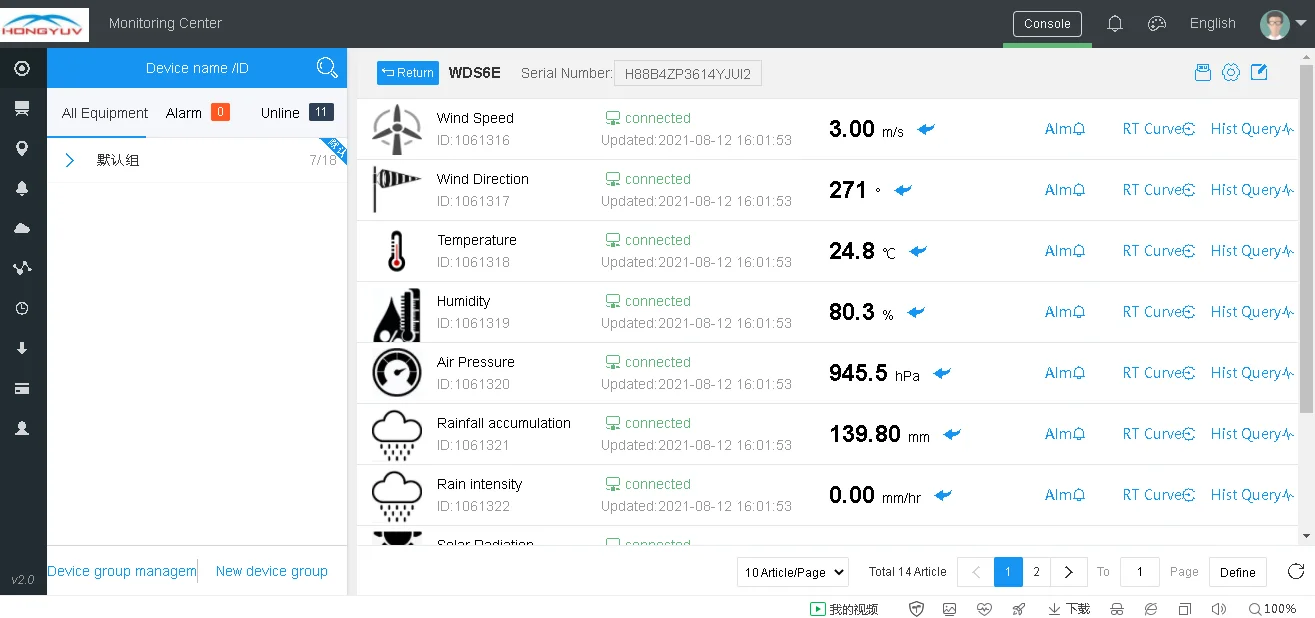

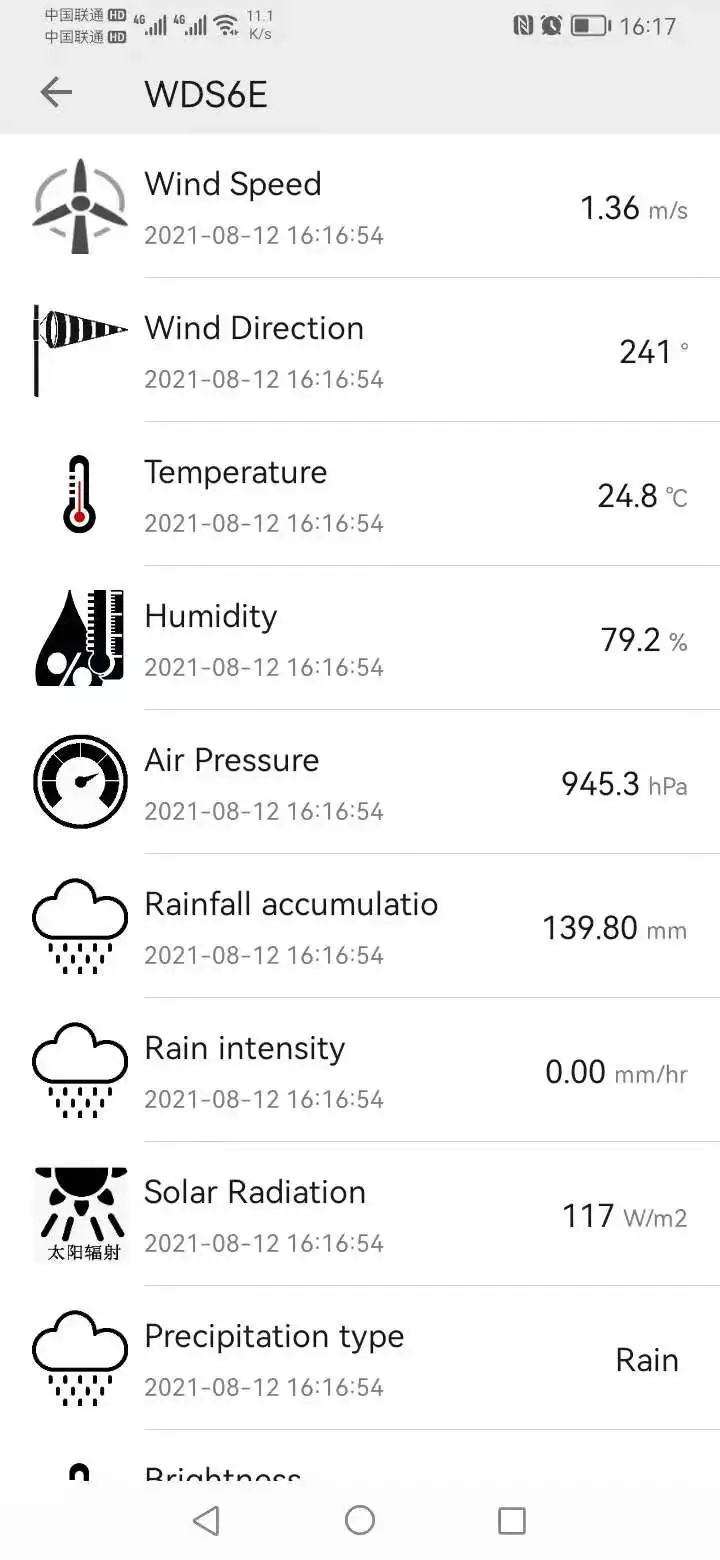

Screenshots as follows for your reference:
Our Services
Price, Package, Service
1, Price : EXW, FOB, CIF
2, Payment: 100% T/T in advance, west union or paypal .
3, Packing : standard export packing , including instructions
4, Leading time : 5-8 working days after payment.
5, OEM avaliable
6, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder (by sea, air)
7. One year free repair for quality warranty
