Станок для изготовления искусственной архитектуры, печь для закаливания стекла, новый продукт из закаленного стекла 2020, горизонтальная поставка 1800

Share on (60739678857):


Price:220 000,00 $ - 250 000,00 $

Quantity:


Product Overview

Description



Product Description


Product Application

GX-(QDL)P Series Horizontal Rollers Hearth Forced Convection Flat Glass Tempering Furnace is mainly used to produce low-e glass, coated glass, print glass, auto glass, architecture glass, decoration glass, aircraft glass etc.



Gangxin,industry leader in tempering furnace
Research and development production integrated.
Complete equipment model
Super quality and competitive price








Flat quenching

Top & bottom quenching section
could be adjusted the height separately, which is more convenient for adjust the flatness accordingly.

Chain driving system, better synchronism.

The air box is bent by cold plate, one time formed.




Air outlet
Single bellows are integrated bending forming, no welding point, stable structure
Perforated with aluminum profile,no deformed.
Six kinds of arrangement structure
Cleanable bellows

Small air box can be cleaned fast and convenient, removable and separately dam-boards on each small air box


Offset the blower
Two ways ,
Overhead blower
it depends on your choice

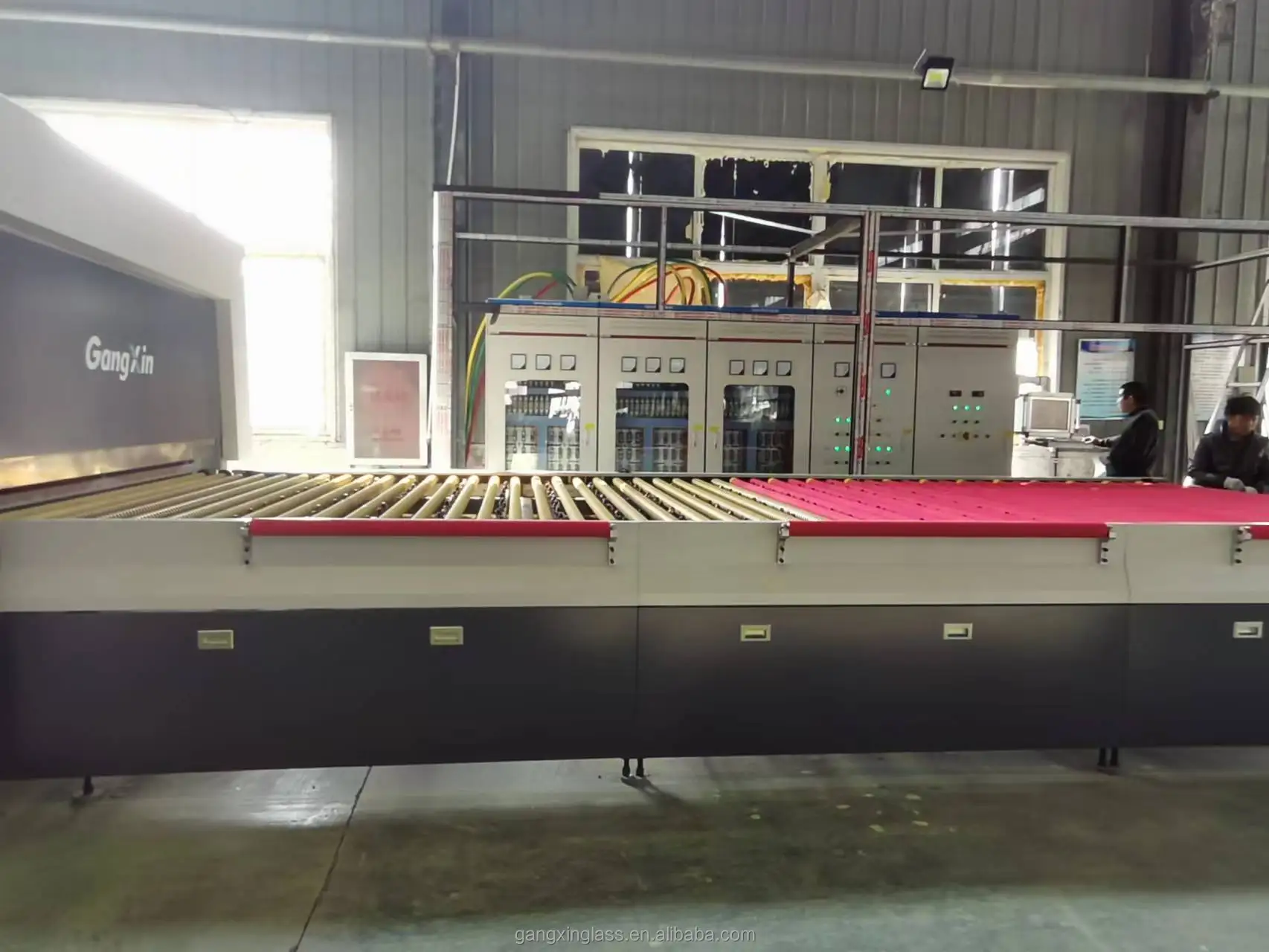

PLC control cabinet
Stable and reliable program, friendly human-computer interface
Temperature control is done by modules, which is better for
interference rejection;
Inverter control cabinet
Integrated design
Brand name products


Main Features

Classification:\t\t\t\t\t\t\t
1. Radiation heating    (option 1)
2. Top convection heating   (option 2)
3. Full convection heating (Top & Bottom)\t\t\t\t\t\t\t(option 3)
4.Complete Glass Size:  Max 2850*3660mm, Min 200*350mm\t\t\t\t\t\t\t
5.Perfect Quality Standard: Up to GB9963, GB9656, ECER43, ANSIZ97.1\t\t\t\t\t\t\t
6.Widely Applicability: Float Glass, Coated Glass, Patterned Glass and others\t\t\t\t\t\t\t
7.Advanced Heating: Matrix and Smart Temperature Control, Low power consumption\t\t\t\t\t\t\t
8.Easy Operation: Automatic control and diagnosis program, easy-understand interface.\t\t\t\t\t\t\t
9.High Capacity Data Storage: Huge storage for technicial parameters and convenient for industrial porduction and managemnet\t\t\t\t\t\t\t


Specification


item
value
Applicable Industries
glass tempering, Architecture, Doors and windows glass, glass, Glass industry, glass factory, glass processing
Showroom Location
Egypt, Canada, Turkey, United States, Viet Nam, Peru, Saudi Arabia, Pakistan, India, Mexico, Russia, Thailand, Colombia, Algeria, Romania, Bangladesh, Nigeria
Condition
New
Production Capacity
100%
Place of Origin
China
Henan
Brand Name
GANG XIN
Voltage
380V 50HZ/ 220V 50HZ
Power
800-1000KW
Dimension(L*W*H)
20000*3500*3300MM
Weight
35000kg
Warranty
1 Year
Key Selling Points
Energy saving
Glass Thickness
4-19mm
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Marketing Type
New Product 2021
Warranty of core components
1 Year
Core Components
PLC, Industry computer, Ceramic roller
Product name
glass tempering furnace
Glass thickness
4-19mm


Packing & Delivery




In container. Packed in standard export packing-suitable for long distance shipping.


Company Profile






Luoyang Gangxin Glass Technology Co., Ltd is located in the famous glass and glass tempering furnace manufacturing base, Luoyang in Mar. 2007, Luoyang bureau of industry and commerce approved the establishment of the company which is a modern, professional manufacture enterprise set research development and manufacturing.
After hard efforts of several years, the company realized the great-leap-forward development from zero level and becomes the young guns in Luoyang glass tempering furnace industry. At the same time, the company has got the foreign trade business autonomy. The experienced technical team, the mature manufacturing process and perfect technical support, make the GX series glass processing equipments won widespread praise in the customer base.
The main products are: GX series horizontal roller type flat/bend tempering glass product line and hypoid glass tempering furnace (car block), mandatory (low-e) convection furnace, the heterogeneous type glass tempering furnace (bus side window), various specifications of the glass hot melt bending furnace, tunnel furnace, toughened glass homogenizing furnace.
Luoyang Gangxin glass company as a professional glass processing equipment manufacture enterprise has been adhering to the "quality first, credit first and service first, the customer first" philosophy, and constantly improves the service level of the enterprise, creating a high quality and skilled installation and after-sales service team, and established an after-sales service guarantee system, setting up the good enterprise image and own brand.
At present our equipments are all over the country, and have been exported mainly to Algeria, France, Turkey, Iran UAE, South Korea, Thailand, India, Australia, USA, Canada and other countries. And there are some offices in Beijing, Guangzhou, Thailand, Iran, etc.


FAQ


1. who are we?
We are based in Henan, China, start from 2007,sell to Domestic Market(50.00%),South Asia(20.00%),North America(10.00%),Africa(10.00%),Mid East(10.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Flat glass tempering furnace,Bend glass tempering furnace,Flat & Bend glass tempering furnace,Asymmetrical brngding glass tempering furnace,Continous flat tempering furnace

4. why should you buy from us not from other suppliers?
We are Located in Luoyang city, China ,mainly for glass tempering furnace since 2007. We are adhering to the principle of Quality First, Integrity First, Services Foremost and Customer Foremost ,which helps us build up our image and our brand.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW;
Accepted Payment Currency:USD,CAD,CNY;
Accepted Payment Type: T/T,L/C,Cash;
Language Spoken:English,Chinese
