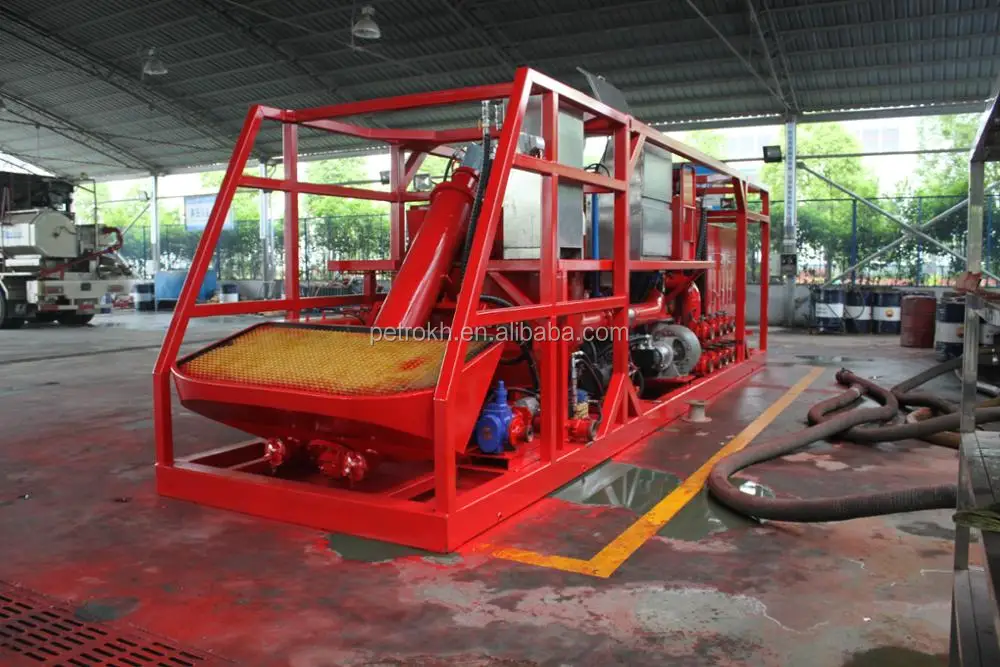

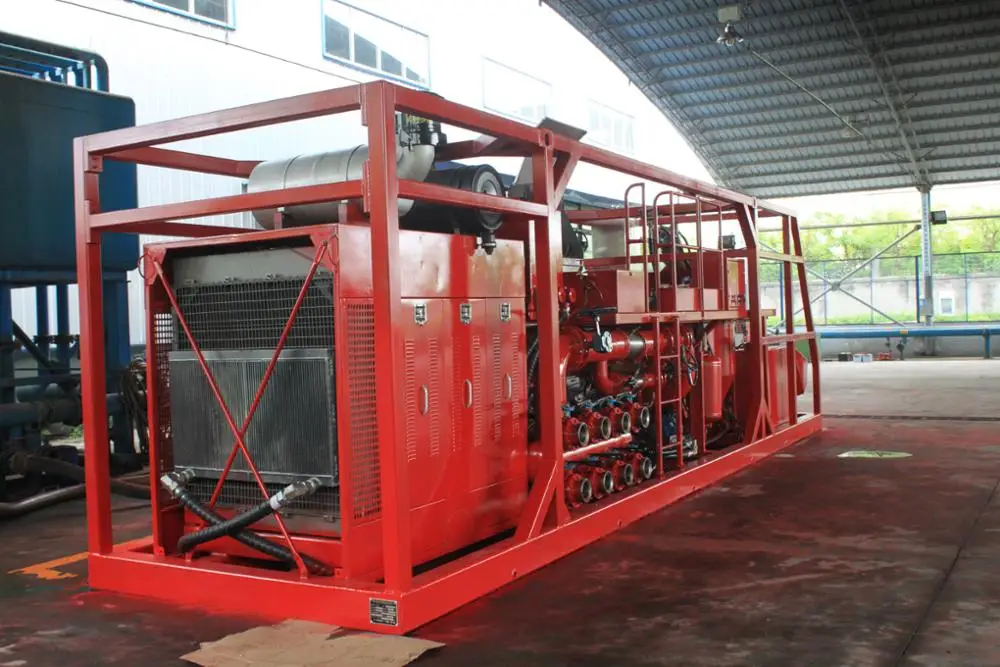

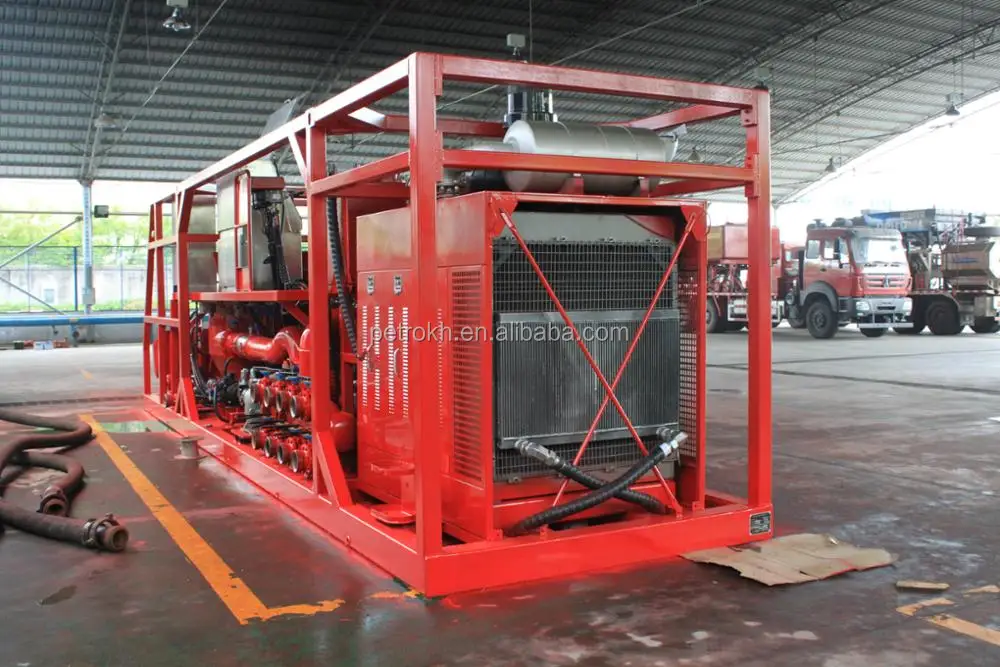

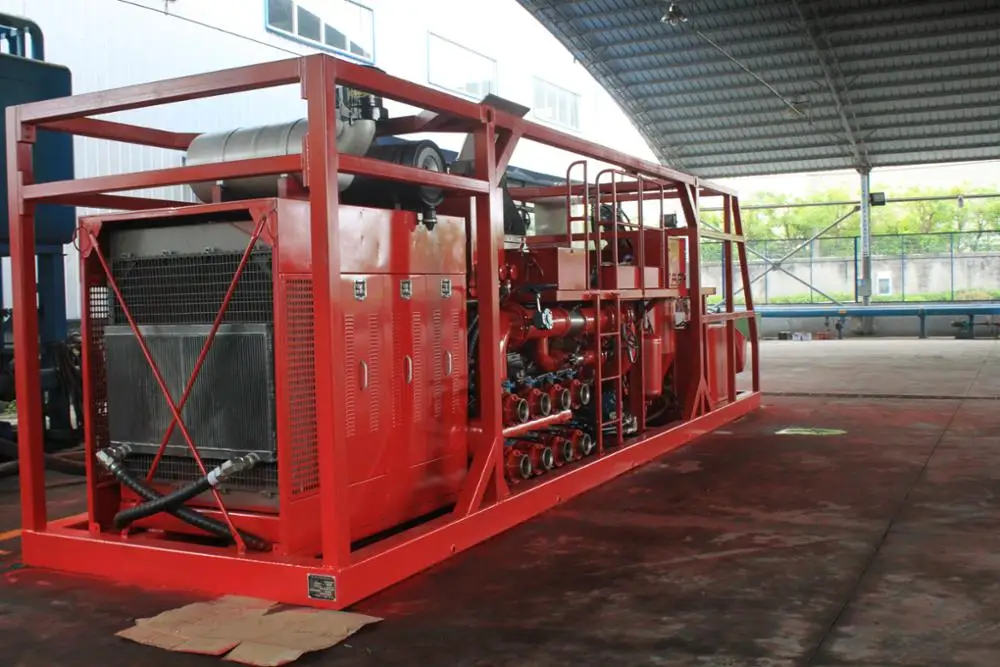

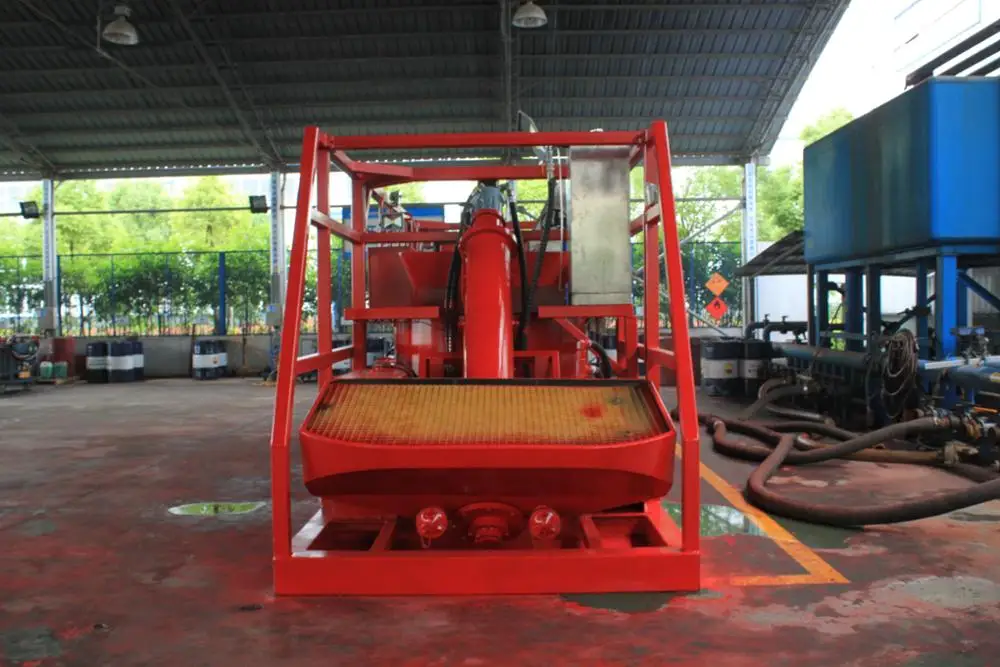

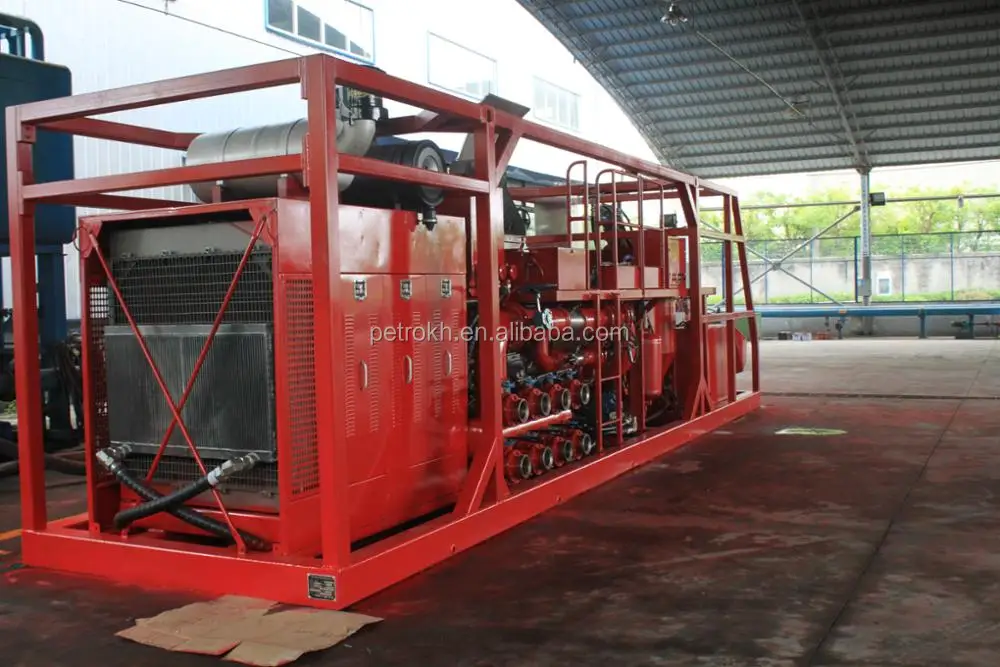

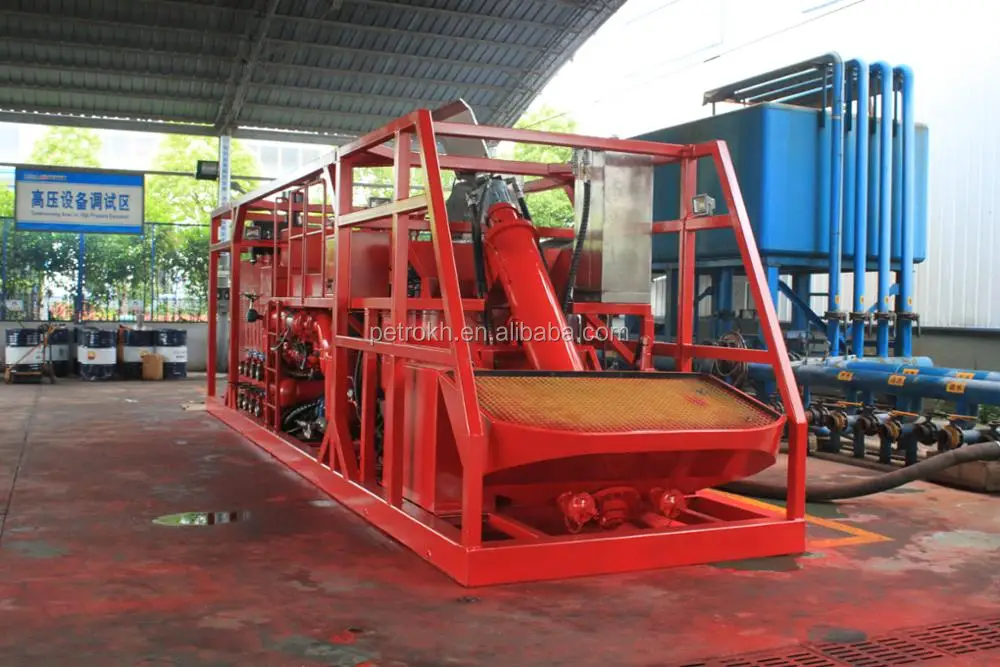

sand blender skid mounted for petroleum oilfield use in middle east or Arab

Product Application

75 barrels of sand skid is made of  KTA19-C525 diesel engine by BQ435 transfer gear, which drive the corresponding actuator to complete the proportion of sand mixing operation. The instrument and control system of the whole skid can realize the control of the whole pry and the monitoring of the sand mixing operation.

The sand mixing equipment adopts skid mounted type. The main part of the skid mounted engine, transfer case, operation platform, mixing tank, screw conveyer, suction manifold, exhaust manifold, hydraulic system, hydraulic system, Tim Tim dry system, fuel system, circuit system, pneumatic system, instrumentation and control system, cooling system etc..

Its working principle is: the power generated by the engine through the skid, drives a hydraulic pump suction through a transfer case, a suction driving hydraulic motor driven hydraulic pump suction, suction suction centrifugal pump to complete the work; through the transfer case driven sand hydraulic pump, hydraulic pump driven sand sand hydraulic motor drives the screw conveyer to complete sand; hydraulic pump drives the stirring stirring through a transfer case, a hydraulic pump driven hydraulic motor drives the stirring blade mixing, complete mixing of fracturing fluid ratio; direct drive centrifugal pump discharge through the transfer case, discharge centrifugal pump will have a mixture of fracturing fluid fracturing pump supply uniform injection downhole fracturing operation.
The maximum displacement: 12 m fand /min (water)

The maximum discharge pressure of the pump: 0.5 MPa

Maximum sand transport: 7456 kg/min

The suction line valve: 4 "butterfly valve 10

Discharge pipe valve: 4 "butterfly valve 10

On board engine: KT19-C525 diesel engine

Transfer case: BQ435 transfer case

Operation control system: network operation control system

The whole lever size (length * width * height): less than 8822 mm * 2480 mm * 3292 mm

The total weight of less than 24000 kg: pry (including water)

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Machine Parts

Name:  engine

Brand: Commins

Original: China

Domestic famous plunger, strong driving force, low fuel consumption, high economic benefits.

Main Features

Name:  plunger pump
Brand: KH
Original: China
Domestic famous, strong driving force, low fuel consumption, high economic benefits.

Machine Parts

Name: transmission box
Brand: Allison
Original: America
Foreign famous, strong driving force, low fuel consumption, high economic benefits.
