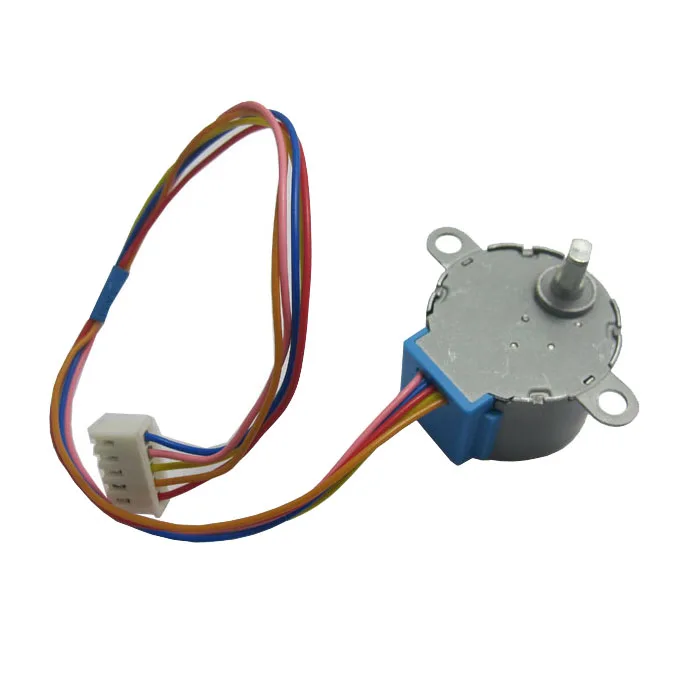

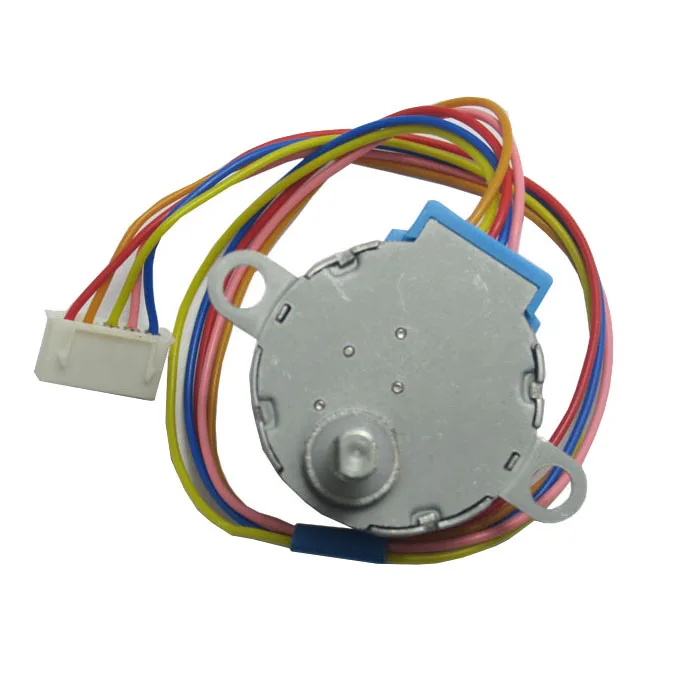

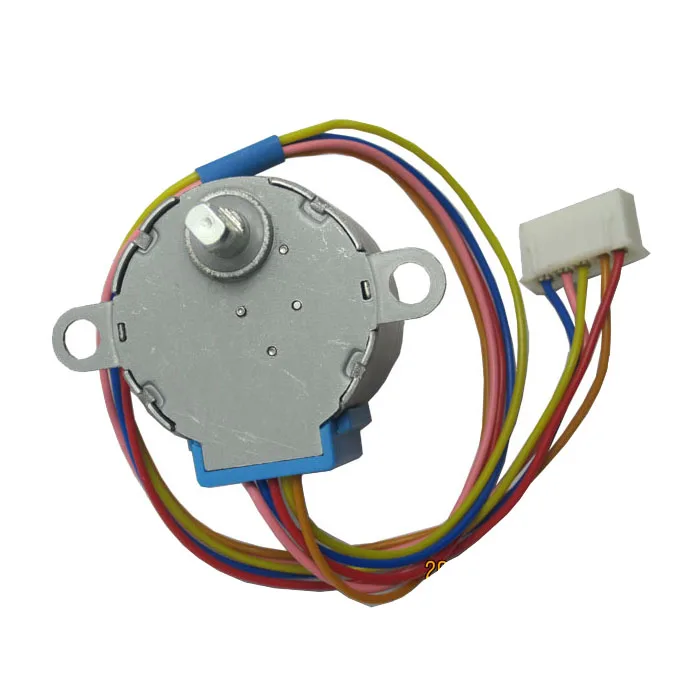

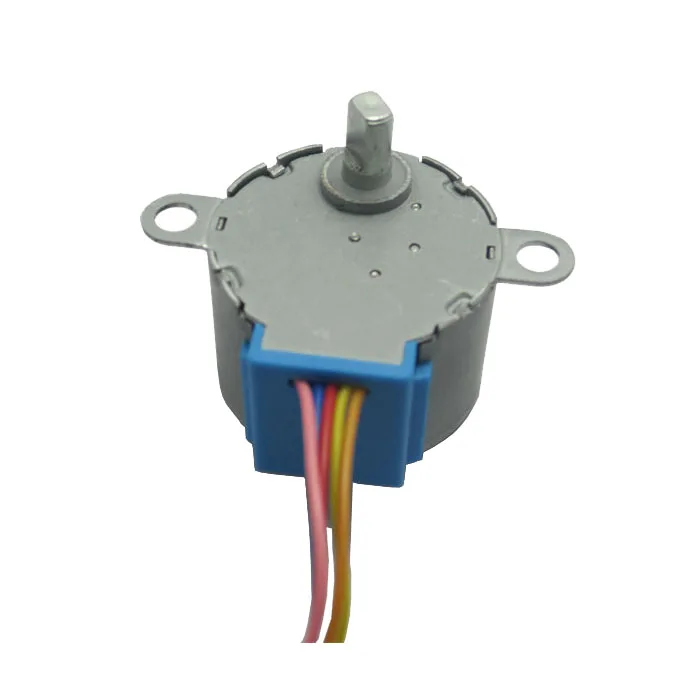

28BJ48 5V Small Linear Stepper Motor

Product Overview

Description

5V Small Linear Stepper Motor

Technical datas:

1 Voltage: 5VDC

2 Number of phase: 4

3 Gear reduction: 1/64

4 Step angle:5.625°/64

5 Drive mode: 1-2 phase

6 Resistance per phase : 20Ω±7%(25℃)

7 Max response frequency: ≥1000pps

8 Max starting frequency: ≥5000pps

9 Pull in torque: ≥4.0 N.cm(1000pps)

10 Detent torque: 4.0 N.cm

11 Insulation resistance: 10MΩ

12 dielectric strength: 600VAC/1S

13 Insulation class: A

14: Temperature rise: ≤60K(100ppa)

15 Noise: ≤40dB(100pps, no load, 10cm)

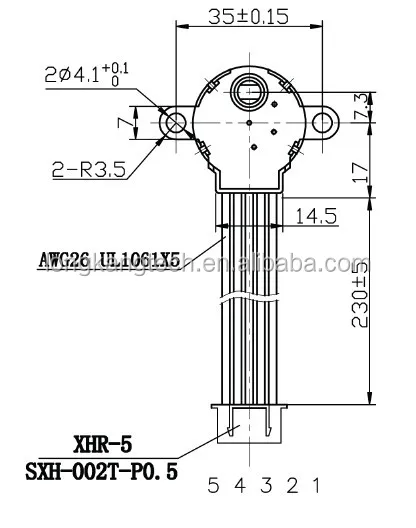

16 Tolerance unspecified according to : GB1804-m
