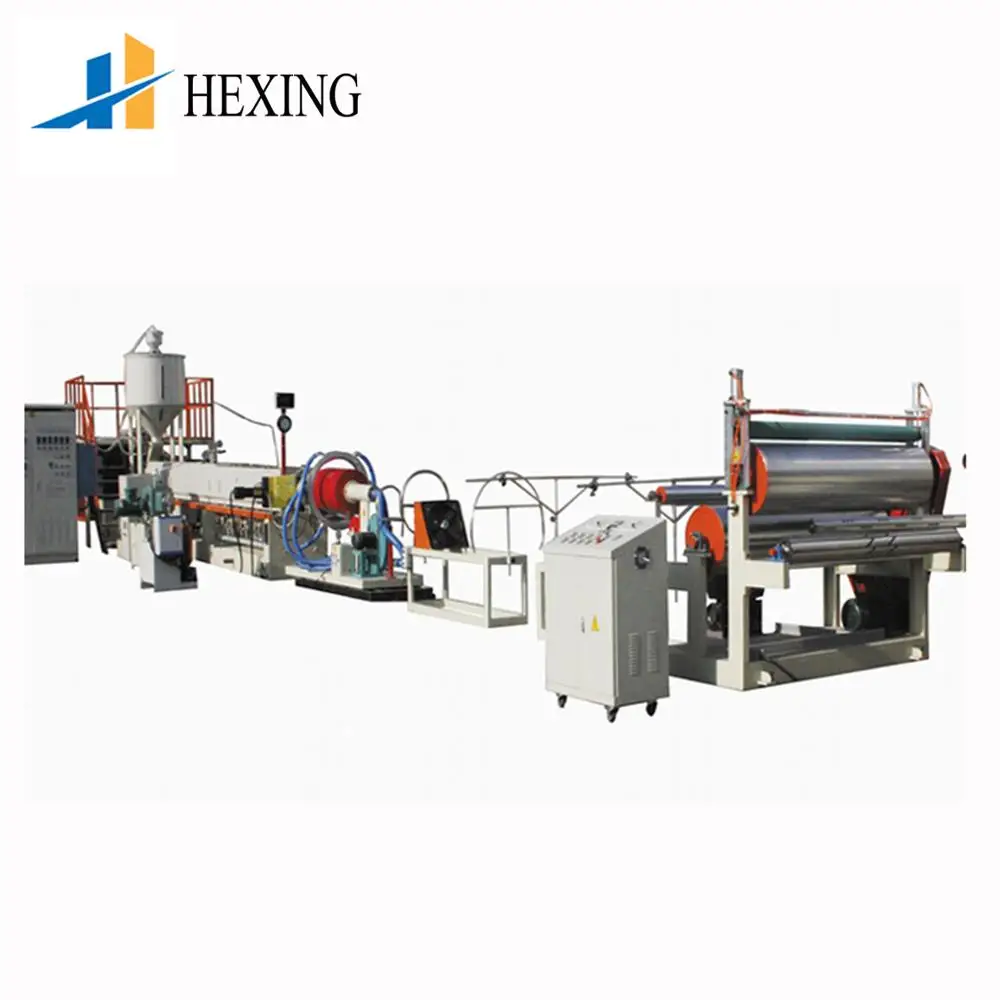

Advanced Processing Foam Mattress EPE Foam Sheet Making Machine

Advanced Processing Foam Mattress EPE Foam Sheet Making Machine

Product Application

Polyethylene foam sheet(film),also named as pearl cotton, is a kind of new-type packing material with the features of dampproof, shockproof, sound insulation, heat preservation and good plasticity. It is an ideal substitute of traditional packing materials and used widely in the packing of electronic product, commodity, glass, pottery, electrical household appliances, spraying, furniture, hardware product, toy, etc.

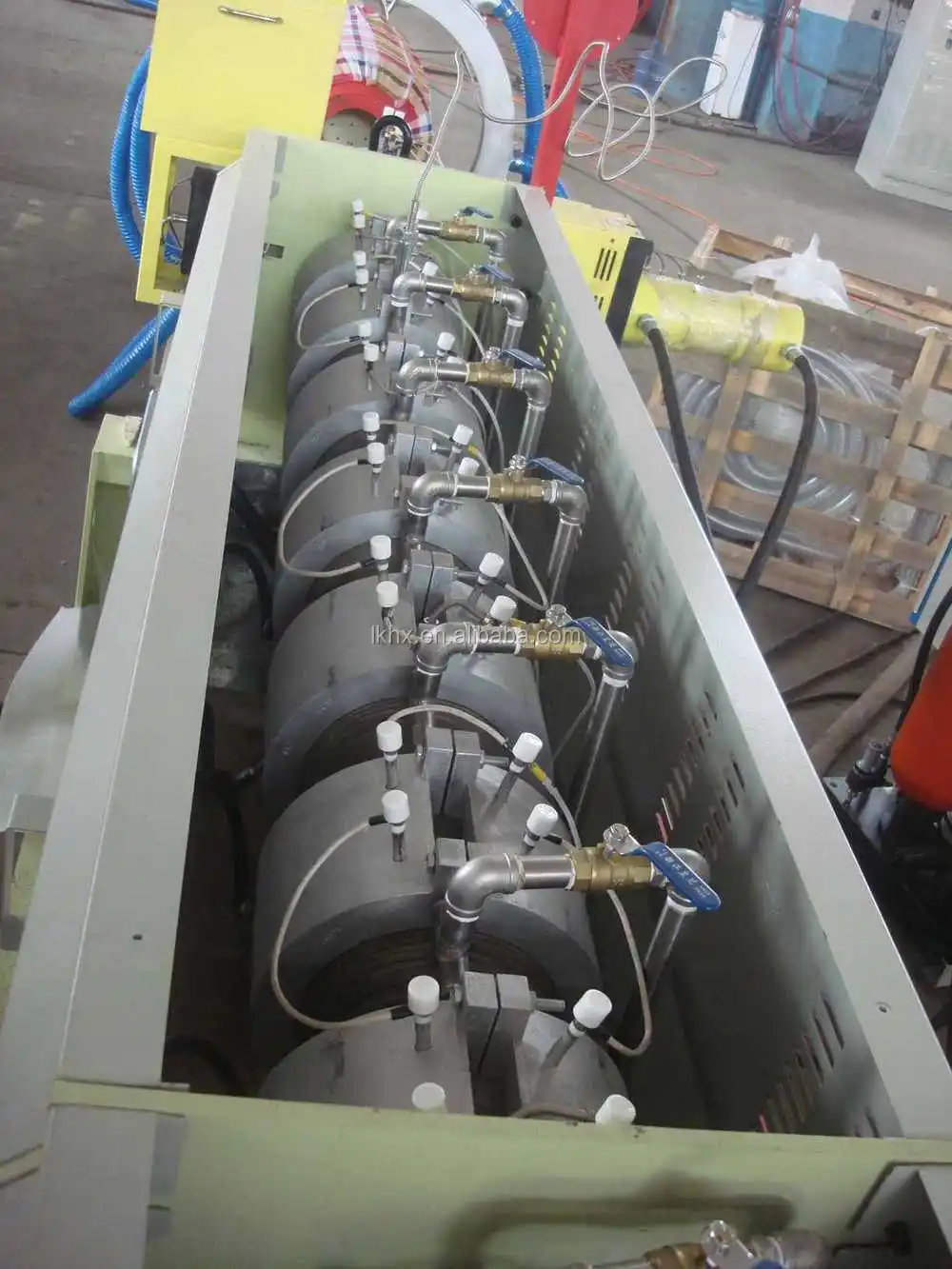

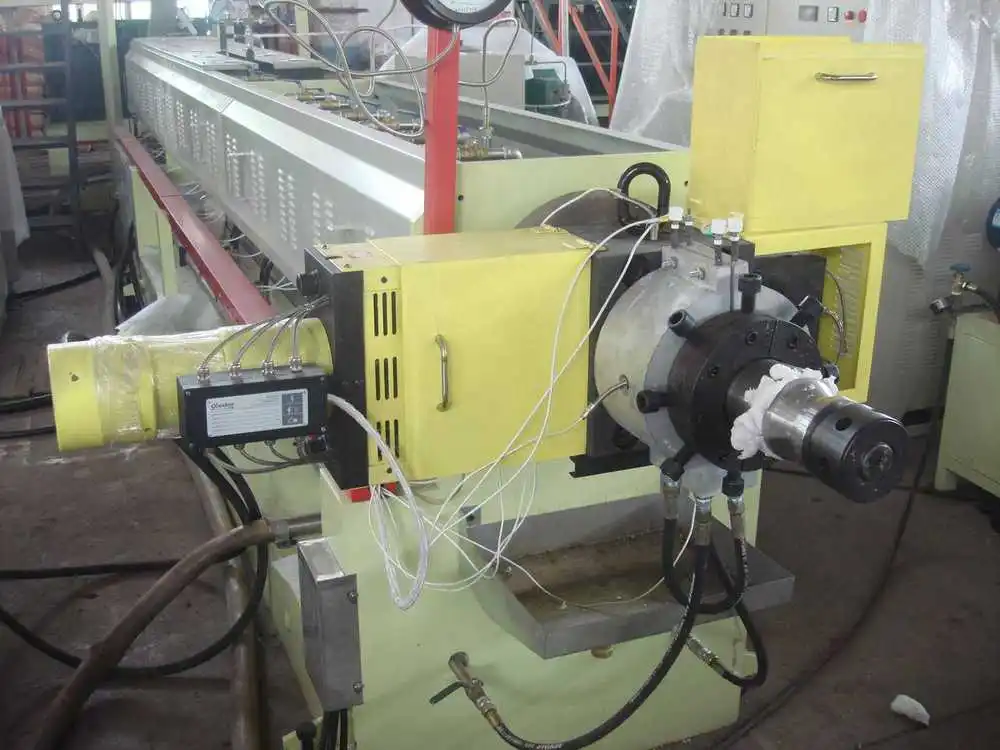

Name: Extruder

Main Features:

The material of screw tube and screw: 38CrMoAlA nitrogen treatment and spraying alloy processing, wear-resisting.

Polyethylene raw material and talc powder etc is put into mixer in terms of ratio demanded by technique. Mixed uniformly-put into the material box on automatic feeder, fed to the material funnel on extruder---enter in feeding stage of extruder---shrinking proof agent is injected---foaming agents injected---mixed material through plasticizing is extruded from machine head.

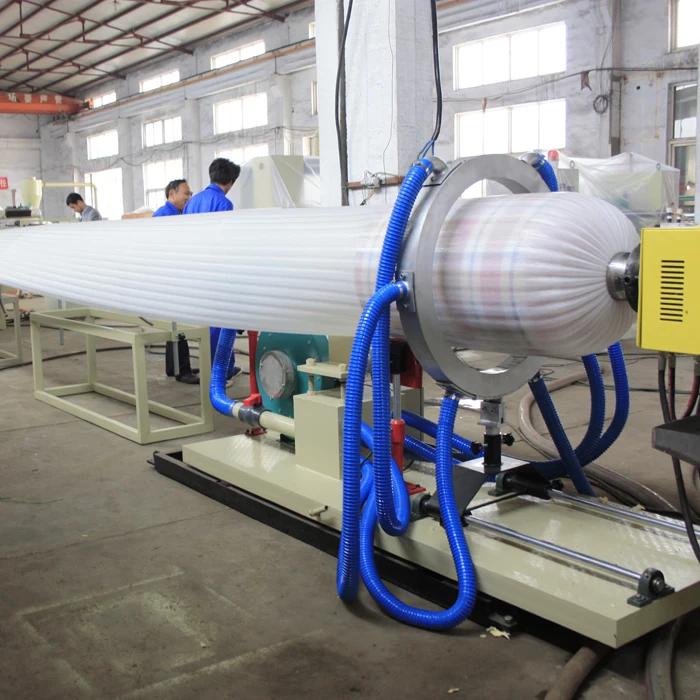

Name: Shaping drum and air ring
Main Features:

The shaping drum determines the width of the product, the air ring can effectively cool the product, the air quantity adjustable.

Name: Haul-off unit
Main Features:

Driving mode: Independent motor and gearbox connected directly drive, equipped with the inverter. reduce noise, lower failure rate, to ensure uniform and stable traction speed.

Length control: controlled by meter counter(Autonics, South Korean brands),could pre-set, equipped with the length alarm

Name: Winding
Main Features:
Model: Double axis cantilever displacement type(air shaft type)
Driving motor regulative: Torque motor
Revolving driving motor: Turbine vortex stem reducer system

1.Use the PE foam sheet pack every part to make sure every part can not demage.

2.Easy rust parts coating anti-rust oil then laminate with strech film.

3.Use wood fix every part in container to make sure them can not move.
