It includes three styles: twisted, round braided and square braided. All are made of our high quality ceramic fiber yarns. They can be used for high temperature applications up to 1000° C. The rope is reinforced with fiberglass filament, and optional stainless steel wire. It contains a certain amount of binder material which is normally burned at lower temperature and does not affect the insulation property.
Item
Ceramic Rope With Fiber Glass Reinforced
Ceramic Rope With Metal Reinforced
Classification Temperature
1260℃
1260℃
Working Temperature
1000℃ below
1000℃ below
Density (kg/m3)
500-800 according customers request
Moisture Content (%)
≤1
≤1
Size
Φ6MM-Φ100MM

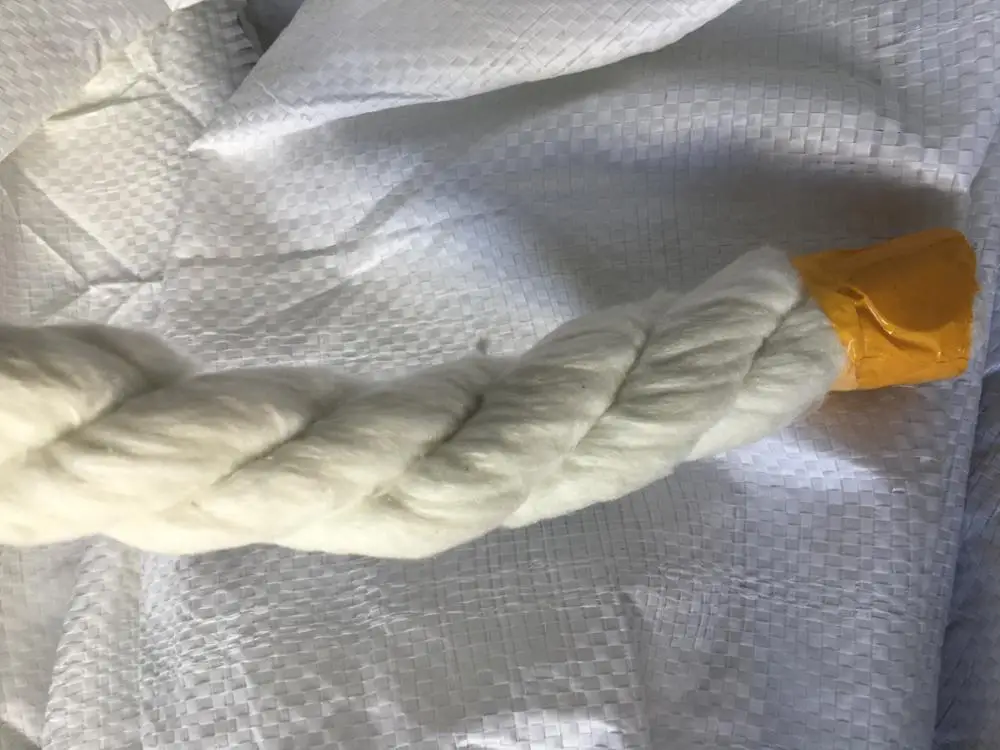

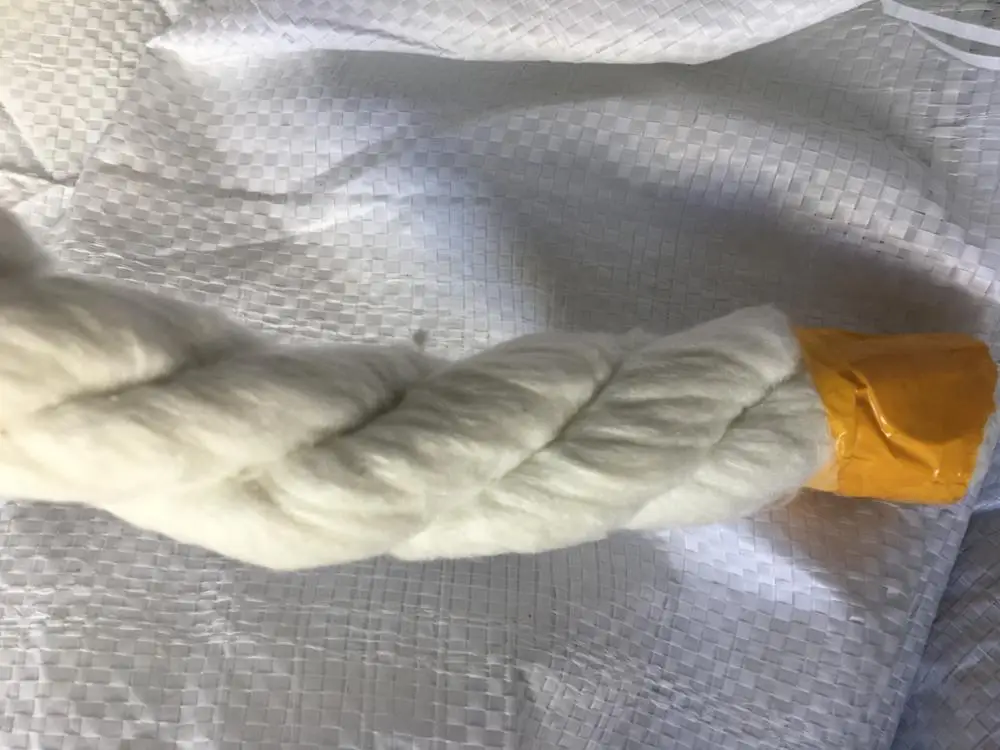

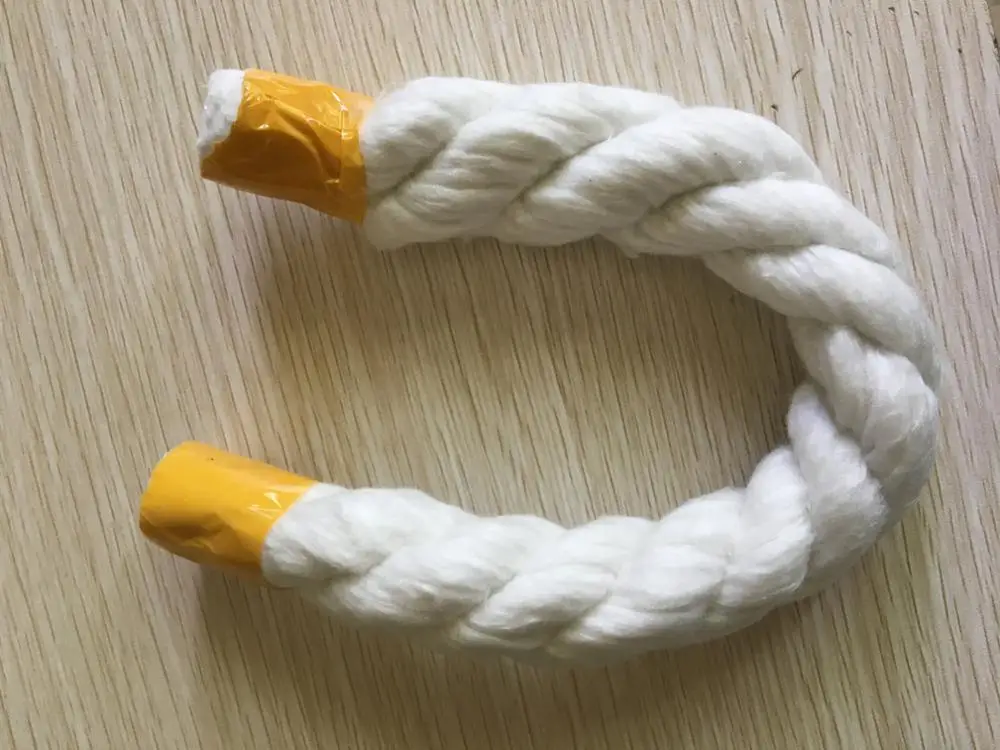

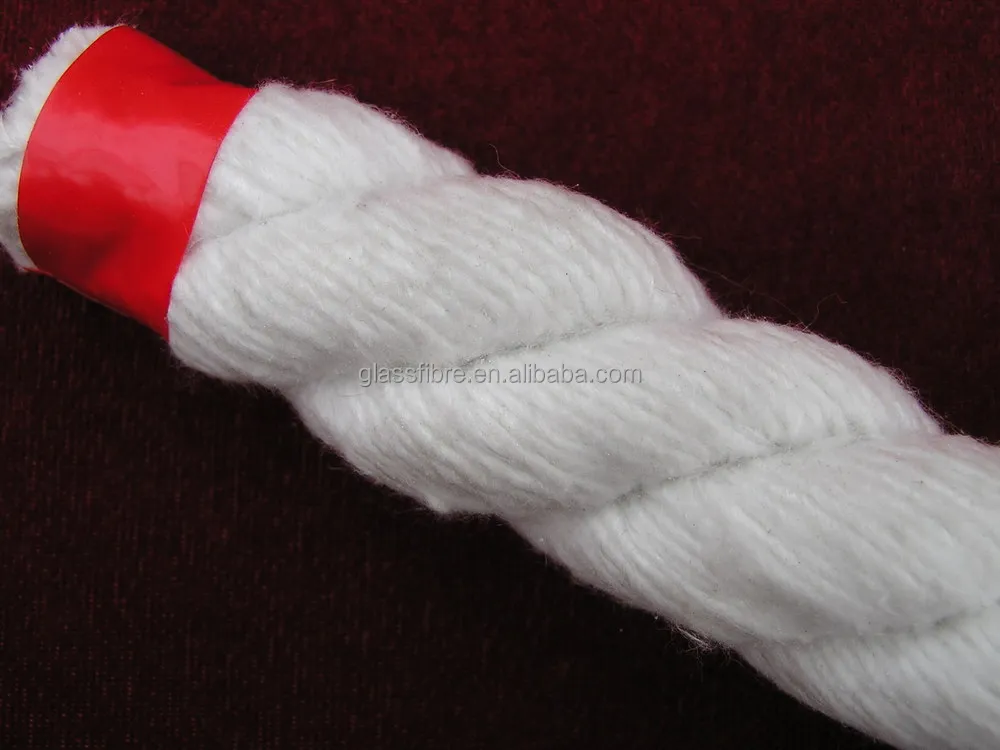

Ceramic Fiber RopesCeramic Fiber Twisted Rope
Ref. No.
Reinforcement
Temp. resistance (C degree)
Diameter (mm)
Twisting strands
GT101TG
Glass filament
650
3 up to 60
1 or multi-strand
GT101TS
Glass filament+s.s.wire
1000
3 up to 60
1 or multi-strand

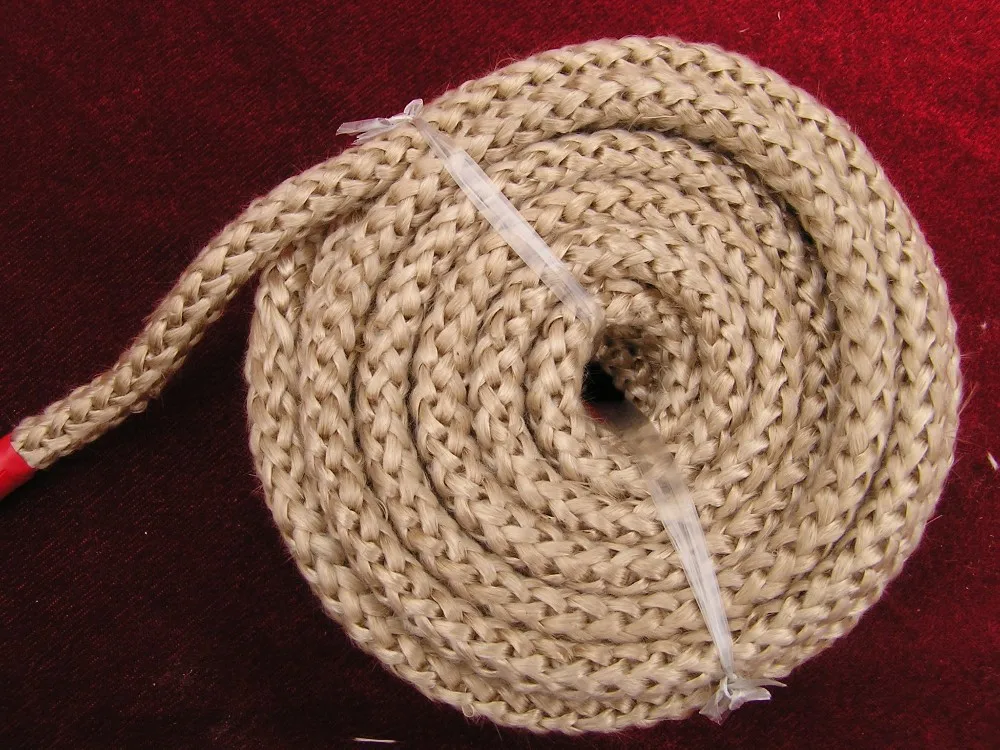

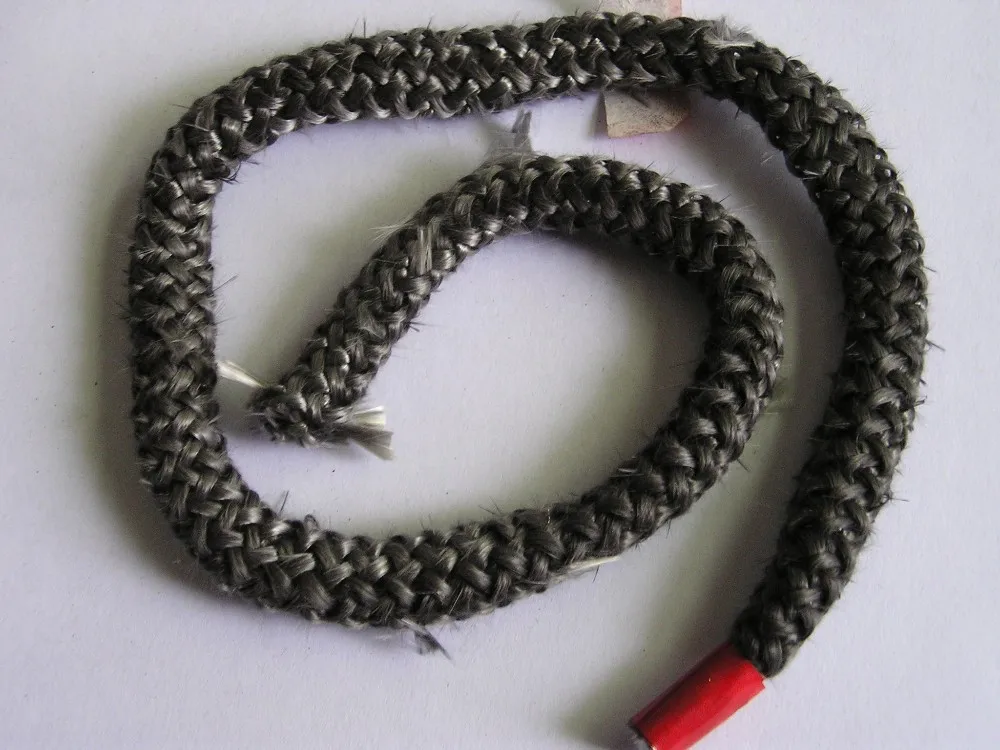

Ceramic Fiber Round Braided Rope
Ref. No.
Reinforcement
Temp. resistance (C degree)
Diameter (mm)
Braiding way
GT102G
Glass filament
650
5 up to 60
2 or 4 tracks
GT102S
Glass filament+s.s.wire
1000
5 up to 60
2 or 4 tracks
Ceramic Fiber Square(rectangular) Braided Rope
Ref. No.
Reinforcement
Temp. resistance (C degree)
Diameter (mm)
Braiding way
GT103G
Glass filament
650
5 up to 60
2 or 4 tracks
GT103S
Glass filament+s.s.wire
1000
5 up to 60
2 or 4 tracks
Application:
1. Thermal insulation and sealing for stove, burner, steam boiler
2. Heat insulation for heat exchanger, kiln car
3. Chimney door and furnace door sealing
4. high temperature pipe insulation and sealing
5. cable insulation
6. Thermal sealing of coke oven opening
7. Furnacebrick wall cracking sealing
8. Flexible expansion joint sealing
high temperature gas sealing
Price reference:
thickness
specification
MOQ (roll)
kilogram
φ10-50mm
Length is not fixed according to customer requirements
7.810/kg

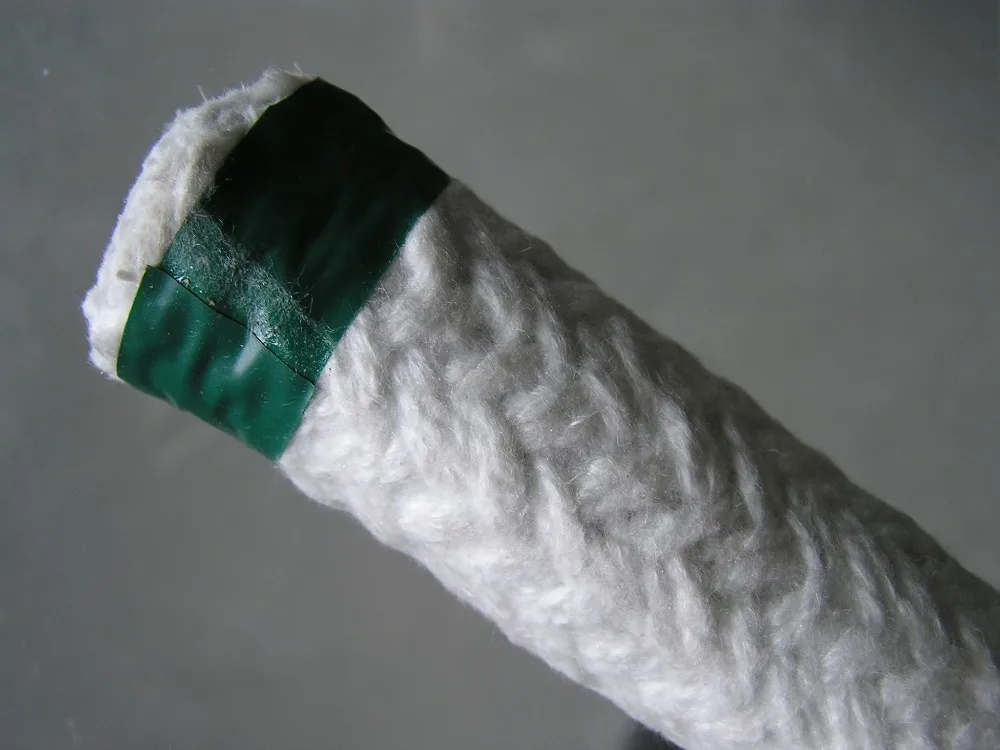

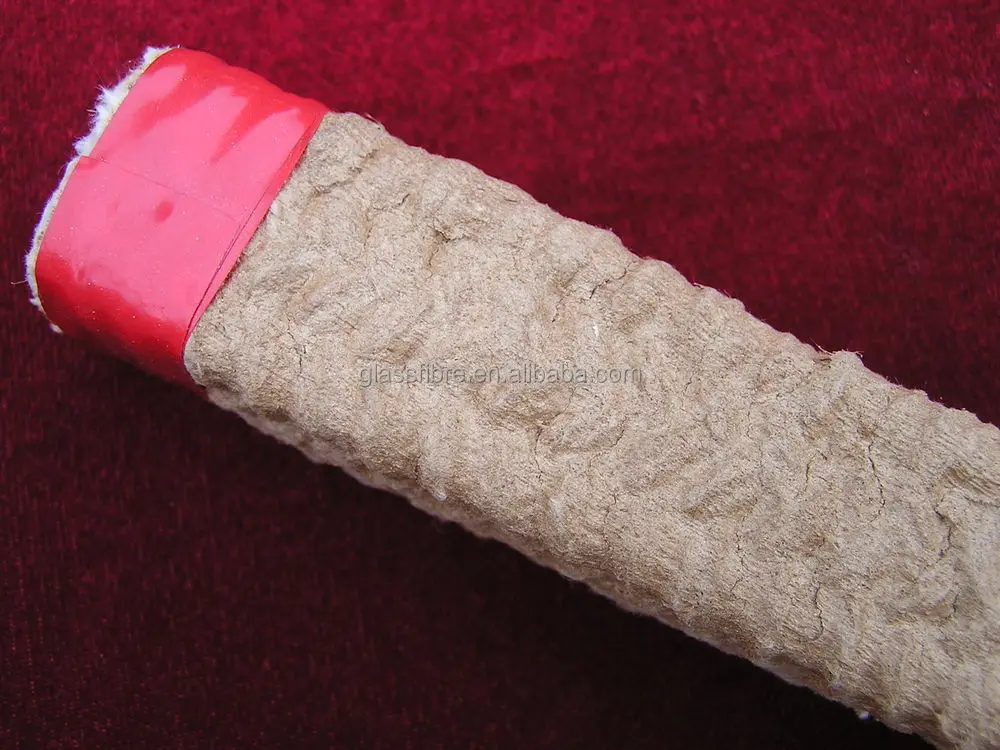

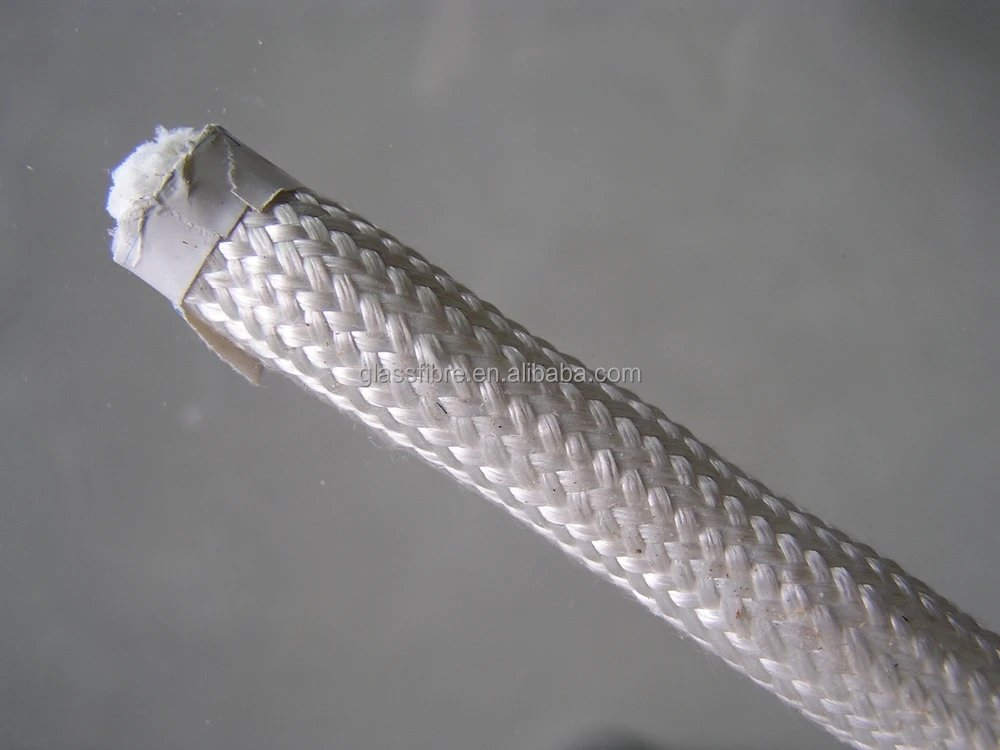

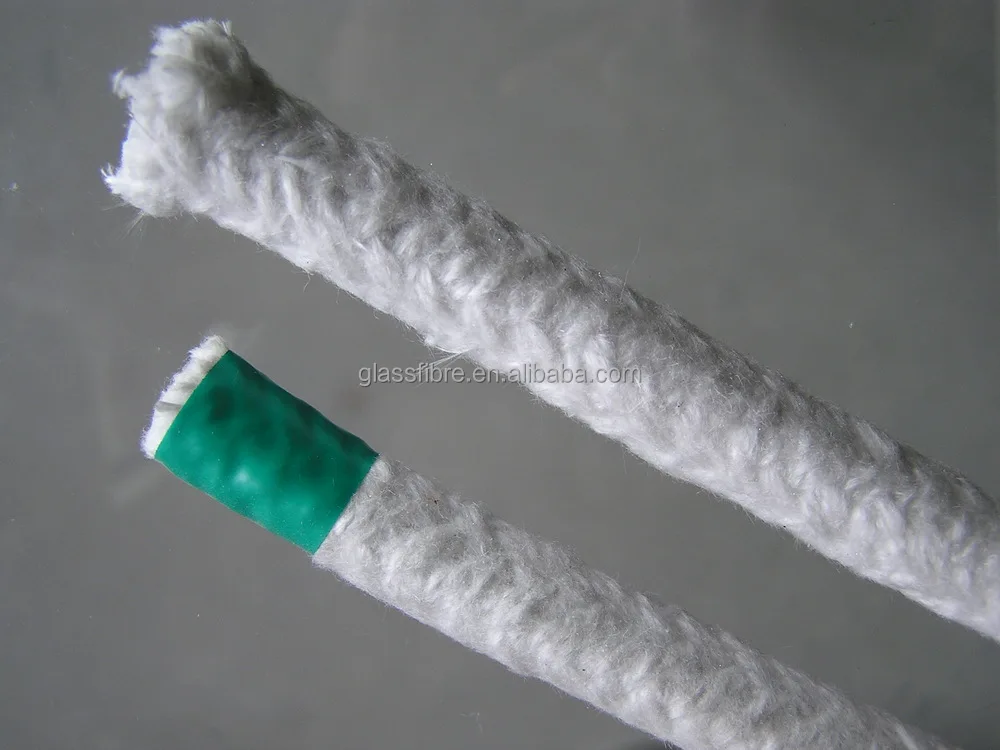

Product display
9
FAQ
1.Are you a trader or manufacturer?
A: We are manufacturer, we have own factory. 2.What is the delivery time? A: About 3-20 days after the contract signing and advance payment received. 3.Can you provide sample? A: Yes, we can offer sample , and some samples are free. 4. Can you delivery by express? A: Yes, we can delivery by any express. 5.What is your payment methods? A: Payment terms :T/T 30%-50% deposit after order confirm ,the balance after goods ready before shipping or L/C, or Western Union for small amount. Or PAYPAL.
