2018 дробеструйная машина/лезвия/взрывоупорное колесо/управляющая ячейка/рабочее колесо

Product Overview

Description

High standard shot blast descaling turbine/shot blasting parts/ high quality

The technological strength:
1.The first dedicated shot blasting machine for office building outside wall decoration marble in China;
2.The first dedicated shot blasting machine for aggrandizement floor grinding tool in China;
3.The first dedicated shot blasting machine for high-speed rail,to fill the domestic blank in China;
4.The first dedicated shot blasting machine for crystalline silicon;
5.The first dedicated shot blasting machine for oil field special-purpose cable tray;

Machine Introduction:

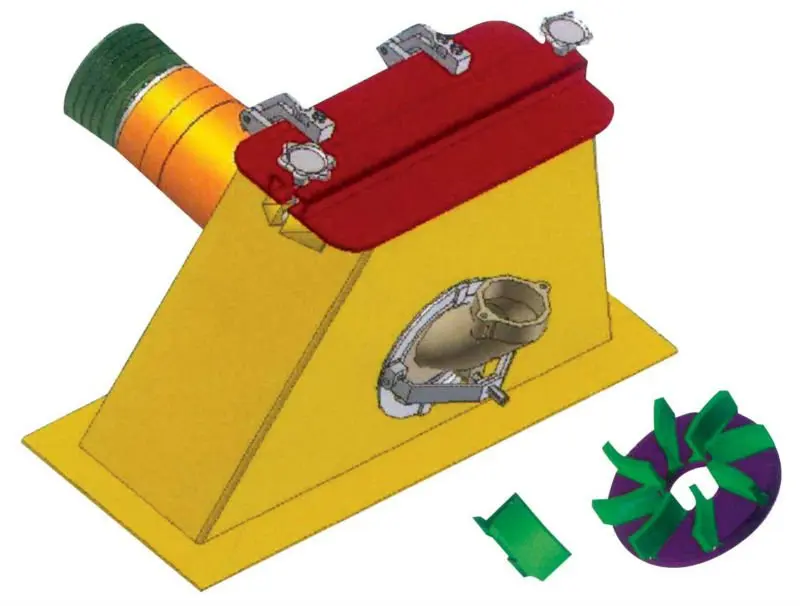

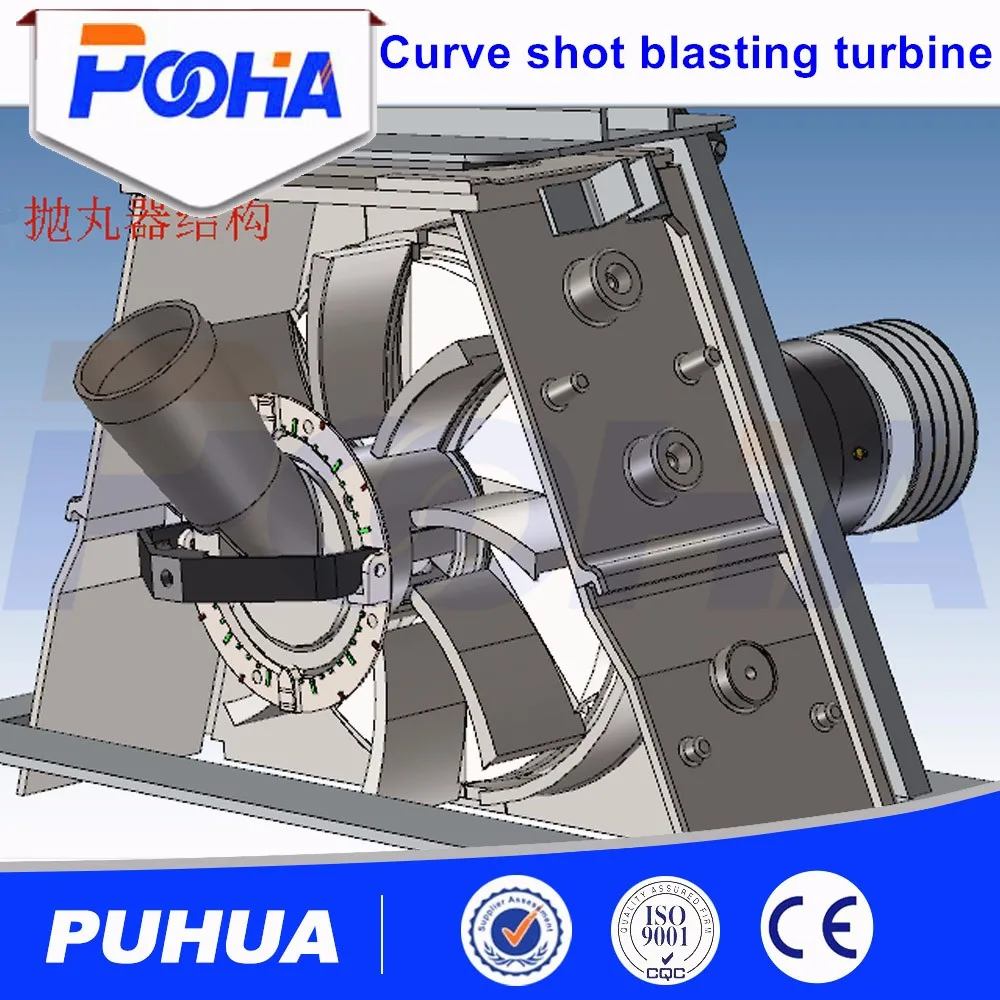

Shot blasting turbine is key composition of shot blasting machine, in accordance with the connection mode, including direct-driven type and belt-driven type;  in accordance with blade shape, including straight blade type and curved blade type.

1. Direct-driven Shot Blasting Turbine:

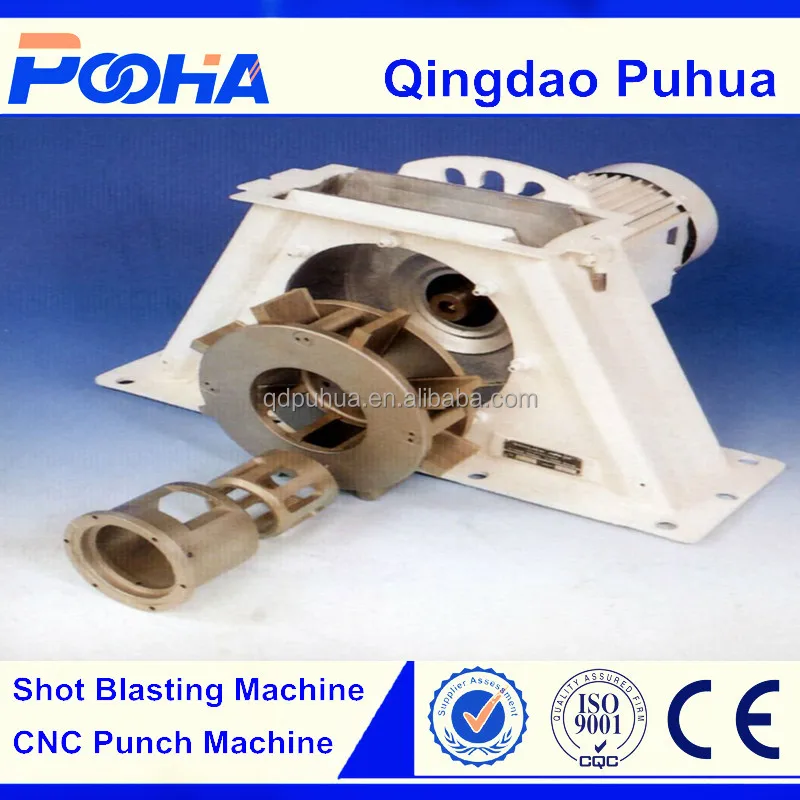

Direct-driven shot blasting turbine is composed of motor, shell, abrasive entrance pipe, guard plate, impeller, distributor and blade, etc. which is characterized by: The outside of the motor spindle is equipped with the motor shaft seat.  One end of the motor shaft seat is fixed with motor, and another end connected with shell. Distributor of shot blasting turbine is directly installed at the top of the motor spindle,  it overcomes the belt shot blasting machine shortcomings,  it's a high-efficient blast wheel, beautiful appearance, compact configuration, low noise, economy and environmental protection. Has the largest power and largest abrasive flow rate. It is widely used in all kinds of shot blasting cleaning machine.

Type	Diameter of impeller (mm)	Rotating speed of impeller (r/min)	Maximun capacity  abrasive flow (kg/min)	Power of motor
ZLQ034	380	2940	120	7.5
SQ033	400	2540	180	11
Q034B	380	2940	250	15

2. Belt-wheel shot blasting turbine:

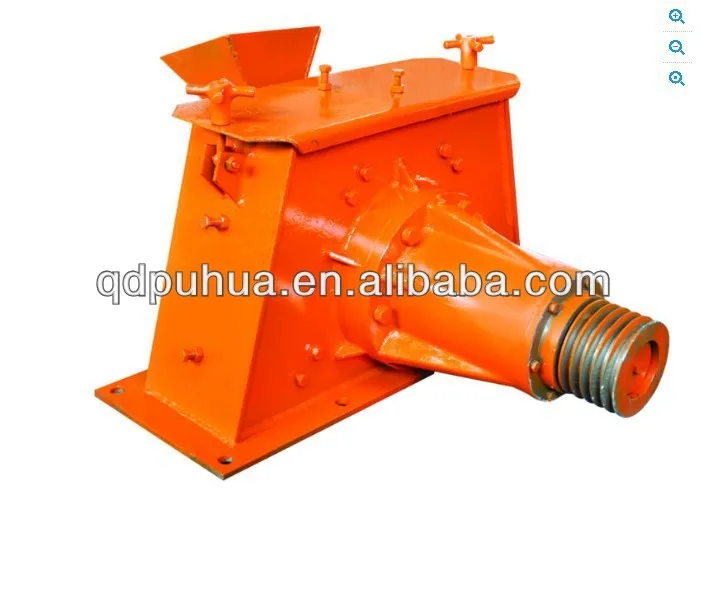

Belt driven blast turbine is conventional, large rate abrasive flow and good cleaning effect, etc. It is need part of the airless shot blast cleaning equipment.

Type	Diameter of impeller (mm)	Rotating speed of  impeller (r/min)	Maximun capacity abrasive  flow (kg/min)	Power of motor
Q034	420	2600	250	15
Q035	500	2250	360	22
Q035G	500	2250	480	30
Q038	500	2370	970	75

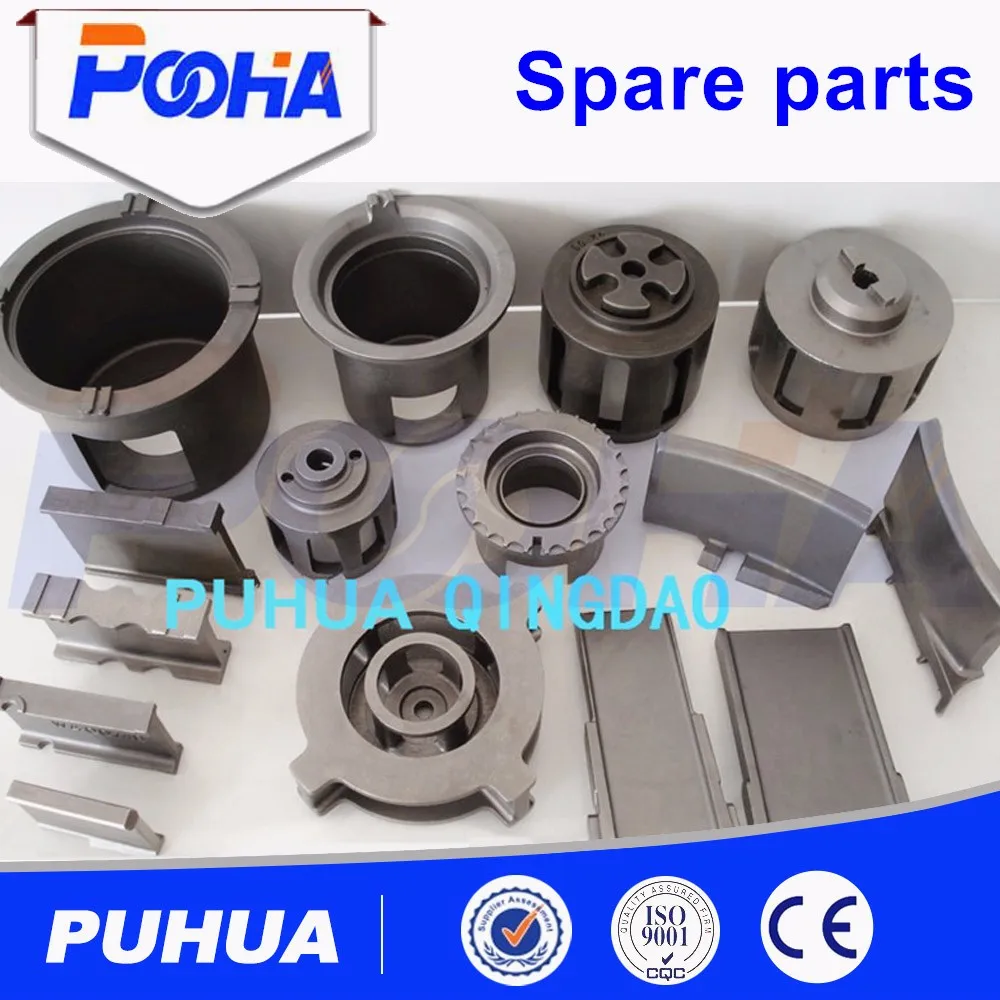

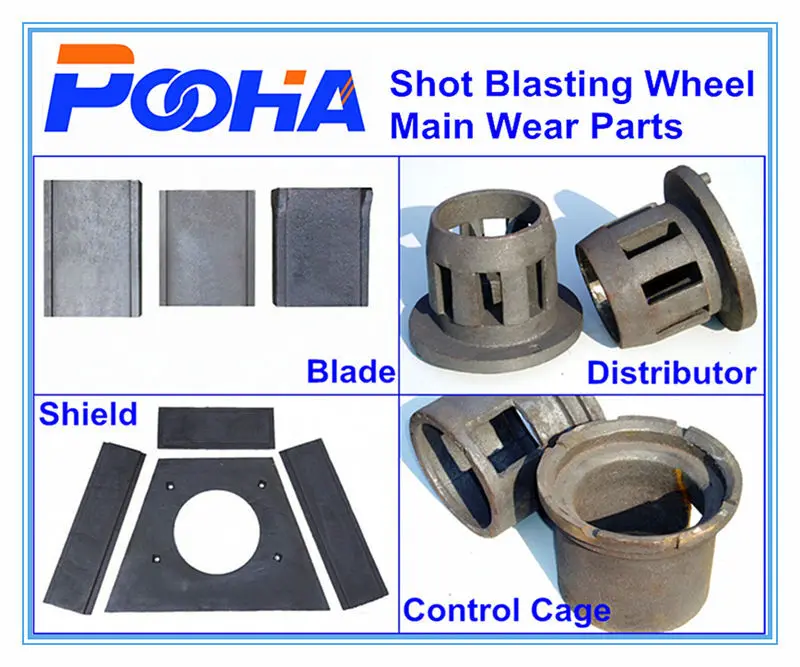

Wear Parts:

Name	Material	Life

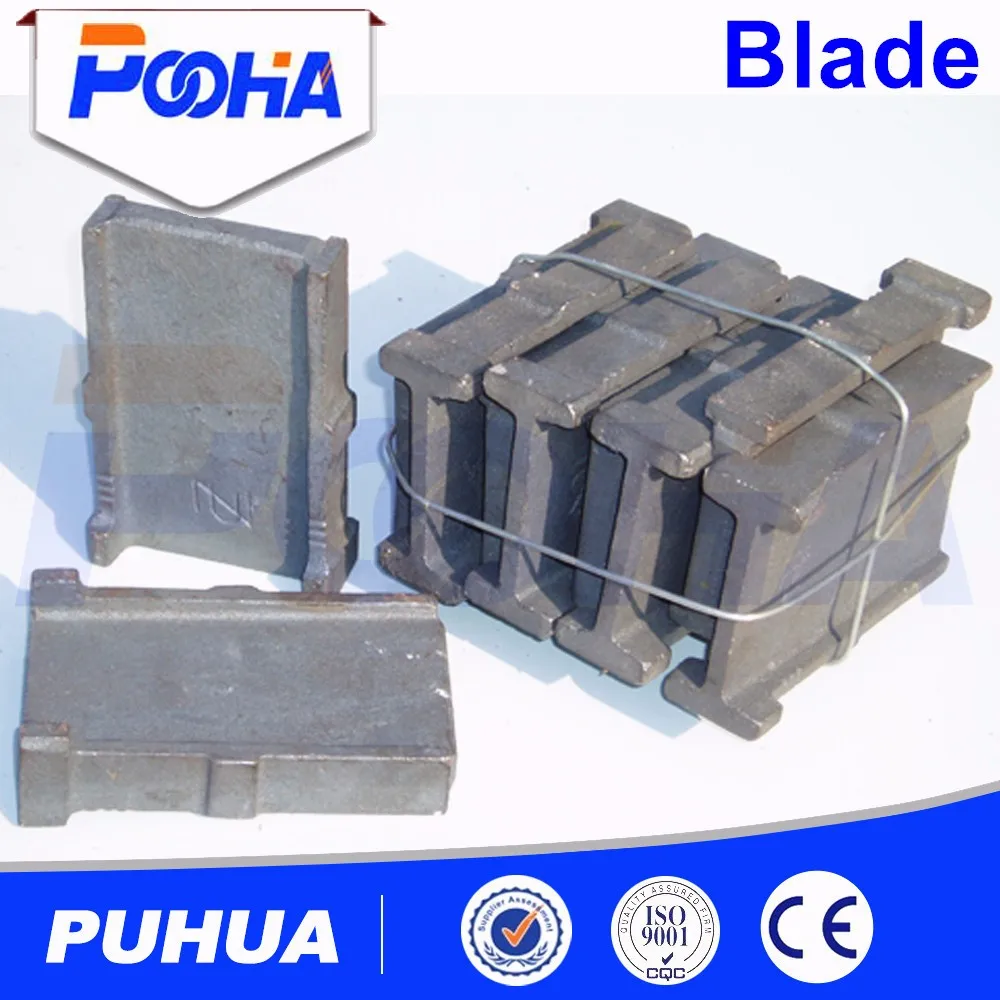

Blades	High chromium   Precision casting	≥800h
Control cage, distributor	High chromium   Precision casting	≥1000h
Protection plate	High chromium	≥1500h
Side plate	High chromium	≥2500h
Impeller	40Crquenching	≥2500h



If you are interested, welcome to  our company.
