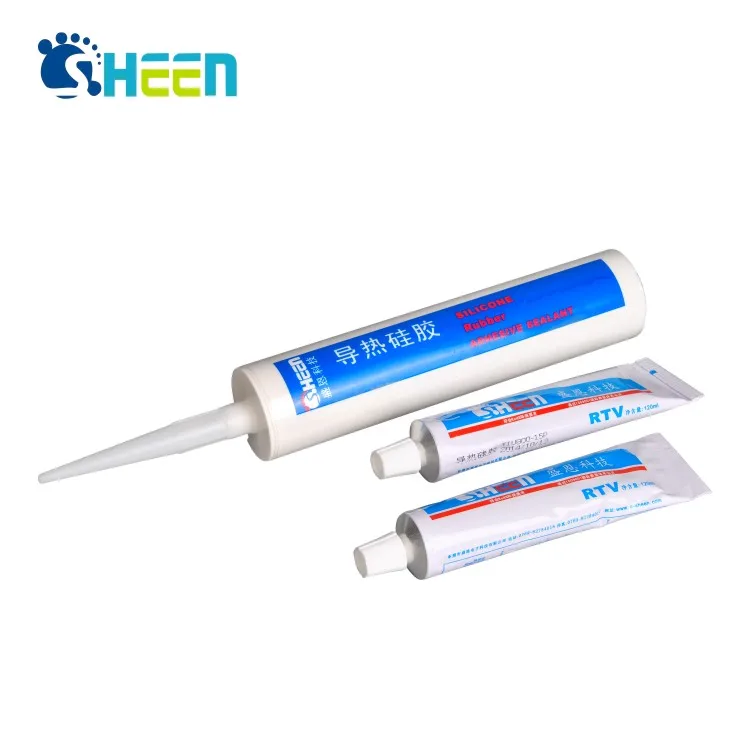

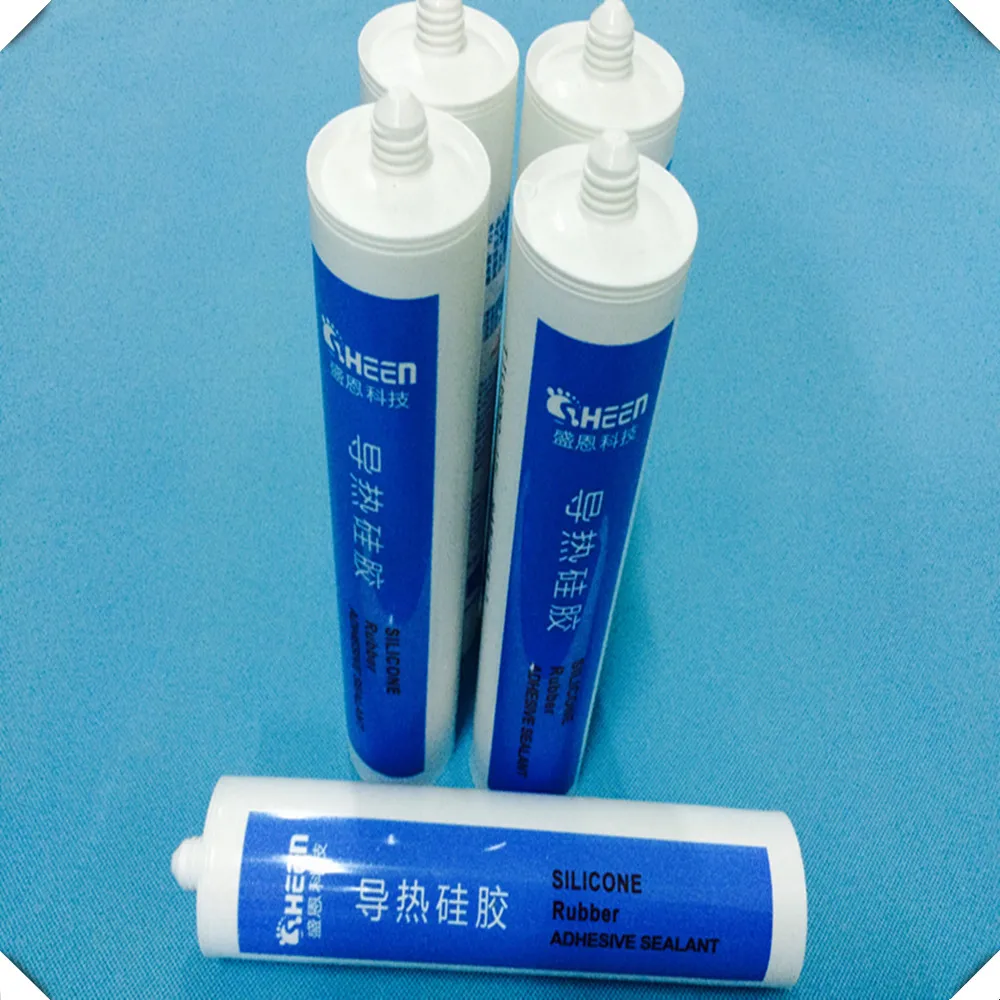

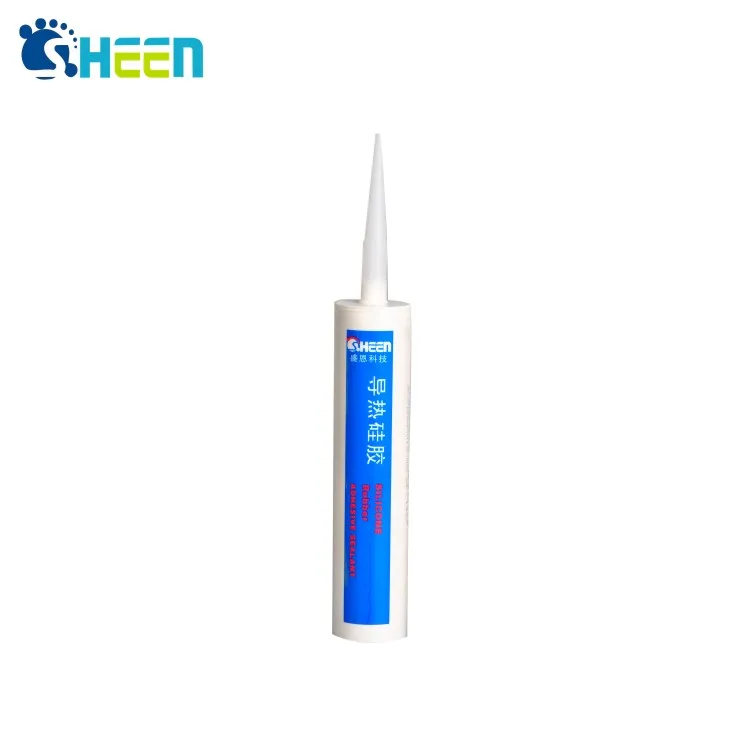

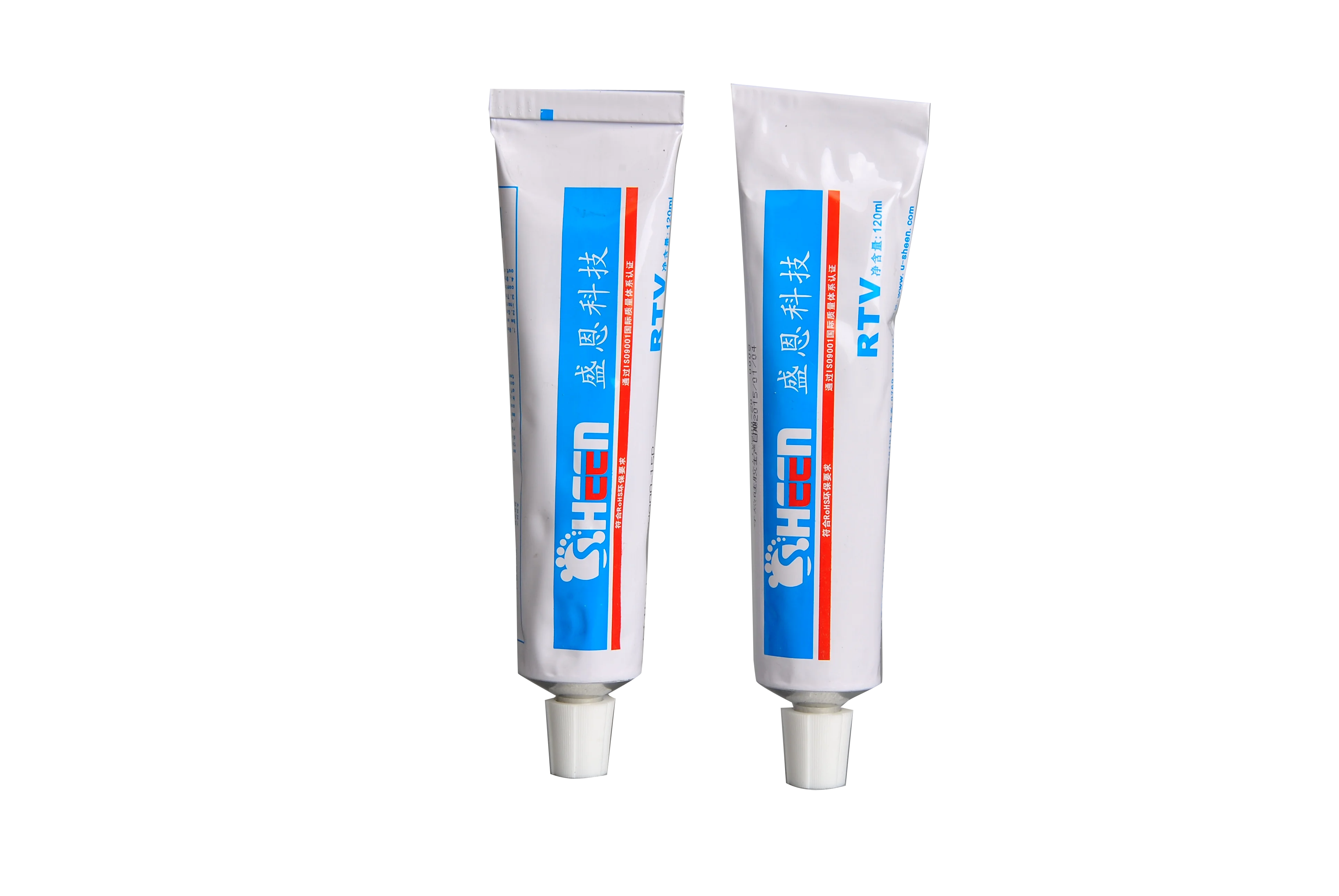

1.0W/mk White TIV800 10 Fast Cured Insulating Thermal Silicone Adhesive Glue
- Category: >>>
- Supplier: Dongguan Sheen Electronic Technology Co. Ltd.
Share on (60739858179):
Product Overview
Description
1.0W/mk White TIV800-10 Fast Cured Insulating Thermal Silicone Adhesive Glue
Recommend Products
TIV series Thermal glue | ||||||||
Sheen glue series | Thermal conductivity | ShoreA hardness | Dielectric Breakdown Voltage | Bond strength(Mpa) | ||||
1.0 W/mK | 40-60 | >5KV/AC/mm | >1.5 | |||||
1.2 W/mK | 40-60 | >5KV/AC/mm | >1.5 | |||||
1.5 W/mK | 40-60 | >5KV/AC/mm | >1.5 | |||||
2.0 W/mK | 40-60 | >5KV/AC/mm | >1.5 | |||||
3.0 W/mK | 40-60 | >5KV/AC/mm | >1.5 | |||||
Product Description
SF500G thermal pad are used for filling the two contact surfaces.They are ultra soft and have good resilience,so effectively exclude air from the contact interface. The products are naturally tacky,can be die-cut into various shapes,easy to operate.The thermal conductivity can reach 3.50w/m-k.
Item | Thermal Silicone Adhesive Glue | ||
Item No. | TIV800-10 | Test Method | |
Color | Semi-flowing White | Visual | |
Specific Gravity (g/cm³) | 2.0-2.4 | ASTM D792 | |
Lap Shear Strength (Mpa) | ≥1.5 | / | |
Thermal Conductivity (W/mk) | 1.0 | ASTM D5470 | |
Harden Conditions | Natural condition (24H) | / | |
Tack Free Time(min) | 5-10min | / | |
Operating Temperature (℃) | -50-200 | / | |
Dielectric Breakdown Voltage | 20KV/M | ASTM D150 | |
Volume resistivity (Ω·cm) | 3.0*10^13 | ASTM D257 | |
Customization Ability
Thermal silicone adhesive glue：1.0~2.0w/mk

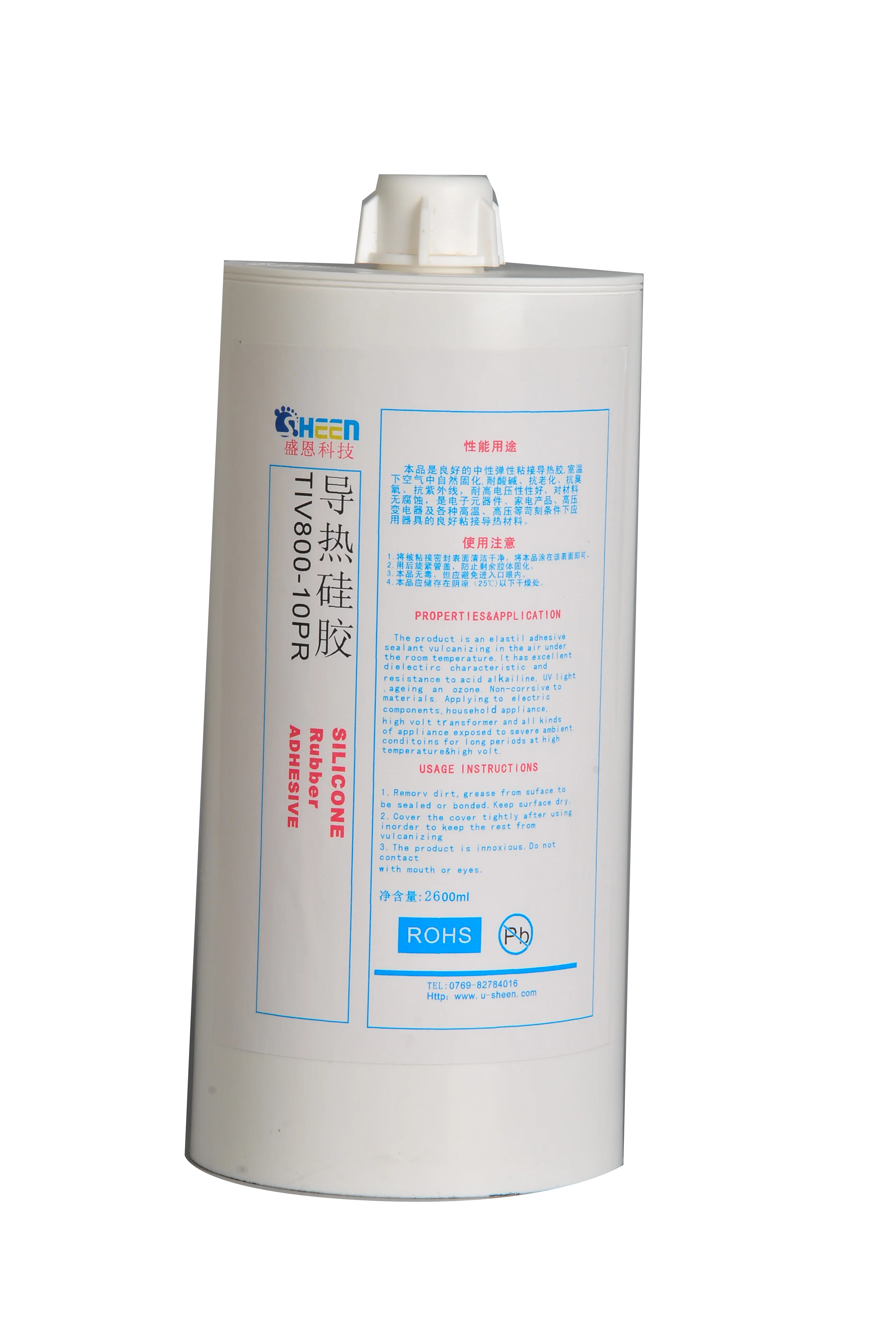

Container Form:120/300/2600ml
Reliability Test
1000 hours cold and hot shock test
1000 hours High temperature and humidity test
1000 hours high temperature aging test
Our products have passed 1000 hours cold and hot shock test,1000 hours double 85 test,1000 hours high temperature aging test,Committed to providing more reliable heat conduction solutions for automobile, communication, security and other industries.
Sertifications
ISO9001:2015
ISO14001:2015
IATF16949:2016
UL
REACH
ROHS

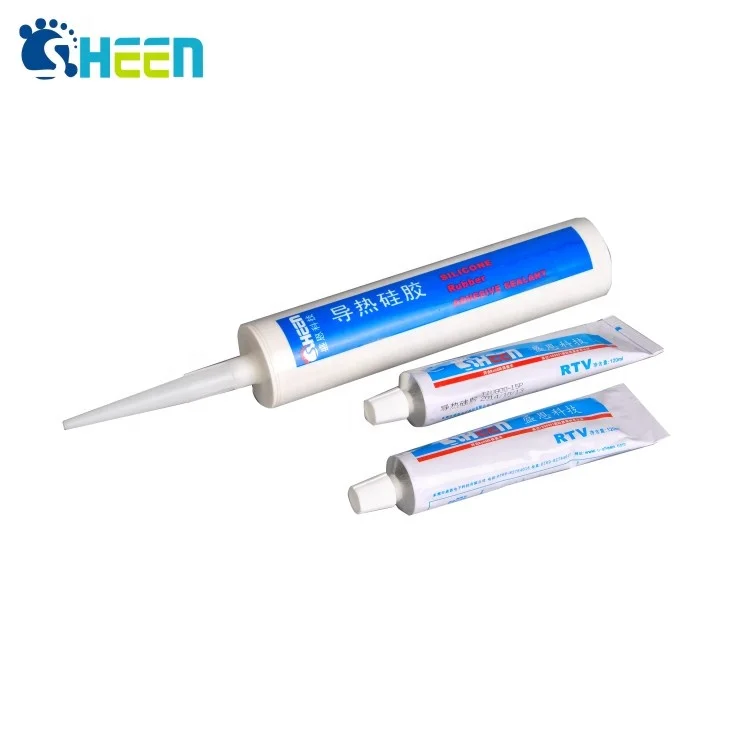

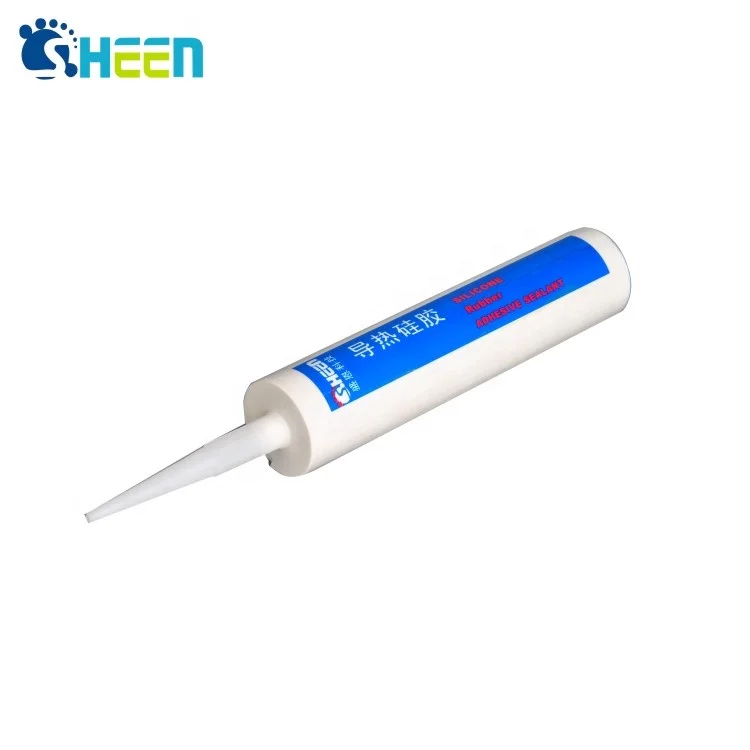

Details Images

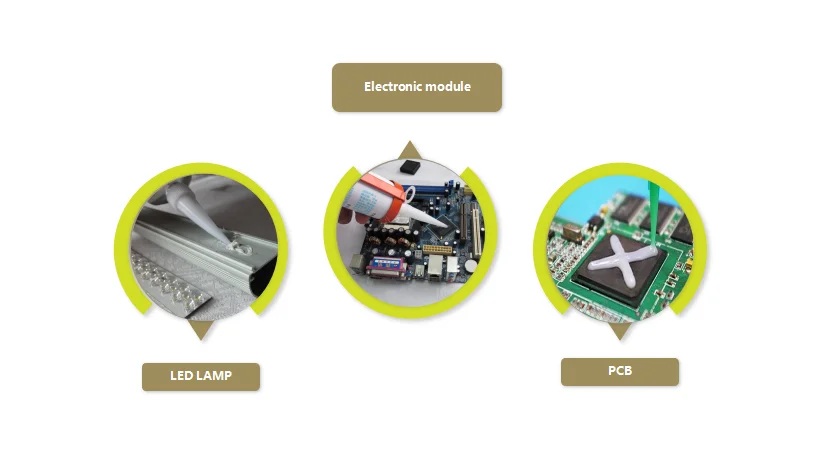

Applications

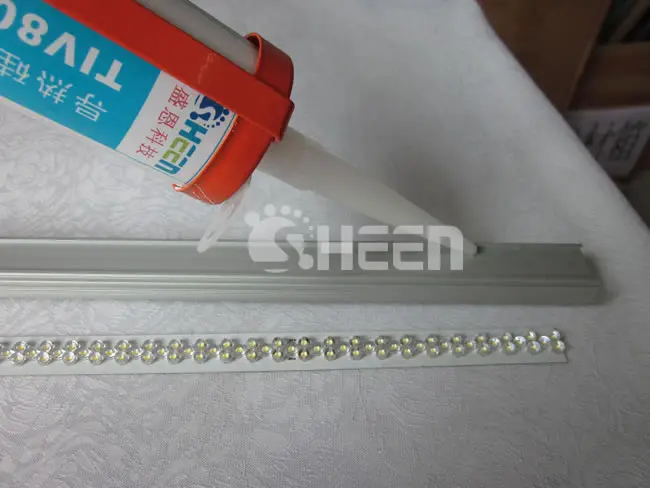

- LED driving power supply to its shell
-Bonding for PCT and heat sink
-CPU cooler
-Household appliances (iron, microwave oven)
-Automotive electronic accessories
-Bonding for PCT and heat sink
-CPU cooler
-Household appliances (iron, microwave oven)
-Automotive electronic accessories
Company Introduction
Dongguan Shengen electronic / Shengyuan New Material Co., Ltd. was founded in 2008. It is a manufacturer specializing in R & D and customization of high reliability thermal conductive materials. We are committed to providing more reliable heat conduction solutions for automobile, communication, security and other industries. The company has a professional R & D team and complete testing equipment. The company's main products are SF thermal conductive silicone sheet, SE thermal conductive gel, SP thermal conductive phase material, AF silicon free thermal pad and SG thermal conductive paste. At present, it has become the main supplier of many well-known manufacturers at home and abroad. The company has obtained iatf16949:2016, iso14001:2015, iso9001:2015 system certification and the title of national high-tech enterprise.
Contact Us
Tel | +86-769-22479425 | Address | 6th Floor, Building M, Jinxiongda Science and Technology Park, Datanglang Villiage, Dalingshan Town, Dongguan City, Guangdong Province, China |
Fax | +86-769-82784017 | ||
Web | //sheen.en.alibaba.com/ //www.usheenthermal.com/ | E-Mail Address | tina@u-sheen.com |
FAQ
1. What are your main products?
We supply thermally conductive pad, thermally silicone RTV, thermally conductive silicone pug, thermally double component
silicone, thermally conductive materials, phase change thermal interface materials, thermally conductive insulators and thermal
grease. Samples of silicone thermally conductive sheet are available, but the freights need to be paid by the buyers.
2. What about the product quality and which certificate do you have?
We have UL certificate,IATF16949,ISO9001,ISO14001 and ROHS certificate.
3. How long does it take to deliver after order?
For small quantity, we arrange delivery within one week normally while for big quantity, we will arrange delivery as soon as
possible according to actual situation and customer's requirements.
4. What about your after-sale service?
We fully guarantee our product quality and will provide free technical guidance on operations.
We supply thermally conductive pad, thermally silicone RTV, thermally conductive silicone pug, thermally double component
silicone, thermally conductive materials, phase change thermal interface materials, thermally conductive insulators and thermal
grease. Samples of silicone thermally conductive sheet are available, but the freights need to be paid by the buyers.
2. What about the product quality and which certificate do you have?
We have UL certificate,IATF16949,ISO9001,ISO14001 and ROHS certificate.
3. How long does it take to deliver after order?
For small quantity, we arrange delivery within one week normally while for big quantity, we will arrange delivery as soon as
possible according to actual situation and customer's requirements.
4. What about your after-sale service?
We fully guarantee our product quality and will provide free technical guidance on operations.
