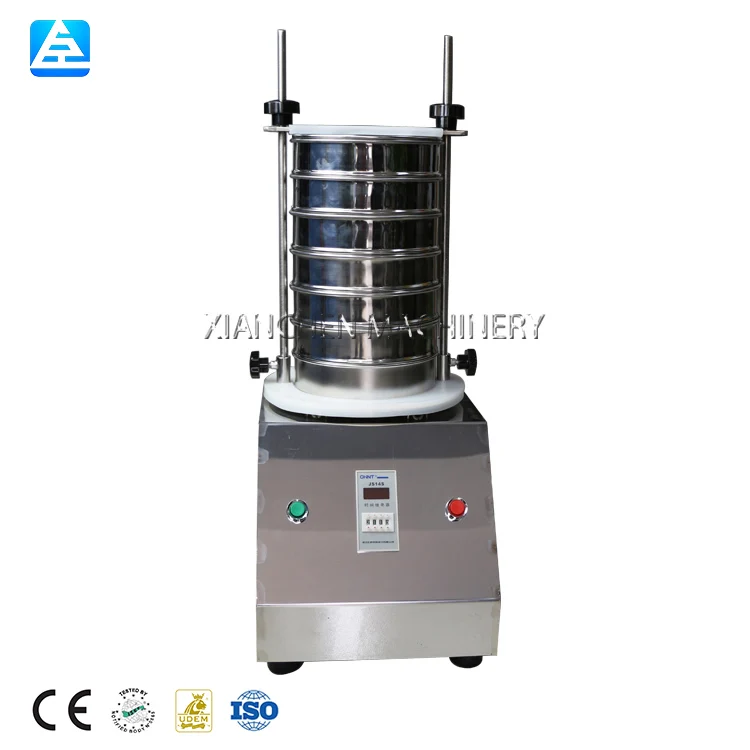

Standard test sieve type lab vibrator seive shaker

Product Overview

Description

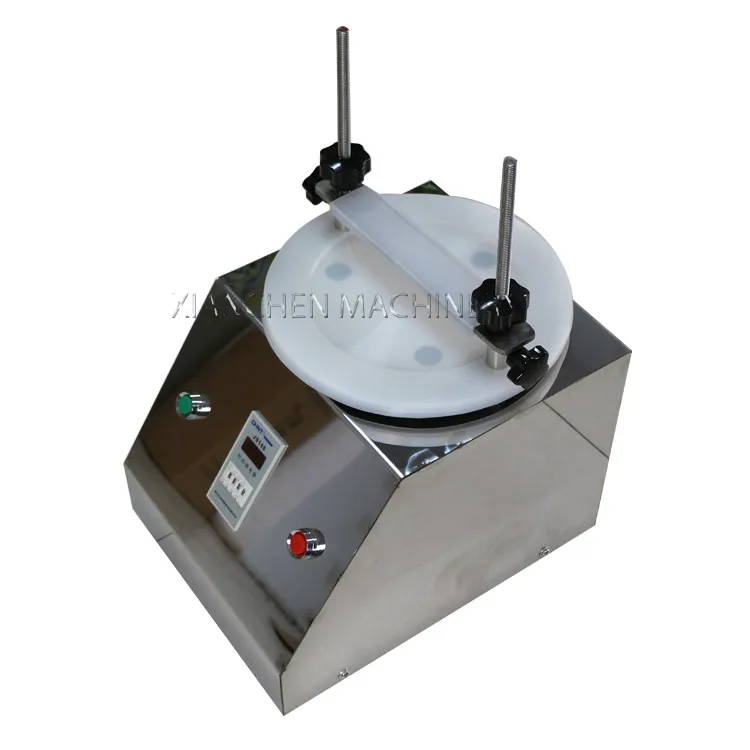

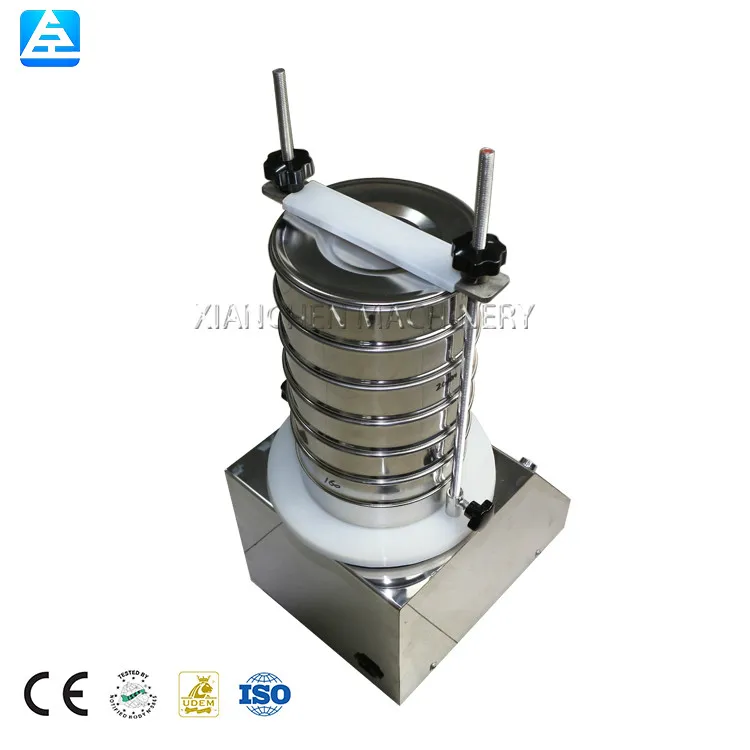

Standard test sieve type lab vibrator seive shaker











Product description

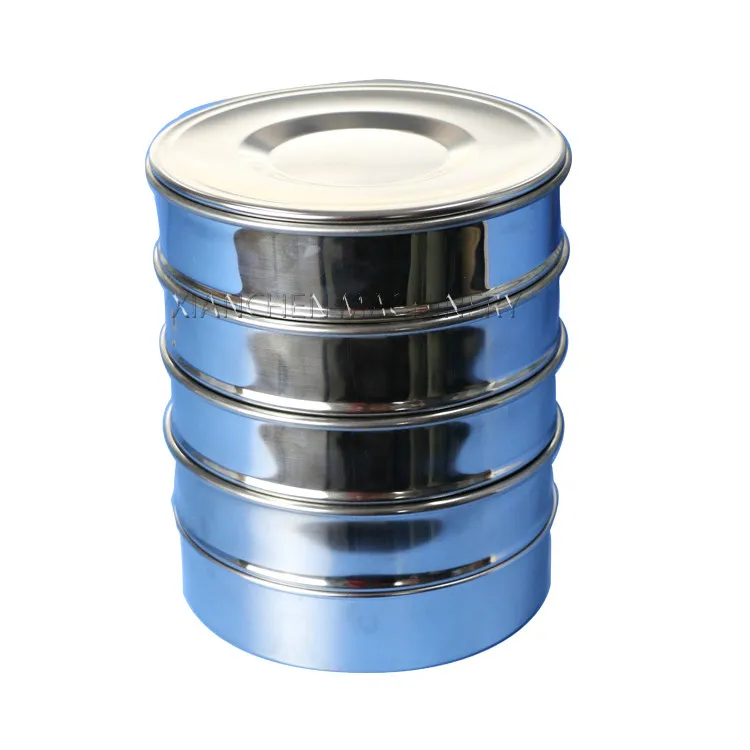

Standard test sieve type lab vibrator seive shaker, experimental screen, national standard sieve, inspection sieve, analysis sieve and sample sieve designed specially for laboratory, can be used with 200 experimental screen frame, which are essential products for particle size analysis and detection of scientific research. They adopt 304 stainless steel and mechanical polishing process, with the design of heat radiating port for electric motor and digital display timer, reliable data, easy to operate.















Order number	Name		Unit	Data
1	Standard sieve		Layer	1-8
2	Sieve diameter		Mm	φ200φ100φ75
3	Sieve size		mm	0.038-3
4	Noise		dB	≤50
5	Material capacity(once)		g	≤200
6	Amplitude		mm	≤5
7	Electric motor	Voltage	v	220
		Rotation speed	r/min	1440
		Power	KW	0.125
8	External dimensions		mm	360×300×376
9	Weight		kg	36

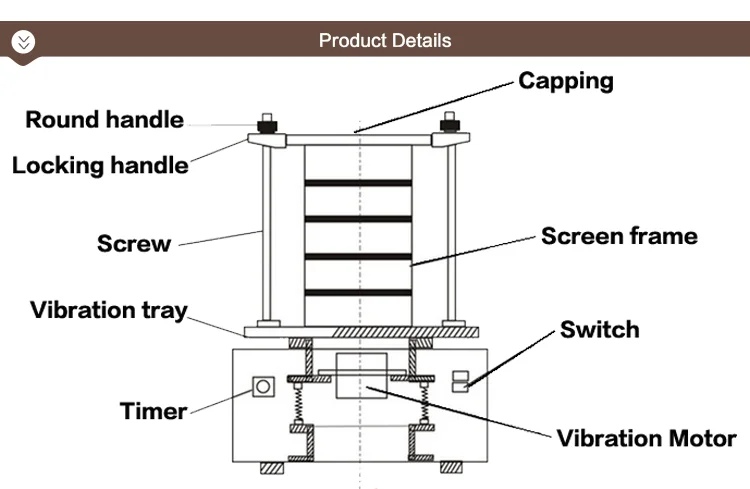

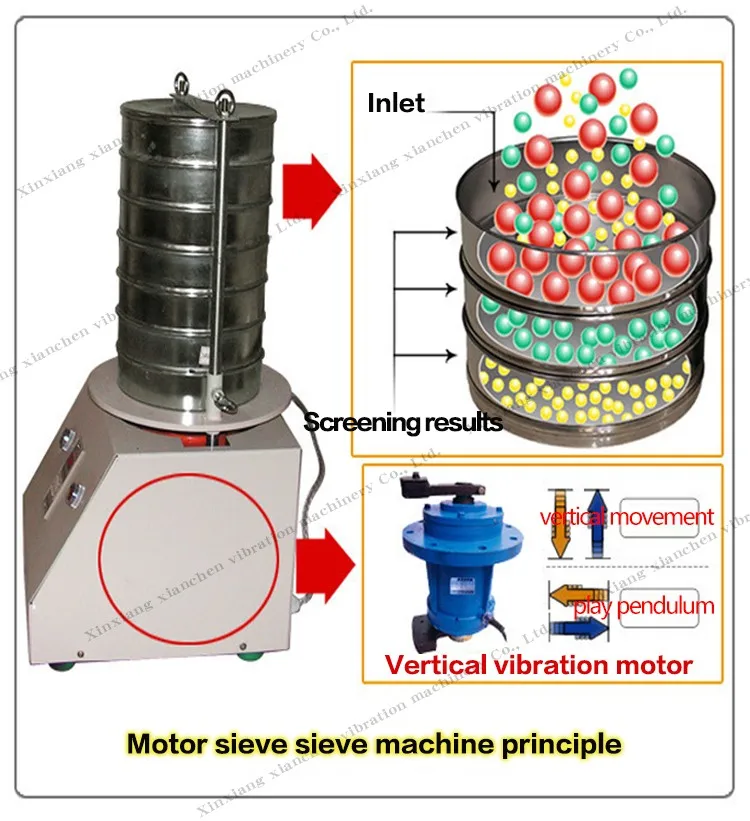

Working Principle













Characteristics and advantages







1> new type of special power generator to produce multivariate and high frequency vibration to screen samples with high efficiency

2> standard sieve, to ensure the accuracy of sample analysis

3> electronic delay device, to set equivalent screening time among the same material to ensure the uniformity of the sample analysis

4> reduce the experimental error to the minimum, and then to make an accurate judgment of the quality of the product













Our services







1 .Design as your request
2.Any problems, please feel free to tell us
3.We will offer you the perfect design with competitive price
4. Provide technical support unconditionally.

5. Providing solutions according to the real situation.









FAQ



1.How about the quality of your product?

a.Our products manufactured strictly according to national and international standard.

b. We take a test on every product before delivery.

Note: You had better send us the pictures you have ever used.

2.How about price of this product?

a. We can give the lowest price than market one.

b. We do quotation as soon as possible for any customer.

c. Discount can be given according to quantity.
