Newest advanced animal feed pelletizer plant , Feed Pressing Machines, animal fodder pelleting machine

Product Overview

Description

Manufactory offer complete auto batching and auto packing: chicken feed pellet production line, cattle feed pellet line, fish feed pellet production line,animal feed production line, poultry feed pellet line, livestock feed pellet line with 20years experience.

Main feed pellet mill: SZLH250,SZLH320,SZLH400,SZLH420,SZLH508,SZLH678,SZLH768,SZLH1068.

Main motors: SIEMENS,  Main bearings: NSK/SKF

Warranty: 3years

After sale service: Engineers' 7X24hours on-line after sale service.

Including:

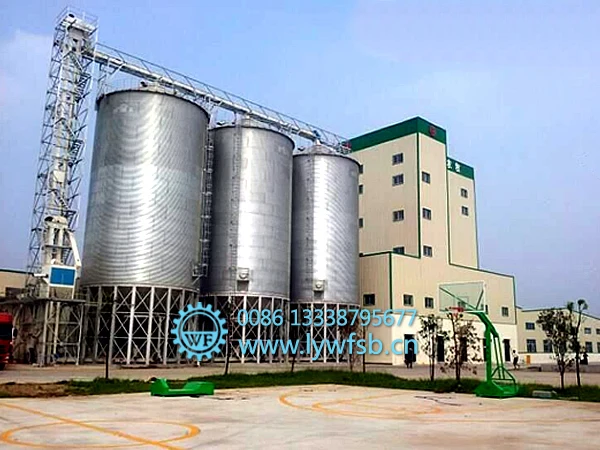

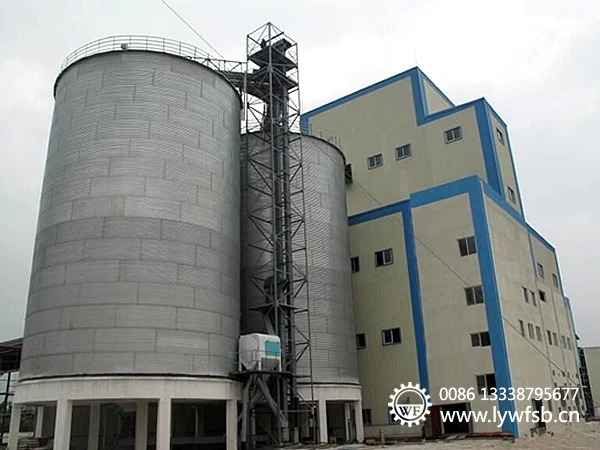

1. Steel silos: capacity: 100T-10000T hot galvanizing steel silos

.

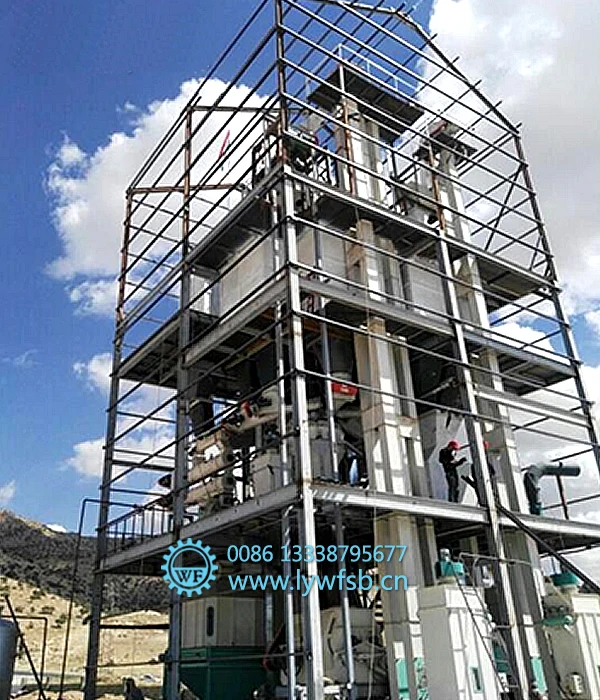

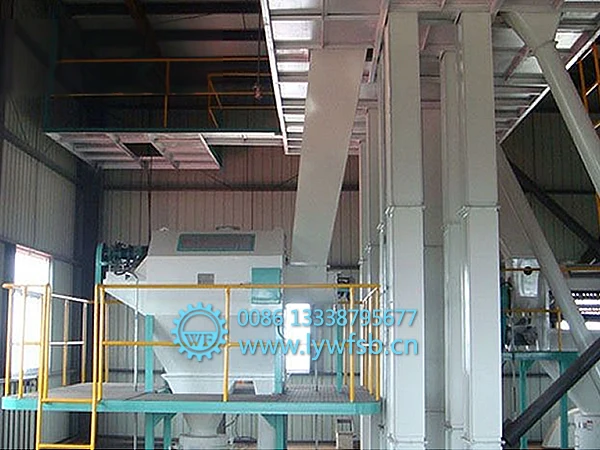

2. Complete feed pellet lines: raw material receiving process&pre-cleaning process--grinding process----auto batching&mixing process----pelleting process----cooling&sifting process----packing process.

2.1. Raw material receiving&pre-cleaning process: SCY Precleaning Machine, Preclenaer, Sieve Machine, Precleaning Machine.

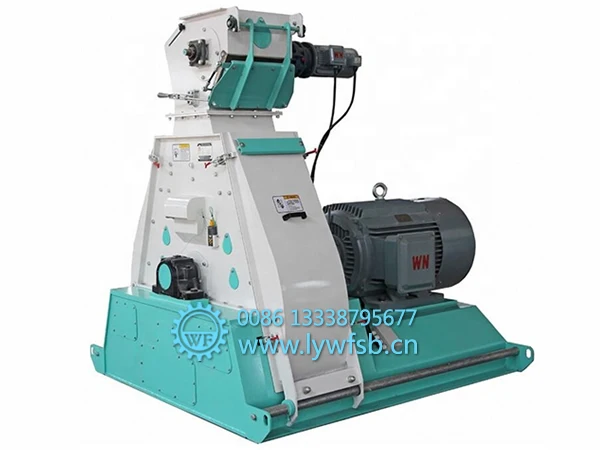

2.2 Grinding process: SFSP Series Grain Hammer Mill/Poultry Feed Hammer Mill

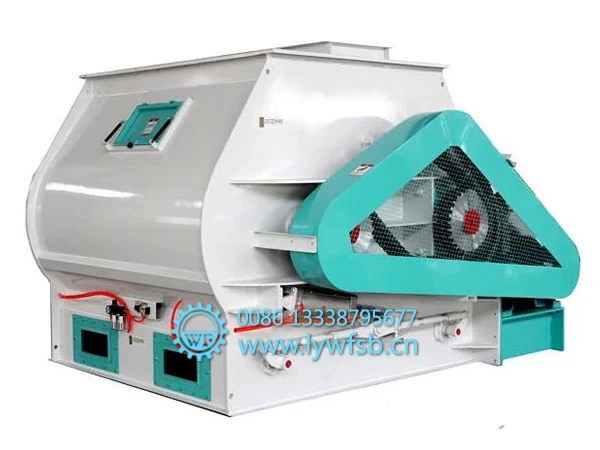

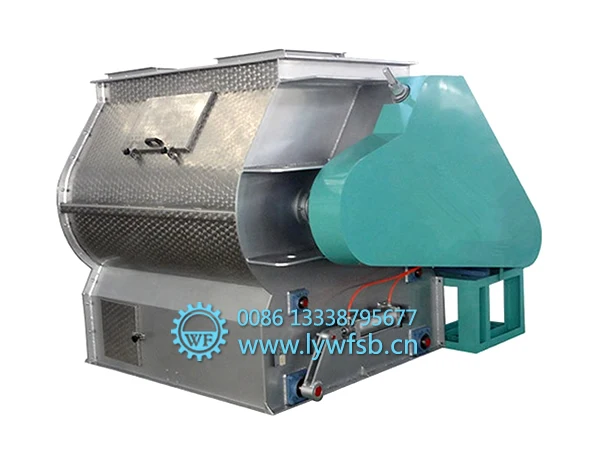

2.3. Auto Batching&mixing process: CE SSHJ Series Double-shaft Paddle Mixer

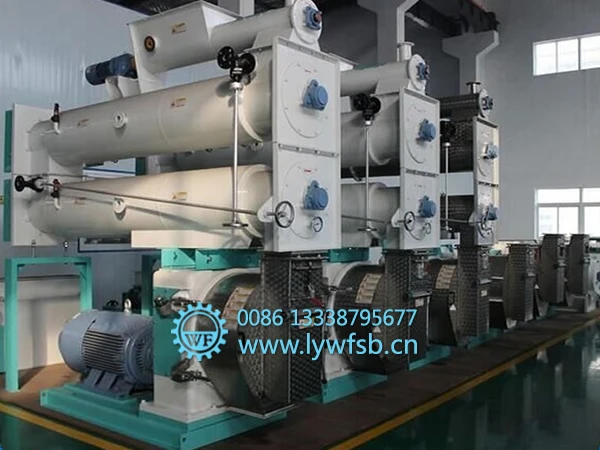

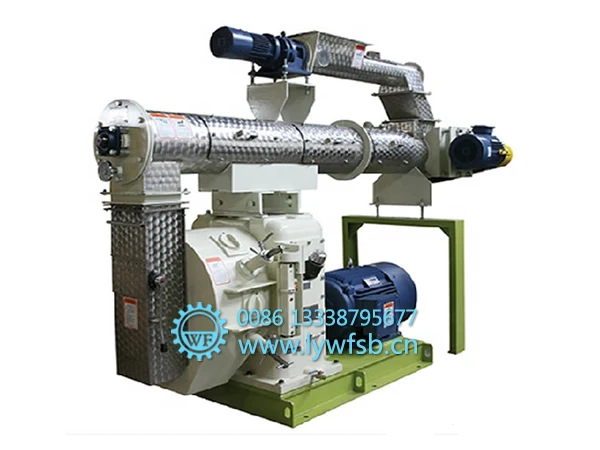

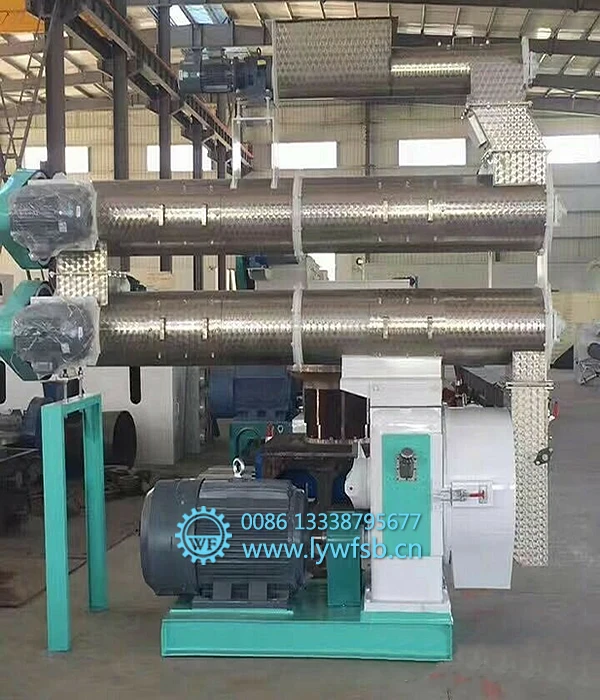

2.4.Pelleting process: SZLH feed pellet mill/feed pellet making machine/feed machinery

2.5. Cooling&crushing process:

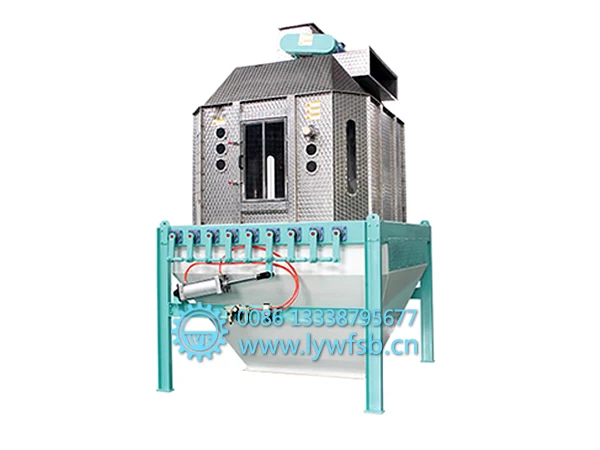

2.5.1.SKLN Series Counter Flow Cooler

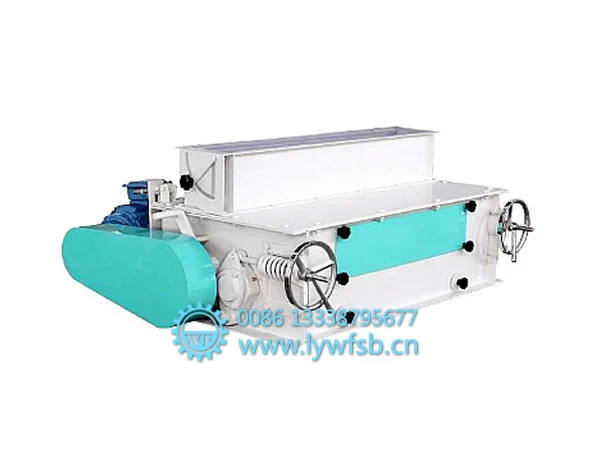

2.5.2.SSLG Crumbler machine, crusher machine

SSLG series two roller/three roller feed pellet crumbler

Advantage:

1, Double-roller structure, low noise, high efficiency, cover asmall area, drive mechanism is advanced,

with the installation of side stream, and with sample application scope is small.

2, International advanced type, three roller structure;

3, Broken product more uniform, uniform feeding roller separate frequency conversion control,

frequency conversion control, feed evenly;

4, Roller diameter is big, the effect is better,  and the capacity is big.

5, A special design of sampling hole can be adjusted timely to observe. Uniform is convenient, fast,

reliable and can be double stacked, continuous broken, reduce particles manufacture cost.

6, Prawn bait special crusher, special tooth profile, the effect is good, three roller structure;

7, Uniform feeding roller separate frequency conversion control, frequency conversion control, feed evenly;

8, Roller diameter is big, the effect is better,  and the capacity is big.A special design of sampling hole can

be adjusted timely to observe. Uniform is convenient, fast, reliable;

9, International advanced type, strong adaptability, applicable ornamental fish shrimp bait and various seedlings shrimp.

 Technical paremeters:

Model	Power (KW)	Capacity (T/H)	Slow roller speed (RPM)	Fast roller speed(RPM)	Weight (KG)
SSLG15×80×2	4	2-4	476	725	412
SSLG15×100×2	5.5	3-6	476	725	580
SSLG15×150×2	7.5/11	5-12	476	725	700
SSLG25×100×3	7.5+1.1	6-8	360	470	900
SSLG25×140×3	11+1.1	8-15	360	470	1660
SSLG25×170×3	18.5+1.1	15-20	360	470	1770
SSLG30×180×3	22+2.2	20-25	315	470	210

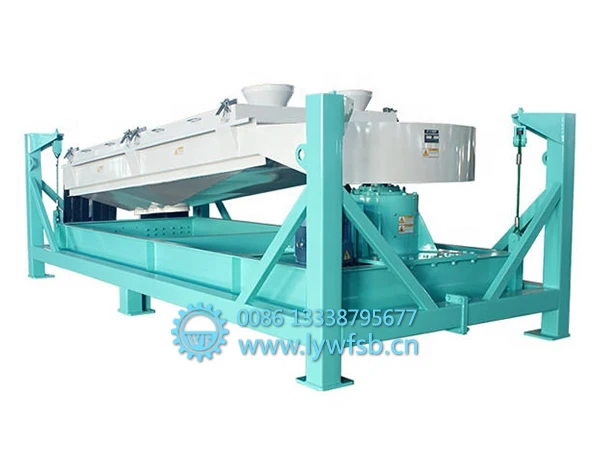

2.6. Screening&packing process: SFJH series poultry/livestock/aquatic feed pellets rotary screener

Advantage:

1. Three moving modes i.e. circumferential, elliptical and rectilinear are combined, resulting in good screening

effect;
2. Belt is adopted for driving the screener hull. The bias weights are balanced and low noise. The support at the

tail of screener hull is an improved elastic support with less vibration;
3. The strengthened base ensures that equipment will run more smoothly. And the hanging structure can be used

according to the actual site conditions so as to meet customer’s requirements of retrofit;
4. The improved steel cable structure avoids the wearing of steel cable;
5. The adoption of one body or combined screener cover structure guarantees lower screener covers weight,

stronger rigidity and better sealing;
6. It is applicable for screening and classifying of mash or pellet feed. It is also can be used for cleaning of raw

materials and classifying of semi finished products after second grinding by large and medium feed mills.

Technical Parameters:

Model	Power (KW)	Capacity		Quantity of deck
		Mash feed	Pellet feed
SFJH80X2C	1.5	4-5	5-6	2
SFJH80X3C	1.5	4-5	5-6	3
SFJH110X2C	2.2	6-7	8-10	2
SFJH110X3C	2.2	6-7	8-10	3
SFJH130X2C	3	8-10	10-12	2
SFJH130X3C	3	8-10	10-12	3
SFJH140X2C	4	10-12	14-16	2
SFJH140X3C	4	10-12	14-16	3
SFJH150X2C	5.5	15-18	20-23	2
SFJH150X3C	5.5	15-18	20-23	3

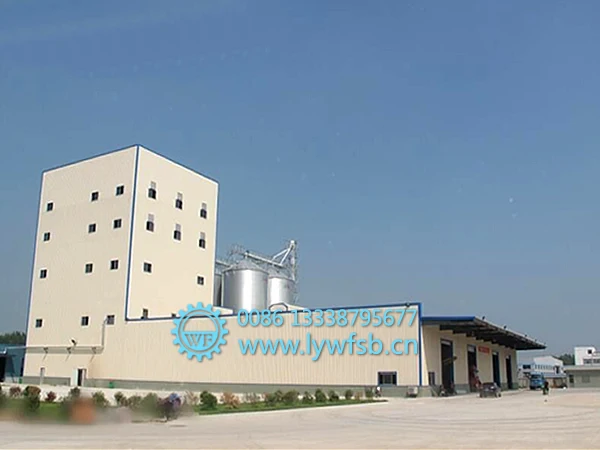

3. Steel structure building: raw material warehouse+ workshop+ finished pellets warehouse.

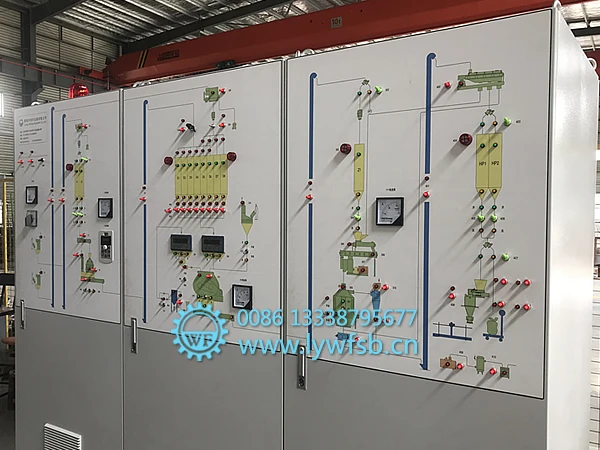

4. The auxiliary part: on site material, electrical control system, boiler system, air compressor system and so on.
